【已解决】Android代码调试没有进入预期的断点却进入DexFile.class Class File Editor Source not found

【背景】

调试Android程序期间,点击某个子页面“校园超市”:

android app click into sub page school nearby

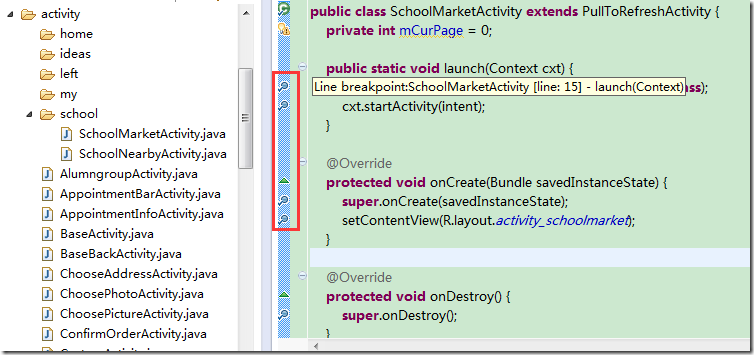

结果没有按照预期的进入设置好的断点:

not go into expected breakpoints in launch func

结果却进入了如下界面:

DexFile.class

Class File Editor

Source not found

如图:

debug show DexFile.class Class File Editor Source not found

去看调试堆栈信息显示是:

<terminated>xxx[Android Application]
<disconnected>DalvikVM[localhost:8600]
xxx [Android Application]
DalvikVM[localhost:8601]
Thread [<1> main] (Class load: SchoolMarketActivity)
<VM does not provide monitor information>
DexFile.defineClassNative(String, ClassLoader, int) line: not available [native method]
DexFile.defineClass(String, ClassLoader, int, List) line: 226
DexFile.loadClassBinaryName(String, ClassLoader, List) line: 219
DexPathList.findClass(String, List) line: 322
PathClassLoader(BaseDexClassLoader).findClass(String) line: 54
PathClassLoader(ClassLoader).loadClass(String, boolean) line: 497
PathClassLoader(ClassLoader).loadClass(String) line: 457
SchoolFragment.onClick(View) line: 138
RelativeLayout(View).performClick() line: 4446
View$PerformClick.run() line: 18480
Handler.handleCallback(Message) line: 733
ViewRootImpl$ViewRootHandler(Handler).dispatchMessage(Message) line: 95
Looper.loop() line: 136
ActivityThread.main(String[]) line: 5314
Method.invokeNative(Object, Object[], Class, Class[], Class, int, boolean) line: not available [native method]
Method.invoke(Object, Object...) line: 515
ZygoteInit$MethodAndArgsCaller.run() line: 864
ZygoteInit.main(String[]) line: 680
NativeStart.main(String[]) line: not available [native method]
Thread [<10> Binder_2] (Running)
Thread [<9> Binder_1] (Running)
Daemon Thread [<11> RefQueueWorker@org.apache.http.impl.conn.tsccm.ConnPoolByRoute@43dd4ad8] (Running)
Thread [<12> PriorityExecutor #1] (Running)
Thread [<13> uil-pool-d-3-thread-1] (Running)
Thread [<14> uil-pool-2-thread-1] (Running)
Thread [<15> uil-pool-d-3-thread-2] (Running)
Thread [<16> uil-pool-2-thread-2] (Running)
Thread [<18> WifiManager] (Running)
Thread [<19> PriorityExecutor #2] (Running)
Thread [<21> PriorityExecutor #3] (Running)
Thread [<22> pool-3-thread-1] (Running)
Thread [<20> uil-pool-2-thread-3] (Running)
Thread [<23> Binder_3] (Running)
Daemon Thread [<17> RefQueueWorker@org.apache.http.impl.conn.tsccm.ConnPoolByRoute@43dabc88] (Running)
Thread [<24> FinalHttp #1] (Running)

【解决过程】

1.搜:

android debug DexFile.class Class File Editor Source not found

android debug DexFile.class

参考:

android – Eclipse debugger stops by itself without any throwable – Stack Overflow

和这个比较像。没有任何可抛出的异常,结果自己却停止调试了。

java – DexFile.class error in eclipse – Stack Overflow

Android Eclipse failing to debug – Stack Overflow

先去看看所有的断点:

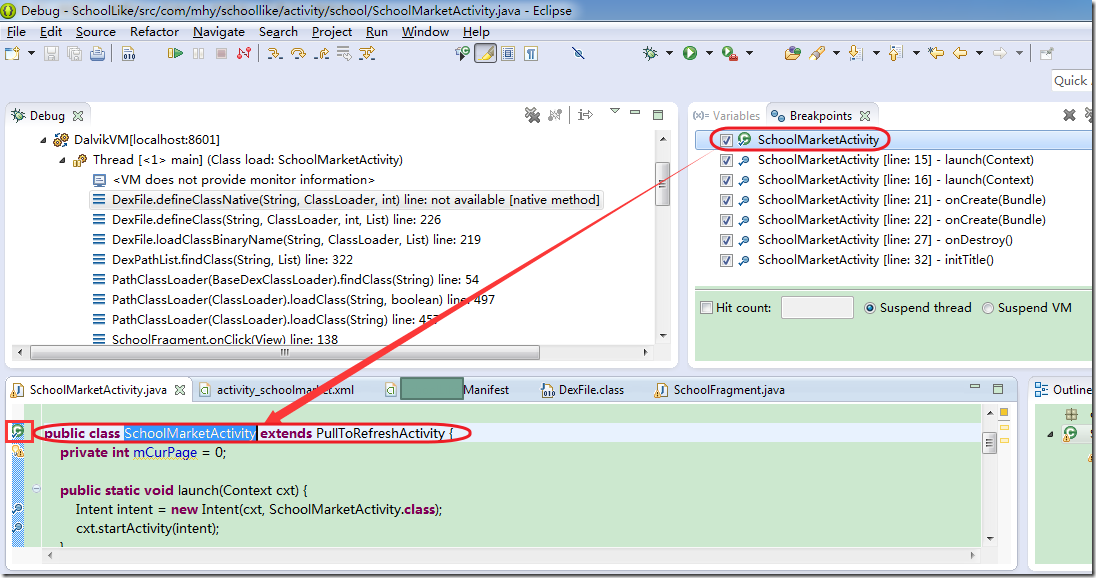

发现第一个断点,双击后,就跳转到某个类SchoolMarketActivity的初始化部分了:

show all breakpoints click first jump to public class line

估计就是此条断点,导致与调试程序的时候,系统无法找到SchoolMarketActivity的内部(的android的系统的)初始化的代码,所以才停止掉的。

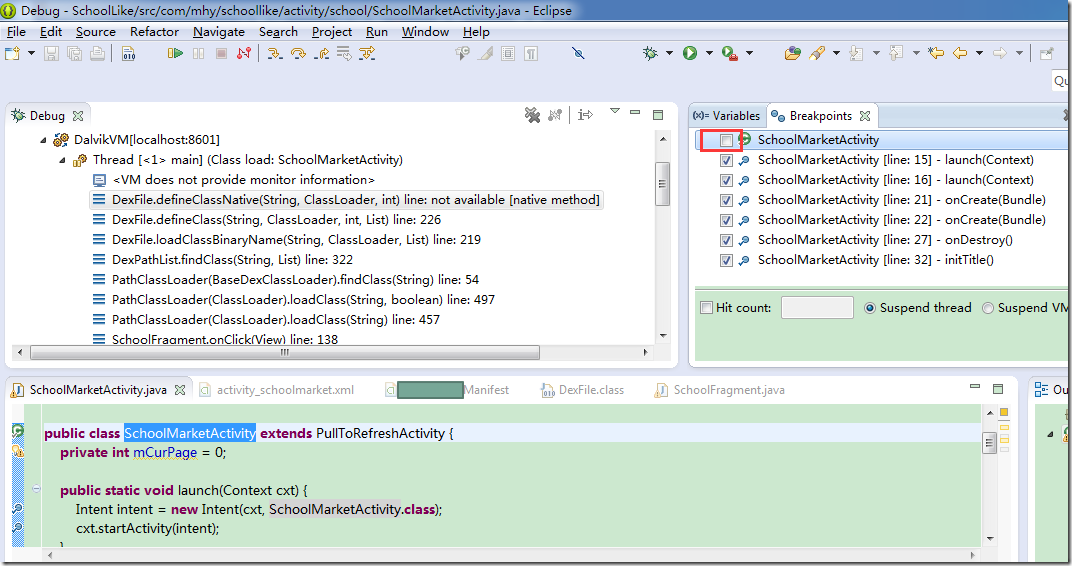

2.现在去去掉该断点:

disable the first breakpoint for public class line

然后再重新调试:

果然正常了:

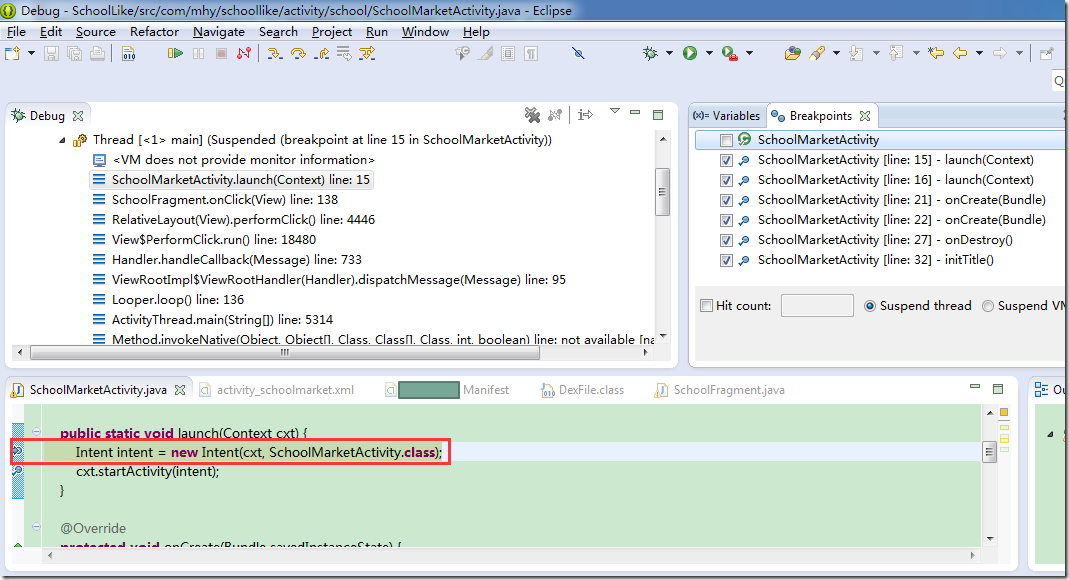

直接进入,该类的内部的代码中的,第一个断点了:

run into normal code line with breakpoint background

就没有再显示那个:

DexFile.class Class File Editor Source not found

的事情。

【总结】

当调试android的代码时,出现:

DexFile.class

Class File Editor

Source not found

的时候,是:

由于之前对于某个类,此处是SchoolMarketActivity的定义的第一行,类似于:

public class SchoolMarketActivity extends PullToRefreshActivity {

的地方,加了断点,导致Android在调试期间,尝试去找到对应的类的内部的初始化的代码,

但是找不到,所以才显示上面的Source not found。

解决办法很简单:

把上述的那行的断点去掉。

而想要看到对应的断点,可以通过:

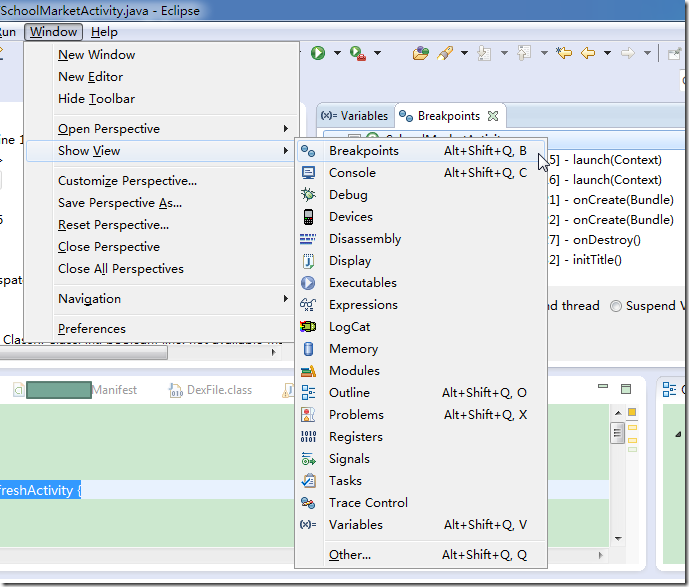

Eclipse->Window->Show View->(Other->Debug->)Breakpoints

windows show view breakpoints alt shift q b

即可看到对应的断点。

找到对应的断点,取消选择,即可。

重新调试,就不会再进入那个DexFile.class的Source not found了,就可以进入正常代码的断点中了。
