【基本解决】Android中动态创建Label和Value的控件组合

【背景】

折腾:

【记录】Android中在Tab页面的Group中显示各种类型的控件

期间,需要去动态在TAB页面内的Group内,

动态的创建一个个label:value的形式的组合。

并且最好在最开始再加上一个status的图标的前缀:

[status]label: value



【折腾过程】

1.后来看到这个:

Android textview usage as label and value – Stack Overflow

这个很像我需要的:

android icon label and value group

只是不需要其中的竖杠。

而帖子中是通过静态的xml去实现的,但是我希望是动态创建的。

先去参考试试,看看静态的能否创建出来所需要的效果,如果可以,再考虑改为动态创建。

2.算了,还是自己代码中,随便去试试吧。。

截止目前,还是没有实现出所需要的效果,只是凑合的使用这样的代码,加上自己随便弄点数据:

(1)/res/drawable/group_background.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle" >
<!--
	<solid android:color="#b4000000" />
    <padding android:left="7.0dip"
        android:top="7.0dip"
        android:right="7.0dip"
        android:bottom="7.0dip" />
    <corners android:radius="8dp" />

    <gradient
        android:startColor="#FFFF0000"
        android:endColor="#80FF00FF"
        android:angle="45"/>

    <solid android:color="#b4000000" />
    <stroke
        android:width="2.0dip"
        android:color="#b4ffffff"
        android:dashWidth="3.0dip"
        android:dashGap="0.0dip" />
    <padding
		android:left="7.0dip"
        android:top="7.0dip"
		android:right="7.0dip"
        android:bottom="7.0dip" />
    <corners android:radius="8.0dip" />
 -->

     <gradient
        android:startColor="#F7FAFD"
        android:endColor="#F5F5DC"
        android:angle="270" />
    <stroke
        android:width="2dp"
        android:color="#dcdcdc" />
    <!--<stroke
	    android:dashGap="2dp"
	    android:dashWidth="5dp"
	    android:width="1dp"
	    android:color="#777777" /> -->

    <corners
        android:radius="2dp" />
    <padding
        android:left="10dp"
        android:top="10dp"
        android:right="10dp"
        android:bottom="10dp" />
</shape>

(2)MainActivity.java

import android.app.ActionBar.Tab;
import android.app.ActionBar.TabListener;
import android.app.Activity;
import android.app.FragmentTransaction;
import android.app.TabActivity;
import android.os.Bundle;
import android.app.Fragment;
import android.content.Context;
import android.support.v4.app.FragmentActivity;
import android.support.v4.app.FragmentTabHost;
import android.util.DisplayMetrics;
import android.util.Log;
import android.util.TypedValue;
import android.view.Display;
import android.view.Gravity;
import android.view.Menu;
import android.view.View;
import android.view.ViewGroup;
import android.view.ViewGroup.LayoutParams;
import android.widget.AnalogClock;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.EditText;
import android.widget.GridLayout;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.TabHost;
import android.widget.TabHost.TabSpec;
import android.widget.TextView;
import android.widget.TabWidget;
import android.widget.FrameLayout;

public class MainActivity extends FragmentActivity {
	private FragmentTabHost mTabHost;
	private View indicator = null;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
	    setContentView(R.layout.activity_main);

	    final TabHost tabHost = (TabHost)findViewById(R.id.tabHost);
	    tabHost.setup();
	    final Context tabContext = MainActivity.this;

	    TabSpec tabHart = tabHost.newTabSpec("HART");
	    tabHart.setIndicator("HART");
	    tabHart.setContent(new TabHost.TabContentFactory() {
	        public View createTabContent(String tag) {
	        	LinearLayout tab1AllGroup = new LinearLayout(tabContext);
	        	tab1AllGroup.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	tab1AllGroup.setOrientation(LinearLayout.VERTICAL);
	        	tab1AllGroup.setPadding(4, 4, 4, 4);
	        	LinearLayout groupPollingAddress = new LinearLayout(tabContext);
	        	groupPollingAddress.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	groupPollingAddress.setOrientation(LinearLayout.VERTICAL);
	        	groupPollingAddress.setBackgroundResource(R.drawable.group_background);
	        	TextView GroupPollingAddressText = new TextView(tabContext);
	        	GroupPollingAddressText.setText("---Polling Address---");
	            groupPollingAddress.addView(GroupPollingAddressText);
	            groupPollingAddress.addView(createLabelValue(tabContext, "PollingAddress", 0));

	        	LinearLayout groupBasicInfo = new LinearLayout(tabContext);
	        	groupBasicInfo.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	groupBasicInfo.setOrientation(LinearLayout.VERTICAL);
	        	groupBasicInfo.setBackgroundResource(R.drawable.group_background);
	        	TextView GroupBasicInformationText = new TextView(tabContext);
	        	GroupBasicInformationText.setText("---Basic Information---");
	        	groupBasicInfo.addView(GroupBasicInformationText);

	            groupBasicInfo.addView(createLabelValue(tabContext, "Manufacturer", "Yamatake"));
	            groupBasicInfo.addView(createLabelValue(tabContext, "DeviceType", "ST3000 by Azbil"));
	            groupBasicInfo.addView(createLabelValue(tabContext, "DeviceID", 0x02));
	        	LinearLayout groupRevision = new LinearLayout(tabContext);
	        	groupRevision.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	groupRevision.setOrientation(LinearLayout.VERTICAL);
	        	groupRevision.setBackgroundResource(R.drawable.group_background);

	        	TextView groupRevisionText = new TextView(tabContext);
	        	groupRevisionText.setText("---Revision---");
	        	groupRevision.addView(groupRevisionText);
	        	groupRevision.addView(createLabelValue(tabContext, "HARTRevision", 5));

	        	groupRevision.addView(createLabelValue(tabContext, "DeviceRevision", 2));

	        	groupRevision.addView(createLabelValue(tabContext, "HardwareRevision", 0));

	        	groupRevision.addView(createLabelValue(tabContext, "SoftwareRevision", 13));

	        	tab1AllGroup.addView(groupPollingAddress);
	        	tab1AllGroup.addView(groupBasicInfo);
	        	tab1AllGroup.addView(groupRevision);
	            return tab1AllGroup;
	        }
	    });
	    tabHost.addTab(tabHart);

	    TabSpec tabDevice=tabHost.newTabSpec("Device");
	    tabDevice.setIndicator("Device");
	    tabDevice.setContent(new TabHost.TabContentFactory() {
	        public View createTabContent(String tag) {
	        	LinearLayout tab1AllGroup = new LinearLayout(tabContext);
	        	tab1AllGroup.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	tab1AllGroup.setOrientation(LinearLayout.VERTICAL);
	        	tab1AllGroup.setPadding(4, 4, 4, 4);

	        	LinearLayout groupDevice = new LinearLayout(tabContext);
	        	groupDevice.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	groupDevice.setOrientation(LinearLayout.VERTICAL);
	        	groupDevice.setBackgroundResource(R.drawable.group_background);

	        	TextView groupDeviceInfo1 = new TextView(tabContext);
	        	groupDeviceInfo1.setText("---Device Info 1---");
	        	groupDevice.addView(groupDeviceInfo1);

	        	groupDevice.addView(createLabelValue(tabContext, "Message", "This is Message"));
	        	groupDevice.addView(createLabelValue(tabContext, "Tag", " This is Tag"));
	        	groupDevice.addView(createLabelValue(tabContext, "Descriptor", " This is Descriptor"));
	        	groupDevice.addView(createLabelValue(tabContext, "Date", "2014-03-14"));

	        	tab1AllGroup.addView(groupDevice);

	            return tab1AllGroup;
	        }
	    });
	    tabHost.addTab(tabDevice);

	    TabSpec tabProcess=tabHost.newTabSpec("Process");
	    tabProcess.setIndicator("Process");
	    tabProcess.setContent(new TabHost.TabContentFactory() {
	        public View createTabContent(String tag) {

	        	LinearLayout tab1AllGroup = new LinearLayout(tabContext);
	        	tab1AllGroup.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	tab1AllGroup.setOrientation(LinearLayout.VERTICAL);
	        	tab1AllGroup.setPadding(4, 4, 4, 4);

	        	LinearLayout groupProcessVariable = new LinearLayout(tabContext);
	        	groupProcessVariable.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	groupProcessVariable.setOrientation(LinearLayout.VERTICAL);
	        	groupProcessVariable.setBackgroundResource(R.drawable.group_background);

	        	TextView groupProcessText = new TextView(tabContext);
	        	groupProcessText.setText("---Process Variables---");
	        	groupProcessVariable.addView(groupProcessText);
	        	groupProcessVariable.addView(createLabelValue(tabContext, "PV", "PV value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "PVUnit", " PVUnit value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "SV", "SV value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "SVUnit", "SVUnit value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "TV", "TV value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "TVUnit", "TVUnit value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "QV", "QV value"));
	        	groupProcessVariable.addView(createLabelValue(tabContext, "QVUnit", "QVUnit value"));

	        	tab1AllGroup.addView(groupProcessVariable);

	            return tab1AllGroup;

	        }
	    });
	    tabHost.addTab(tabProcess);

	    TabSpec tabDiagnostic=tabHost.newTabSpec("Diagnostic");
	    tabDiagnostic.setIndicator("Diagnostic");
	    tabDiagnostic.setContent(new TabHost.TabContentFactory() {
	        public View createTabContent(String tag) {
	        	LinearLayout tab1AllGroup = new LinearLayout(tabContext);
	        	tab1AllGroup.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	tab1AllGroup.setOrientation(LinearLayout.VERTICAL);
	        	tab1AllGroup.setPadding(4, 4, 4, 4);

	        	LinearLayout groupDiagnostic = new LinearLayout(tabContext);
	        	groupDiagnostic.setLayoutParams(
	        			new LayoutParams(
	        					LayoutParams.MATCH_PARENT,
	        					LayoutParams.WRAP_CONTENT));
	        	groupDiagnostic.setOrientation(LinearLayout.VERTICAL);
	        	groupDiagnostic.setBackgroundResource(R.drawable.group_background);

	        	TextView groupDiagnosticInfo1 = new TextView(tabContext);
	        	groupDiagnosticInfo1.setText("---Diagnostic Info 1---");
	        	groupDiagnostic.addView(groupDiagnosticInfo1);

	        	groupDiagnostic.addView(createLabelValue(tabContext, "ExtendedFieldDeviceStatus", "ExtendedFieldDeviceStatus value"));
	        	groupDiagnostic.addView(createLabelValue(tabContext, "StandardizedStatus0", " StandardizedStatus0 value"));
	        	groupDiagnostic.addView(createLabelValue(tabContext, "AnalogChannelSaturated", "AnalogChannelSaturated value"));
	        	groupDiagnostic.addView(createLabelValue(tabContext, "StandardizedStatus2", "StandardizedStatus2 value"));
	        	groupDiagnostic.addView(createLabelValue(tabContext, "StandardizedStatus3", "StandardizedStatus3 value"));
	        	groupDiagnostic.addView(createLabelValue(tabContext, "AnalogChannelFixed", "AnalogChannelFixed value"));

	        	tab1AllGroup.addView(groupDiagnostic);

	            return tab1AllGroup;
	        }
	    });
	    tabHost.addTab(tabDiagnostic);
	}

	private View createLabelValue(Context context, String label, Object value){
		LinearLayout fieldNameValueLayout = new LinearLayout(context);
		fieldNameValueLayout.setLayoutParams(
    			new LayoutParams(
    					LayoutParams.MATCH_PARENT,
    					LayoutParams.WRAP_CONTENT));
		fieldNameValueLayout.setOrientation(LinearLayout.HORIZONTAL);

        TextView manufactureLabel = new TextView(context);
        manufactureLabel.setText(label + ": ");
        fieldNameValueLayout.addView(manufactureLabel);

        TextView manufactureValuel = new TextView(context);
        manufactureValuel.setText(value.toString());
        fieldNameValueLayout.addView(manufactureValuel);

		return fieldNameValueLayout;
	}



生成如下的效果:

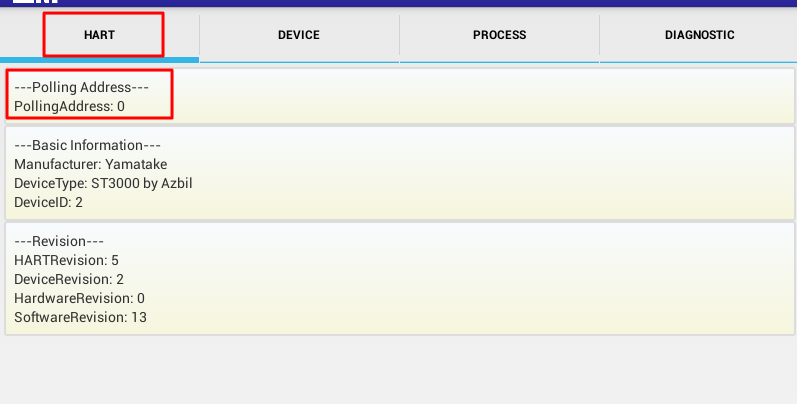

android tab group item hart

和:

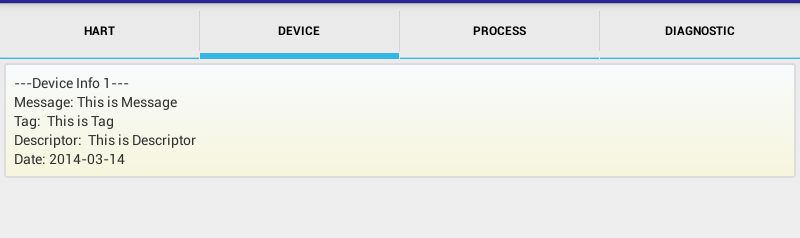

android tab group item device



【总结】

总之是:

group内部的每个label和value部分,还是没有实现真正想要的,对其的效果。

看来要等以后抽空再去想办法,通过GridLayout去实现Group内部的对其的效果了。
