【已解决】Android中实现对应的文件夹选择

Android crifan 6939浏览 0评论

【问题】

想要给一个Android的app:downloadSongtasteMusic,添加一个文件夹选择的功能,供用户选择下载下来的文件存放到何处。

【解决过程】

1.去Widget中,没有找到类似的控件:

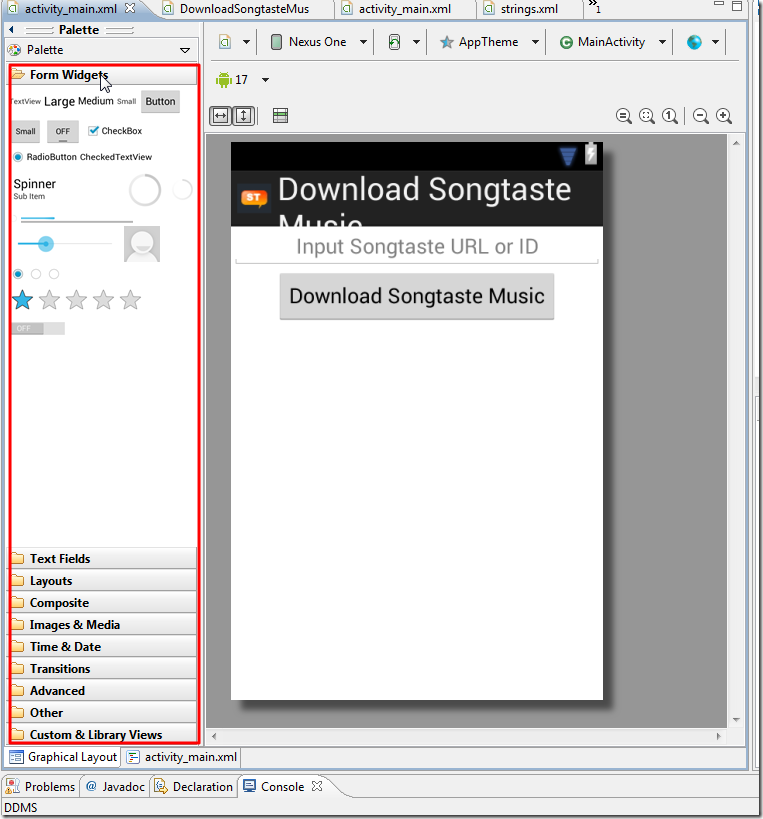

widgets no found file chooser

2.找了半天,都是关于文件选择的,而不是文件夹的选择,虽然两者类似,但是还是懒得弄。

3.后来找到一个,关于文件夹选择的:

Android dialog to choose a directory or file based on AlertDialog

然后去试试。

结果也是一对错误,即使导入了很多库之后,还是无法正常编译。

看起来,貌似不是一下子就能完全理解的。

4.难不成,真的要像:

Allow a user to select a folder on an SD card

中所说的,要自己去实现对应的代码了???

算了,还是自己按照自己的逻辑,一点点去实现代码吧。

5.不过又找到一些其他的例子:

Android实现文件夹目录选择器

Android入门:弹出框选择文件夹目录 以及启用新的Task打开文件

所以还是先参考:

Android入门:弹出框选择文件夹目录 以及启用新的Task打开文件

去添加自己的代码。

6.先写了点代码:

import android.content.Intent;

public class MainActivity extends Activity {
	public static final int FOLDER_RESULT_CODE = 1;


    /***********************************************************
     * for Folder Chooser
     ***********************************************************/

    /** Choose folder for downloaded music file to save */
    public void ChooseFoler(View view)
    {
        Intent intent = new Intent(MainActivity.this, FolderChooser.class);
        startActivityForResult(intent, FOLDER_RESULT_CODE);
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        if(FOLDER_RESULT_CODE == requestCode){
            Bundle bundle = null;
            if(data!=null&&(bundle=data.getExtras())!=null){
            	EditText etSaveTo = (EditText) findViewById(R.id.saveTo);
            	etSaveTo.setText(bundle.getString("file"));
            }
        }
    }
}

然后再去尝试新建一个布局文件:

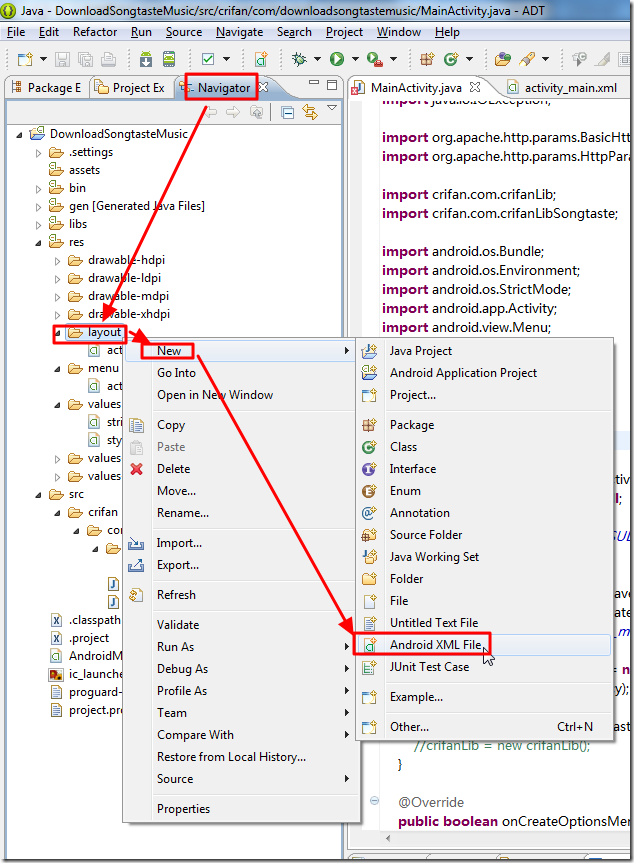

new layout android xml file

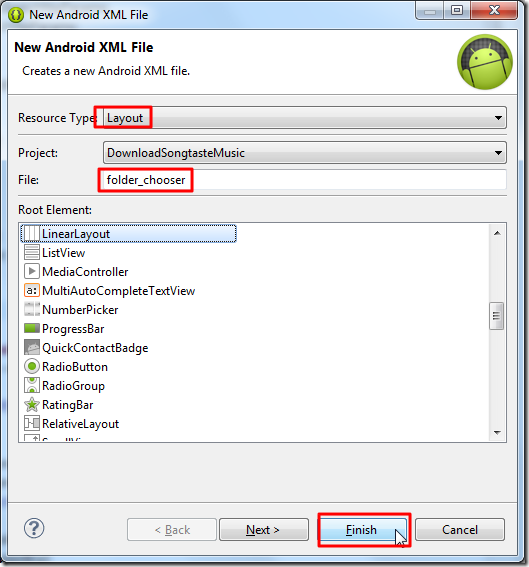

input file name then finish to create layout

然后就可以新建出一个新的布局文件了:

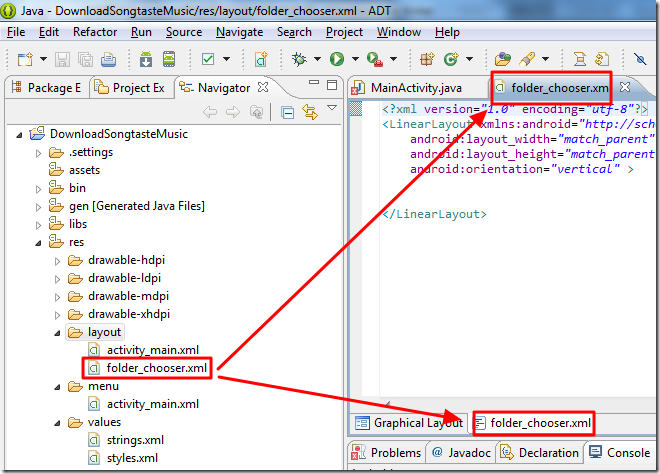

new created layout xml file

7.然后去添加对应的布局设置代码:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
  xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="250dp"
  android:layout_height="400dp"
  android:orientation="vertical"
>

  <TextView
    android:id="@+id/mPath"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:padding="5dp"
    android:textSize="18sp"
    >
  </TextView>

  <ListView
    android:id="@android:id/list"
    android:layout_width="fill_parent"
    android:layout_height="330dp"
    >
  </ListView>

  <LinearLayout
  	android:gravity="center"
    android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:orientation="horizontal"
	>
	<Button
    android:id="@+id/buttonConfirm"
    android:layout_width="125dp"
    android:layout_height="fill_parent"
    android:text="OK"
    />
    <Button
    android:id="@+id/buttonCancle"
    android:layout_width="125dp"
    android:layout_height="fill_parent"
    android:text="Cancel"
    />
  </LinearLayout>

</LinearLayout>

效果如下:

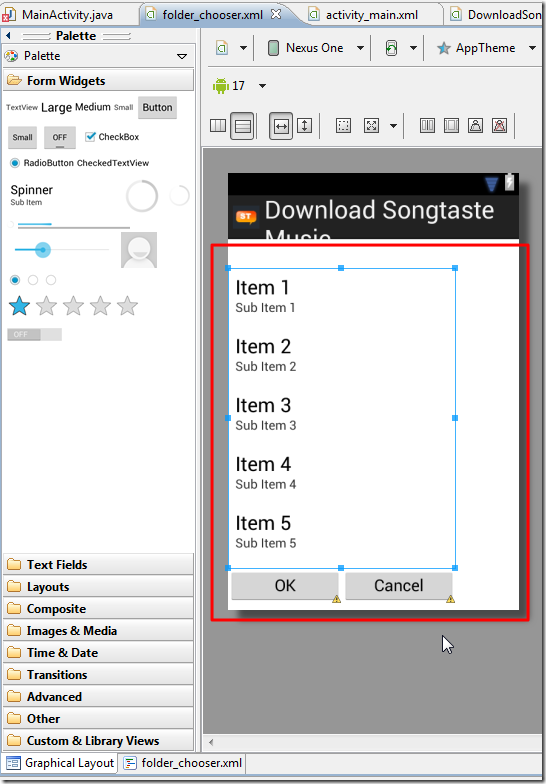

folder chooser ui

8.不过,又看到了另外一处参考资料,更简洁:

Directory Browser Application

所以打算先试试那个简单的。

结果竟然还是一堆错误,哎。。。

9.折腾了半天,还是不行。

其中涉及几个问题,自己解决了:

【已解决】Android中关于代码R.layout.main出错:main cannot be revolved or is not a field

【已解决】Android代码R.layout.main出错:R cannot be resolved to a variable

10.现在遇到的问题是,主函数内写完代码后,可以执行到:

    /** Choose folder for downloaded music file to save */
    public void ChooseFoler(View view)
    {
        Intent intent = new Intent(MainActivity.this, DirectoryBrowser.class);
        startActivityForResult(intent, FOLDER_RESULT_CODE);
    }

但是之后,无法跳转到对应的DirectoryBrowser中的onCreate函数内。

所以,还是不清楚,界面如何跳转的。

所以,还是先去学习一下这方面的基本逻辑去吧。

11.从

http://developer.android.com/intl/zh-CN/training/index.html

找到:

Managing the Activity Lifecycle

继续去学习。。。

12.后来经过一些学习后,再加上去折腾:

【记录】ADT中创建Android的Activity

然后才大概搞懂了Activity的一些逻辑。

具体总结,详见:

【整理】Android中,如何新建一个界面,并且实现从当前界面切换到到刚才新建的(另外一个)界面



13.期间,遇到一个问题,解决过程参见:

【已解决】Android代码出错:The method setListAdapter(ArrayAdapter<String>) is undefined for the type xxx

至此,终于实现了,基本的,可以实现界面切换了,并且可以显示出对应的文件列表了:

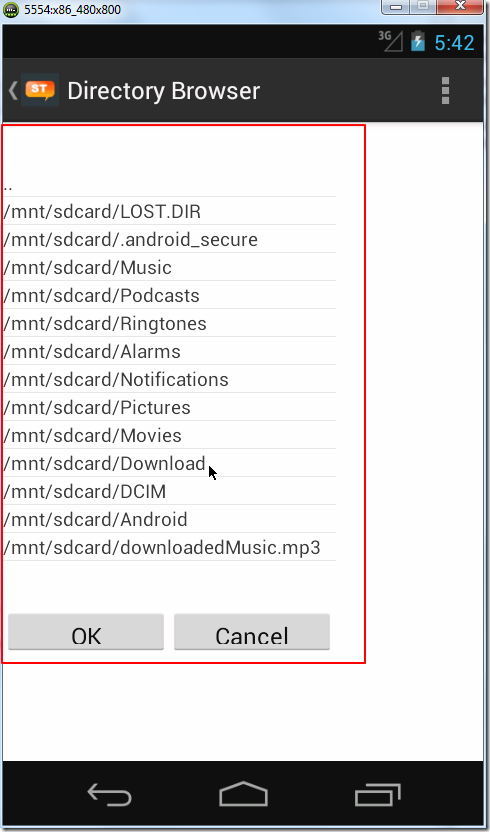

can show file list

目前的返回,只能通过点击左上角的图标才能返回。

余下的,就是如何实现对应的文件夹选择,然后点击OK去返回了。

14.再继续参考:

Android入门:弹出框选择文件夹目录 以及启用新的Task打开文件

去添加双击某个文件夹时的行为,和单击选择某个文件夹时的行为。

15.继续去学习:

http://developer.android.com/intl/zh-CN/reference/android/app/ListActivity.html

经过一番折腾,最后终于实现了基本的,可以工作的代码了。



【总结】

目前,基本实现了,虽然很丑,但是能用的,文件夹浏览的功能。

运行时效果如下:

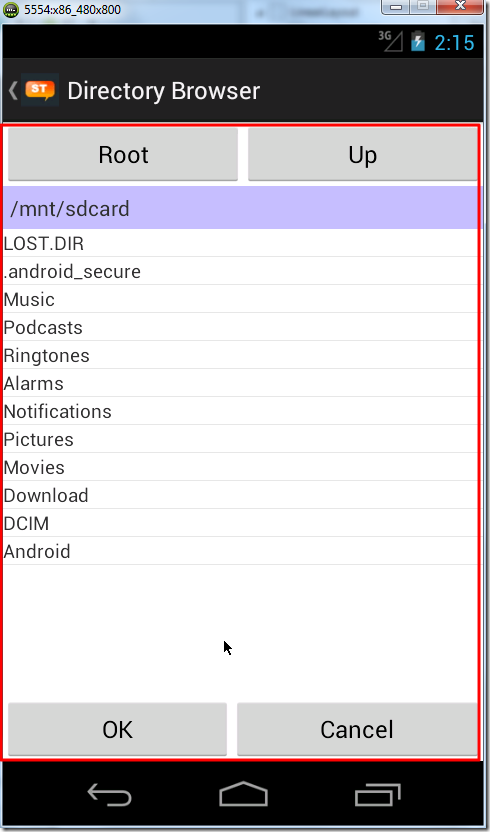

main browser ui



具体实现中:

几个相关的文件为:

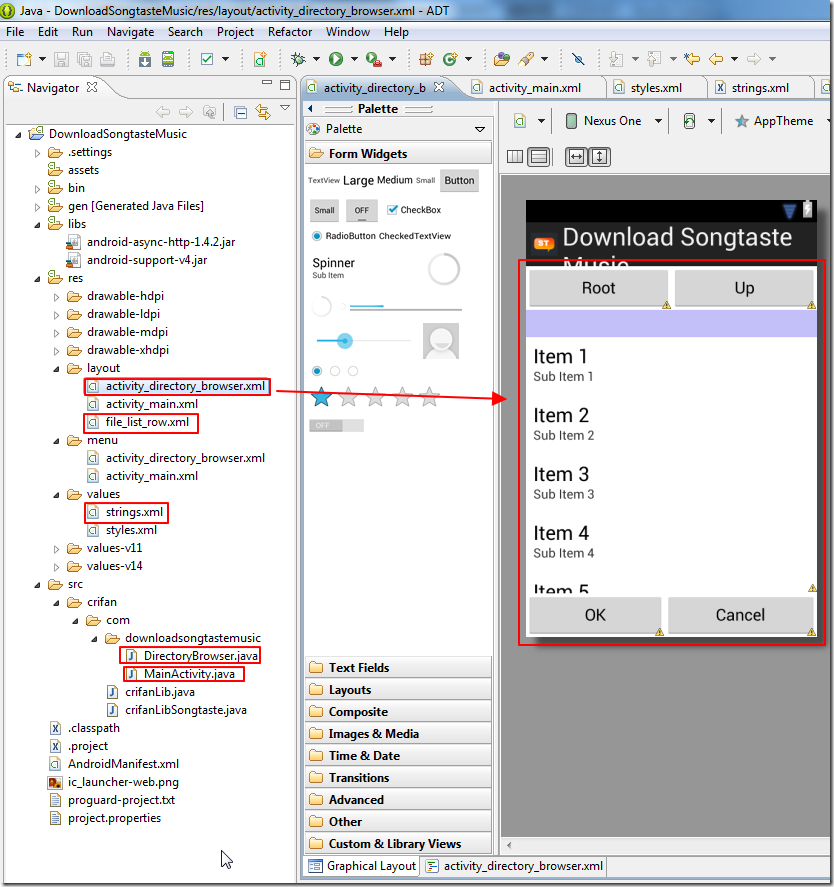

related files



核心的代码如下:

/DownloadSongtasteMusic/src/crifan/com/downloadsongtastemusic/MainActivity.java

package crifan.com.downloadsongtastemusic;

import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.EditText;

import android.content.Intent;

public class MainActivity extends Activity {

	public static final int REQ_FOLDER_SELECT = 1;


    /***********************************************************
     * for Folder Chooser
     ***********************************************************/

    /** Choose folder for downloaded music file to save */
    public void ChooseFoler(View view)
    {
        Intent intent = new Intent(MainActivity.this, DirectoryBrowser.class);
        startActivityForResult(intent, REQ_FOLDER_SELECT);
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent intent) {
        if(REQ_FOLDER_SELECT == requestCode){
        	Bundle bundle = null;
        	if(intent != null){
        		bundle=intent.getExtras();
        		if(bundle != null)
        		{
    	        	if(resultCode == DirectoryBrowser.RESULT_CHOOSE_DIR_OK){
            			EditText etSaveTo = (EditText) findViewById(R.id.saveTo);
    	            	etSaveTo.setText(bundle.getString("selFolderPath"));
    	        	}
    	        	else if(resultCode == DirectoryBrowser.RESULT_CHOOSE_DIR_CANCEL){
    	        	}
        		}
        	}
    	}

    }

}



/DownloadSongtasteMusic/src/crifan/com/downloadsongtastemusic/DirectoryBrowser.java

package crifan.com.downloadsongtastemusic;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

import android.os.Bundle;
import android.os.Environment;
import android.view.MenuItem;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;
import android.support.v4.app.NavUtils;

//import android.app.Activity;
import android.app.ListActivity;
import android.content.Intent;

public class DirectoryBrowser extends ListActivity {
	//public class DirectoryBrowser extends Activity {

	private String rootPath = null;
    private String curAbsPath = null;
	List<String> folderNameList = null;
    private TextView txvCurPath;
	public static final int  RESULT_CHOOSE_DIR_OK		= 0;
	public static final int RESULT_CHOOSE_DIR_CANCEL = -1;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);

		setContentView(R.layout.activity_directory_browser);

		// Show the Up button in the action bar.
		//getActionBar().setDisplayHomeAsUpEnabled(true);

		txvCurPath = (TextView) findViewById(R.id.txvCurPath);

		File extStorDir = Environment.getExternalStorageDirectory();
		String extStroAbsPath = extStorDir.getAbsolutePath();

		rootPath = extStroAbsPath;

		updateCurFolder(extStroAbsPath);
	}

	private void updateCurFolder(String newAbsPath)
	{
		curAbsPath = newAbsPath;
		txvCurPath.setText(curAbsPath);

		folderNameList = getFolerStrList(new File(curAbsPath));
		ArrayAdapter<String> folderItemList = new ArrayAdapter<String>(this, R.layout.file_list_row, folderNameList);
        setListAdapter(folderItemList);
	}

    private List<String> getFolerStrList(File curPath){
    	List<String> folerNameList = new ArrayList<String>();
    	File[] files = curPath.listFiles();
        for(File eachFile : files){
        	if(eachFile.isDirectory())
        	{
        		folerNameList.add(eachFile.getName());
        	}
        }
        return folerNameList;
    }

//	@Override
//	public boolean onCreateOptionsMenu(Menu menu) {
//		// Inflate the menu; this adds items to the action bar if it is present.
//		getMenuInflater().inflate(R.menu.activity_directory_browser, menu);
//		return true;
//	}

	@Override
	public boolean onOptionsItemSelected(MenuItem item) {
		switch (item.getItemId()) {
		case android.R.id.home:
			// This ID represents the Home or Up button. In the case of this
			// activity, the Up button is shown. Use NavUtils to allow users
			// to navigate up one level in the application structure. For
			// more details, see the Navigation pattern on Android Design:
			//
			// http://developer.android.com/design/patterns/navigation.html#up-vs-back
			//
			NavUtils.navigateUpFromSameTask(this);
			return true;
		}
		return super.onOptionsItemSelected(item);
	}

	@Override
	protected void onListItemClick(ListView listView, View view, int position, long id) {
		updateCurFolder(curAbsPath + "/" + folderNameList.get(position));
	}

    /** return prev UI */
	public void ChooseFolerOk(View v) {
		Intent intent = new Intent(DirectoryBrowser.this, MainActivity.class);
		Bundle bundle = new Bundle();
		bundle.putString("selFolderPath", curAbsPath);
		intent.putExtras(bundle);
		setResult(RESULT_CHOOSE_DIR_OK, intent);
		finish();
	}

	public void ChooseFolerCancel(View v) {
		Intent intent = new Intent(DirectoryBrowser.this, MainActivity.class);
		setResult(RESULT_CHOOSE_DIR_CANCEL, intent);
		finish();
	}

	public void browseRoot(View v) {
		if(curAbsPath != rootPath)
		{
			updateCurFolder(rootPath);
		}
	}

	public void browseUp(View v) {
		if(curAbsPath == rootPath)
		{
			//do nothing when is root
		}
		else
		{
			String parentFoler = new File(curAbsPath).getParent().toString();
			updateCurFolder(parentFoler);
		}
	}
}



/DownloadSongtasteMusic/res/layout/activity_directory_browser.xml

<!-- <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" -->
<!--     xmlns:tools="http://schemas.android.com/tools" -->
<!--     android:layout_width="match_parent" -->
<!--     android:layout_height="match_parent" -->
<!--     tools:context=".DirectoryBrowser" > -->

<!--     <TextView -->
<!--         android:layout_width="wrap_content" -->
<!--         android:layout_height="wrap_content" -->
<!--         android:layout_centerHorizontal="true" -->
<!--         android:layout_centerVertical="true" -->
<!--         android:text="@string/hello_world" /> -->
<!--         </RelativeLayout> -->
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >

    <LinearLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:orientation="horizontal" >

        <Button
            android:id="@+id/btnRoot"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:onClick="browseRoot"
            android:text="Root" />

        <Button
            android:id="@+id/btnUp"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:onClick="browseUp"
            android:text="Up" />

    </LinearLayout>

    <TextView
        android:id="@+id/txvCurPath"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:padding="5dp"
        android:background="#C3BFF9"
        android:textSize="16sp" >
    </TextView>

    <ListView
        android:id="@android:id/list"
        android:layout_width="wrap_content"
        android:layout_height="248dp"
        android:layout_weight="0.41" >
    </ListView>

    <!-- <TextView 	android:id="@android:id/empty" -->
    <!-- android:layout_width="match_parent" -->
    <!-- android:layout_height="match_parent" -->
    <!-- android:background="#FF0000" -->
    <!-- android:text="Nothing to show"/> -->

    <LinearLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:orientation="horizontal" >

        <Button
            android:id="@+id/btnOk"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:onClick="ChooseFolerOk"
            android:text="OK" />

        <Button
            android:id="@+id/btnCancle"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:onClick="ChooseFolerCancel"
            android:text="Cancel" />
    </LinearLayout>

</LinearLayout>



/DownloadSongtasteMusic/res/layout/file_list_row.xml

<?xml version="1.0" encoding="utf-8"?>
<TextView android:id="@+id/text1"
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">
</TextView>



/DownloadSongtasteMusic/res/values/strings.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>

...
    <string name="title_activity_directory_browser">Directory Browser</string>

</resources>



总的来说,折腾这东西,还是蛮耗精力的。。。

转载请注明:在路上 » 【已解决】Android中实现对应的文件夹选择

发表我的评论
取消评论

表情

Hi,您需要填写昵称和邮箱!

  • 昵称 (必填)
  • 邮箱 (必填)
  • 网址
83 queries in 0.163 seconds, using 22.17MB memory
