【记录】为USB接口的HART猫ExSaf ESH232U安装对应的USB转RS232驱动

【背景】

买了个:

ExSaf的USB口的HART猫:ESH232U

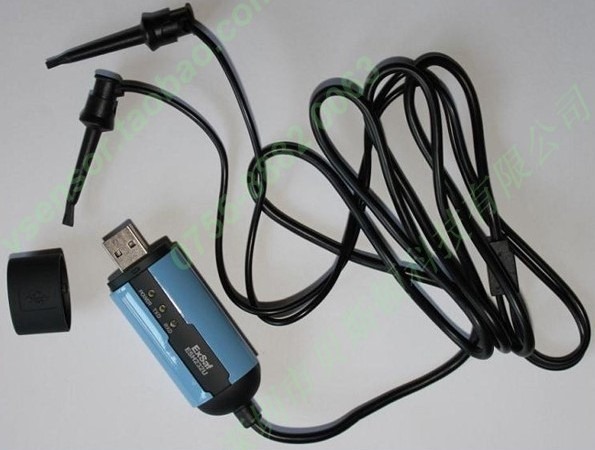

ExSaf ESH232u hart modem

然后现在插到win7 x64上,结果不能识别:

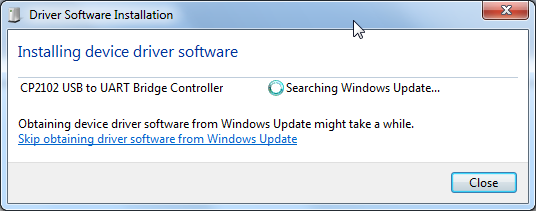

cp2102 usb to uart bridge controller searching windows update

【折腾过程】

1.然后去看看,对应的提示:

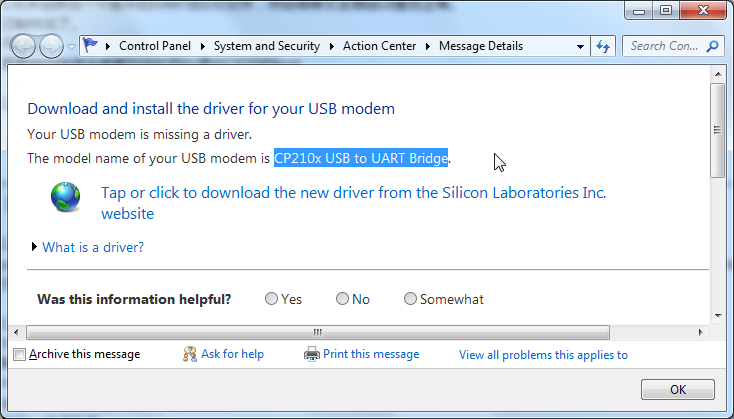

cp210x usb to uart bridge is usb modem name

2.然后去打开对应的网站:

http://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

去下载对应的驱动:

http://www.silabs.com/Support%20Documents/Software/CP210x_VCP_Windows.zip

CP210x USB to UART Bridge VCP Drivers

然后保存:

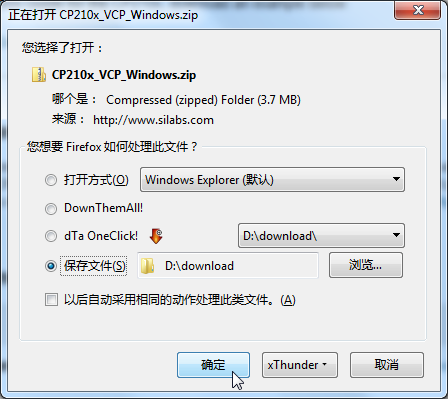

save the CP210x_VCP_Windows zip file

4.解压得到:

CP210xVCPInstaller_x64.exe

CP210xVCPInstaller_x86.exe

此处由于是x64的win7,所以去运行:

CP210xVCPInstaller_x64.exe

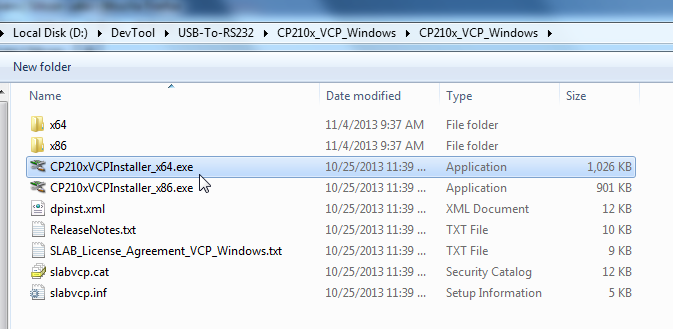

got x64 and x86 CP210xVCPInstaller exe

5.然后一点点去安装:

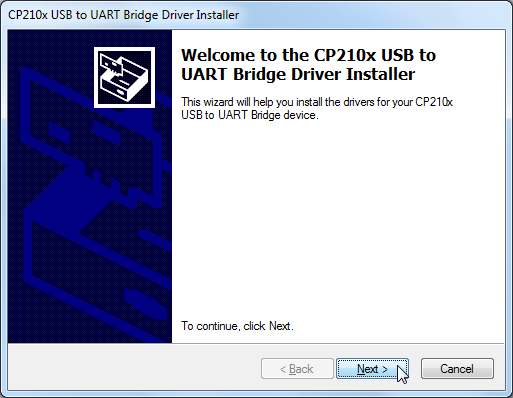

welcome to the cp210x usb to uart bridge driver installer

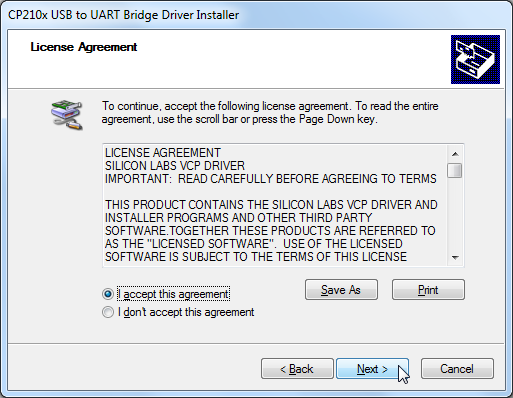

cp210x usb to uart bridge driver installer license agreement

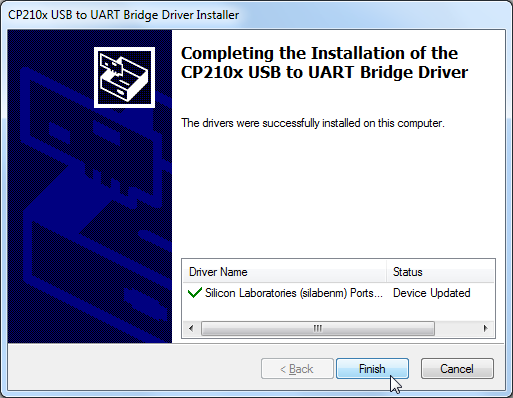

completing the installation of the cp210x usb to uart bridge driver

6.安装完毕后,就可以在设备管理器中看到对应的:

Silicon Labs CP201x USB to UART Bridge (COM11)

了:

can see silicon labs cp210x usb to uart bridge com11

对应的驱动属性中的Device Description也是:

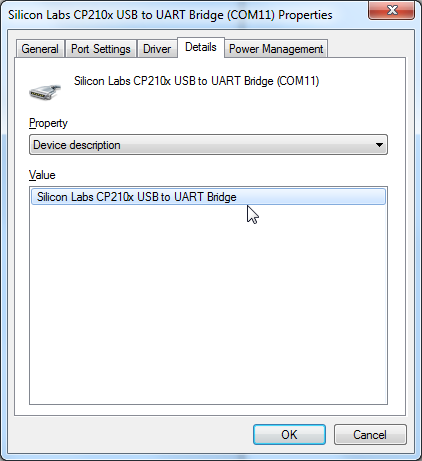

driver property see device description silicon labs cp210x usb to uart bridge

【总结】

至此,可以接下来去使用这个USB口的HART猫了:

【记录】使用USB口的HART猫ExSaf ESH232U去检测某HART设备
