【整理】嵌入式IDE:Renesas的HEW(High-performance Embedded Workshop)

HEW crifan 10626浏览 0评论

Renesas的HEW简介

HEW==High-performance Embedded Workshop

HEW一个嵌入式IDE

HEW是Renesas自己的IDE,用于支持其下N多款芯片的(嵌入式)开发的

比如:

【整理】FBK2用到的M16C62P的相关资料

中提到的M16C62P



HEW长啥样

如下,截图说明:

HEW启动界面

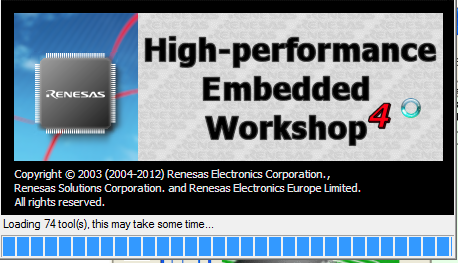

high performance embedded workshop launching ui

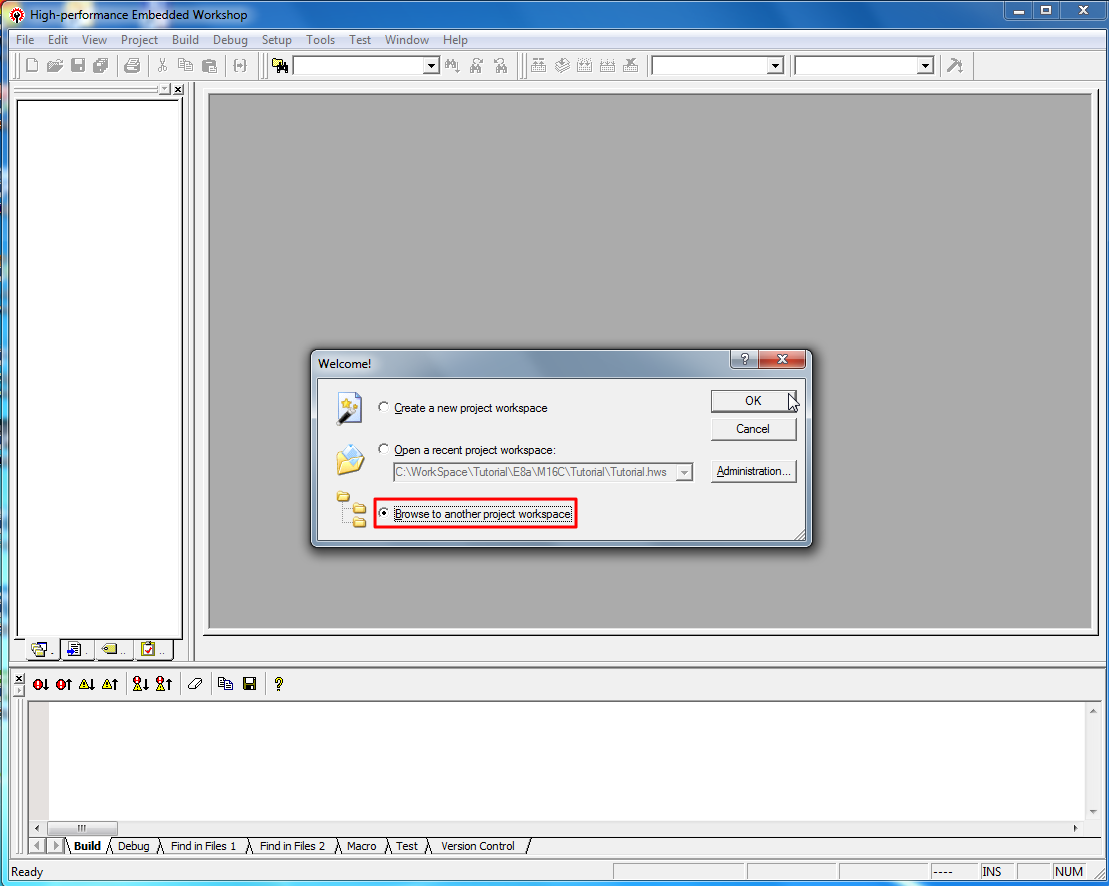

选择项目

hew welcome choose browse to another project workspace

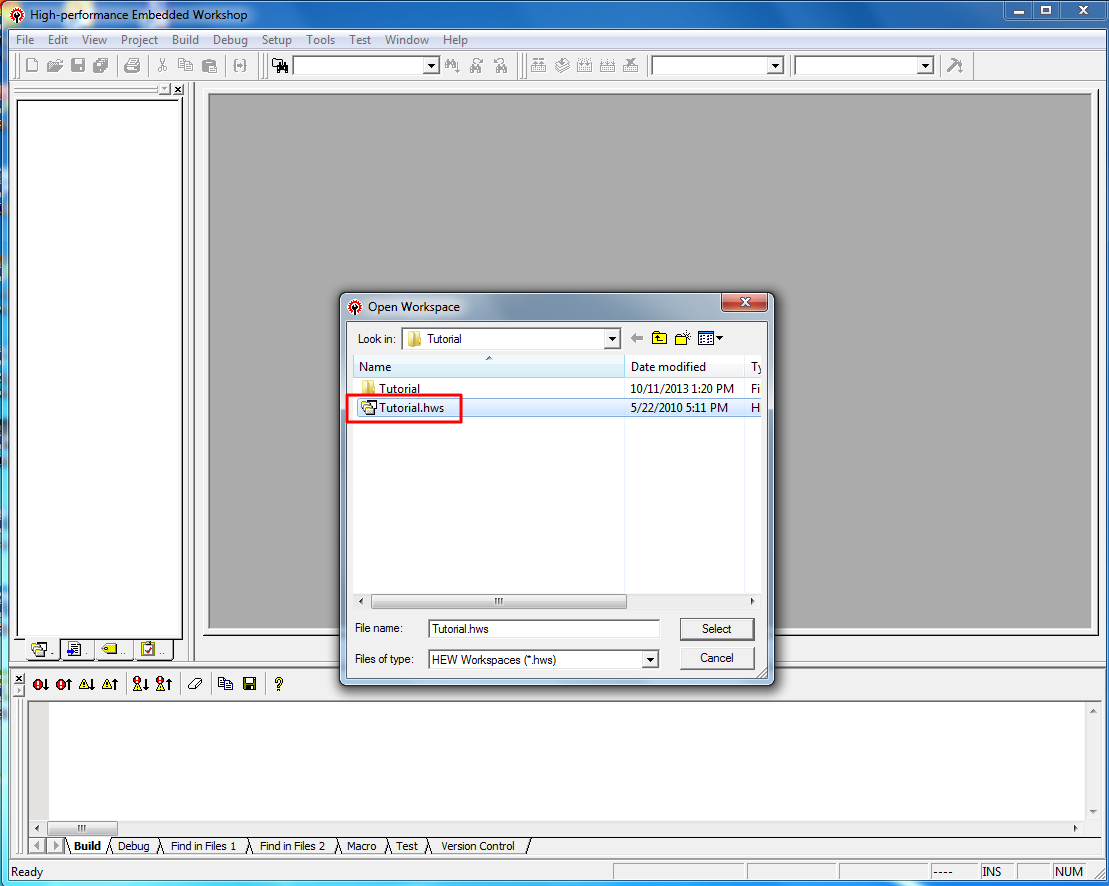

选择一个自带的示例的项目

choose a tutorial hws project

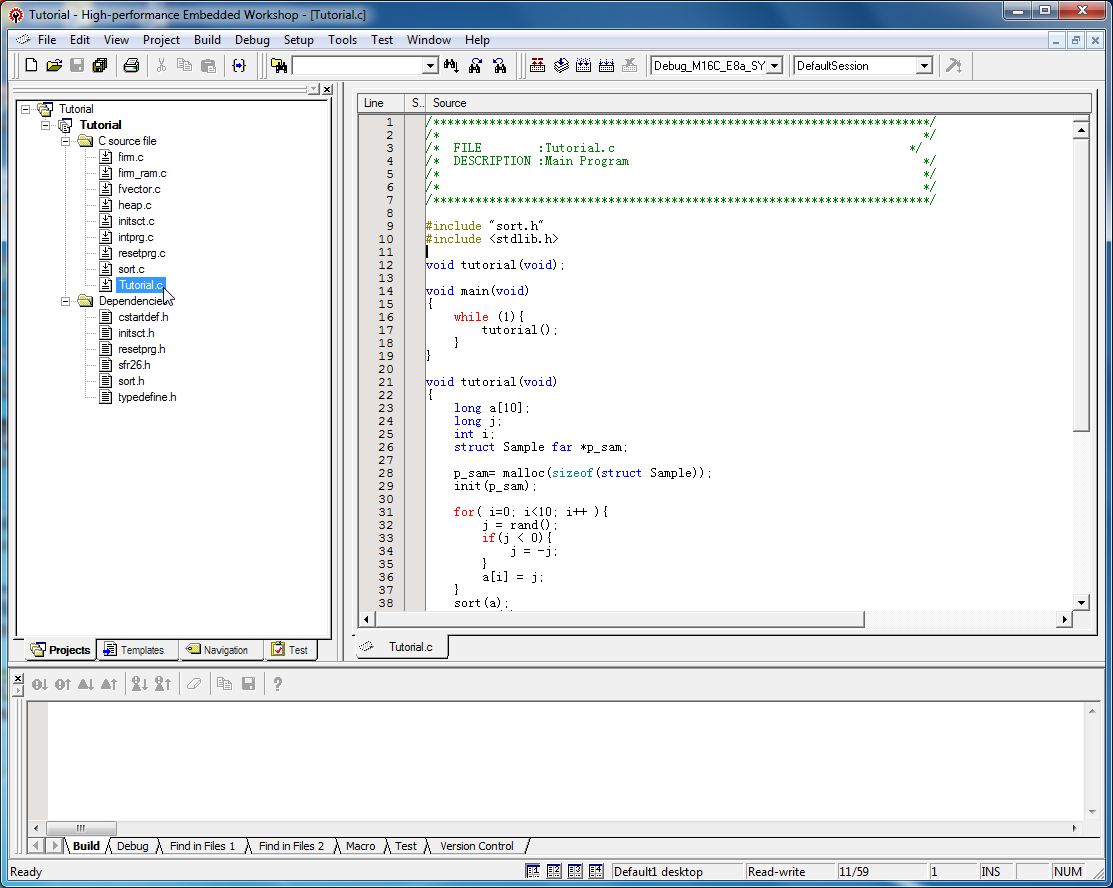

打开文件后的主界面

hew opened tutorial c file to view



HEW的各个菜单

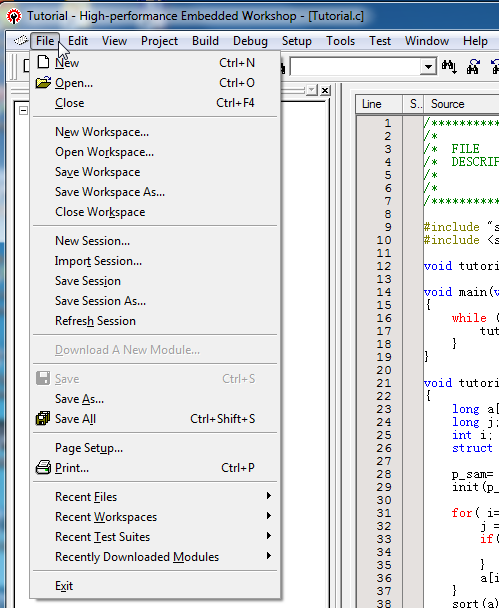

文件

hew menu file

编辑

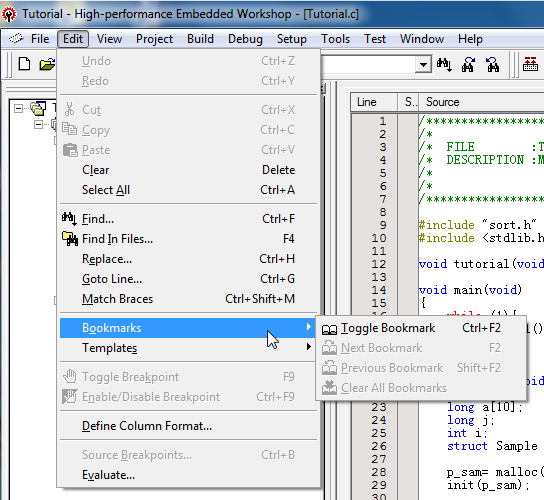

hew menu edit

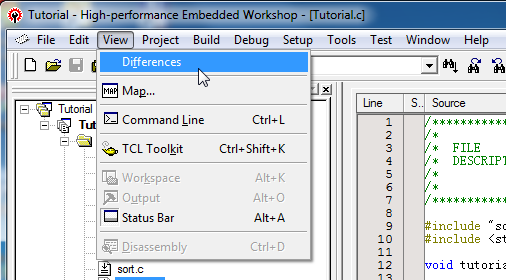

视图

hew menu view

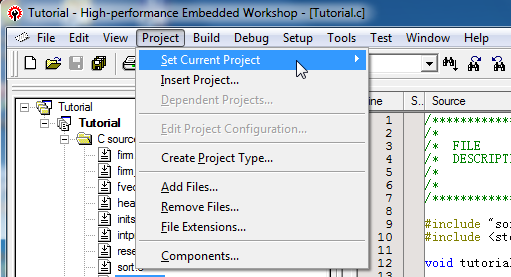

项目

hew menu project

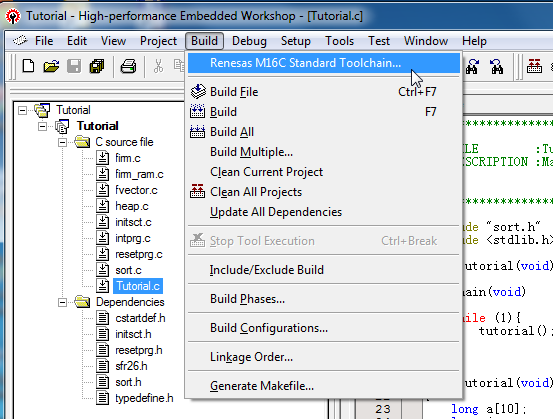

编译

hew menu build

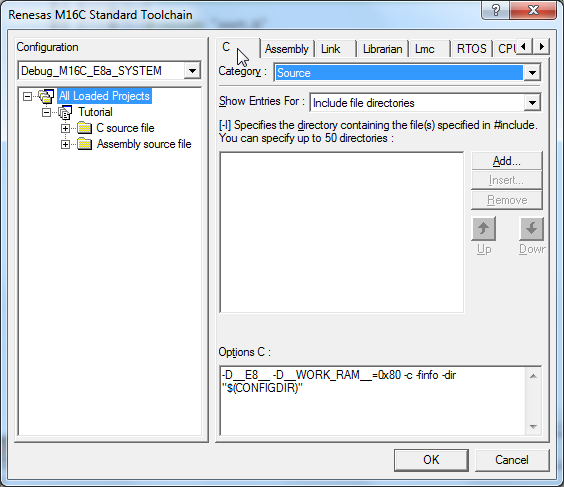

编译->瑞萨M16C标准工具链

hew menu m16c configuration c

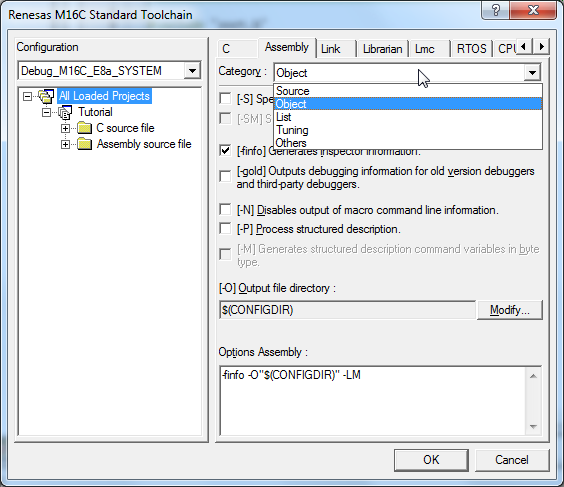

hew menu m16c configuration assembly

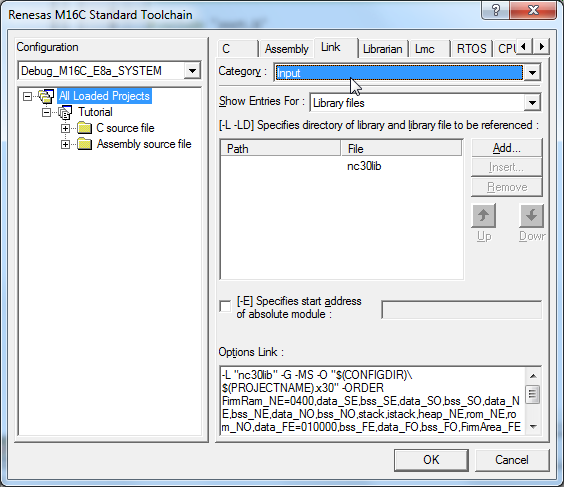

hew menu m16c configuration link

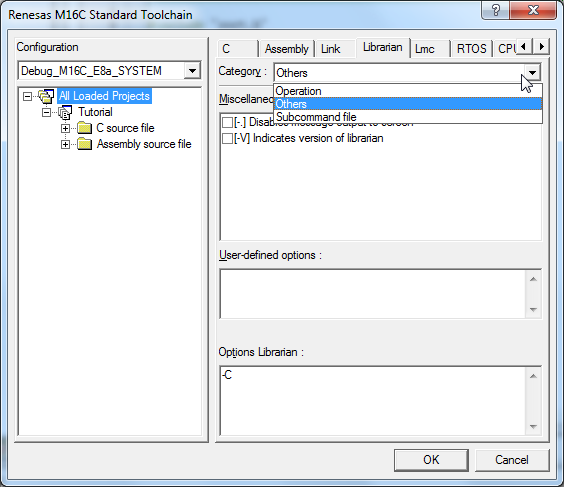

hew menu m16c configuration librarian

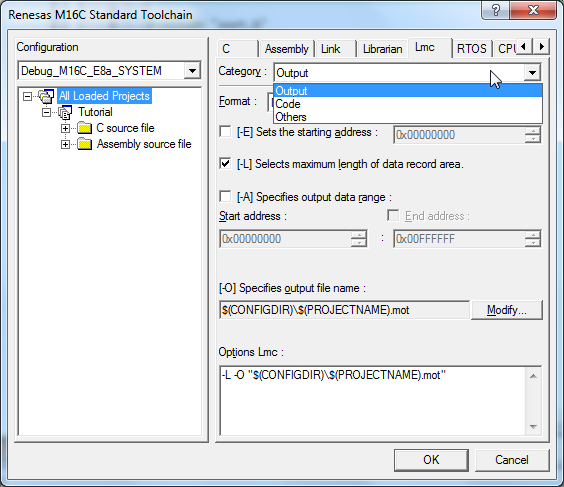

hew menu m16c configuration lmc

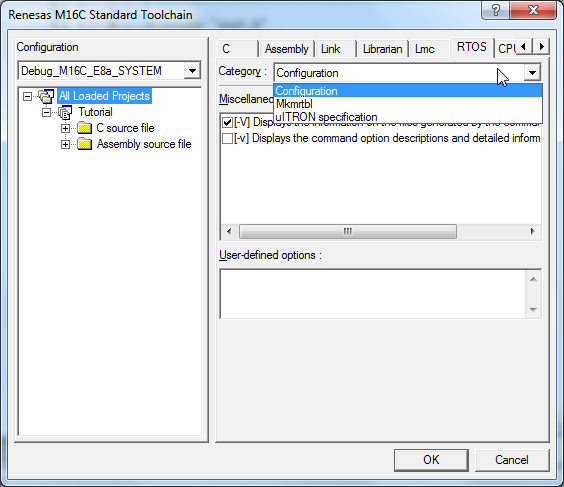

hew menu m16c configuration rtos

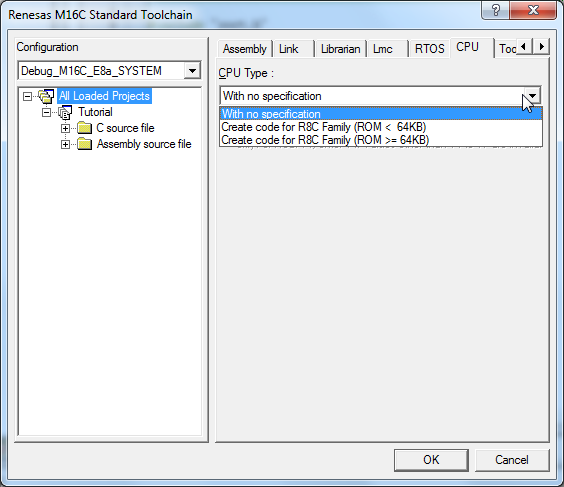

hew menu m16c configuration cpu

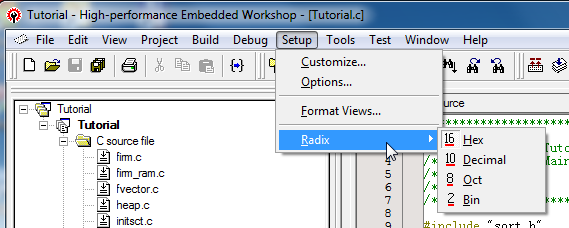

设置

hex menu setup

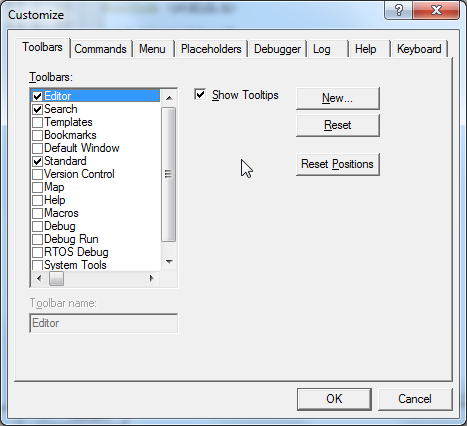

设置->自定义

hew menu setup customize

设置->选项

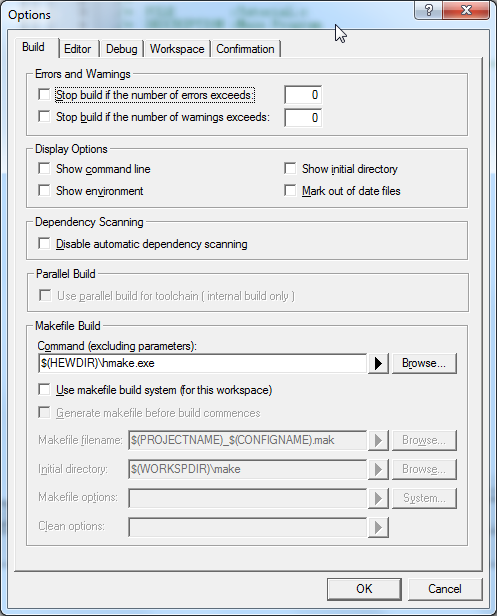

hew menu setup options

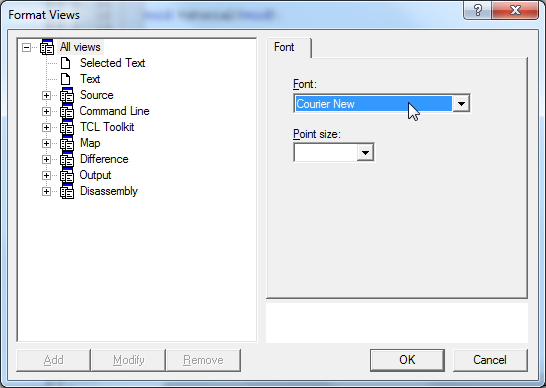

设置->格式化显示

hew menu setup format views

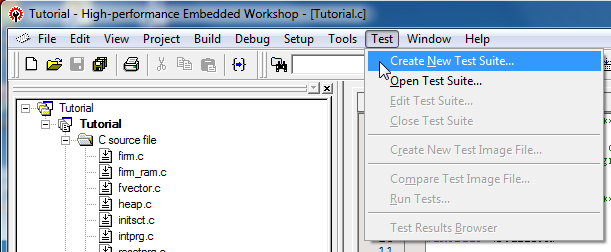

测试

hew menu test

窗口

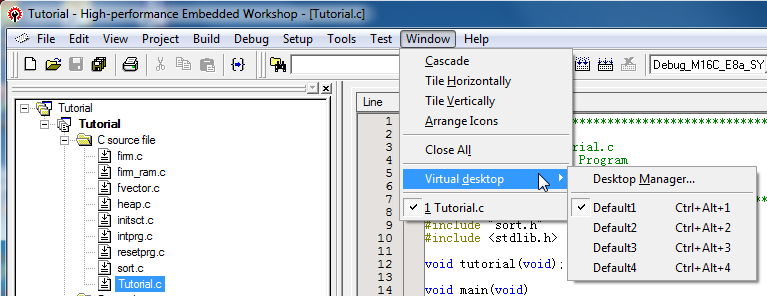

hew menu window

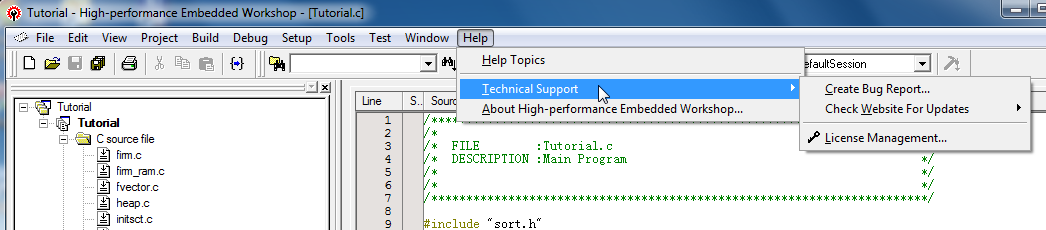

帮助

hew menu help



帮助->关于->更多

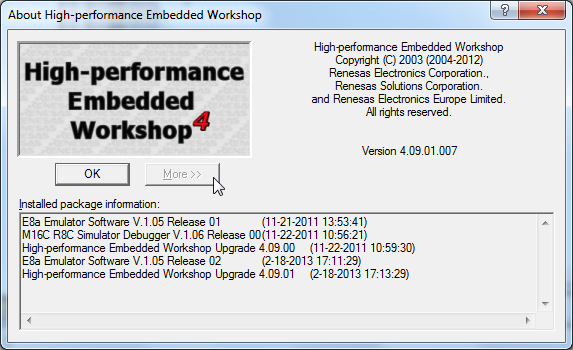

hew menu help about e8a emulator



HEW的功能特点简介

参考:

High-performance Embedded Workshop

如下:

  • 支持Renesas其下自己的很多款MCU:SuperH, M32R, M16C, R8C, H8SX, H8S, and H8
    • SuperH Family
    • M32R Family 1
    • RX Family RX600, RX200 Series
    • M16C Family R32C/100 Series
    • M16C Family M32C/80, M16C/80 Series
    • M16C Family M16C/60, M16C/50, M16C/30, M16C/20, M16C/10, M16C/Tiny Series
    • R8C Family
    • H8SX Family
    • H8S Family
    • H8 Family
    • 740 Family
  • 同时支持Renesas自己的编译和IAR的编译器
  • 可自动为所支持的CPU生成启动代码
  • 调试方面的功能支持比较全面
  • 可图形化显示CPU硬件配置
  • 可图形化显示每个函数的执行周期
  • 可显示缓存命中率和pipeline状态
