【记录】Ubuntu下为QEMU安装Open TFTP Server

【背景】

折腾:

【记录】尝试用QEMU模拟ARM开发板去加载并运行Uboot,kernel,rootfs

期间,需要在Ubuntu下为QEMU安装一个Open TFTP Server。

【折腾过程】

1.去参考教程:

Virtual Development Board

下载

http://cdnetworks-kr-1.dl.sourceforge.net/project/tftp-server/tftp%20server%20multithreaded/opentftpmtV1.63.tar.gz

结果地址已失效:

crifan@ubuntu:opentftp$ wget http://cdnetworks-kr-1.dl.sourceforge.net/project/tftp-server/tftp%20server%20multithreaded/opentftpmtV1.63.tar.gz
--2013-08-16 01:35:14--  http://cdnetworks-kr-1.dl.sourceforge.net/project/tftp-server/tftp%20server%20multithreaded/opentftpmtV1.63.tar.gz
Resolving cdnetworks-kr-1.dl.sourceforge.net (cdnetworks-kr-1.dl.sourceforge.net)... 202.102.110.204
Connecting to cdnetworks-kr-1.dl.sourceforge.net (cdnetworks-kr-1.dl.sourceforge.net)|202.102.110.204|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 686 [text/html]
Saving to: ‘opentftpmtV1.63.tar.gz’

100%[==================================================================>] 686         --.-K/s   in 0s

2013-08-16 01:35:14 (72.7 MB/s) - ‘opentftpmtV1.63.tar.gz’ saved [686/686]

crifan@ubuntu:opentftp$ ls
opentftpmtV1.63.tar.gz
crifan@ubuntu:opentftp$ tar xf opentftpmtV1.63.tar.gz

gzip: stdin: not in gzip format
tar: Child returned status 1
tar: Error is not recoverable: exiting now
crifan@ubuntu:opentftp$ tar xzf opentftpmtV1.63.tar.gz

gzip: stdin: not in gzip format
tar: Child returned status 1
tar: Error is not recoverable: exiting now
crifan@ubuntu:opentftp$ tar xvzf opentftpmtV1.63.tar.gz

gzip: stdin: not in gzip format
tar: Child returned status 1
tar: Error is not recoverable: exiting now
crifan@ubuntu:opentftp$

2.然后去找到sourceforge的地址(注意是multithreaded):

http://sourceforge.net/projects/tftp-server/files/tftp%20server%20multithreaded/

去下载对应的:

opentftpmtV1.65.tar.gz

得到后,解压:

crifan@ubuntu:opentftp$ ls
opentftpmtV1.63.tar.gz  opentftpmtV1.65.tar.gz
crifan@ubuntu:opentftp$ tar xf opentftpmtV1.65.tar.gz
crifan@ubuntu:opentftp$ ls
opentftp  opentftpmtV1.63.tar.gz  opentftpmtV1.65.tar.gz
crifan@ubuntu:opentftp$ cd opentftp/
crifan@ubuntu:opentftp$ ls
LICENSE  opentftpd  opentftpd.cpp  opentftpd.h  opentftp.ini  rc.opentftp  README
crifan@ubuntu:opentftp$

3.然后移动到opt下:

crifan@ubuntu:opentftp$ mv opentftp/ /opt/
crifan@ubuntu:opentftp$ cd /opt/opentftp/
crifan@ubuntu:opentftp$ ls
LICENSE  opentftpd  opentftpd.cpp  opentftpd.h  opentftp.ini  rc.opentftp  README
crifan@ubuntu:opentftp$

4.编译配置文件opentftpd.ini,加上HOME的路径后为:

#This file stores configuration settings.
#Anything starting with punctuation would be comment
#comment ' should be removed in front of sample values if used/changed

#IMPORTANT WARNING Never Edit this file using Windows Editor

[LISTEN-ON]
#if you have more than one NIC card on your server, you
#can specify which cards/ports will listen TFTP requests
#Specify the Interfaces you would like server to listen
#Upto 8 interfaces can be specified.
#default listening port is 69, but can be overridden here.
#listening on ports less than 1024 needs root account to
#start the server but can switch to another user while
#running (please see username under [TFTP-OPTIONS] section.
#You can also listen on 0.0.0.0, which will amount to
#listening on all interfaces on single socket. If you do
#not specify any interface, it will automatically detect
#all interfaces.and would listen individually on these
#interfaces. Also if the system is running under root
#(please see username under [TFTP-OPTIONS] section), then
#server will also dynamically detect changes in interfaces.
'0.0.0.0
'128.254.185.131
'192.168.0.40:69
'127.0.0.1:3000

[HOME]
#You should specify home directory(s) here
#You can specify one directory as home
#directory, from where files will be served or
#deposited like:-
'/home/me/firmware/
#If no home directory is specified default is the
#home directory of username (see [TFTP OPTIONS])
#Alternatively if you want to specify multiple
#home directories, you need to use aliases
#like:-
'routers=/hda1/RouterImages/Images
'boot=/mnt/pc1/PXEBoot/Images
'installs=/hda5/installs
#add home directory for tftp
/opt/versatilepb/kernel/

[LOGGING]
#Logging will be done only if run as Service.
#LogLevels can be set as None, Errors or All
#Log file need to be specified at command line.
#Log file name should include %Y%m%d, %Y will be replaced
#by Current Year, %m by current month and %d by current year.
#For example #/opt/dualserver/dualserver -l/opt/dualserver/log/dualserver%Y%m%d.log
'None
'Errors
'All

[ALLOWED-CLIENTS]
#These are permitted clients for TFTP Access.
#Hosts having IP address within these ip ranges
#only will be responded to DNS requests.
#32 hosts or 32 ranges can be specified.
#If none is specified, then all are allowed
'192.168.0.1-192.168.0.254
'10.0.0.1-10.255.255.254
'33.67.8.123

[TFTP-OPTIONS]
#First option is username (login), this is the user, who
#will be owner of process, the process can be started as
#privileged user and after opening privileged ports,
#would run as this user. This user would be owner
#of new files put to server. When overwriting files,
#this user should have write access and for reading
#files, this user should have read access to the files.
'username=myname

#Next option is server port range on which tftpserver
#would respond from, if you have firewall
#issues, you may like to restrict this
#range. default is any free port
#do not use reserve ports less than 1024
#The Multithreaded TFTP Server listens the
#requests on port 69 but responds on any free
#port within these ranges, these are server
#ports not client ports, client can use any port
#if there is a fire wall issue, it should be
#opened for server ip for these ports.
'port-range=30000-30010

#Next is default timeout per interval
#if not overridden by client
#min is 1, max can be 255, default is 3
'timeout=3

#Next is Thread Pool Size
#value of 0 means there is no thread pool
#threads will be created just in time and
#killed after serving requests.
#if simultaneous request are more than
#thread pool size, extra threads will be
#created and killed after serving requests
#but ready threads will never be less than this value
#min is 0, max can be 100
ThreadPoolSize=1

#Next is max block size, allowed
#on client request. Max is 65464
#it can be reduced if there are memory issues.
#if not overridden by client
#it is always 512
'blksize=65464

#Next are the file operation permissions
#Clients can only read files if read is
#set to Y, default is Y
'Read=Y
#Clients can only create new files if write is
#set to Y, default is N
'Write=N
#Clients can only overwrite existing files if
#overwrite is #set to Y, default is N
'Overwrite=N

5.然后再去运行:

crifan@ubuntu:opentftp$ sudo rc.opentftp start
sudo: rc.opentftp: command not found
crifan@ubuntu:opentftp$ pwd
/opt/opentftp
crifan@ubuntu:opentftp$ ls
LICENSE  opentftpd  opentftpd.cpp  opentftpd.h  opentftp.ini  opentftp.ini~  rc.opentftp  README
crifan@ubuntu:opentftp$ ll -lha
total 184K
drwxr-xr-x 2 crifan crifan 4.0K Aug 16 01:44 ./
drwxr-xr-x 7 crifan root   4.0K Aug 16 01:40 ../
-rw-r--r-- 1 crifan crifan  18K Jun 22  2007 LICENSE
-rwxr-xr-x 1 crifan crifan  49K Jun 13  2011 opentftpd*
-rwxr--r-- 1 crifan crifan  61K Jun 11  2011 opentftpd.cpp*
-rwxr--r-- 1 crifan crifan 4.5K Jun 11  2011 opentftpd.h*
-rwxr--r-- 1 crifan crifan 4.1K Aug 16 01:44 opentftp.ini*
-rwxr--r-- 1 crifan crifan 4.1K Jun  5  2011 opentftp.ini~*
-rwxr--r-- 1 crifan crifan 1.6K Jun  4  2011 rc.opentftp*
-rwxr--r-- 1 crifan crifan 9.8K Jun  5  2011 README*
crifan@ubuntu:opentftp$ chomod 777 *
No command 'chomod' found, did you mean:
 Command 'chmod' from package 'coreutils' (main)
chomod: command not found
crifan@ubuntu:opentftp$ chmod 777 rc.opentftp
crifan@ubuntu:opentftp$ ls -lha
total 184K
drwxr-xr-x 2 crifan crifan 4.0K Aug 16 01:44 .
drwxr-xr-x 7 crifan root   4.0K Aug 16 01:40 ..
-rw-r--r-- 1 crifan crifan  18K Jun 22  2007 LICENSE
-rwxr-xr-x 1 crifan crifan  49K Jun 13  2011 opentftpd
-rwxr--r-- 1 crifan crifan  61K Jun 11  2011 opentftpd.cpp
-rwxr--r-- 1 crifan crifan 4.5K Jun 11  2011 opentftpd.h
-rwxr--r-- 1 crifan crifan 4.1K Aug 16 01:44 opentftp.ini
-rwxr--r-- 1 crifan crifan 4.1K Jun  5  2011 opentftp.ini~
-rwxrwxrwx 1 crifan crifan 1.6K Jun  4  2011 rc.opentftp
-rwxr--r-- 1 crifan crifan 9.8K Jun  5  2011 README
crifan@ubuntu:opentftp$ sudo rc.opentftp start
sudo: rc.opentftp: command not found
crifan@ubuntu:opentftp$ sudo ./rc.opentftp start
Open TFTP Server started

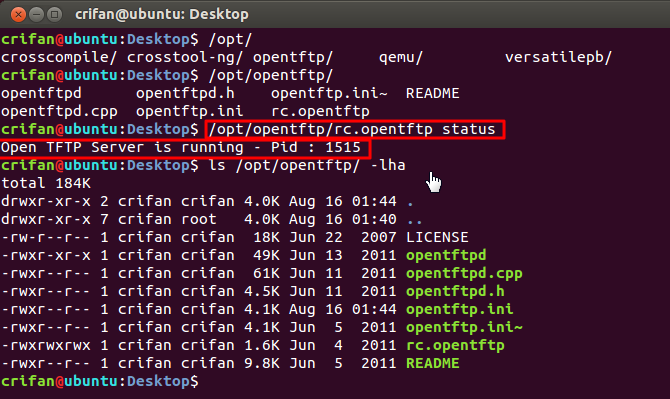

crifan@ubuntu:opentftp$ sudo ./rc.opentftp status
Open TFTP Server is running - Pid : 23360
crifan@ubuntu:opentftp$

6.然后想要加到启动项中去:

结果此处Ubuntu中没有找到/etc/rc.d/rc.local:

crifan@ubuntu:opentftp$ gedit /etc/
Display all 245 possibilities? (y or n)
crifan@ubuntu:opentftp$ gedit /etc/rc
rc0.d/    rc1.d/    rc2.d/    rc3.d/    rc4.d/    rc5.d/    rc6.d/    rc.local  rcS.d/
crifan@ubuntu:opentftp$ gedit /etc/rc^C
crifan@ubuntu:opentftp$ ls /etc/rc* -lha
-rwxr-xr-x 1 root root  306 Apr 24 10:02 /etc/rc.local

/etc/rc0.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
lrwxrwxrwx   1 root root   29 Aug  6 19:41 K10unattended-upgrades -> ../init.d/unattended-upgrades
lrwxrwxrwx   1 root root   20 Aug  6 19:41 K20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   27 Aug  6 19:41 K20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 K38open-vm-tools -> ../init.d/open-vm-tools
-rw-r--r--   1 root root  353 Jan 30  2013 README
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S20sendsigs -> ../init.d/sendsigs
lrwxrwxrwx   1 root root   17 Aug  6 19:41 S30urandom -> ../init.d/urandom
lrwxrwxrwx   1 root root   22 Aug  6 19:41 S31umountnfs.sh -> ../init.d/umountnfs.sh
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S40umountfs -> ../init.d/umountfs
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S60umountroot -> ../init.d/umountroot
lrwxrwxrwx   1 root root   14 Aug  6 19:41 S90halt -> ../init.d/halt

/etc/rc1.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
lrwxrwxrwx   1 root root   22 Aug  6 19:41 K20acpi-support -> ../init.d/acpi-support
lrwxrwxrwx   1 root root   20 Aug  6 19:41 K20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   15 Aug  6 19:41 K20saned -> ../init.d/saned
lrwxrwxrwx   1 root root   27 Aug  6 19:41 K20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 K38open-vm-tools -> ../init.d/open-vm-tools
-rw-r--r--   1 root root  369 Jan 30  2013 README
lrwxrwxrwx   1 root root   19 Aug  6 19:41 S30killprocs -> ../init.d/killprocs
lrwxrwxrwx   1 root root   19 Aug  6 19:41 S70dns-clean -> ../init.d/dns-clean
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S70pppd-dns -> ../init.d/pppd-dns
lrwxrwxrwx   1 root root   16 Aug  6 19:41 S90single -> ../init.d/single

/etc/rc2.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
-rw-r--r--   1 root root  677 Jan 30  2013 README
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   27 Aug  6 19:41 S20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 S38open-vm-tools -> ../init.d/open-vm-tools
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50rsync -> ../init.d/rsync
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50saned -> ../init.d/saned
lrwxrwxrwx   1 root root   19 Aug  6 19:41 S70dns-clean -> ../init.d/dns-clean
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S70pppd-dns -> ../init.d/pppd-dns
lrwxrwxrwx   1 root root   14 Aug  6 19:41 S75sudo -> ../init.d/sudo
lrwxrwxrwx   1 root root   22 Aug  6 19:41 S99acpi-support -> ../init.d/acpi-support
lrwxrwxrwx   1 root root   21 Aug  6 19:41 S99grub-common -> ../init.d/grub-common
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99ondemand -> ../init.d/ondemand
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99rc.local -> ../init.d/rc.local

/etc/rc3.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
-rw-r--r--   1 root root  677 Jan 30  2013 README
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   27 Aug  6 19:41 S20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 S38open-vm-tools -> ../init.d/open-vm-tools
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50rsync -> ../init.d/rsync
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50saned -> ../init.d/saned
lrwxrwxrwx   1 root root   19 Aug  6 19:41 S70dns-clean -> ../init.d/dns-clean
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S70pppd-dns -> ../init.d/pppd-dns
lrwxrwxrwx   1 root root   14 Aug  6 19:41 S75sudo -> ../init.d/sudo
lrwxrwxrwx   1 root root   22 Aug  6 19:41 S99acpi-support -> ../init.d/acpi-support
lrwxrwxrwx   1 root root   21 Aug  6 19:41 S99grub-common -> ../init.d/grub-common
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99ondemand -> ../init.d/ondemand
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99rc.local -> ../init.d/rc.local

/etc/rc4.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
-rw-r--r--   1 root root  677 Jan 30  2013 README
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   27 Aug  6 19:41 S20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 S38open-vm-tools -> ../init.d/open-vm-tools
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50rsync -> ../init.d/rsync
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50saned -> ../init.d/saned
lrwxrwxrwx   1 root root   19 Aug  6 19:41 S70dns-clean -> ../init.d/dns-clean
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S70pppd-dns -> ../init.d/pppd-dns
lrwxrwxrwx   1 root root   14 Aug  6 19:41 S75sudo -> ../init.d/sudo
lrwxrwxrwx   1 root root   22 Aug  6 19:41 S99acpi-support -> ../init.d/acpi-support
lrwxrwxrwx   1 root root   21 Aug  6 19:41 S99grub-common -> ../init.d/grub-common
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99ondemand -> ../init.d/ondemand
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99rc.local -> ../init.d/rc.local

/etc/rc5.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
-rw-r--r--   1 root root  677 Jan 30  2013 README
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   27 Aug  6 19:41 S20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 S38open-vm-tools -> ../init.d/open-vm-tools
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50rsync -> ../init.d/rsync
lrwxrwxrwx   1 root root   15 Aug  6 19:41 S50saned -> ../init.d/saned
lrwxrwxrwx   1 root root   19 Aug  6 19:41 S70dns-clean -> ../init.d/dns-clean
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S70pppd-dns -> ../init.d/pppd-dns
lrwxrwxrwx   1 root root   14 Aug  6 19:41 S75sudo -> ../init.d/sudo
lrwxrwxrwx   1 root root   22 Aug  6 19:41 S99acpi-support -> ../init.d/acpi-support
lrwxrwxrwx   1 root root   21 Aug  6 19:41 S99grub-common -> ../init.d/grub-common
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99ondemand -> ../init.d/ondemand
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S99rc.local -> ../init.d/rc.local

/etc/rc6.d:
total 20K
drwxr-xr-x   2 root root 4.0K Aug 11 23:43 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
lrwxrwxrwx   1 root root   29 Aug  6 19:41 K10unattended-upgrades -> ../init.d/unattended-upgrades
lrwxrwxrwx   1 root root   20 Aug  6 19:41 K20kerneloops -> ../init.d/kerneloops
lrwxrwxrwx   1 root root   27 Aug  6 19:41 K20speech-dispatcher -> ../init.d/speech-dispatcher
lrwxrwxrwx   1 root root   23 Aug 11 23:43 K38open-vm-tools -> ../init.d/open-vm-tools
-rw-r--r--   1 root root  351 Jan 30  2013 README
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S20sendsigs -> ../init.d/sendsigs
lrwxrwxrwx   1 root root   17 Aug  6 19:41 S30urandom -> ../init.d/urandom
lrwxrwxrwx   1 root root   22 Aug  6 19:41 S31umountnfs.sh -> ../init.d/umountnfs.sh
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S40umountfs -> ../init.d/umountfs
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S60umountroot -> ../init.d/umountroot
lrwxrwxrwx   1 root root   16 Aug  6 19:41 S90reboot -> ../init.d/reboot

/etc/rcS.d:
total 20K
drwxr-xr-x   2 root root 4.0K Apr 24 10:06 .
drwxr-xr-x 143 root root  12K Aug 15 18:38 ..
-rw-r--r--   1 root root  447 Jan 30  2013 README
lrwxrwxrwx   1 root root   16 Aug  6 19:41 S25brltty -> ../init.d/brltty
lrwxrwxrwx   1 root root   18 Aug  6 19:41 S37apparmor -> ../init.d/apparmor
lrwxrwxrwx   1 root root   17 Aug  6 19:41 S55urandom -> ../init.d/urandom
lrwxrwxrwx   1 root root   20 Aug  6 19:41 S70x11-common -> ../init.d/x11-common
crifan@ubuntu:opentftp$

7.所以,去试试,直接修改/etc/rc.local:

改为:

#!/bin/sh -e
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.

/opt/opentftp/rc.opentftp start
/opt/opentftp/rc.opentftp status

exit 0

然后重启Ubuntu去试试是否可以自动运行此tftp。

结果是可以的:

crifan@ubuntu:Desktop$ /opt/
crosscompile/ crosstool-ng/ opentftp/     qemu/         versatilepb/
crifan@ubuntu:Desktop$ /opt/opentftp/
opentftpd      opentftpd.h    opentftp.ini~  README
opentftpd.cpp  opentftp.ini   rc.opentftp
crifan@ubuntu:Desktop$ /opt/opentftp/rc.opentftp status
Open TFTP Server is running - Pid : 1515
crifan@ubuntu:Desktop$

如图:

check opentftp status running ok

【总结】

此处,只是下载合适的tftpopen,并且加到启动项里面。即可。



发表评论

电子邮件地址不会被公开。 必填项已用*标注

无觅相关文章插件,快速提升流量
