【已解决】Xcode打包OTA包出错:ipatool failed with an exception CmdSpec NonZeroExcitException bitcode-build-tool

iOS crifan 503浏览 0评论

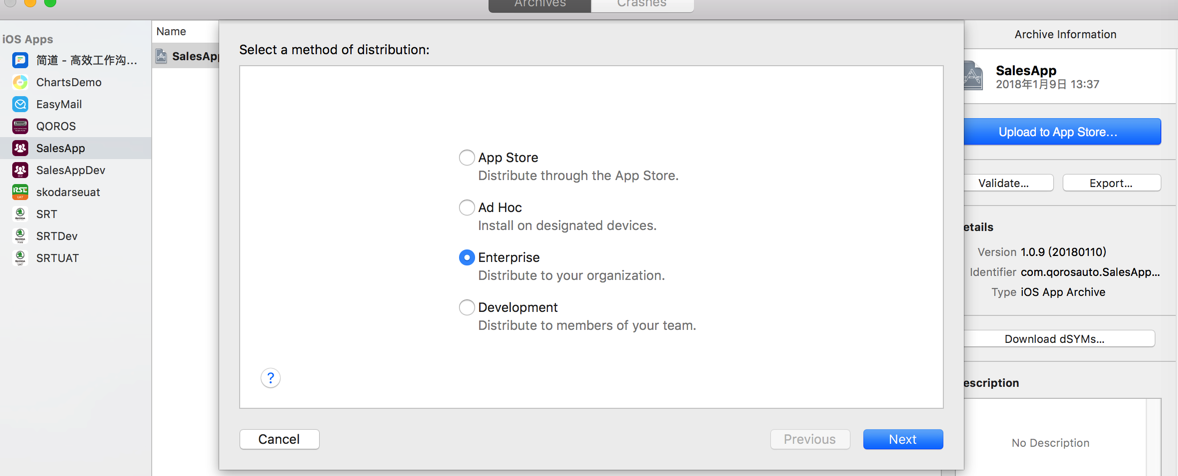

用最新的Xcode 9.2去给已有iOS项目去打包企业版OTA的包:

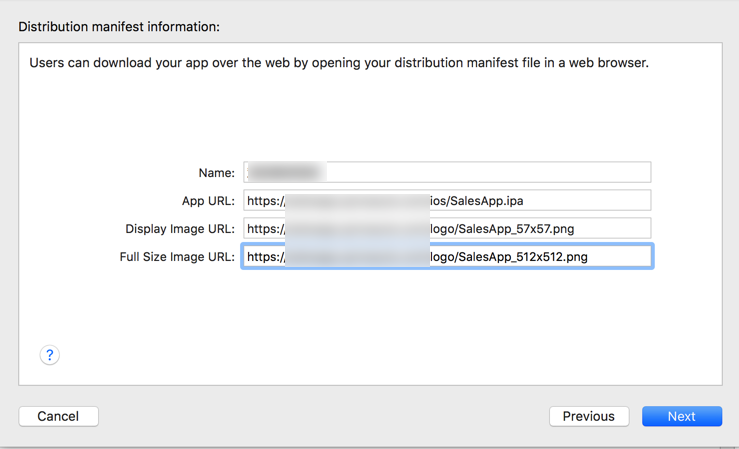

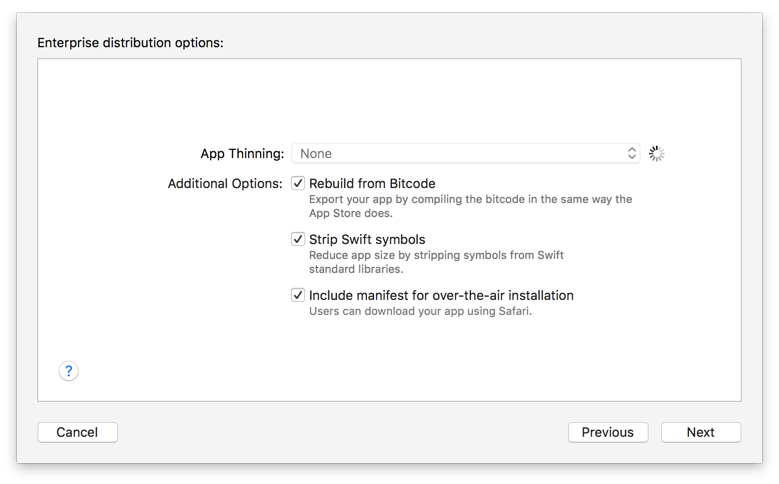

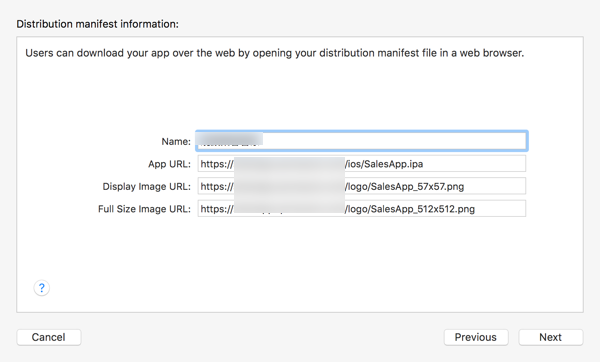

和之前一样,勾选了Rebuild from bitcode后,填写OTA信息:

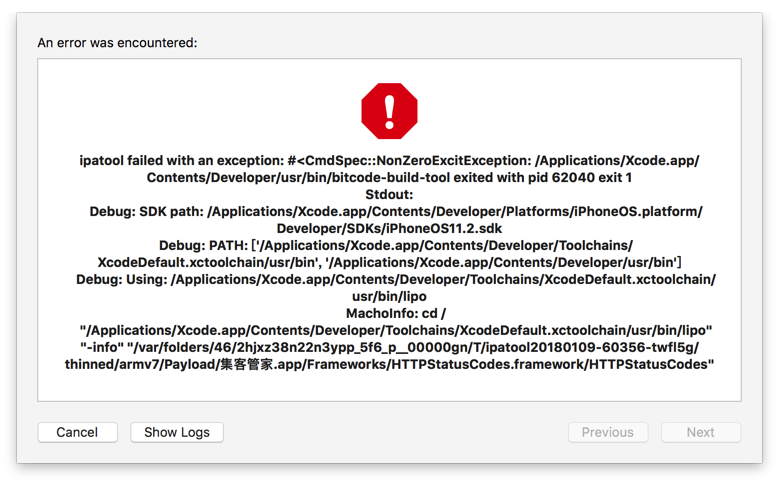

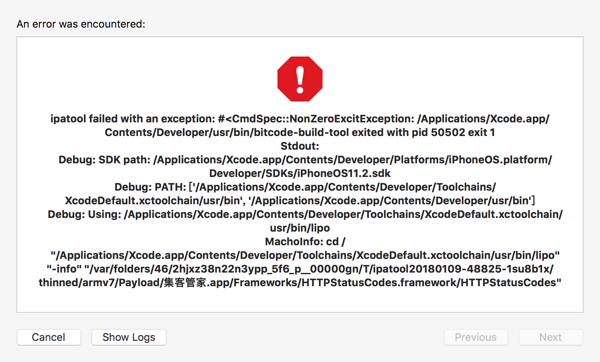

继续导出,结果出错:

ipatool failed with an exception: #<CmdSpec::NonZeroExcitException: /Applications/Xcode.app/Contents/Developer/usr/bin/bitcode-build-tool exited with pid 50502 exit 1

Stdout:

    Debug: SDK path: /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS11.2.sdk

    Debug: PATH: [‘/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin’, ‘/Applications/Xcode.app/Contents/Developer/usr/bin’]

    Debug: Using: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/lipo

    MachoInfo: cd /

    "/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/lipo" "-info" "/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/ipatool20180109-48825-1su8b1x/thinned/armv7/Payload/集客管家.app/Frameworks/HTTPStatusCodes.framework/HTTPStatusCodes"

    -= Output =-

    Non-fat file: /var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/ipatool20180109-48825-1su8b1x/thinned/armv7/Payload/集客管家.app/Frameworks

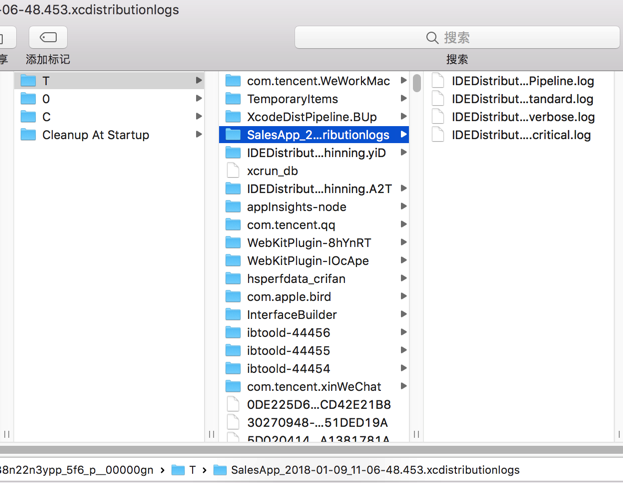

点击Show log打开文件夹:

找到log文件:

SalesApp_2018-01-09_11-06-48.453.xcdistributionlogs

IDEDistribution.critical.log

IDEDistribution.standard.log

IDEDistribution.verbose.log

IDEDistributionPipeline.log

找了半天,好像是这个有关系:

/private/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/SalesApp_2018-01-09_11-06-48.453.xcdistributionlogs/IDEDistributionPipeline.log

2018-01-09 03:10:37 +0000  ary/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 474, in format

        s = self._fmt % record.__dict__

    UnicodeDecodeError: ‘ascii’ codec can’t decode byte 0xe9 in position 124: ordinal not in range(128)

    Logged from file buildenv.py, line 170

    Traceback (most recent call last):

      File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 859, in emit

        msg = self.format(record)

      File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 732, in format

        return fmt.format(record)

      File

"/Applications/Xcode.app/Contents/Developer/usr/bin/../lib/bitcode_build_tool/buildenv.py", line 44, in format

        return super(LogFormatter, self).format(record)

      File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 474, in format

        s = self._fmt % record.__dict__

    UnicodeDecodeError: ‘ascii’ codec can’t decode byte 0xe9 in position 124: ordinal not in range(128)

    Logged from file buildenv.py, line 170

    Traceback (most recent call last):

      File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 859, in emit

        msg = self.format(record)

      File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 732, in format

        return fmt.format(record)

      File "/Applications/Xcode.app/Contents/Developer/usr/bin/../lib/bitcode_build_tool/buildenv.py", line 44, in format

        return super(LogFormatter, self).format(record)

      File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py", line 474, in format

        s = self._fmt % record.__dict__

      File "/Applications/Xcode.app/Contents/Developer/usr/bin/../lib/bitcode_build_tool/cmdtool.py", line 31, in __repr__

        cmd_string += u"\"" + c + "\" "

    UnicodeDecodeError: ‘ascii’ codec can’t decode byte 0xe9 in position 101: ordinal not in range(128)

    Logged from file buildenv.py, line 160

    from /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2187:in `block in CompileOrStripBitcodeInBundle’

    from /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2139:in `each’

    from /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2139:i

2018-01-09 03:10:37 +0000  n `CompileOrStripBitcodeInBundle’

    from /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2323:in `ProcessIPA’

    from /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2938:in `<main>’

2018-01-09 03:10:37 +0000

…

2018-01-09 03:10:37 +0000  2018-01-09 03:10:37 +0000

2018-01-09 03:10:37 +0000

2018-01-09 03:10:37 +0000  /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool exited with 12018-01-09 03:10:37 +0000  2018-01-09 03:10:37 +0000

2018-01-09 03:10:37 +0000  2018-01-09 03:10:37 +0000

2018-01-09 03:10:37 +0000  ipatool JSON: {

    alerts =     (

                {

            code = 2817;

            description = "Configuration issue: platform WatchSimulator.platform doesn’t have any non-simulator SDKs; ignoring it";

            info =             {

            };

            level = WARN;

        },

                {

            code = 2817;

            description = "Configuration issue: platform AppleTVSimulator.platform doesn’t have any non-simulator SDKs; ignoring it";

            info =             {

            };

            level = WARN;

        },

                {

            code = 2817;

            description = "Configuration issue: platform iPhoneSimulator.platform doesn’t have any non-simulator SDKs; ignoring it";

            info =             {

            };

            level = WARN;

        },

                {

            code = 653;

            description = "ipatool failed with an exception: #<CmdSpec::NonZeroExcitException: /Applications/Xcode.app/Contents/Developer/usr/bin/bitcode-build-tool exited with pid 50502 exit 1\nStdout:\n    Debug: SDK path: /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS11.2.sdk\n    Debug: PATH: [‘/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin’, ‘/Applications/Xcode.app/Contents/Developer/usr/bin’]\n    Debug:

\"/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/ipatool20180109-48825-1su8b1x/thinned/armv7/Payload/\U96c6\U5ba2\U7ba1\U5bb6.app/Frameworks/HTTPStatusCodes.framework/HTTPStatusCodes\" \"-extract\" \"__LLVM\" \"__bundle\" \"/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/HTTPStatusCodesWEh90I/HTTPStatusCodes.armv7.xar\" \n    -= Output =-\n    Exited with 0\n    \n    Debug: Command took 0 seconds\n    Debug: Bitcode bundle version: 1.0\n    Debug: Setting platform to: iPhoneOS\n    Debug: Using: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/ld\n    Debug: Using: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang\n    Debug: Using: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/swiftc\n    Clang: cd /var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/tempBpON1f\n    \"/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang\" \"-cc1\" \"-triple\" \"thumbv7-apple-ios8.0.0\" \"-emit-obj\" \"-disable-llvm-passes\" \"-target-abi\" \"apcs-gnu\" \"-mfloat-abi\" \"soft\" \"-Os\" \"-x\" \"ir\" \"1\" \"-o\" \"1.o\" \n    -= Output =-\n    Exited with 0\n    \n    Debug: Command took 0 seconds\n    Swift: cd

\"/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py\", line 732, in format\n        return fmt.format(record)\n      File \"/Applications/Xcode.app/Contents/Developer/usr/bin/../lib/bitcode_build_tool/buildenv.py\", line 44, in format\n        return super(LogFormatter, self).format(record)\n      File \"/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/logging/__init__.py\", line 474, in format\n        s = self._fmt % record.__dict__\n      File \"/Applications/Xcode.app/Contents/Developer/usr/bin/../lib/bitcode_build_tool/cmdtool.py\", line 31, in __repr__\n        cmd_string += u\"\\\"\" + c + \"\\\" \"\n    UnicodeDecodeError: ‘ascii’ codec can’t decode byte 0xe9 in position 101: ordinal not in range(128)\n    Logged from file buildenv.py, line 160\n>\n    /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:208:in `run’\n    /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2187:in `block in CompileOrStripBitcodeInBundle’\n    /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2139:in `each’\n    /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2139:in `CompileOrStripBitcodeInBundle’\n    /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2323:in `ProcessIPA’\n    /Applications/Xcode.app/Contents/Developer/usr/bin/ipatool:2938:in `<main>’";

            info =             {

            };

            level = ERROR;

            type = exception;

        }

    );

    thinnableAssetCatalogs =     (

        "/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/XcodeDistPipeline.BUp/Root/Payload/\U96c6\U5ba2\U7ba1\U5bb6.app/Assets.car"

    );

}

ios  ipatool failed with an exception

ios  ipatool failed with an exception CmdSpec NonZeroExcitException

ios – ipatool failed with an exception – Stack Overflow

Gym in Xcode 9 fails on certificate type. · Issue #9642 · fastlane/fastlane

[support] problems exporting project to an installable app · Issue #172 · watson-developer-cloud/swift-sdk

ipatool failed with an exception: # | Apple Developer Forums

打包问题 – 简书

不勾选Rebuild from bitcode ?

ios – xcodebuild -exportArchive fails with error Locating signing assets failed – Stack Overflow © stackoverflow.com

好像也和bitcode有关系?

Export watchkit archive to ad hoc ipa using xcode · Dushyant Bansal

-》感觉是:

开启了bitcode后,其他库,此处的HTTPStatusCodes.framework也会被重新编译的

-》或许是此处的第三方库,包括HTTPStatusCodes.framework都是之前的Xcode版本(Xcode 9.1? 9.2 beta?的swift 3.2编译的?)

-》所以此处Xcode 9.2的swift 4.0.1再去bitcode重新编译才会出错?

-〉那和之前

【已解决】Xcode编译出错:Module compiled with Swift 4.0.1 cannot be imported in Swift 3.2.3

一样去试试:

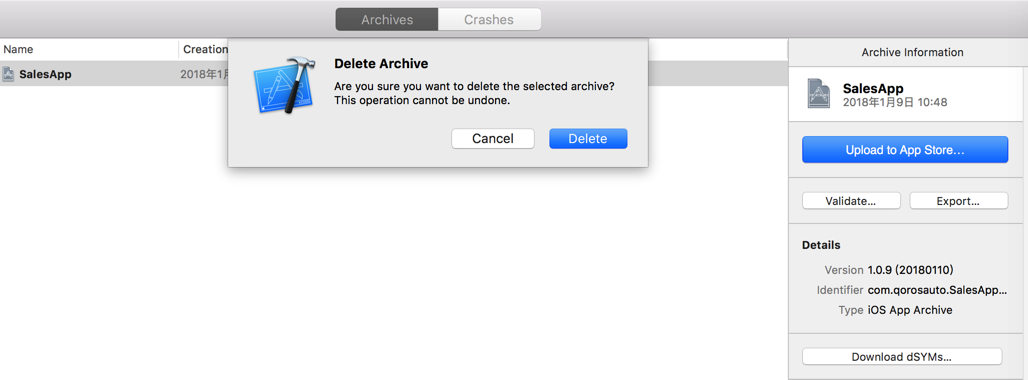

先删除就旧的:

再去:

rm -rf ~/Library/Caches/org.carthage.CarthageKit/DerivedData

carthage update –no-use-binaries –platform iOS

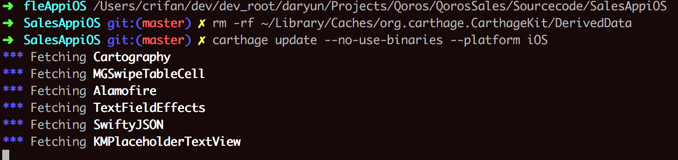

结果出错:

➜  fleAppiOS /Users/crifan/dev/dev_root/daryun/Projects/Qoros/QorosSales/Sourcecode/SalesAppiOS

➜  SalesAppiOS git:(master) ✗ rm -rf ~/Library/Caches/org.carthage.CarthageKit/DerivedData

➜  SalesAppiOS git:(master) ✗ carthage update –no-use-binaries –platform iOS

*** Fetching Cartography

*** Fetching MGSwipeTableCell

*** Fetching Alamofire

*** Fetching TextFieldEffects

*** Fetching SwiftyJSON

*** Fetching KMPlaceholderTextView

*** Fetching realm-cocoa

*** Fetching SwiftHEXColors

*** Fetching SwiftHTTPStatusCodes

*** Fetching ActionSheetPicker-3.0

*** Fetching Kingfisher

*** Fetching Charts

A shell task (/usr/bin/env git fetch –prune –quiet origin refs/tags/*:refs/tags/* +refs/heads/*:refs/heads/* (launched in /Users/crifan/Library/Caches/org.carthage.CarthageKit/dependencies/Charts)) failed with exit code 128:

fatal: unable to access ‘https://github.com/danielgindi/Charts.git/‘: LibreSSL SSL_connect: SSL_ERROR_SYSCALL in connection to github.com:443

再重新试试

➜  SalesAppiOS git:(master) ✗ carthage update –no-use-binaries –platform iOS

*** Fetching Cartography

*** Fetching MGSwipeTableCell

*** Fetching Alamofire

*** Fetching TextFieldEffects

*** Fetching SwiftyJSON

*** Fetching KMPlaceholderTextView

*** Fetching realm-cocoa

*** Fetching SwiftHEXColors

*** Fetching SwiftHTTPStatusCodes

*** Fetching ActionSheetPicker-3.0

*** Fetching Kingfisher

*** Fetching Charts

*** Fetching SwiftKeychainWrapper

*** Fetching DLRadioButton

*** Fetching XCGLogger

*** Checking out Cartography at "1.1.0"

*** Checking out DLRadioButton at "1.4.11"

*** Checking out Charts at "v3.0.5"

*** Checking out SwiftKeychainWrapper at "2.2.1"

*** Checking out Kingfisher at "3.13.1"

*** Checking out ActionSheetPicker-3.0 at "2.3.0"

*** Checking out SwiftHTTPStatusCodes at "3.2.0"

*** Checking out SwiftHEXColors at "1.1.1"

*** Checking out realm-cocoa at "v3.0.2"

*** Checking out KMPlaceholderTextView at "1.3.0"

*** Checking out SwiftyJSON at "4.0.0"

*** Checking out TextFieldEffects at "1.4.0"

*** Checking out Alamofire at "4.6.0"

*** Checking out MGSwipeTableCell at "1.6.6"

*** Checking out XCGLogger at "Version_4.0.0"

*** xcodebuild output can be found in /var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/carthage-xcodebuild.vVauJ6.log

*** Building scheme "CoreActionSheetPicker" in ActionSheetPicker-3.0.xcworkspace

*** Building scheme "Alamofire iOS" in Alamofire.xcworkspace

*** Building scheme "Cartography-iOS" in Cartography.xcworkspace

*** Building scheme "Charts" in Charts.xcodeproj

*** Building scheme "DLRadioButton" in DLRadioButton.xcodeproj

*** Building scheme "Kingfisher" in Kingfisher.xcworkspace

*** Building scheme "KMPlaceholderTextView" in KMPlaceholderTextView.xcodeproj

*** Building scheme "MGSwipeTableCell" in MGSwipeTableCell.xcodeproj

*** Building scheme "Realm" in Realm.xcworkspace

*** Building scheme "RealmSwift" in Realm.xcworkspace

*** Building scheme "SwiftHEXColors" in SwiftHEXColors.xcodeproj

*** Building scheme "HTTPStatusCodes" in HTTPStatusCodes.xcodeproj

*** Building scheme "SwiftKeychainWrapper" in SwiftKeychainWrapper.xcodeproj

*** Building scheme "SwiftyJSON iOS" in SwiftyJSON.xcworkspace

*** Building scheme "TextFieldEffects" in TextFieldEffects.xcodeproj

*** Building scheme "XCGLogger (iOS)" in XCGLogger.xcodeproj

重新OTA打包试试

结果问题依旧:

ipatool failed with an exception: #<CmdSpec::NonZeroExcitException: /Applications/Xcode.app/Contents/Developer/usr/bin/bitcode-build-tool exited with pid 62040 exit 1

Stdout:

    Debug: SDK path: /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS11.2.sdk

    Debug: PATH: [‘/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin’, ‘/Applications/Xcode.app/Contents/Developer/usr/bin’]

    Debug: Using: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/lipo

    MachoInfo: cd /

    "/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/lipo" "-info" "/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/ipatool20180109-60356-twfl5g/thinned/armv7/Payload/集客管家.app/Frameworks/HTTPStatusCodes.framework/HTTPStatusCodes"

    -= Output =-

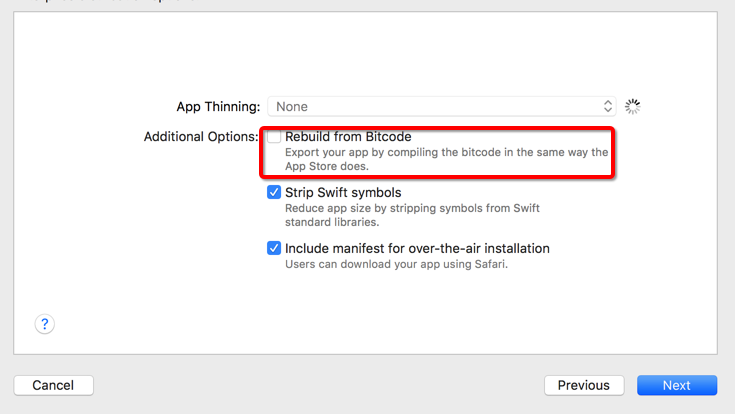

所以,重新试试,取消bitcode:

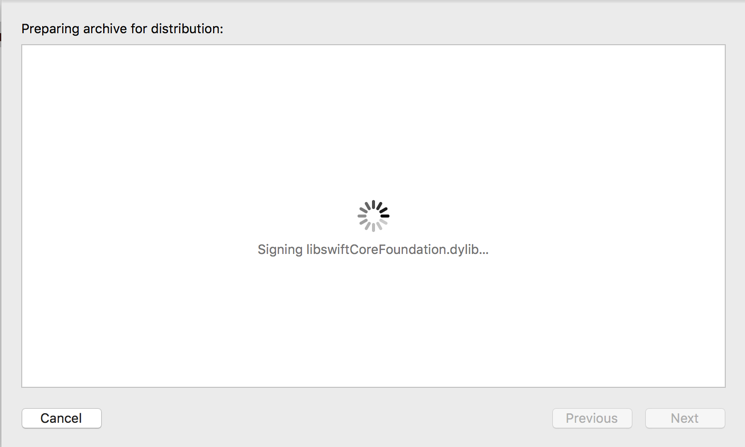

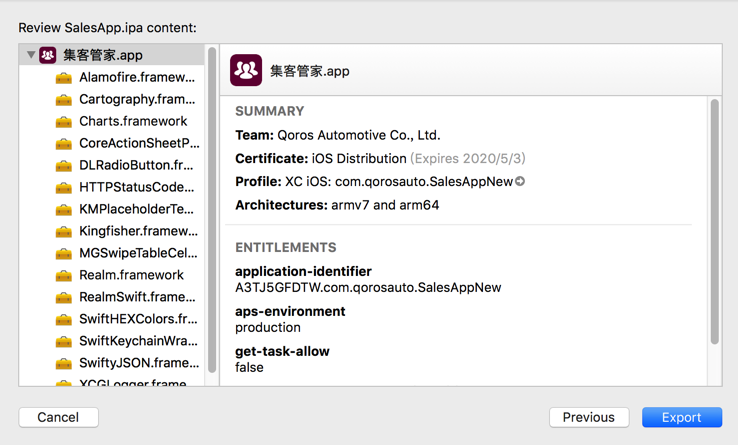

然后就正常了,可以去sign这些第三方库,包括上面的HTTPStatusCodes.framework了:

【总结】

此处最终是,在Xcode打包时取消选择:

Rebuild from Bitcode

(Export your app by compiling the bitcode in the same way the App Store does.)

即可。

暂时没时间深究根本的原因:可能是Xcode相关的bug,也可能是其他原因。

【后记】

通过下面的帖子:

ios xcode9 ipatool failed with an exception   NonZeroExcitException

xcodebuild -exportArchive fails with error Locating signing assets failed

https://q-a-assistant.info/computer-internet-technology/xcodebuild-exportarchive-fails-with-error-locating-signing-assets-failed/1280273

xcodebuild -exportArchive fails with error Locating signing assets failed

http://www.codejaxy.com/q/184308/ios-ipa-xcodebuild-xcode9-beta-xcode9-xcodebuild-exportarchive-fails-with-error-locating-signing-assets-failed

-》

“Xcode 9 recompiles the app from bitcode by default.”

貌似找到根本原因了:

Xcode9默认就已经开启了bitcode功能了

-》所以后续Bitcode就需要关闭了才可以。

-〉所以要打包时要取消勾选:Rebuild from Bitcode
