【问题】
android程序开发中,需要对于一个app中的某个AlertDialog弹出的窗口中背景色实现自定义。
目前已有的代码是:
1.res/values/styles.xml
<resources> <!-- Base application theme, dependent on API level. This theme is replaced by AppBaseTheme from res/values-vXX/styles.xml on newer devices. --> <style name="AppBaseTheme" parent="android:Theme.Light"> <!-- Theme customizations available in newer API levels can go in res/values-vXX/styles.xml, while customizations related to backward-compatibility can go here. --> </style> <!-- Application theme. --> <style name="AppTheme" parent="AppBaseTheme"> <item name="android:background">@android:color/holo_red_dark</item> <item name="android:textColor">@android:color/white</item> <item name="android:windowNoTitle">true</item> </style> <style name="Button"> <item name="android:textColor">@android:color/holo_blue_light</item> </style> <style name="dialog" parent="@android:style/Theme.Dialog"> <item name="android:windowBackground">@android:color/holo_red_dark</item> </style> <style name="NewAlertDialog" parent="@android:style/Theme.Holo.Dialog"> <item name="android:windowBackground">@android:color/holo_green_light</item> </style> <style name="EditText" parent="@android:style/Widget.EditText"> <item name="android:background">@android:color/darker_gray</item> <item name="android:textColor">@android:color/holo_green_light</item> </style> </resources>
2.ModalAlertDialog
public class ModalAlertDialog extends AlertDialog { ...... protected ModalAlertDialog(Context context,int theme) { super(context,theme); System.out.println("ModalAlertDialog theme create,Thread id is " + Thread.currentThread().getId() + " dialog hashcode" + this.hashCode()); }
3.ModalDialogCreator
public class ModalDialogCreator { ...... private int mTheme = AlertDialog.THEME_DEVICE_DEFAULT_DARK; private Context mHost; public ModalDialogCreator(Context host) { mHost = host; } public ModalDialogCreator(Context host, int theme) { mHost = host; mTheme = theme; } private ModalAlertDialog createDialog() { ModalAlertDialog modalDialog = new ModalAlertDialog(mHost, mTheme); return modalDialog; } ...... public ModalAlertDialog createMessageDialog(String title, String message, int interval) { final ModalAlertDialog modalDialog = createDialog(); modalDialog.setTitle(title); modalDialog.setMessage(message); modalDialog.setIcon(android.R.drawable.ic_dialog_alert); modalDialog.setCancelable(false); setDismissInterval(modalDialog, interval); return modalDialog; }
4.MainActivity.java
Button btnDialog = (Button) findViewById(R.id.btnDialog); btnDialog.setOnClickListener(new OnClickListener() { public void onClick(View view) { // DialogBuilder.write(context); ModalDialogCreator creator = new ModalDialogCreator(context); List<String> sex = new ArrayList<String>(); sex.add("male"); sex.add("femal"); sex.add("unknow"); // ModalAlertDialog dialog = // creator.createUpdateMessageDialog("hello", "nihao", 1000, new // MessageUpdateListener(){})( // "sex", sex, new boolean[] { true, true }); ModalAlertDialog dialog = creator.createMessageDialog("hello", "nahao crifan", 2000);
起初的逻辑是:
在MainActivity.java去new ModalDialogCreator的creator
然后creator去createMessageDialog,传入要显示的内容。
在createMessageDialog中,会去createDialog
createDialog中会去new ModalAlertDialog,使用当前的mHost和mTheme
而mTheme即全局的默认值AlertDialog.THEME_DEVICE_DEFAULT_DARK。
目前的问题是:
其中可见styles.xml已有对应的NewAlertDialog,去配置android:windowBackground为@android:color/holo_green_light。
但是不起效果。
即,当前的AlertDialog对话框的窗口背景色,还是全局的App的背景色:@android:color/holo_red_dark
而不是希望的,上述在NewAlertDialog中配置的@android:color/holo_green_light
其中,关于AlertDialog.THEME_DEVICE_DEFAULT_DARK等值,可以参考官网的文档:
【解决过程】
1.之前去styles.xml中设置:
<style name="CustomAlertDialog" parent="@android:style/Theme.Holo.Dialog"> <item name="android:windowBackground">@android:color/holo_red_dark</item> </style>
也是没任何效果的。
2.后来参考:
自定义 Android 对话框 (AlertDialog) 的样式
虽然没有直接给出此处的答案,但是大概看懂了其逻辑:
其是通过那一堆的LinearLayout,去实现了自定义的Dialog的显示页面的结构。
然后是用:
<?xml version="1.0" encoding="utf-8"?> <resources> <style name="Dialog" parent="android:style/Theme.Dialog"> <item name="android:windowBackground">@null</item> <item name="android:windowNoTitle">true</item> <item name="android:windowIsFloating">true</item> </style> </resources>
用于控制Dialog的背景色为空。
然后在CustomDialog的create()中去:
final CustomDialog dialog = new CustomDialog(context, R.style.Dialog);
其中R.style.Dialog中的Dialog,就是上述resources中自定义的那个Dialog。
即:
先自定义一个xxx样式,然后在自定义Dialog(以及我此处的AlertDialog)中,再去通过R.style.xxx的方式去使用此自定义的样式
3.然后去看此处的已有的代码。
发现:
protected ModalAlertDialog(Context context,int theme) { super(context,theme);
很明显,是拿到theme后,传递给了super,即ModalAlertDialog扩展自的那个AlertDialog
即,此处的theme最终是给了AlertDialog的。
所以,想到了使用自己定义的style。
先去添加一个自己的CustomAlertDialog:
<style name="CustomAlertDialog" parent="@android:style/Theme.Holo.Dialog"> <item name="android:windowBackground">@android:color/holo_red_dark</item> </style>
再去让此处的AlertDialog使用自己的styple:
private ModalAlertDialog createDialog() { //ModalAlertDialog modalDialog = new ModalAlertDialog(mHost, mTheme); ModalAlertDialog modalDialog = new ModalAlertDialog(mHost, R.style.CustomAlertDialog); return modalDialog; }
但是结果却还是无效,即此处的windowBackground,还是没效果。
4.后来经过尝试,实际上是background有效果。
即,改为:
<style name="CustomAlertDialog" parent="@android:style/Theme.Holo.Dialog"> <item name="android:background">@android:color/holo_green_light</item> </style>
然后就可以实现对应的效果了:
app的全局的颜色是深红色(@android:color/holo_red_dark):

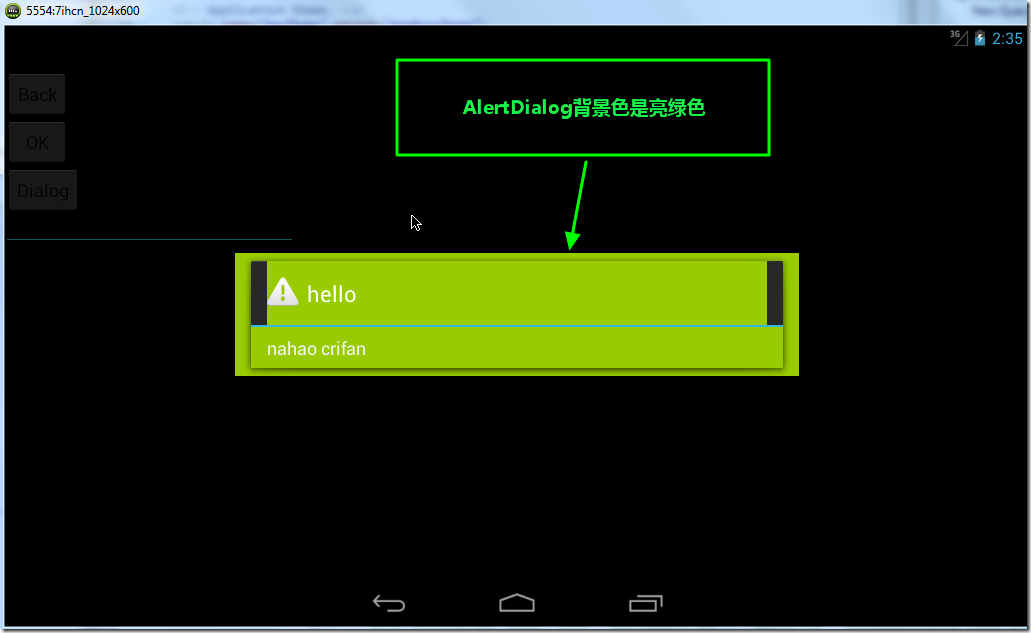

然后对应的AlertDialog的窗口背景色是亮绿色(@android:color/holo_green_light):
如此,即实现了我们自定义AlertDialog窗口背景色的目的了。
5.其实,后来在:
How to “theme” an Android Dialog
也给出极其简单的解释,也是此处用的方式。
【总结】
想要实现AlertDialog的窗口背景色的自定义的话,可以:
1.在res/values/styles.xml中,自定义一个style,设置背景色:
<style name="CustomAlertDialogBackground" parent="@android:style/Theme.Holo.Dialog"> <item name="android:background">@android:color/holo_green_light</item> </style>
注意是
(1)android:background,而不是android:windowBackground
(2)parent,此处是@android:style/Theme.Holo.Dialog,暂时不太清楚,别的,非Dialog的话,是否有效。
2.实现你自己的自定义的AlertDialog类,其中构造函数中,把theme传给super的AlertDialog:
public class xxxAlertDialog extends AlertDialog { protected xxxAlertDialog(Context context,int theme) { super(context,theme); ...... }
3.创建自定义AlertDialog类时,把对应的之前自己的style传递进去:
xxxAlertDialog xxxDialog = new xxxAlertDialog(yourContext, R.style.CustomAlertDialogBackground);
如此,即可。
注意:
(1)CustomAlertDialogBackground是我们自定义的那个style。
