【已解决】汽车之家车型车系数据:支持旧版车系页面

页面 crifan 287浏览 0评论
之前已经完成了:
【已解决】汽车之家车型车系数据:支持新版车系页面
后来发现有些旧版车系页面,html网页结构不一样
所以要再去添加支持
也意味着之前抓包结果会漏掉这些:
旧版车系页面
举例
Q开头
https://www.autohome.com.cn/grade/carhtml/q.html
-》
东风悦达起亚-千里马
且这类旧版车系,在字母页面中,很明显,指导价都是 暂无 没有 没链接的:
-》
一汽丰田-花冠
只是页面内部才有 单个 car的model车型 的(某个范围的)指导价
对于这类页面,需要先去加代码判断 是 新 还是 旧 版本的页面布局:
        carSeriesHtml = response.text
        print("type(carSeriesHtml)=%s" % type(carSeriesHtml)) # <class 'str'>
        # print("carSeriesHtml=%s" % carSeriesHtml)

        foundLevelId = re.search("var\s+levelid\s+=", carSeriesHtml)
        print("foundLevelId=%s" % foundLevelId)
        isNewLayoutHtml = bool(foundLevelId)
        print("isNewLayoutHtml=%s" % isNewLayoutHtml)
        foundShowCityId = re.search("var\s+showCityId\s+=", carSeriesHtml)
        print("foundShowCityId=%s" % foundShowCityId)
        isOldLayoutHtml = bool(foundShowCityId)
        print("isOldLayoutHtml=%s" % isOldLayoutHtml)
然后才能基于不同布局,用不同代码:
        if isOldLayoutHtml:
            # 旧版布局
        elif isNewLayoutHtml
            # 新版布局
            # 详见前贴:【已解决】汽车之家车型车系数据:支持新版车系页面
然后再说,旧版布局中的要抓取的内容和处理逻辑
此处以
东风悦达起亚-千里马
为例,说明要抓取的内容:
其中切换到其他年份款,也是同样的结构:
再去解释处理逻辑:
对于html
            <div class="car_detail " id="tab1-2">
                <div class="models">
                <!--年代-->
                    <div class="header">
                        <div class="car_price">
                            <span class="years">2005款</span>
                            <span class="price">指导价(停售):<strong class="red">6.28万-9.18万</strong></span>
                            <span class="price">二手车价格:<strong class="red"><a class='cd60000' href='//www.che168.com/china/qiya/qianlima/a0_0msdgscncgpiltocsp1exs276/?pvareaid=103693'>0.39万-1.30万</a></strong></span>
            。。。
            <div class="car_detail current" id="tab1-1">
                <div class="models">
                    <!--年代-->
                    <div class="header">
                        <div class="car_price">
                            <span class="years">2006款</span>
                            <span class="price">指导价(停售):<strong class="red">7.28万-8.58万</strong></span>
解析出:
  • carModelYear:2006款
为了和 和之前 新版车系页面 一致,此处:
对于整个车系的数据:采用 第一个model的数据:
对于html
                    <div class="models_info">
                        <dl class='models_pics'>
                            <dt><a href='//car.autohome.com.cn/photolist/series/2305/23796.html?pvareaid=101468'><img
                                src='https://car0.autoimg.cn/upload/spec/1344/t_1344388912334.jpg' width='240'
                                height='180' /></a></dt>
解析出:
对于:
 <div class="car_price">
   <span class="price">指导价(停售):<strong class="red">7.28万-8.58万</strong></span>
解析出:
  • carSeriesMsrp:7.93万
    • =(carSeriesMinPrice + carSeriesMaxPrice) / 2
  • carSeriesMinPrice:7.28万
  • carSeriesMaxPrice:8.58万
然后继续解析每个model数据:
对于html
                <div class="modelswrap">
                    <!-- 信息 start -->
                    <div class="models_info">
                        <dl class='models_prop'>
                            <dt>发动机:</dt>
                            <dd><span>1.3L</span><span>1.6L</span></dd>
                        </dl>
                        <dl class='models_prop'>
                            <dt>变速箱:</dt>
                            <dd><span>手动</span><span>自动</span></dd>
                            <dt>车身结构:</dt>
                            <dd><span>三厢</span></dd>
                        </dl>
解析出:
  • carModelGearBox:手动自动
  • carModelDriveType:空值
  • carModelEmissionStandards:空值
  • carModelPower:1.3L1.6L
  • carModelGroupName:1.3L1.6L 手动自动 三厢
从html
                <table class='models_tab tableline' cellspacing='0' cellpadding='0' border='0'>
                    <tr>
                        <td class='name_d'>
                            <div class='name'><a title='2006款 1.6L MT特别版GL' href='spec/2304/'>2006款 1.6L MT特别版GL</a></div>
                        </td>
                        <td class='price_d'>
                            <div class='price01'>8.18万</div>
                        </td>
解析出:
此处支持 新版车系页面 + 旧版车系页面 的完整代码如下:
贴出完整的代码:
#!/usr/bin/env python
# -*- encoding: utf-8 -*-
# Created on 2020-08-20 22:19:20
# Project: autohome_20200819


import string
import re
import copy


from lxml import etree


from pyspider.libs.base_handler import *


AutohomeHost = "https://www.autohome.com.cn"
CarSpecPrefix = "%s/spec" % AutohomeHost # "https://www.autohome.com.cn/spec/%s/"


class Handler(BaseHandler):
    UserAgent_Mac_Chrome = "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/84.0.4147.105 Safari/537.36"
    crawl_config = {
        "headers": {
            "User-Agent": UserAgent_Mac_Chrome,
        }
    }


    def genSpecUrl(self, specId):
        # return "%s/%s" % (CarSpecPrefix, specId)
        return "%s/%s/" % (CarSpecPrefix, specId)


    # @every(minutes=24 * 60)
    def on_start(self):
        # autohomeEntryUrl = "https://www.autohome.com.cn/car/"
        # self.crawl(autohomeEntryUrl, callback=self.carBrandListCallback)
        for eachLetter in list(string.ascii_lowercase):
            letterUpper = eachLetter.upper()
            # # for debug
            # letterUpper = "H"
            print("letterUpper=%s" % letterUpper)
            self.crawl("https://www.autohome.com.cn/grade/carhtml/%s.html" % eachLetter,
                save={"initials": letterUpper},
                callback=self.gradCarHtmlPage)


    # # @config(age=10 * 24 * 60 * 60)
    # def carBrandListCallback(self, response):
    #     print("response.url=%s" % response.url)
    #     # <div vos="gs" class="uibox" id="boxA" style="">
    #     for eachVosGs in response.doc('div[vos="gs"]').items():
    #         print("eachVosGs=%s" % eachVosGs)
    #         # self.crawl(each.attr.href, callback=self.detail_page)


    # # @config(priority=2)
    # def detail_page(self, response):
    #     return {
    #         "url": response.url,
    #         "title": response.doc('title').text(),
    #     }


    @catch_status_code_error
    def gradCarHtmlPage(self, response):
        print("gradCarHtmlPage: response=", response)


        # picSeriesItemList = response.doc('.rank-list-ul li div a[href*="/pic/series"]').items()
        # print("picSeriesItemList=", picSeriesItemList)
        # print("len(picSeriesItemList)=%s"%(len(picSeriesItemList)))
        # for each in picSeriesItemList:
        #     self.crawl(each.attr.href, callback=self.picSeriesPage)


        saveDict = response.save
        print("saveDict=", saveDict)
        initials = saveDict["initials"]
        print("initials=", initials)
        respText = response.text
        # print("respText=", respText)


        """
        <dl id="33" olr="6">
            <dt><a href="//car.autohome.com.cn/price/brand-33.html#pvareaid=2042362"><img width="50" height="50"
                    src="//car2.autoimg.cn/cardfs/series/g26/M0B/AE/B3/100x100_f40_autohomecar__wKgHEVs9u5WAV441AAAKdxZGE4U148.png"></a>
                <div><a href="//car.autohome.com.cn/price/brand-33.html#pvareaid=2042362">奥迪</a></div>
            </dt>
        """
        # brandDoc = response.doc('dl dt')
        # print("brandDoc=%s" % brandDoc)
        # brandListDoc = response.doc('dl[id and orl] dt')
        # dlListDoc = response.doc('dl[id and orl]').items()
        # dlListDoc = response.doc("dl[id*=''][orl*='']").items()
        # dlListDoc = response.doc("dl[orl*='']").items()
        # dlListDoc = response.doc("dl").items()
        # dlListDoc = response.doc("dl:regex(id, \d+)").items()
        # dlListDoc = response.doc("dl:regex(id,[0-9])").items()
        # dlListDoc = response.doc("dl[id]").items()
        dlListDoc = response.doc("dl[olr]").items()
        print("type(dlListDoc)=%s" % type(dlListDoc))
        dlList = list(dlListDoc)
        print("len(dlList)=%s" % len(dlList))
        print("dlList=%s" % dlList)
        for curBrandIdx, eachDlDoc in enumerate(dlList):
            print("%s [%d] %s" % ('#'*30, curBrandIdx, '#'*30))


            dtDoc = eachDlDoc.find("dt")
            # print("dtDoc=%s" % dtDoc)
            # <a href="//car.autohome.com.cn/price/brand-33.html#pvareaid=2042362"><img width="50" height="50" src="//car2.autoimg.cn/cardfs/series/g26/M0B/AE/B3/100x100_f40_autohomecar__wKgHEVs9u5WAV441AAAKdxZGE4U148.png"></a>
            brandLogoDoc = dtDoc.find('a img')
            # print("brandLogoDoc=%s" % brandLogoDoc)
            carBrandLogoUrl = brandLogoDoc.attr["src"]
            print("carBrandLogoUrl=%s" % carBrandLogoUrl)
            # <div><a href="//car.autohome.com.cn/price/brand-33.html#pvareaid=2042362">奥迪</a></div>
            brandNameDoc = dtDoc.find('div a')
            # print("brandNameDoc=%s" % brandNameDoc)
            carBrandName = brandNameDoc.text()
            print("carBrandName=%s" % carBrandName)


            # <div class="h3-tit"><a href="//car.autohome.com.cn/price/brand-33-9.html#pvareaid=2042363">一汽-大众奥迪</a></div>
            # merchantDocGenerator = response.doc("dd div[class='h3-tit'] a").items()
            # ddDoc = eachDlDoc.find("dd")
            ddDoc = eachDlDoc.find("dd")
            # print("ddDoc=%s" % ddDoc)


            merchantDocGenerator = ddDoc.items("div[class='h3-tit'] a")
            merchantDocList = list(merchantDocGenerator)
            # print("merchantDocList=%s" % merchantDocList)
            merchantDocLen = len(merchantDocList)
            print("merchantDocLen=%s" % merchantDocLen)


            # <ul class="rank-list-ul" 0>
            # merchantRankDocGenerator = response.doc("dd ul[class='rank-list-ul']")
            # merchantRankDocGenerator = response.doc("dd ul[class='rank-list-ul']").items()
            merchantRankDocGenerator = ddDoc.items("ul[class='rank-list-ul']")
            merchantRankDocList = list(merchantRankDocGenerator)
            # print("merchantRankDocList=%s" % merchantRankDocList)
            merchantRankDocListLen = len(merchantRankDocList)
            print("merchantRankDocListLen=%s" % merchantRankDocListLen)


            for curIdx, merchantItem  in enumerate(merchantDocList):
            # for curIdx, merchantItem  in enumerate(merchantDocGenerator):
                # print("%s" % "="*80)
                print("%s [%d] %s" % ('='*30, curIdx, '='*30))
                # print("type(merchantItem)=%s" % type(merchantItem))
                # print("[%d] merchantItem=%s" % (curIdx, merchantItem))
                # print("[%d] merchantItem=%s" % (curIdx, merchantItem))
                carMerchantName = merchantItem.text()
                print("carMerchantName=%s" % carMerchantName)
                merchantItemAttr = merchantItem.attr
                # print("merchantItemAttr=%s" % merchantItemAttr)
                carMerchantUrl = merchantItemAttr["href"]
                print("carMerchantUrl=%s" % carMerchantUrl)


                # curSubBrandDict = {
                #     "brandName": brandName,
                #     "carBrandLogoUrl": carBrandLogoUrl,
                #     "carMerchantName": carMerchantName,
                #     "carMerchantUrl": carMerchantUrl,
                # }
                # self.send_message(self.project_name, curSubBrandDict, url=carMerchantUrl)


                merchantRankDoc = merchantRankDocList[curIdx]
                # print("merchantRankDoc=%s" % merchantRankDoc)
                # print("type(merchantRankDoc)=%s" % type(merchantRankDoc))


                # type(merchantRankDoc)=<class 'lxml.html.HtmlElement'>
                # merchantRankHtml = etree.tostring(merchantRankDoc)


                # type(merchantRankDoc)=<class 'pyquery.pyquery.PyQuery'>
                # merchantRankHtml = merchantRankDoc.html()


                # print("merchantRankHtml=%s" % merchantRankHtml)


                # <li id="s3170">
                # carSeriesDocGenerator = merchantRankDoc.find("li")
                # carSeriesDocGenerator = merchantRankDoc.find("li[id*='s']")
                carSeriesDocGenerator = merchantRankDoc.items("li[id*='s']")
                # print("type(carSeriesDocGenerator)=%s" % type(carSeriesDocGenerator))
                carSeriesDocList = list(carSeriesDocGenerator)
                # print("type(carSeriesDocList)=%s" % type(carSeriesDocList))
                # print("carSeriesDocList=%s" % carSeriesDocList)
                carSeriesDocListLen = len(carSeriesDocList)
                # print("carSeriesDocListLen=%s" % carSeriesDocListLen)

                for curSeriesIdx, eachCarSeriesDoc in enumerate(carSeriesDocList):
                    print("%s [%d] %s" % ('-'*30, curSeriesIdx, '-'*30))
                    # print("[%d] eachCarSeriesDoc=%s" % (curSeriesIdx, eachCarSeriesDoc))
                    # print("type(eachCarSeriesDoc)=%s" % type(eachCarSeriesDoc)) # type(eachCarSeriesDoc)=<class 'lxml.html.HtmlElement'>
                    # <h4><a href="//www.autohome.com.cn/3170/#levelsource=000000000_0&pvareaid=101594">奥迪A3</a></h4>
                    carSeriesInfoDoc = eachCarSeriesDoc.find("h4 a")
                    # print("type(carSeriesInfoDoc)=%s" % type(carSeriesInfoDoc))
                    # print("carSeriesInfoDoc=%s" % carSeriesInfoDoc)
                    carSeriesName = carSeriesInfoDoc.text()
                    print("carSeriesName=%s" % carSeriesName)
                    carSeriesUrl = carSeriesInfoDoc.attr.href
                    print("carSeriesUrl=%s" % carSeriesUrl)


                    # <div>指导价:<a class="red" href="//www.autohome.com.cn/3170/price.html#pvareaid=101446">19.32-23.46万</a></div>
                    # 厂商指导价=厂商建议零售价格=MSRP=Manufacturer's Suggested Retail Price
                    # carSeriesMsrpDoc = eachCarSeriesDoc.find("div a")
                    carSeriesMsrpDoc = eachCarSeriesDoc.find("div a[class='red']")
                    # print("carSeriesMsrpDoc=%s" % carSeriesMsrpDoc)
                    carSeriesMsrp = carSeriesMsrpDoc.text()
                    print("carSeriesMsrp=%s" % carSeriesMsrp)
                    carSeriesMsrpUrl = carSeriesMsrpDoc.attr.href
                    print("carSeriesMsrpUrl=%s" % carSeriesMsrpUrl)


                    carSeriesDict = {
                        "carBrandName": carBrandName,
                        "carBrandLogoUrl": carBrandLogoUrl,
                        "carMerchantName": carMerchantName,
                        "carMerchantUrl": carMerchantUrl,
                        "carSeriesName": carSeriesName,
                        "carSeriesUrl": carSeriesUrl,
                        "carSeriesMsrp": carSeriesMsrp,
                        "carSeriesMsrpUrl": carSeriesMsrpUrl,
                    }
                    # self.send_message(self.project_name, carSeriesDict, url=carSeriesUrl)
                    self.crawl(carSeriesUrl,
                        callback=self.carSeriesDetailPage,
                        save=carSeriesDict,
                    )


    def on_message(self, project, msg):
        print("on_message: msg=%s" % msg)
        return msg


    @catch_status_code_error
    def carSeriesDetailPage(self, response):
        carSeriesDict = response.save
        print("carSeriesDict=%s" % carSeriesDict)


        carSeriesUrl = response.url
        print("carSeriesUrl=%s" % carSeriesUrl)


        carSeriesMainImgUrl = ""
        carSeriesId = ""
        carSeriesLevelId = ""
        carSeriesMsrp = ""
        carSeriesMinPrice = ""
        carSeriesMaxPrice = ""


        carSeriesHtml = response.text
        print("type(carSeriesHtml)=%s" % type(carSeriesHtml)) # <class 'str'>
        # print("carSeriesHtml=%s" % carSeriesHtml)


        foundLevelId = re.search("var\s+levelid\s+=", carSeriesHtml)
        print("foundLevelId=%s" % foundLevelId)
        isNewLayoutHtml = bool(foundLevelId)
        print("isNewLayoutHtml=%s" % isNewLayoutHtml)
        foundShowCityId = re.search("var\s+showCityId\s+=", carSeriesHtml)
        print("foundShowCityId=%s" % foundShowCityId)
        isOldLayoutHtml = bool(foundShowCityId)
        print("isOldLayoutHtml=%s" % isOldLayoutHtml)


        if isOldLayoutHtml:
            # Q开头
            # https://www.autohome.com.cn/grade/carhtml/q.html
            # ->
            # 东风悦达起亚-千里马
            # https://www.autohome.com.cn/142/#levelsource=000000000_0&pvareaid=101594
            # 其他:
            #
            # 一汽丰田-花冠
            # https://www.autohome.com.cn/109/#levelsource=000000000_0&pvareaid=101594
            #
            # 昶洧-昶洧 SUV
            # https://www.autohome.com.cn/4550/#levelsource=000000000_0&pvareaid=101594


            """
            <div class="car_detail " id="tab1-2">
                <div class="models">
                <!--年代-->
                    <div class="header">
                        <div class="car_price">
                            <span class="years">2005款</span>
                            <span class="price">指导价(停售):<strong class="red">6.28万-9.18万</strong></span>
                            <span class="price">二手车价格:<strong class="red"><a class='cd60000' href='//www.che168.com/china/qiya/qianlima/a0_0msdgscncgpiltocsp1exs276/?pvareaid=103693'>0.39万-1.30万</a></strong></span>
            。。。
            <div class="car_detail current" id="tab1-1">
                <div class="models">
                    <!--年代-->
                    <div class="header">
                        <div class="car_price">
                            <span class="years">2006款</span>
                            <span class="price">指导价(停售):<strong class="red">7.28万-8.58万</strong></span>
            。。。
            """
            carDetailDivGenerator = response.doc("div[class^='car_detail']").items()
            print("carDetailDivGenerator=%s" % carDetailDivGenerator)
            carDetailDivList = list(carDetailDivGenerator)
            print("carDetailDivList=%s" % carDetailDivList)
            for curDivIdx, curCarDetailDoc in enumerate(carDetailDivList):
                print("%s [%d] %s" % ('#'*30, curDivIdx, '#'*30))


                curCarModelGroupDict = copy.deepcopy(carSeriesDict)


                # <span class="years">2006款</span>
                modelYearDoc = curCarDetailDoc.find("span[class='years']")
                print("modelYearDoc=%s" % modelYearDoc)
                carModelYear = modelYearDoc.text()
                print("carModelYear=%s" % carModelYear)
                curCarModelGroupDict["carModelYear"] = carModelYear


                if curDivIdx == 0:
                    # use first car model as series: main img, msrp, ...
                    """
                    <div class="models_info">
                        <dl class='models_pics'>
                            <dt><a href='//car.autohome.com.cn/photolist/series/2305/23796.html?pvareaid=101468'><img
                                src='https://car0.autoimg.cn/upload/spec/1344/t_1344388912334.jpg' width='240'
                                height='180' /></a></dt>
                    """
                    # modelMainImgDocListGenerator = response.doc("div[class='models_info'] dl[class='models_pics'] dt a img").items()
                    # modelMainImgDocList = list(modelMainImgDocListGenerator)
                    # firstModelMainImgDoc = modelMainImgDocList[0]
                    firstModelMainImgDoc = curCarDetailDoc.find("div[class='models_info'] dl[class='models_pics'] dt a img")
                    firstModelMainImgUrl = firstModelMainImgDoc.attr["src"]
                    print("firstModelMainImgUrl=%s" % firstModelMainImgUrl)
                    carSeriesMainImgUrl = firstModelMainImgUrl
                    print("carSeriesMainImgUrl=%s" % carSeriesMainImgUrl)


                    curCarModelGroupDict["carSeriesMainImgUrl"] = carSeriesMainImgUrl


                    # <div class="car_price">
                    #   <span class="price">指导价(停售):<strong class="red">7.28万-8.58万</strong></span>
                    carPriceStrongDocGenerator = curCarDetailDoc.items("div[class='car_price'] span[class='price'] strong[class='red']")
                    print("carPriceStrongDocGenerator=%s" % carPriceStrongDocGenerator)
                    if carPriceStrongDocGenerator:
                        carPriceStrongDocList = list(carPriceStrongDocGenerator)
                        print("carPriceStrongDocList=%s" % carPriceStrongDocList)
                        carPriceStrongDoc = carPriceStrongDocList[0]
                        print("carPriceStrongDoc=%s" % carPriceStrongDoc)
                        carPriceMinMax = carPriceStrongDoc.text()
                        print("carPriceMinMax=%s" % carPriceMinMax)
                        if carPriceMinMax:
                            foundMinMax = re.search("(?P<minPrice>[\d\.]+)万-(?P<maxPrice>[\d\.]+)万", carPriceMinMax)
                            print("foundMinMax=%s" % foundMinMax)
                            if foundMinMax:
                                minPrice = foundMinMax.group("minPrice")
                                print("minPrice=%s" % minPrice)
                                minPriceFloat = float(minPrice)
                                print("minPriceFloat=%s" % minPriceFloat)
                                maxPrice = foundMinMax.group("maxPrice")
                                print("maxPrice=%s" % maxPrice)
                                maxPriceFloat = float(maxPrice)
                                print("maxPriceFloat=%s" % maxPriceFloat)
                                averageMsrcPrice = (minPriceFloat + maxPriceFloat) / 2.0
                                print("averageMsrcPrice=%s" % averageMsrcPrice)


                                carSeriesMsrp = "%.2f万" % averageMsrcPrice
                                print("carSeriesMsrp=%s" % carSeriesMsrp)
                                carSeriesMinPrice = "%.2f万" % minPriceFloat
                                print("carSeriesMinPrice=%s" % carSeriesMinPrice)
                                carSeriesMaxPrice = "%.2f万" % maxPriceFloat
                                print("carSeriesMaxPrice=%s" % carSeriesMaxPrice)


                                curCarModelGroupDict["carSeriesMsrp"] = carSeriesMsrp
                                curCarModelGroupDict["carSeriesMinPrice"] = carSeriesMinPrice
                                curCarModelGroupDict["carSeriesMaxPrice"] = carSeriesMaxPrice
                    print("")


                """
                <div class="modelswrap">
                    <!-- 信息 start -->
                    <div class="models_info">
                        <dl class='models_prop'>
                            <dt>发动机:</dt>
                            <dd><span>1.3L</span><span>1.6L</span></dd>
                        </dl>
                        <dl class='models_prop'>
                            <dt>变速箱:</dt>
                            <dd><span>手动</span><span>自动</span></dd>
                            <dt>车身结构:</dt>
                            <dd><span>三厢</span></dd>
                        </dl>
                """
                # modelsPropDdList = curCarDetailDoc.find("div[class='modelswrap'] div[class='models_info'] dl[class='models_prop'] dd")
                modelsPropDdGenerator = curCarDetailDoc.items("div[class='modelswrap'] div[class='models_info'] dl[class='models_prop'] dd")
                print("modelsPropDdGenerator=%s" % modelsPropDdGenerator)
                modelsPropDdList = list(modelsPropDdGenerator)
                print("modelsPropDdList=%s" % modelsPropDdList)
                engineValueDoc = modelsPropDdList[0]
                print("engineValueDoc=%s" % engineValueDoc)
                engineValue = engineValueDoc.text()
                print("engineValue=%s" % engineValue)
                gearBoxValueDoc = modelsPropDdList[1]
                print("gearBoxValueDoc=%s" % gearBoxValueDoc)
                gearBoxValue = gearBoxValueDoc.text()
                print("gearBoxValue=%s" % gearBoxValue)
                bodyStructureValueDoc = modelsPropDdList[2]
                print("bodyStructureValueDoc=%s" % bodyStructureValueDoc)
                bodyStructureValue = bodyStructureValueDoc.text()
                print("bodyStructureValue=%s" % bodyStructureValue)


                carModelGearBox = gearBoxValue
                print("carModelGearBox=%s" % carModelGearBox)
                curCarModelGroupDict["carModelGearBox"] = carModelGearBox # 手动自动
                curCarModelGroupDict["carModelDriveType"] = ""


                curCarModelGroupDict["carModelEmissionStandards"] = ""
                carModelPower = engineValue
                print("carModelPower=%s" % carModelPower)
                curCarModelGroupDict["carModelPower"] = carModelPower


                carModelGroupName = "%s %s %s" % (engineValue, gearBoxValue, bodyStructureValue)
                print("carModelGroupName=%s" % carModelGroupName)
                curCarModelGroupDict["carModelGroupName"] = carModelGroupName


                """
                <table class='models_tab tableline' cellspacing='0' cellpadding='0' border='0'>
                    <tr>
                        <td class='name_d'>
                            <div class='name'><a title='2006款 1.6L MT特别版GL' href='spec/2304/'>2006款 1.6L MT特别版GL</a></div>
                        </td>
                        <td class='price_d'>
                            <div class='price01'>8.18万</div>
                        </td>
                """
                modelsTrDocGenerator = curCarDetailDoc.items("table[class^='models_tab'] tr")
                print("modelsTrDocGenerator=%s" % modelsTrDocGenerator)
                modelsTrDocList = list(modelsTrDocGenerator)
                print("modelsTrDocList=%s" % modelsTrDocList)
                for curTabIdx, curModelTrDoc in enumerate(modelsTrDocList):
                    print("%s [%d] %s" % ('='*30, curTabIdx, '='*30))


                    curCarModeDict = copy.deepcopy(curCarModelGroupDict)


                    print("curModelTrDoc=%s" % curModelTrDoc)
                    nameADoc = curModelTrDoc.find("td[class='name_d'] div[class='name'] a")
                    print("nameADoc=%s" % nameADoc)
                    carModelName = nameADoc.text()
                    print("carModelName=%s" % carModelName)


                    carModelSpecUrl = nameADoc.attr["href"]
                    # bug -> wrong url:
                    # https://www.autohome.com.cn/142/spec/2304/
                    # need repace
                    # https://www.autohome.com.cn/142/spec/2304/
                    # to
                    # https://www.autohome.com.cn/spec/2304/
                    foundSpecId = re.search("spec/(?P<specId>\d+)", carModelSpecUrl)
                    specId = foundSpecId.group("specId")
                    print("specId=%s" % specId) # 2304
                    carModelSpecUrl = self.genSpecUrl(specId)
                    print("carModelSpecUrl=%s" % carModelSpecUrl)


                    priceDivDoc = curModelTrDoc.find("td[class='price_d'] div[class='price01']")
                    print("priceDivDoc=%s" % priceDivDoc)
                    carModelMsrp = priceDivDoc.text()
                    print("carModelMsrp=%s" % carModelMsrp)
                    if "暂无" in carModelMsrp:
                        carModelMsrp = ""
                        print("carModelMsrp=%s" % carModelMsrp)


                    curCarModeDict["carModelName"] = carModelName
                    curCarModeDict["carModelSpecUrl"] = carModelSpecUrl
                    curCarModeDict["carModelMsrp"] = carModelMsrp


                    self.send_message(self.project_name, curCarModeDict, url=carModelSpecUrl)


        elif isNewLayoutHtml:
            carModelDict = copy.deepcopy(carSeriesDict)


            # carSeriesUrl=https://www.autohome.com.cn/2123/#levelsource=000000000_0&pvareaid=101594
            foundSeriesId = re.search("www\.autohome\.com\.cn/(?P<seriesId>\d+)/", carSeriesUrl)
            carSeriesId = foundSeriesId.group("seriesId")
            # carSeriesId = int(carSeriesId)
            print("carSeriesId=%s" % carSeriesId) # 2123
            carModelDict["carSeriesId"] = carSeriesId


            """
            <div class="information-pic">
                <div class="pic-main">
                。。。
                        <picture>
                            。。。
                            <img sizes="380px" width="380" height="285"
                                src="//car2.autoimg.cn/cardfs/product/g1/M04/0B/F0/380x285_0_q87_autohomecar__ChwFqV8YG-aACch8AAkAdoJoSYM874.jpg"
                                srcset="//car2.autoimg.cn/cardfs/product/g1/M04/0B/F0/380x285_0_q87_autohomecar__ChwFqV8YG-aACch8AAkAdoJoSYM874.jpg 380w, //car2.autoimg.cn/cardfs/product/g1/M04/0B/F0/760x570_0_q87_autohomecar__ChwFqV8YG-aACch8AAkAdoJoSYM874.jpg 760w">
                        </picture>
            """
            mainImgDoc = response.doc("div[class='information-pic'] div[class='pic-main'] picture img")
            print("mainImgDoc=%s" % mainImgDoc)
            carSeriesMainImgUrl = mainImgDoc.attr["src"]
            print("carSeriesMainImgUrl=%s" % carSeriesMainImgUrl)
            carModelDict["carSeriesMainImgUrl"] = carSeriesMainImgUrl


            """
            <script type="text/javascript">
                。。。
                var seriesid = '2123';
                var seriesname='哈弗H6';
                var yearid = '0';
                var brandid = '181';
                var levelid = '17';
                var levelname='紧凑型SUV';
                var fctid = '4';
                var SeriesMinPrice='9.80';
                var SeriesMaxPrice='14.10';
            """


            infoKeyList = [
                "seriesid",
                # "seriesname", # has got
                # "yearid", # no need
                "brandid",
                "levelid",
                "levelname",
                # "fctid", # unknown meaning
                "SeriesMinPrice",
                "SeriesMaxPrice",
            ]
            InfoDict = {}
            for eachInfoKey in infoKeyList:
                curPattern = "var\s+%s\s*=\s*'(?P<infoValue>[^']+)'\s*;" % eachInfoKey
                print("curPattern=%s" % curPattern)
                foundInfo = re.search(curPattern, carSeriesHtml)
                print("foundInfo=%s" % foundInfo)
                # if foundInfo:
                infoValue = foundInfo.group("infoValue")
                print("infoValue=%s" % infoValue)
                InfoDict[eachInfoKey] = infoValue
            print("InfoDict=%s" % InfoDict)


            # if "seriesid" in InfoDict:
            carSeriesId = InfoDict["seriesid"] # 2123
            carModelDict["carSeriesId"] = carSeriesId
            # carModelDict["carSeriesName"] = InfoDict["seriesname"] # 哈弗H6
            # if "brandid" in InfoDict:
            carModelDict["carBrandId"] = InfoDict["brandid"] # 181
            # if "levelid" in InfoDict:
            carSeriesLevelId = InfoDict["levelid"] # 17
            carModelDict["carSeriesLevelId"] = carSeriesLevelId
            # if "levelname" in InfoDict:
            carModelDict["carSeriesLevelName"] = InfoDict["levelname"] # 紧凑型SUV
            # if "SeriesMinPrice" in InfoDict:
            carSeriesMinPrice = InfoDict["SeriesMinPrice"] # 9.80
            carModelDict["carSeriesMinPrice"] = carSeriesMinPrice
            # if "SeriesMaxPrice" in InfoDict:
            carSeriesMaxPrice = InfoDict["SeriesMaxPrice"] # 14.10
            carModelDict["carSeriesMaxPrice"] = carSeriesMaxPrice


            """
            <div class="series-list">
            。。。
                <li class="more-dropdown">
                    <a href="javascript:void(0);" target="_self" data-toggle="tab" class="tab-disabled" data-target="#specWrap-3">停售款 <i class="athm-iconfont athm-iconfont-arrowdown"></i></a>
                    <ul class="dropdown-con" id="haltList">
                        <li><a href="javascript:void(0);" target="_self" data-toggle="tab" data-yearid="11691">2019款</a></li>
                        ...
                        <li><a href="javascript:void(0);" target="_self" data-toggle="tab" data-yearid="3100">2011款</a></li>
                    </ul>
                </li>
            """
            haltAListDoc = response.doc("li[class='more-dropdown'] ul[id='haltList'] li a").items()
            print("type(haltAListDoc)=%s" % type(haltAListDoc))
            print("haltAListDoc=%s" % haltAListDoc)
            for curLiIdx, eachHatADoc in enumerate(haltAListDoc):
                print("%s [%d] %s" % ('%'*30, curLiIdx, '%'*30))
                print("eachHatADoc=%s" % eachHatADoc)
                yearName = eachHatADoc.text()
                print("yearName=%s" % yearName)
                yearId = eachHatADoc.attr["data-yearid"]
                print("yearId=%s" % yearId)


                # getHaltSpecUrl = "https://www.autohome.com.cn/ashx/car/Spec_ListByYearId.ashx?seriesid=%s&syearid=%s&levelid=%s" % (carModelDict["carSeriesId"], yearId, carModelDict["carSeriesLevelId"])
                if carSeriesId and carSeriesLevelId:
                    getHaltSpecUrl = "https://www.autohome.com.cn/ashx/car/Spec_ListByYearId.ashx?seriesid=%s&syearid=%s&levelid=%s" % (carSeriesId, yearId, carSeriesLevelId)
                    # https://www.autohome.com.cn/ashx/car/Spec_ListByYearId.ashx?seriesid=2123&syearid=10379&levelid=17
                    print("getHaltSpecUrl=%s" % getHaltSpecUrl)
                    self.crawl(getHaltSpecUrl,
                        callback=self.haltCarSpecCallback,
                        save=carModelDict,
                    )


            # """
            # <div class="information-summary">
            #     <dl class="information-price">
            #         ...
            #         <dd class="type">
            #             <span class="type__item">紧凑型车</span>
            # """
            # carLevelDoc = response.doc("div[class='information-summary'] dl[class='information-price'] dd[class='type'] span[class='type__item']").eq(0)
            # print("carLevelDoc=%s" % carLevelDoc)
            # carSeriesLevelName = carLevelDoc.text()
            # print("carSeriesLevelName=%s" % carSeriesLevelName)
            # carModelDict["carSeriesLevelName"] = carSeriesLevelName


            carSeriesContentDoc = response.doc("div[class='series-content']")
            print("carSeriesContentDoc=%s" % carSeriesContentDoc)
            # carSpecWrapDoc = carSeriesContentDoc.find("div[class^='spec-wrap']")
            # carSpecWrapDoc = carSeriesContentDoc.find("div[class^='spec-wrap active']")
            carSpecWrapListDoc = carSeriesContentDoc.items("div[class^='spec-wrap']")
            print("carSpecWrapListDoc=%s" % carSpecWrapListDoc)
            for curSpecWrapIdx, eachSpecWrapDoc in enumerate(carSpecWrapListDoc):
                print("%s [%d] %s" % ('#'*30, curSpecWrapIdx, '#'*30))
                print("eachSpecWrapDoc=%s" % eachSpecWrapDoc)
                """
                <!--即将上市 start-->
                <div class="spec-wrap  active" id="specWrap-1">

                    <dl class="halt-spec">
                        <dt>
                            <div class="spec-name">
                                <span>参数配置未公布</span>
                            </div>


                <dl class="halt-spec">
                    <dt>
                        <div class="spec-name">
                            <span>1.5升 涡轮增压 169马力 国VI</span>
                        </div>
                """
                # dlDoc = eachSpecWrapDoc.find("dl[class='']")
                # dlDoc = eachSpecWrapDoc.find("dl")
                dlListDoc = eachSpecWrapDoc.items("dl")
                print("dlListDoc=%s" % dlListDoc)
                for curDlIdx, eachDlDoc in enumerate(dlListDoc):
                    print("%s [%d] %s" % ('='*30, curDlIdx, '='*30))
                    print("eachDlDoc=%s" % eachDlDoc)
                    """
                        <dt>
                            <div class="spec-name">
                                <span>1.5升 涡轮增压 169马力 国VI</span>
                    """
                    dtDoc = eachDlDoc.find("dt")
                    print("dtDoc=%s" % dtDoc)
                    groupSpecNameSpanDoc = dtDoc.find("div[class='spec-name'] span")
                    print("groupSpecNameSpanDoc=%s" % groupSpecNameSpanDoc)
                    carModelGroupName = ""
                    if groupSpecNameSpanDoc:
                        carModelGroupName = groupSpecNameSpanDoc.text()
                        print("carModelGroupName=%s" % carModelGroupName)

                    carModelDict["carModelGroupName"] = carModelGroupName


                    # <dd data-sift1="2020款" data-sift2="国VI" data-sift3="1.5T" data-sift4="7挡双离合" class="">
                    ddListDoc = eachDlDoc.items("dd")
                    print("ddListDoc=%s" % ddListDoc)
                    for curDdIdx, eachDdDoc in enumerate(ddListDoc):
                        print("%s [%d] %s" % ('-'*30, curDdIdx, '-'*30))
                        curDdAttr = eachDdDoc.attr
                        # print("curDdAttr=%s" % curDdAttr)
                        carModelYear = curDdAttr["data-sift1"]
                        print("carModelYear=%s" % carModelYear)
                        carModelEmissionStandards = curDdAttr["data-sift2"]
                        print("carModelEmissionStandards=%s" % carModelEmissionStandards)
                        carModelPower = curDdAttr["data-sift3"]
                        print("carModelPower=%s" % carModelPower)
                        carModelGearBox = curDdAttr["data-sift4"]
                        print("carModelGearBox=%s" % carModelGearBox)


                        carModelDict["carModelYear"] = carModelYear
                        carModelDict["carModelEmissionStandards"] = carModelEmissionStandards
                        carModelDict["carModelPower"] = carModelPower
                        carModelDict["carModelGearBox"] = carModelGearBox


                        """
                        <div class="spec-name">
                            <div class="name-param">
                                <p data-gcjid="41511" id="spec_41511">
                                    <a href="/spec/41511/#pvareaid=3454492" class="name">2020款 1.5GDIT 自动铂金舒适版</a>
                                    <span class="athm-badge athm-badge--grey is-plain">停产在售</span>
                                <span class="athm-badge athm-badge--orange">特惠</span></p>
                                <p><span class="type-default">前置前驱</span><span class="type-default">7挡双离合</span></p>
                            </div>
                        </div>
                        """
                        specNameDoc = eachDdDoc.find("div[class='spec-name']")
                        # print("specNameDoc=%s" % specNameDoc)
                        specADoc = specNameDoc.find("p a[class='name']")
                        # print("specADoc=%s" % specADoc)
                        carModelName = specADoc.text()
                        print("carModelName=%s" % carModelName) # 2020款 1.5GDIT 自动铂金舒适版
                        carModelSpecUrl = specADoc.attr["href"]
                        print("carModelSpecUrl=%s" % carModelSpecUrl) # https://www.autohome.com.cn/spec/41511/#pvareaid=3454492
                        typeDefaultListDoc = specNameDoc.items("p span[class='type-default']")
                        print("typeDefaultListDoc=%s" % typeDefaultListDoc)
                        typeDefaultList = list(typeDefaultListDoc)
                        print("typeDefaultList=%s" % typeDefaultList)
                        carModelDriveType = ""
                        carModelGearBox = ""
                        if typeDefaultList:
                            spanTypeDefault0 = typeDefaultList[0]
                            print("spanTypeDefault0=%s" % spanTypeDefault0)
                            carModelDriveType = spanTypeDefault0.text()
                            print("carModelDriveType=%s" % carModelDriveType)
                            spanTypeDefault1 = typeDefaultList[1]
                            print("spanTypeDefault1=%s" % spanTypeDefault1)
                            carModelGearBox = spanTypeDefault1.text()
                            print("carModelGearBox=%s" % carModelGearBox)


                        carModelDict["carModelName"] = carModelName
                        carModelDict["carModelSpecUrl"] = carModelSpecUrl
                        carModelDict["carModelDriveType"] = carModelDriveType # 前置前驱
                        carModelDict["carModelGearBox"] = carModelGearBox # 7挡双离合


                        """
                        <div class="spec-guidance">
                            <p class="guidance-price">
                                <span>10.40万</span>
                                <a href="//j.autohome.com.cn/pc/carcounter?type=1&specId=41511&pvareaid=3454617"><i class="athm-iconpng athm-iconpng-calculator"></i></a>
                            </p>
                        </div>


                        <div class="spec-guidance">
                            <p class="guidance-price">
                                <span><span>暂无</span></span>
                        """
                        specGuidanceDoc = eachDdDoc.find("div[class='spec-guidance']")
                        # print("specGuidanceDoc=%s" % specGuidanceDoc)
                        guidancePriceSpanDoc = specGuidanceDoc.find("p[class='guidance-price'] span")
                        # print("guidancePriceSpanDoc=%s" % guidancePriceSpanDoc)
                        carModelMsrp = guidancePriceSpanDoc.text()
                        print("carModelMsrp=%s" % carModelMsrp)
                        if "暂无" in carModelMsrp:
                            carModelMsrp = ""
                            print("carModelMsrp=%s" % carModelMsrp)
                        carModelDict["carModelMsrp"] = carModelMsrp


                        self.send_message(self.project_name, carModelDict, url=carModelSpecUrl)


    @catch_status_code_error
    def haltCarSpecCallback(self, response):
        carModelDict = response.save
        carModelDict = copy.deepcopy(carModelDict)
        print("carModelDict=%s" % carModelDict)


        respJson = response.json
        print("respJson=%s" % respJson)


        """
        [
            {
                "name": "1.5升 涡轮增压 169马力",
                "speclist": [
                    {
                        "specid": 36955,
                        "specname": "2019款 红标 1.5GDIT 自动舒适版",
                        "specstate": 40,
                        "minprice": 102000,
                        "maxprice": 102000,
                        "fueltype": 1,
                        "fueltypedetail": 1,
                        "driveform": "前置前驱",
                        "drivetype": "前驱",
                        "gearbox": "7挡双离合",
                        "evflag": "",
                        "newcarflag": "",
                        "subsidy": "",
                        "paramisshow": 1,
                        "videoid": 0,
                        "link2sc": "http://www.che168.com/china/hafu/hafuh6/7_8/",
                        "price2sc": "7.58万",
                        "price": "10.20万",
                        "syear": 2019
                    }, {
                        "specid": 36956,
                        "specname": "2019款 红标 1.5GDIT 自动都市版",
                        "specstate": 40,
                        "minprice": 109000,
                        "maxprice": 109000,
                        "fueltype": 1,
                        "fueltypedetail": 1,
                        "driveform": "前置前驱",
                        "drivetype": "前驱",
                        "gearbox": "7挡双离合",
                        "evflag": "",
                        "newcarflag": "",
                        "subsidy": "",
                        "paramisshow": 1,
                        "videoid": 0,
                        "link2sc": "",
                        "price2sc": "",
                        "price": "10.90万",
                        "syear": 2019
                    },
                    ...
        """
        if respJson:
            for eachModelGroupDict in respJson:
                modelGroupName = eachModelGroupDict["name"]
                modelSpecList = eachModelGroupDict["speclist"]
                for eachModelDict in modelSpecList:
                    curCarModelDict = copy.deepcopy(carModelDict)

                    carModelYear = "%s款" % eachModelDict["syear"]
                    # carModelSpecUrl = "%s/%s" % (CarSpecPrefix, eachModelDict["specid"])
                    carModelSpecUrl = self.genSpecUrl(eachModelDict["specid"])


                    curCarModelDict["carModelGroupName"] = modelGroupName
                    curCarModelDict["carModelYear"] = carModelYear
                    curCarModelDict["carModelEmissionStandards"] = ""
                    curCarModelDict["carModelPower"] = ""
                    curCarModelDict["carModelDriveType"] = eachModelDict["drivetype"]
                    curCarModelDict["carModelGearBox"] = eachModelDict["gearbox"]
                    curCarModelDict["carModelName"] = eachModelDict["specname"]
                    curCarModelDict["carModelSpecUrl"] = carModelSpecUrl
                    curCarModelDict["carModelMsrp"] = eachModelDict["price"]


                    self.send_message(self.project_name, curCarModelDict, url=carModelSpecUrl)
最终批量爬取运行抓包到:
  • PySpider总运行Url:9368个
  • 车型数据总数:44278个

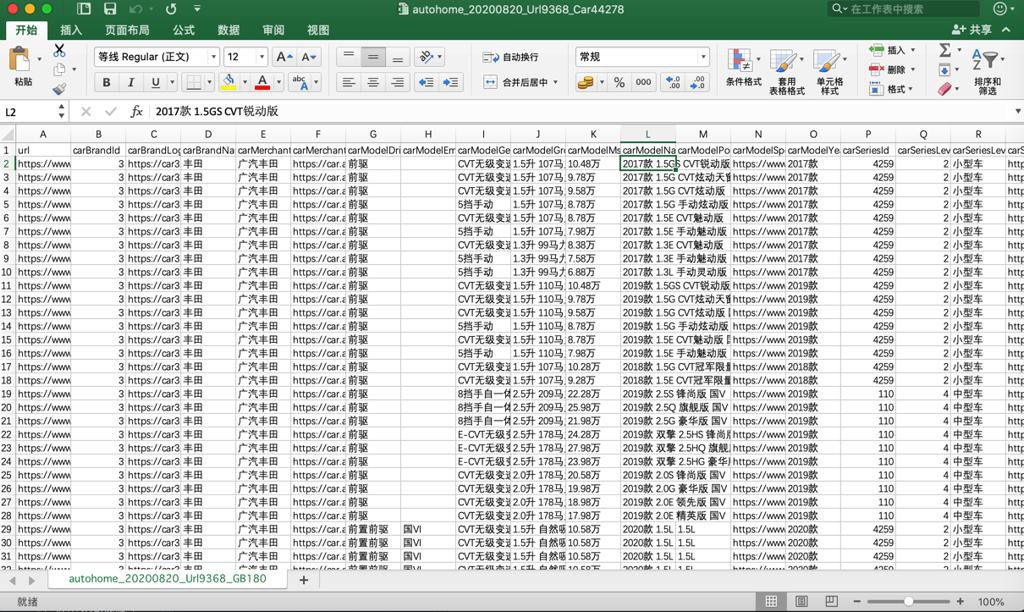

    • excel文件:

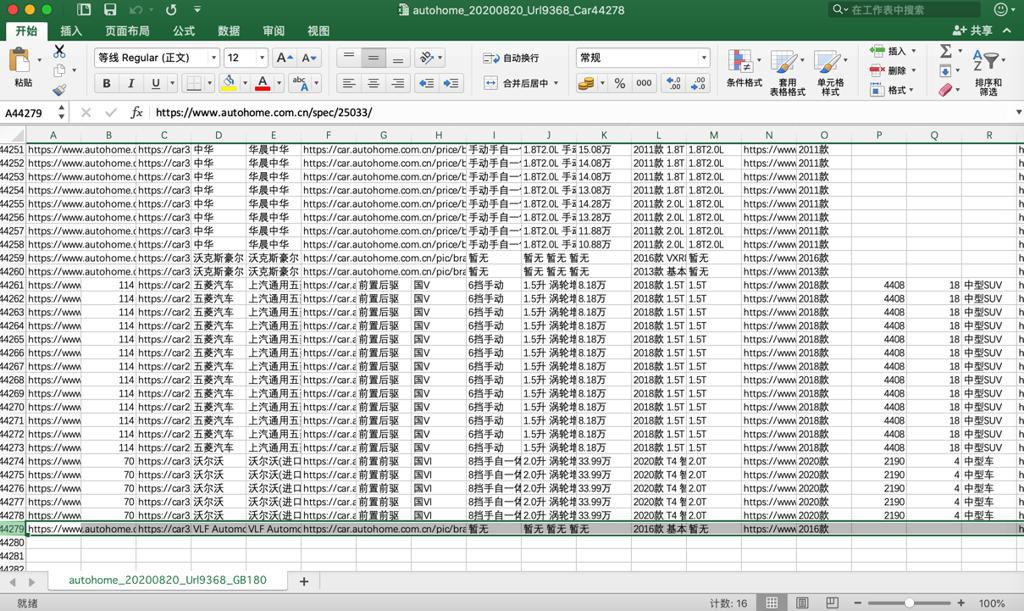

      • 效果截图

转载请注明:在路上 » 【已解决】汽车之家车型车系数据:支持旧版车系页面

发表我的评论
取消评论

表情

Hi,您需要填写昵称和邮箱!

  • 昵称 (必填)
  • 邮箱 (必填)
  • 网址
92 queries in 0.157 seconds, using 21.03MB memory
