【已解决】调用微软Azure的cognitive的sts/tts的api生成token时出错:Out of call volume quota. Quota will be replenished in

Azure crifan 4239浏览 0评论

折腾:

【已解决】Flask中ms的tts返回401感觉是获取token错误导致无法生成语音文件

期间,以为是其他原因,比如线上部署是多线程,每个都会去获取和更新ms的tts的token,导致互相冲突或覆盖,使得token无效呢。

结果后来发现是:

调用api接口:

<code>MS_GET_TOKEN_URL = "https://westus.api.cognitive.microsoft.com/sts/v1.0/issueToken"
</code>

返回错误:

<code>{ "statusCode": 403, "message": "Out of call volume quota. Quota will be replenished in 4.04:43:06." }
</code>

所以要求搞清楚,为何会出错。

毕竟之前都是正常调用的。

先去登陆微软Azure中看看情况:

微软Azure

先进去:

Microsoft Azure 云计算平台与服务

再点击 门户,进入:

仪表板 – Microsoft Azure

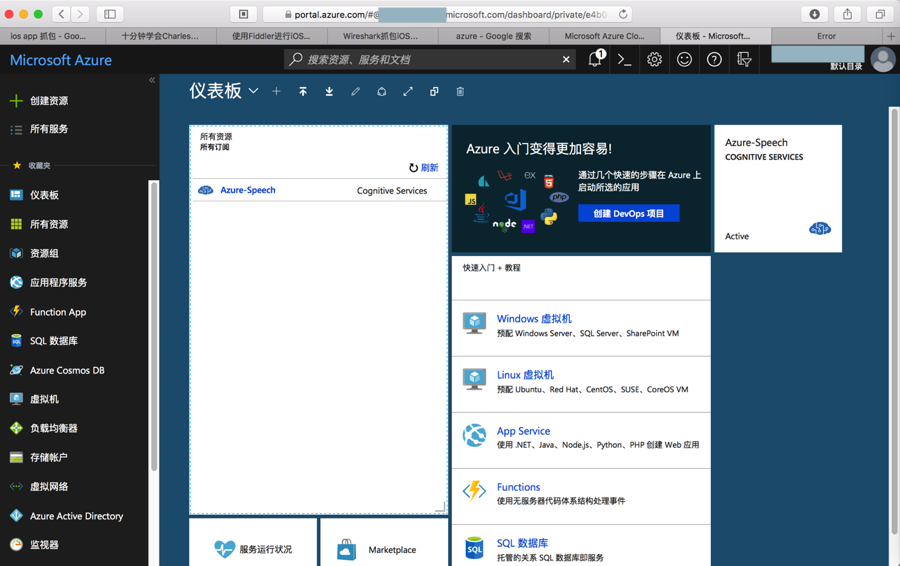

进入仪表盘主页:

仪表板 – Microsoft Azure

https://portal.azure.com/#@xxx/dashboard/private/xxx

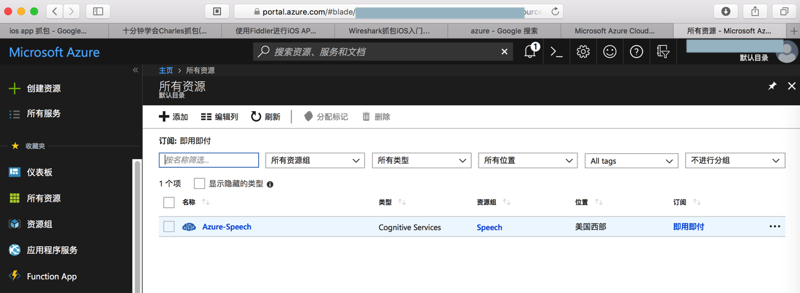

Azure-Speech – Microsoft Azure

https://portal.azure.com/#blade/HubsExtension/BrowseAllResourcesBlade/resourceType/Microsoft.Resources%2Fresources

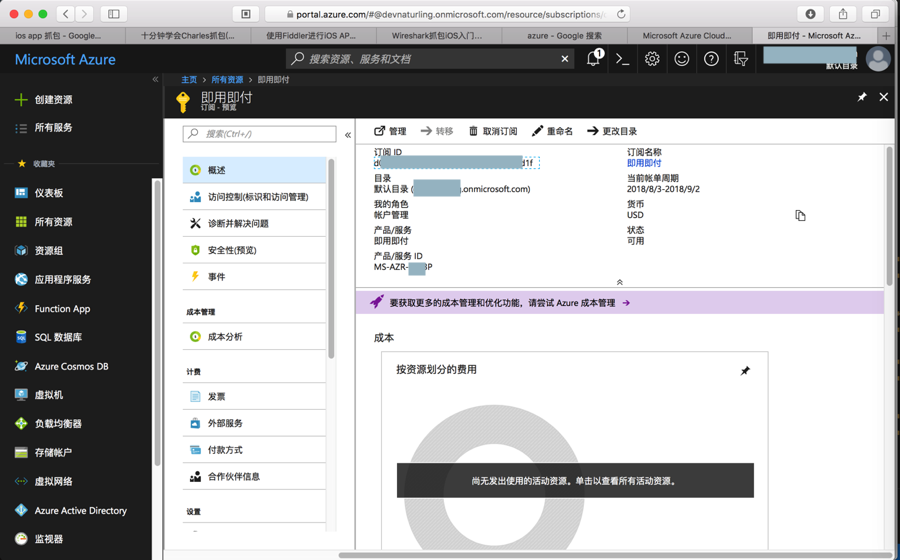

点击  即用即付

即用即付 – Microsoft Azure

搜:

azure   Out of call volume quota. Quota will be replenished in

microsoft cognitive – Out of Call Volume Quota – Stack Overflow

也没看到有什么quota方面的信息:

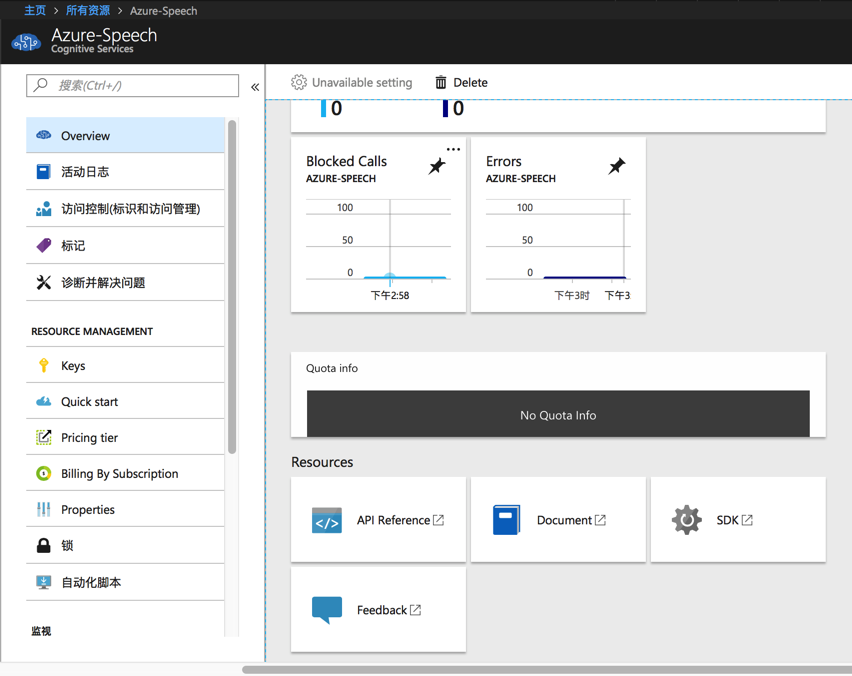

No Quota Info

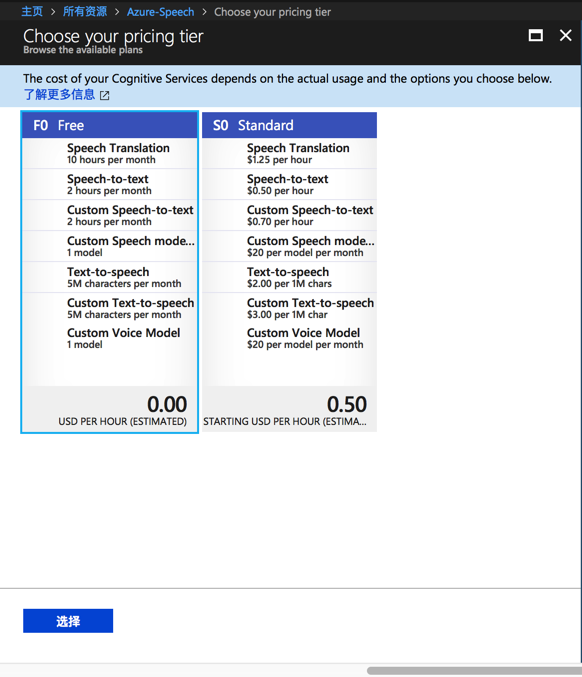

是用的F0的Free的quota:

就是:

免费试用语音服务 – Microsoft Cognitive Services | Microsoft Docs

提到的:

“F0(有限的免费订阅)”

对应的:

F0 Free

Speech Translation
10 hours per month
Speech-to-text
2 hours per month
Custom Speech-to-text
2 hours per month
Custom Speech model deployment
1 model
Text-to-speech
5M characters per month
Custom Text-to-speech
5M characters per month
Custom Voice Model
1 model

0.00

USD PER HOUR (ESTIMATED)

如之前就知道的:

我此处调用到的服务

Text-to-speech

5M characters per month

每月有5百万的字符串转语音

我这里肯定没有超出配额才对

Cognitive Search requests with API keys generated in Azure console return 401s

Out of call volume quota

Msdn forums – Cognitive Services

azure – Luis Out of call volume quota – Stack Overflow

azure – Bing Error – Out of call volume quota – Stack Overflow

microsoft cognitive – “Bing Error – Out of call volume quota” on first use – Stack Overflow

how to increase “call volume quota” for azure apim? – Stack Overflow

Solved: How can I fix the “message”: “Out of call volume q… – Power Users Community

定价概述 – Azure 如何定价 | Microsoft Azure

定价 – 必应搜索 API | Microsoft Azure

不过,感觉好像有点不对:

因为如果配额超过了,那应该所有的api调用都不正常才对

->而之前测试时,是可以正常生产语音的

-》难道是:此处刷新token时,返回超额了?或许是因为刷新token的次数有限制?而不是文字转语音的超额了?

还是去本地调试ms的tts,看看是否正常调用

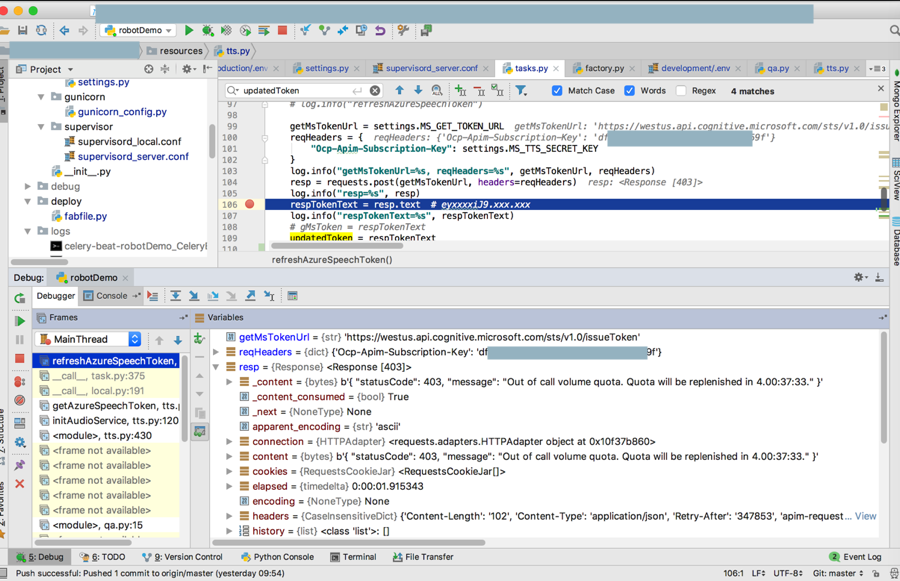

结果本地调试就出错了:

<code>&lt;Response [403]&gt;
text='{ "statusCode": 403, "message": "Out of call volume quota. Quota will be replenished in 4.00:37:33." }'
reason='Quota Exceeded'
</code>

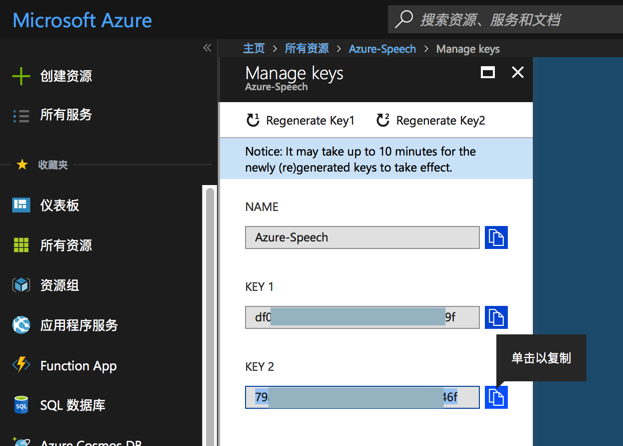

去换个新的Key 2试试:

<code>79xxxxx6f
</code>

结果问题依旧是403和:

‘{ “statusCode”: 403, “message”: “Out of call volume quota. Quota will be replenished in 4.00:29:13.” }’

azure  cognitive Out of call volume quota. Quota will be replenished in

Out of call volume quota. · Issue #249 · Microsoft/botbuilder-js

Cognitive Services APIs Reference

“Response 403

application/json

{ “statusCode”: 403, “message”: “Out of call volume quota. Quota will be replenished in 2.12 days.” }”

认知服务 | Microsoft Azure

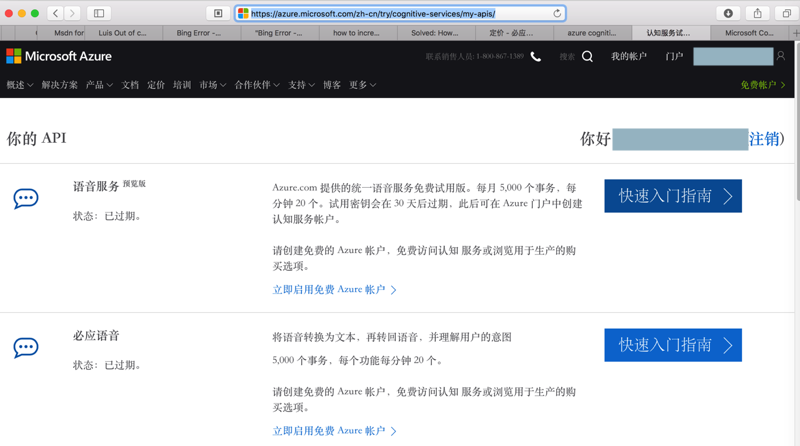

认知服务试用体验 | Microsoft Azure

语音服务文档 – 教程、快速入门和 API 参考 – 认知服务 | Microsoft Docs

【已解决】Safari中无法进入微软Azure的门户控制台页面

免费试用语音服务 – Microsoft Cognitive Services | Microsoft Docs

-》

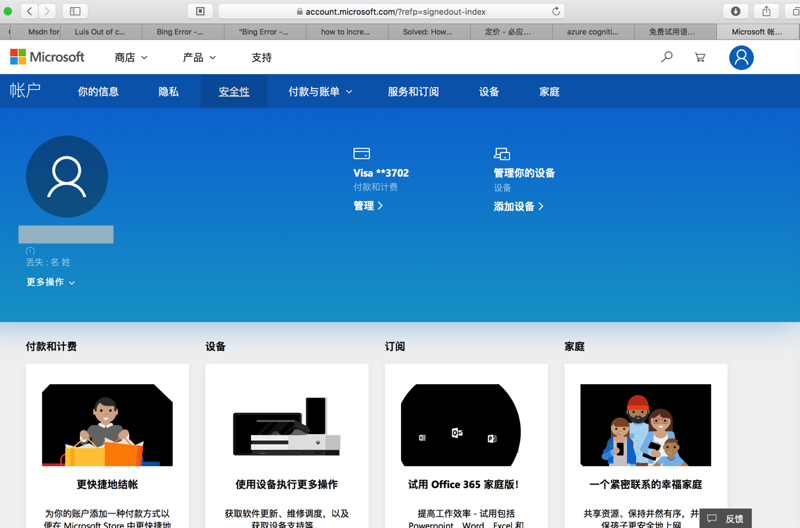

Microsoft 帐户 | 立即登录或创建帐户

-》

https://account.microsoft.com/?refp=signedout-index

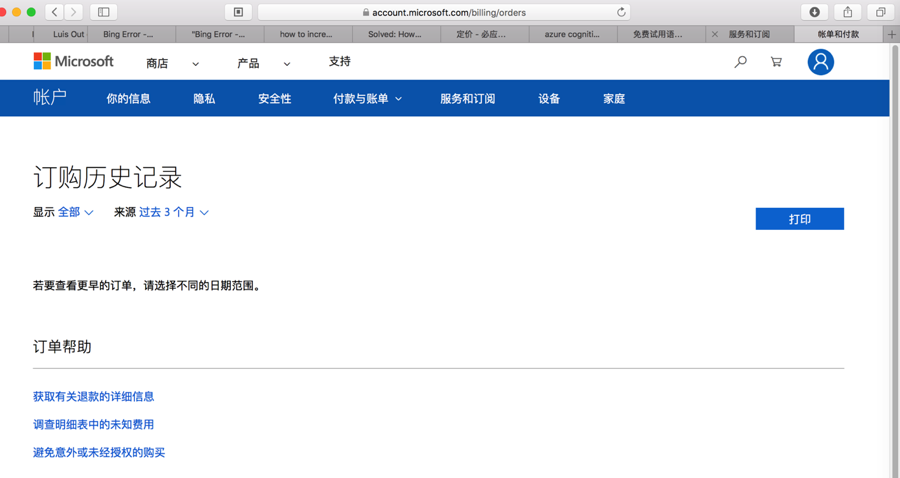

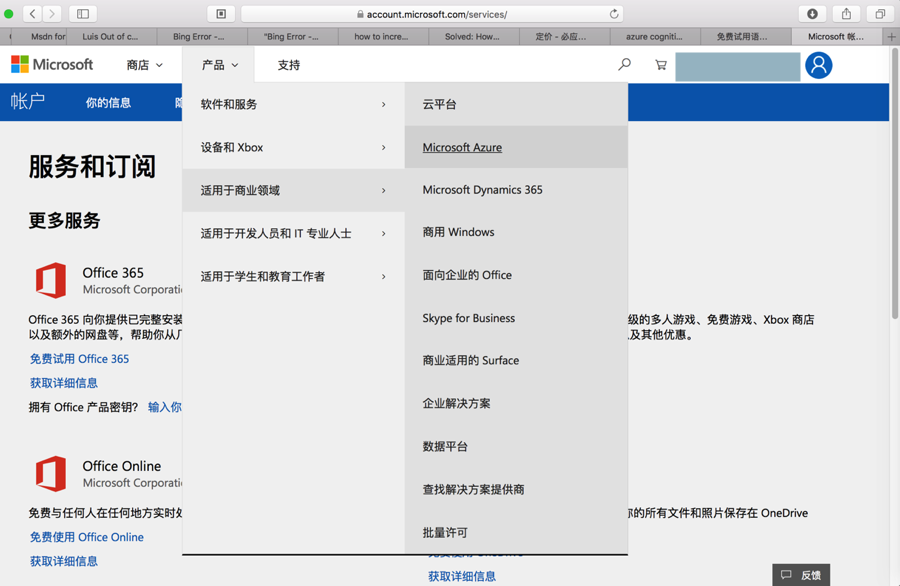

Microsoft 帐户 | 帐单和付款

https://account.microsoft.com/services/

Microsoft Azure 云计算平台与服务

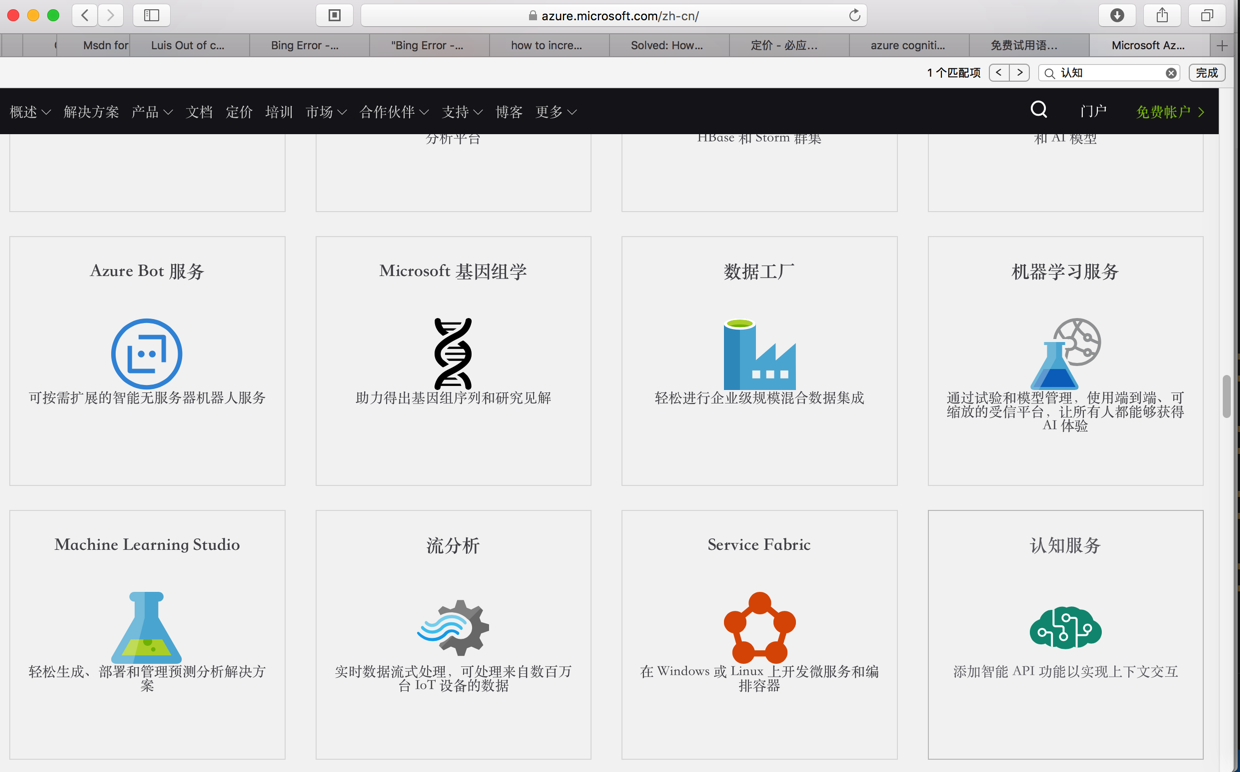

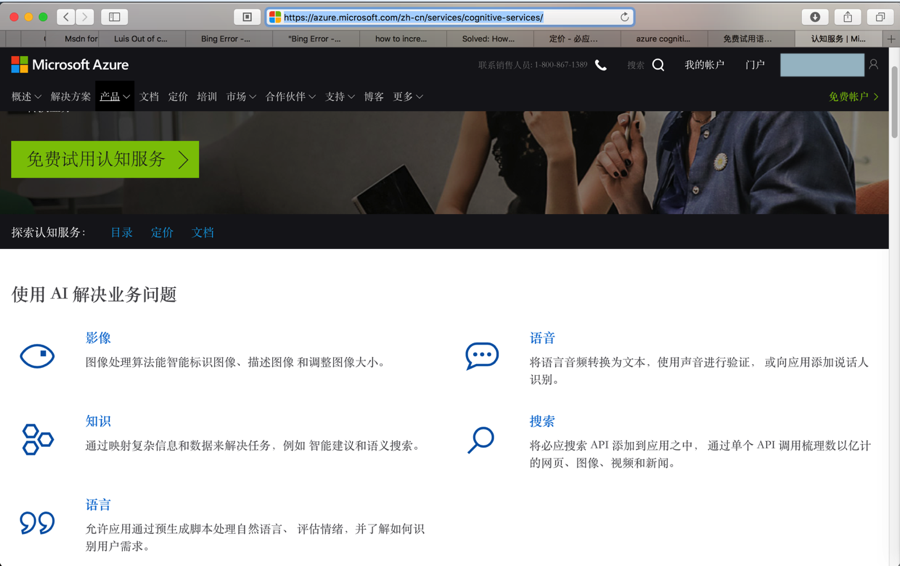

https://azure.microsoft.com/zh-cn/services/cognitive-services/

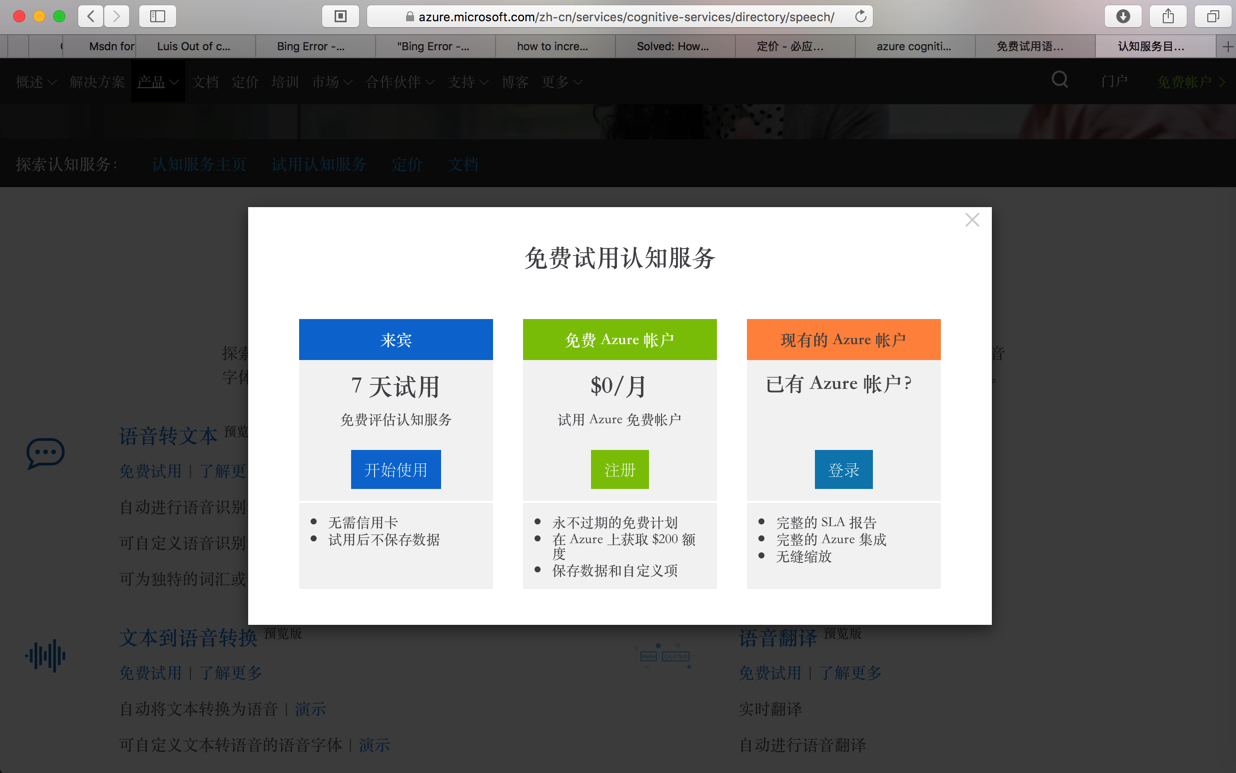

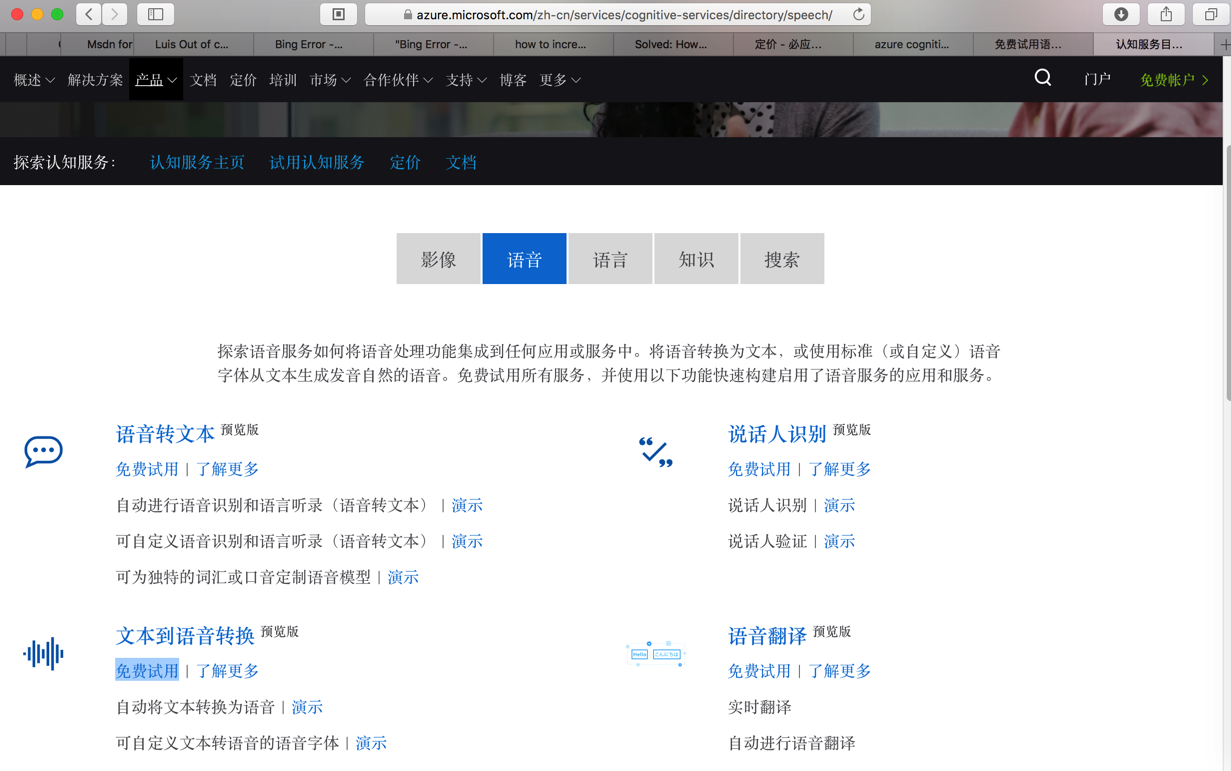

https://azure.microsoft.com/zh-cn/services/cognitive-services/directory/speech/

同样出错。

https://portal.azure.com/Error/ClientTimeout/?src=portalBootParameters%20is%20undefined&shown=true

<Microsoft> developer portal

https://cognitivevirginiaprod.portal.azure-api.us/docs/services/5639d931ca73072154c1ce89/operations/563b31ea778daf121cc3a5fa

“Response 429

application/json

{ “statusCode”: 429, “message”: “Rate limit is exceeded. Try again in 26 seconds.” }”

至此:

(1)目前理解了部分的逻辑:

微软Azure的接口,出错时候的statusCode和message

当出错时,比如401,403,都是通用的:

比如:

Emotion API

Web Language Model API – Break Into Words

<code>Response 400

Indicates JSON parsing error, faceRectangles cannot be parsed correctly, or count exceeds 64, or content-type is not recognized.
Response 401

application/json
{ "statusCode": 401, "message": "Access denied due to invalid subscription key. Make sure you are subscribed to an API you are trying to call and provide the right key." }
Response 403

application/json
{ "statusCode": 403, "message": "Out of call volume quota. Quota will be replenished in 2.12 days." }
Response 429

application/json
{ "statusCode": 429, "message": "Rate limit is exceeded. Try again in 26 seconds." }
</code>

其中:

我此处的是返回403,是超配额了

而429是超过频率限制-》我之前担心是不是此处调用API频率太高,则确定不是,否则就返回429了。

(2)微软Azure中,想要进入相关的服务,比如Cognitive Service等,而跳转到:

https://portal.azure.com

都会出错:

【已解决】Safari中无法进入微软Azure的门户控制台页面

(3)而之前正常进入的:

https://portal.azure.com

的:

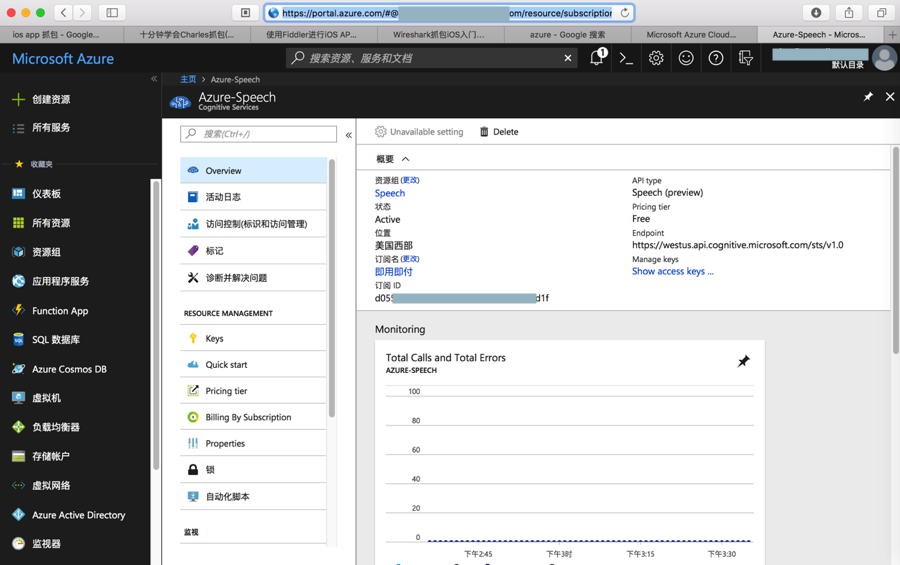

https://portal.azure.com/#@devnaturling.onmicrosoft.com/resource/subscriptions/d055cc23-d699-4b02-84c8-00e95f708d1f/resourceGroups/Speech/providers/Microsoft.CognitiveServices/accounts/Azure-Speech/overview

确认了自己使用的服务是:

免费试用语音服务 – Microsoft Cognitive Services | Microsoft Docs

提到的:

“F0(有限的免费订阅)”

对应的细节是:

<code>
F0 Free
Speech Translation
10 hours per month
Speech-to-text
2 hours per month
Custom Speech-to-text
2 hours per month
Custom Speech model deployment
1 model
Text-to-speech
5M characters per month
Custom Text-to-speech
5M characters per month
Custom Voice Model
1 model
</code>

0.00

USD PER HOUR (ESTIMATED)

其中:

我此处调用到的服务

Text-to-speech

5M characters per month

每月有5百万的字符串转语音

我这里肯定没有超出配额才对

此处继续研究:

看来只有再去找找为何:

https://westus.api.cognitive.microsoft.com/sts/v1.0/issueToken

即:cognitive的issueToken,为何会返回403错误

azure  cognitive issueToken  Out of call volume quota

找到了Cognitive Services的社区:

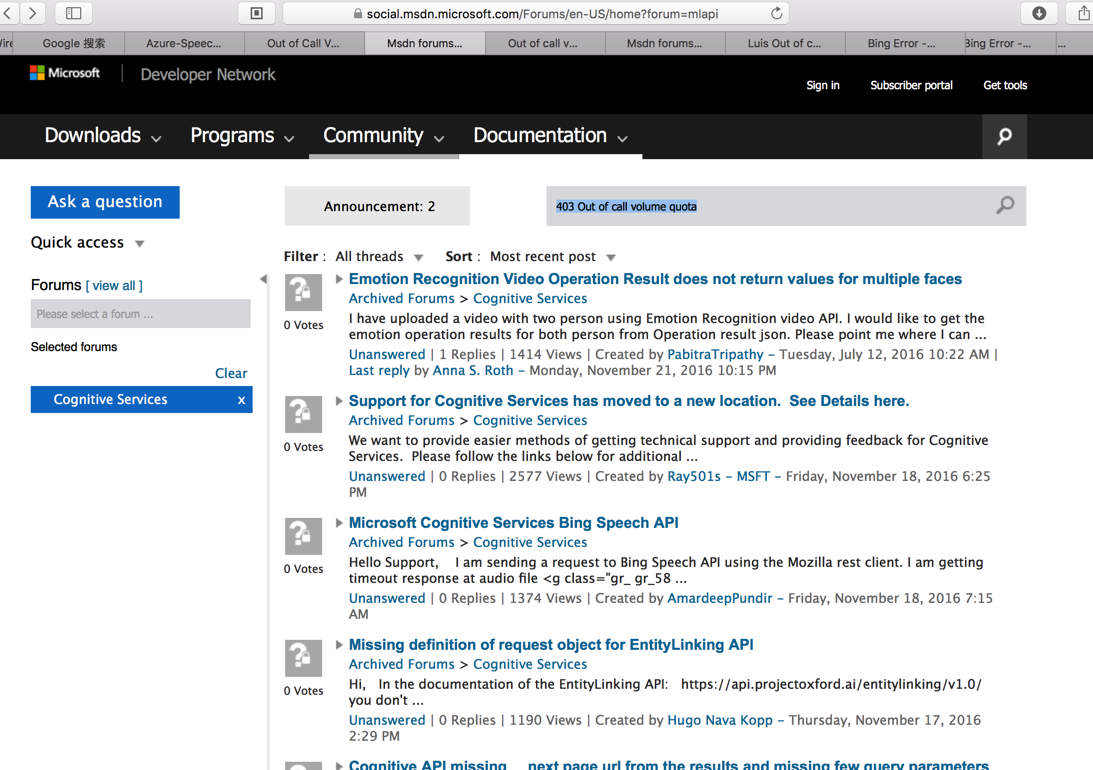

Msdn forums – Cognitive Services

结果去搜:

403 Out of call volume quota

竟然还页面挂了:

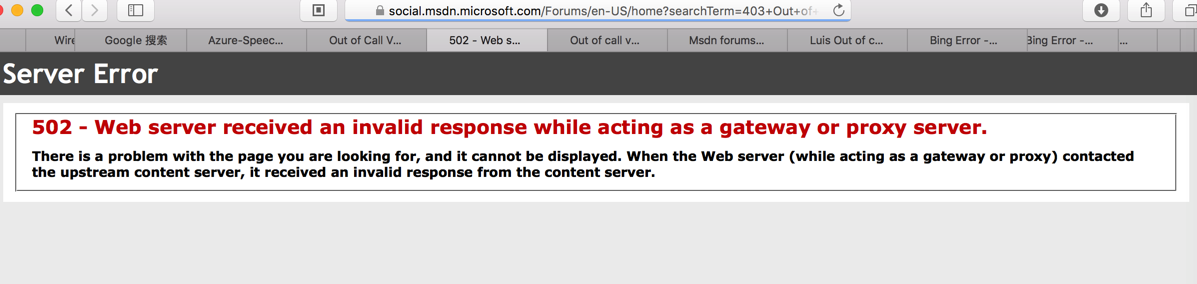

502 – Web server received an invalid response while acting as a gateway or proxy server.

https://social.msdn.microsoft.com/Forums/en-US/home?searchTerm=403+Out+of+call+volume+quota

微软这系统,这服务,做的也够烂的。

https://social.msdn.microsoft.com/Forums/en-US/0d3d5bc2-4985-4a2b-9845-21aacda29797/out-of-call-volume-quota?forum=azureapimgmt

-》

https://social.msdn.microsoft.com/Forums/en-US/6d6666c7-a287-4f87-8138-c63661a84ff9/support-for-cognitive-services-has-moved-to-a-new-location-see-details-here?forum=mlapi

-》

Support for Cognitive Services has moved to a new location.  See Details here.

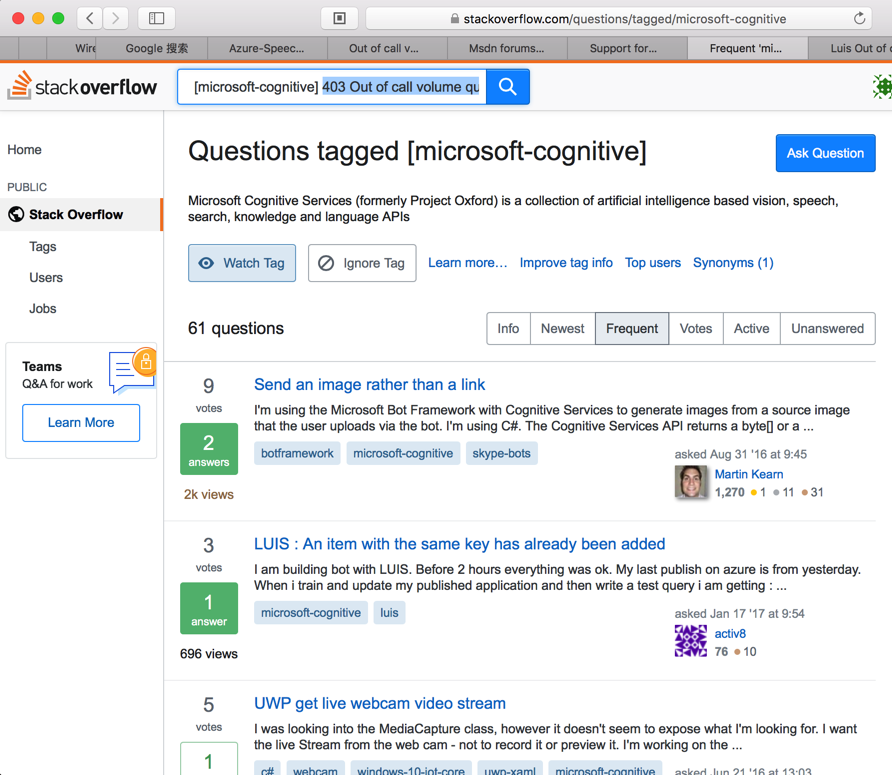

Frequent ‘microsoft-cognitive’ Questions – Stack Overflow

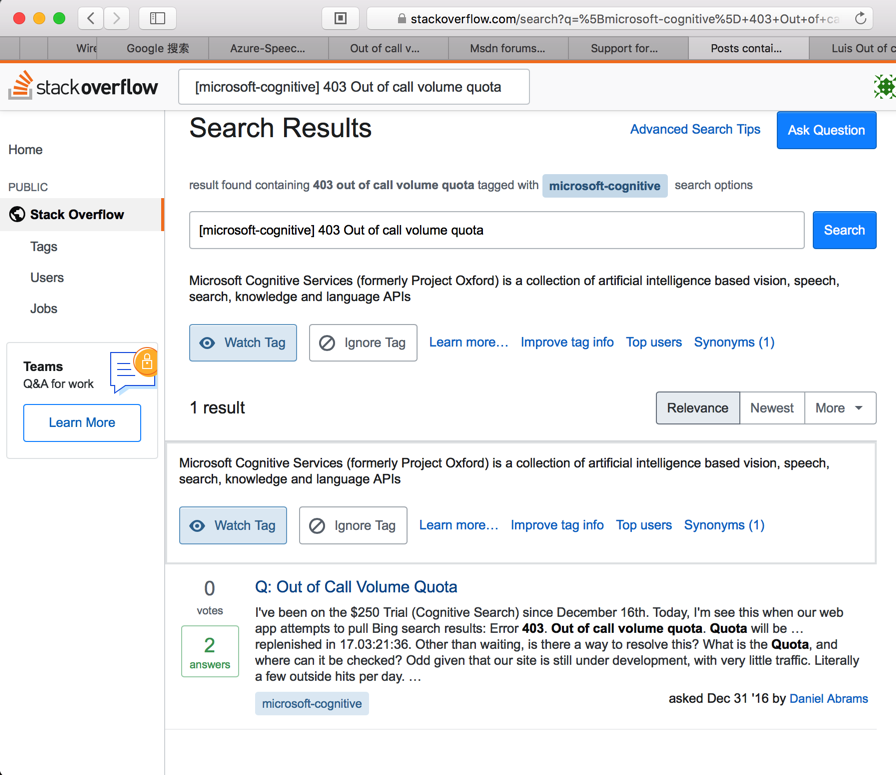

搜:

403 Out of call volume quota

只有一个人问这个问题(带这个tag的)

microsoft cognitive – Out of Call Volume Quota – Stack Overflow

有人是解决了:

说是免费,其实有限制,后来转成付费paid subscription就可以了。

-》但是我此处已经是服务的订阅了,都绑定支付的信用卡了(不过也的确是用的是F0的免费的)

不是S0的付费的

https://stackoverflow.com/questions/43979134/bing-error-out-of-call-volume-quota

-》

使用 Azure API 管理转换和保护 API | Microsoft Docs

https://social.msdn.microsoft.com/Forums/en-US/0d3d5bc2-4985-4a2b-9845-21aacda29797/out-of-call-volume-quota?forum=azureapimgmt

“I had to update to the pay subscription plan. Then, it worked. MS gave me a $250 credit for the first month.”

也是换成收费模式就可以了。

至此,感觉最大可能:

网上其实有很多人,都在这里:

https://social.msdn.microsoft.com/Forums/en-US/0d3d5bc2-4985-4a2b-9845-21aacda29797/out-of-call-volume-quota?forum=azureapimgmt

和我此处类似,用的是微软的Azure的Cognitive Service认知服务,但是用的是免费的版本:

即使我此处是注册了账号,绑定了信用卡,但是选择的是F0的免费套餐

->虽然F0的套餐中,免费的服务量的限制很低,可以使用很多,比如:

每月有5M=5百万的字符,可以文字转语音

-》但是其实内部好像是有限制使用量的

-》猜测是微软的内部为了赚钱而搞的鬼:告诉你免费,但是你使用量没超过免费额度,却提示你超额了

-》这样就能鼓励你花钱去买收费的服务了

-》目前感觉:

只有花钱,从F0免费套餐换成S0的收费套餐,估计就可以解决问题了。

再去定价的地方看看:

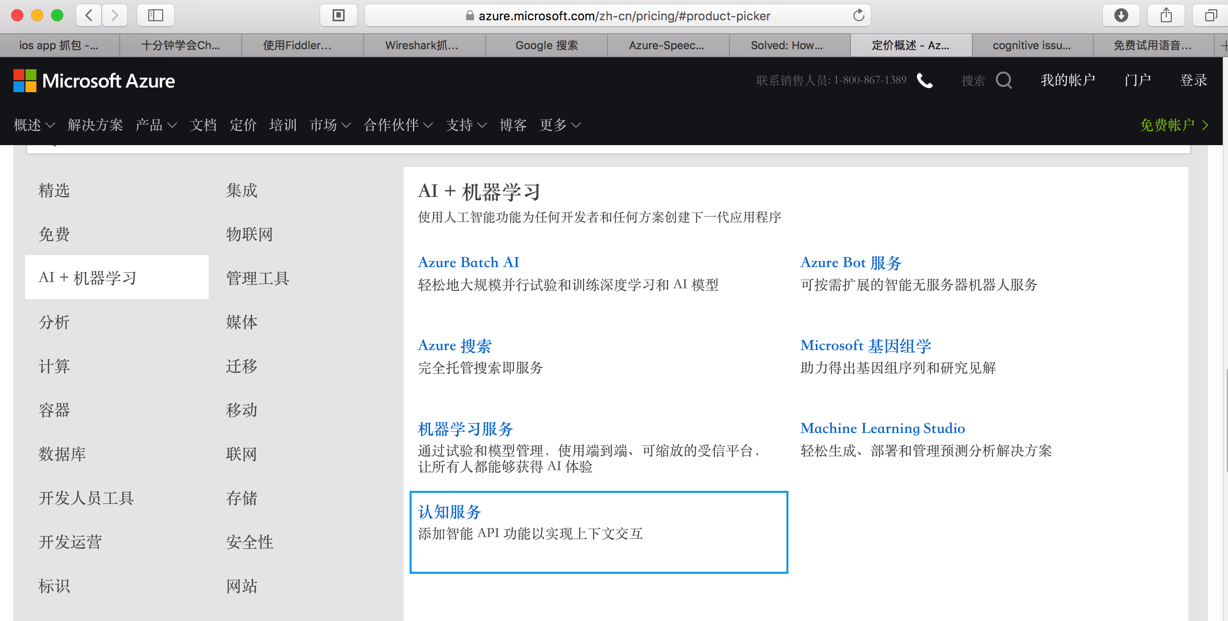

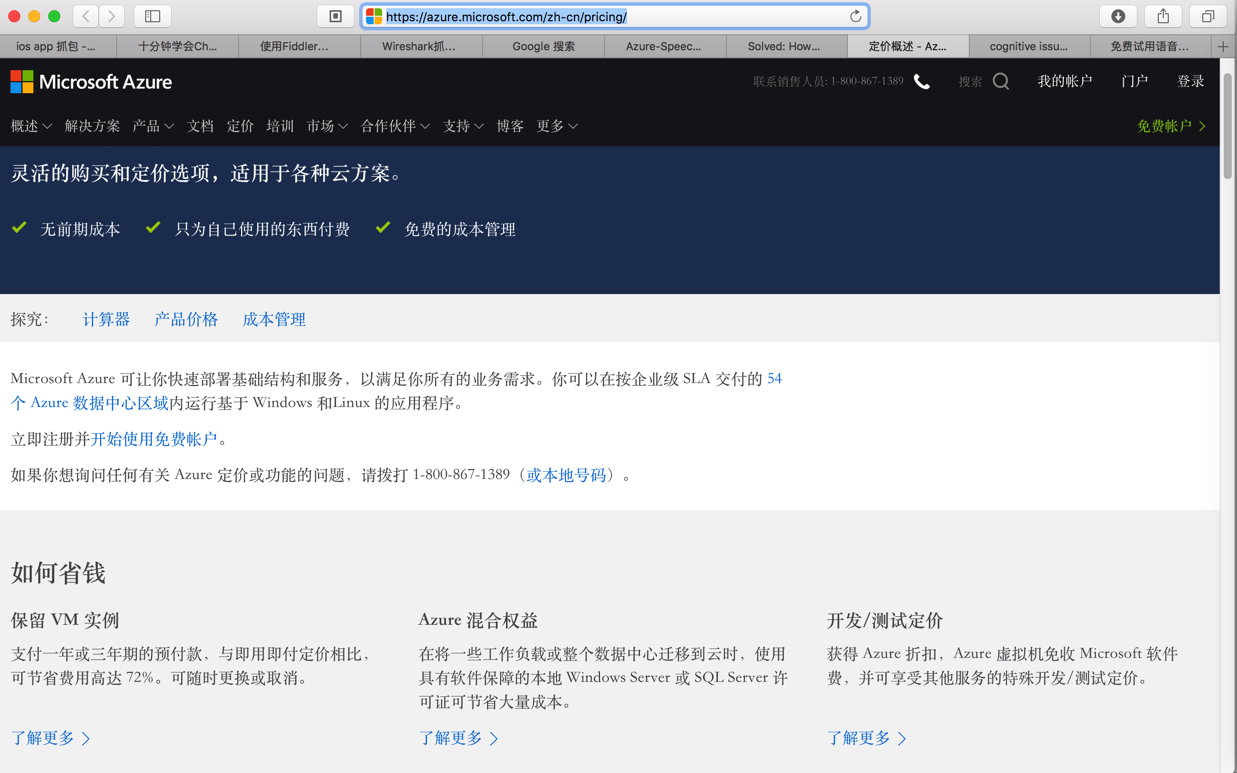

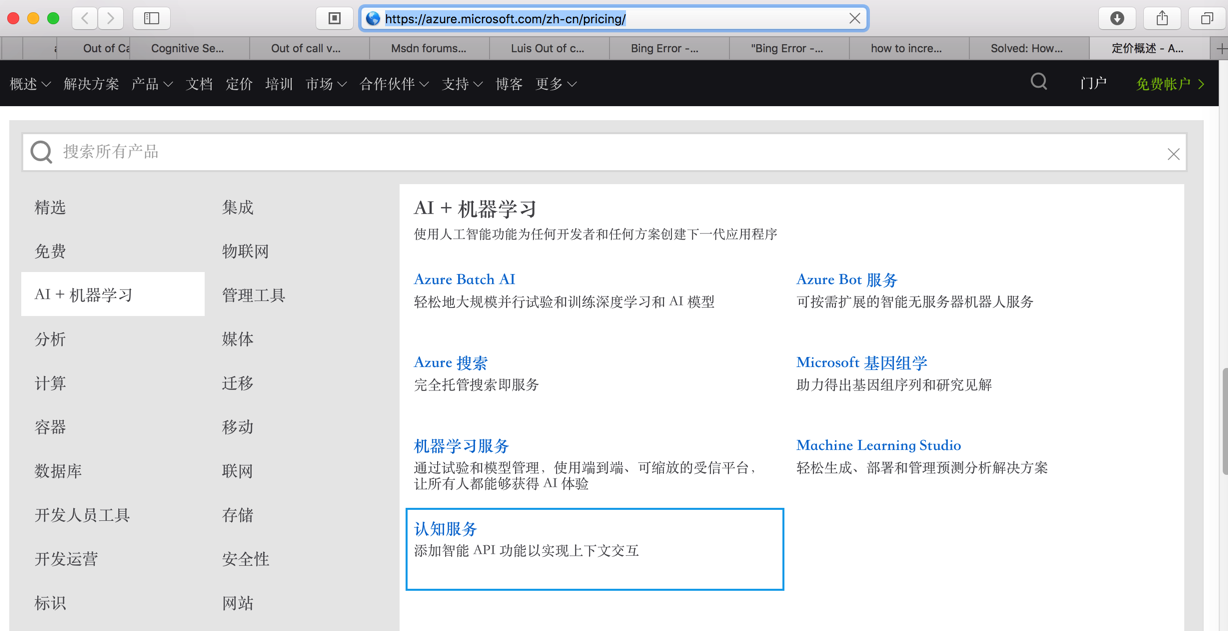

定价概述 – Azure 如何定价 | Microsoft Azure

https://azure.microsoft.com/zh-cn/pricing/#product-picker

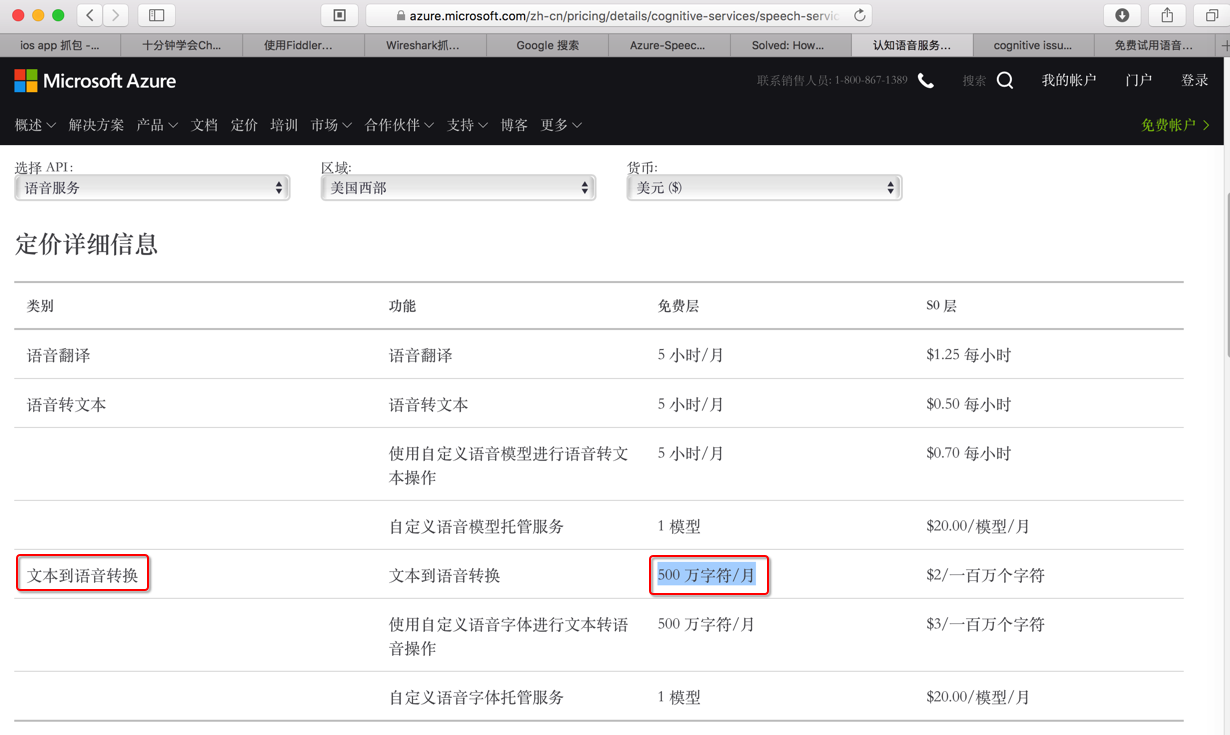

认知语音服务定价 | Microsoft Azure

我此处只用到了:

文本到语音转换

F0免费套餐是:500 万字符/月

我确定是没有超过额度限制

看了看,既然收费服务是:

S0收费:$2/一百万个字符 -> 1百万个字符,也只要2美元=16元左右,还是能接受的。那就去升级为收费的吧。

毕竟人家微软Azure也不容易。

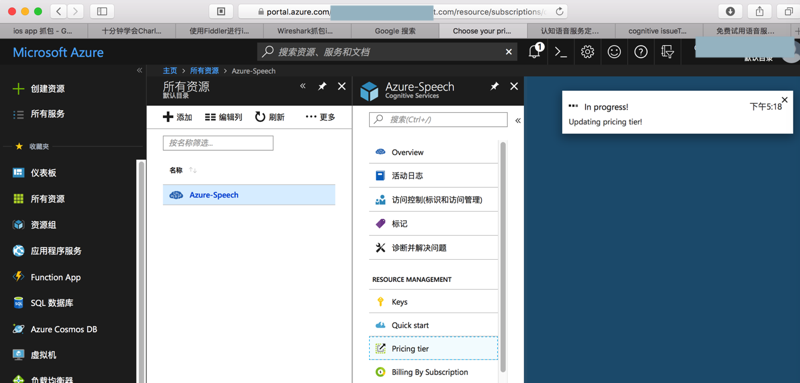

去从F0换S0:

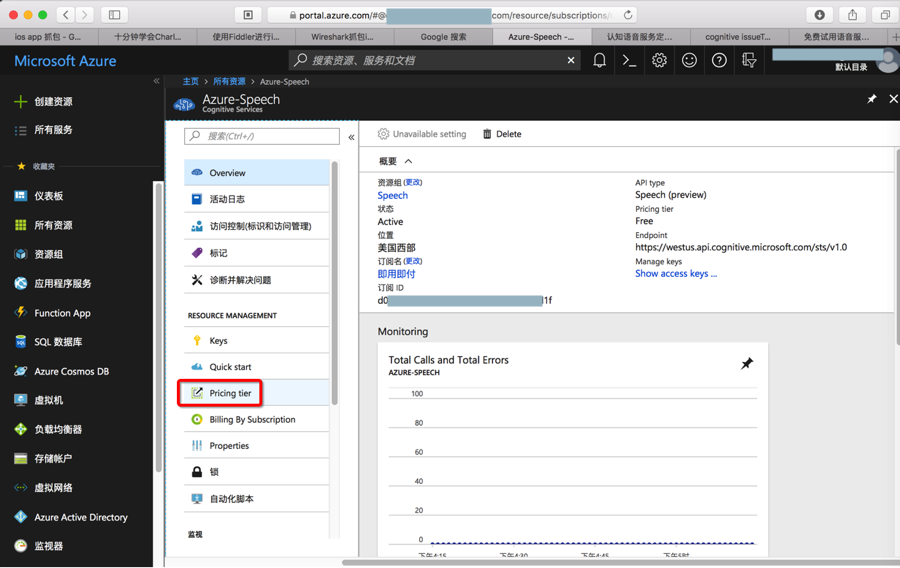

点击:Pricing tier

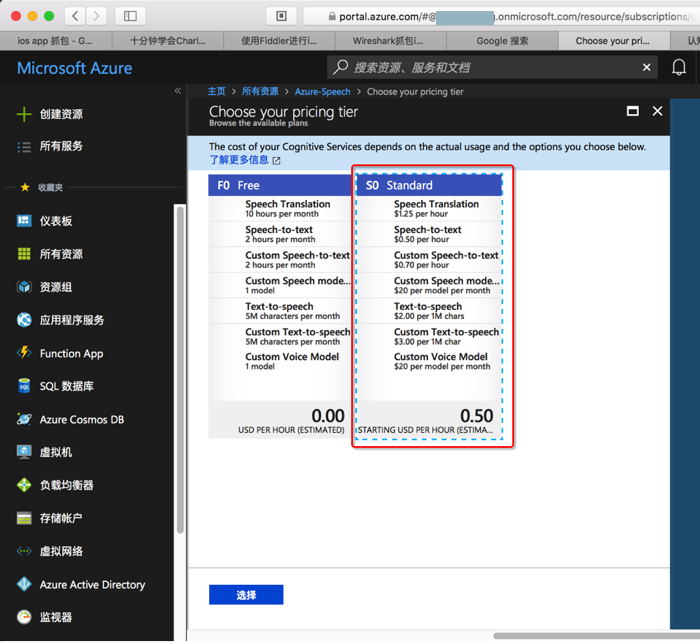

Choose your pricing tier – Microsoft Azure

“S0 Standard

Speech Translation

$1.25 per hour

Speech-to-text

$0.50 per hour

Custom Speech-to-text

$0.70 per hour

Custom Speech model deployment

$20 per model per month

Text-to-speech

$2.00 per 1M chars

Custom Text-to-speech

$3.00 per 1M char

Custom Voice Model

$20 per model per month

0.50

STARTING USD PER HOUR (ESTIMATED)”

其中主要就只是用:

Text-to-speech $2.00 per 1M chars

而平时只是测试测试,以及少量的使用,也就几百几千的字符,远不到百万字符量级,所以费用也不会很多的,估计少的话,只有0.1美元左右

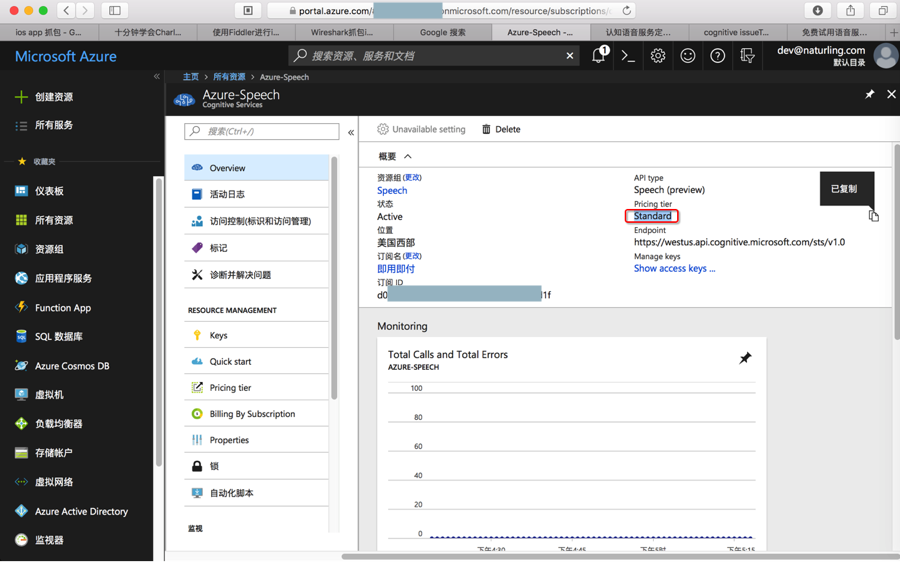

<code>Pricing tier:Standard
</code>

不知道是否有延迟。

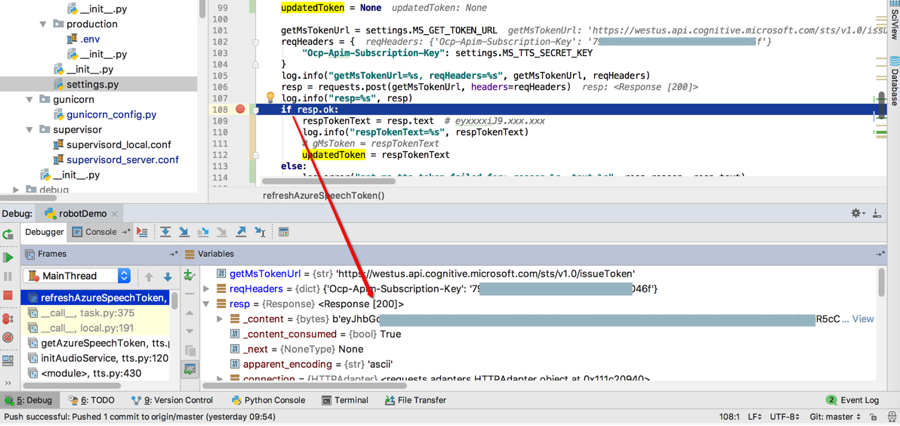

不过先去本地调试看看,是否立刻生效了:

还真的是离开就生效了:

【总结】

此处,微软的做法,还是很垃圾,很变态的:

1.微软的Azure的,是有两种套餐的,免费的F0和收费的S0

其中F0的额度还是很宽裕的,比如文字换语言是500 万字符/月

2.此处遇到问题是:

在调用接口:

https://westus.api.cognitive.microsoft.com/sts/v1.0/issueToken

之前近2个月左右,都是没问题的,现在出问题了,返回:

<code>{ "statusCode": 403, "message": "Out of call volume quota. Quota will be replenished in 4.04:43:06." }
</code>

对于此错误,意思很清楚了:就是超过配额,超过限制了。

3.而实际上:此处的文字转语音的使用量很小,估计连500字符/月都不到,根本不可能超过配额,超过500万字符/月,但是系统真的是提醒你超过额度了

4.经过网上一番查证,尤其是:

Out of call volume quota

基本上确定是:

虽然你的使用量是没有超过免费套餐的限制

但是系统(在没有任何其他提示的情况下)就说你超过额度了

而解决办法只有:你把套餐(从免费的F0)换成收费的(S0套餐)

5.其背后的做法和逻辑就清晰了:

微软Azure,打着鼓励你用免费F0套餐,且免费的额度很多很多,但是实际上你使用了一点点后,就不给你继续使用,就告诉你超额了。然后你只能升级换成收费的套餐,才能正常继续使用。

但是问题来了:

  • 如果不是网上能找到讨论这个问题的帖子,

    • 可能你永远也不知道此处虽然没超额,但是为何系统返回超额

  • Azure真的想要挣钱,鼓励,变相刺激你,从免费套餐换收费套餐

    • 那也可以用正常的思路和逻辑,比如把免费的额度调整的很低等等,

    • 也不至于用这么变态,这么流氓的做法吧!!真是无语了。
