【已解决】C#的DataGridView中的单元格内添加按钮(整列都是按钮)

C# crifan 16854浏览 0评论

【问题】

需要在DataGridView中的单元格cell中添加按钮。

【解决过程】

1.参考:

DataGridView单元格中添加按钮

C# DataGridView 添加Button

去添加了如下代码:

            Button gigUrlButton = new Button();
            gigUrlButton.Text = "Buy Now";
            gigUrlButton.Visible = true;
            gigUrlButton.AutoSize = false;
            dgvSearchResult.Controls.Add(gigUrlButton);
            Rectangle girUrlRect = dgvSearchResult.GetCellDisplayRectangle(12, dgvSearchResult.Rows.Count-2, true);

            //gigUrlButton.Width = dgvSearchResult.Columns[12].Width;
            //gigUrlButton.Height = dgvSearchResult.RowHeadersWidth;

            gigUrlButton.Width = girUrlRect.Width;
            gigUrlButton.Height = girUrlRect.Height;

            //gigUrlButton.Location = new Point(girUrlRect.X, girUrlRect.Y);
            gigUrlButton.Location = new Point(girUrlRect.Left, girUrlRect.Y);

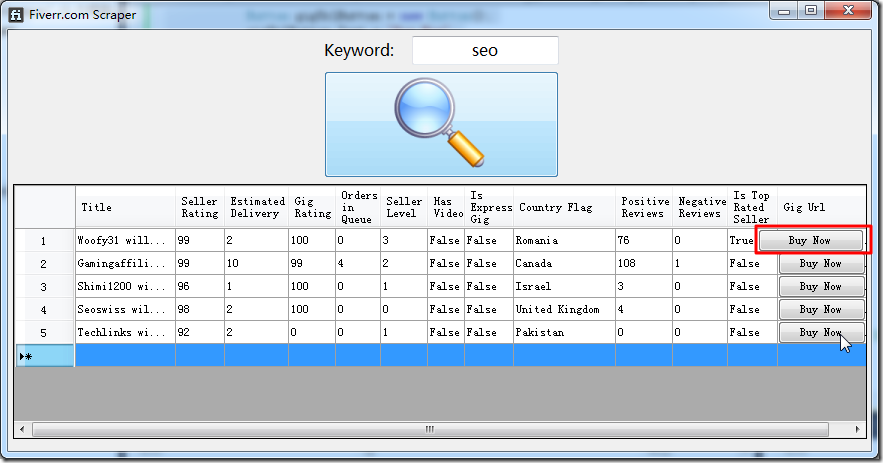

对应的效果是:

can show button in cell but one special

2.很明显,其中第一行的按钮的长度有问题。

所以继续去调试修改。

3.后来参考了:

Win form DataGridView dynamically adding button column

得知有个

DataGridViewButtonCell

以及也找到了:

DataGridViewButtonColumn

4.关于这些内容的总结,可以去看这里:

Column Types in the Windows Forms DataGridView Control

Class

Description

DataGridViewTextBoxColumn

Used with text-based values. Generated automatically when binding to numbers and strings.

DataGridViewCheckBoxColumn

Used with Boolean and CheckState values. Generated automatically when binding to values of these types.

DataGridViewImageColumn

Used to display images. Generated automatically when binding to byte arrays, Image objects, or Icon objects.

DataGridViewButtonColumn

Used to display buttons in cells. Not automatically generated when binding. Typically used as unbound columns.

DataGridViewComboBoxColumn

Used to display drop-down lists in cells. Not automatically generated when binding. Typically data-bound manually.

DataGridViewLinkColumn

Used to display links in cells. Not automatically generated when binding. Typically data-bound manually.

Your custom column type

You can create your own column class by inheriting the DataGridViewColumn class or any of its derived classes to provide custom appearance, behavior, or hosted controls. For more information, see How to: Customize Cells and Columns in the Windows Forms DataGridView Control by Extending Their Behavior and Appearance



5.然后参考:

How to: Disable Buttons in a Button Column in the Windows Forms DataGridView Control

最终使用代码:

	// Add a button column.
	DataGridViewButtonColumn gigUrlColumn = new DataGridViewButtonColumn();
	gigUrlColumn.HeaderText = "Gig Url";
	//gigUrlColumn.Name = "Gig Url name";
	gigUrlColumn.Text = "Buy Now";
	gigUrlColumn.UseColumnTextForButtonValue = true;
	gigUrlColumn.Width = 106;
	dgvSearchResult.Columns.Add(gigUrlColumn);

	DataGridViewButtonCell gigUrlCell = new DataGridViewButtonCell();
	gigUrlCell.Value = singleGigInfo.gigUrl;

	dgvSearchResult.Rows.Add(......, gigUrlCell);

实现了按钮列的效果:

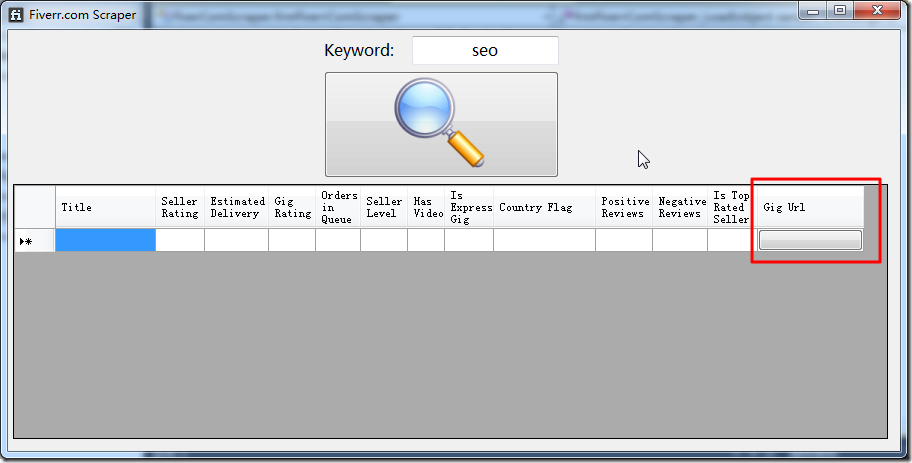

new button column

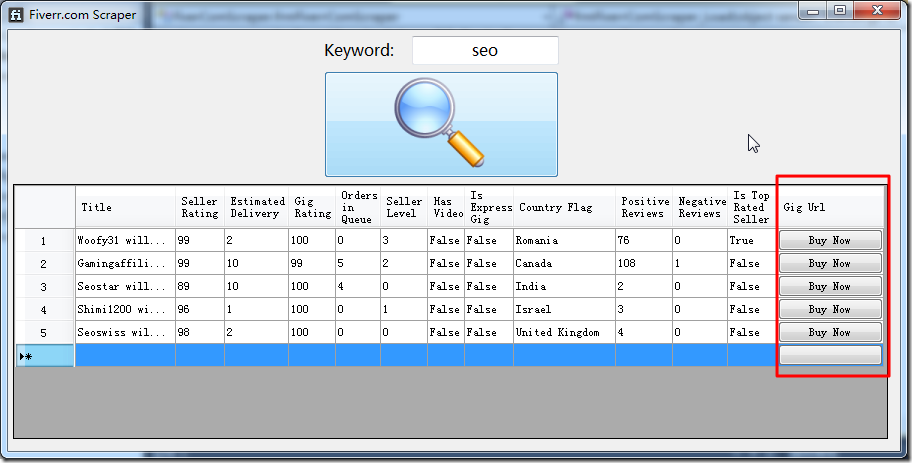

whole column can show button text

【总结】

更多的内容,比如添加button的事件,待有空再添加。
