【已解决】给二级域名dev.naturling.com的端口转发后添加https支持

HTTP crifan 27浏览 0评论
折腾:
【已解决】小程序中如何让api服务器满足要求:已备案的带域名的https
期间,需要继续去弄给
dev.xxx
的端口转发后,再去添加https的支持。
另外,刚发现:
【已解决】域名加上https支持后html的js中访问api出错:The page at was loaded over HTTPS, but requested an insecure XMLHttpRequest endpoint
所以也必须实现上述需求。
目前的情况是:
www.xxx
上已经加了https的ssl证书,和强制80的http去301跳转到443的https
www.xxx.conf
server {
    listen              80 default_server;
    return 301          https://$host$request_uri;
}

server
{
    listen              443 ssl;
    server_name         xxx www.xxx;
    ...
}

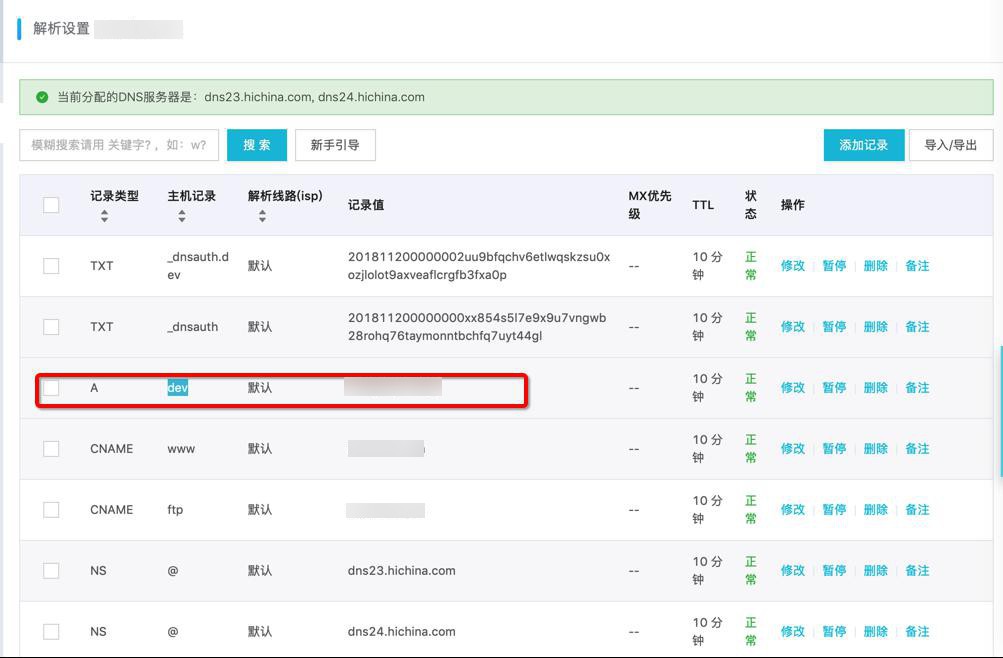

对于dev.xxx,本身阿里云的DNS中已配置了二级域名:
A dev 默认 xxx
而dev服务器中,也已经设置好了端口转发到33800端口:
conf.d/dev.xxx.conf
server
{
    listen 80;
    server_name dev.xxx;
...
    location /storybook/
    {
        proxy_pass http://xxx:33800/;
    }

}
现在需要:
确保访问https的:
https://dev.xxx/storybook/xxx
可以跳转到
https://xxx:33800/xxx
之前访问:
http://dev.xxx/
会打开对应的dev服务器的html首页
现在是:

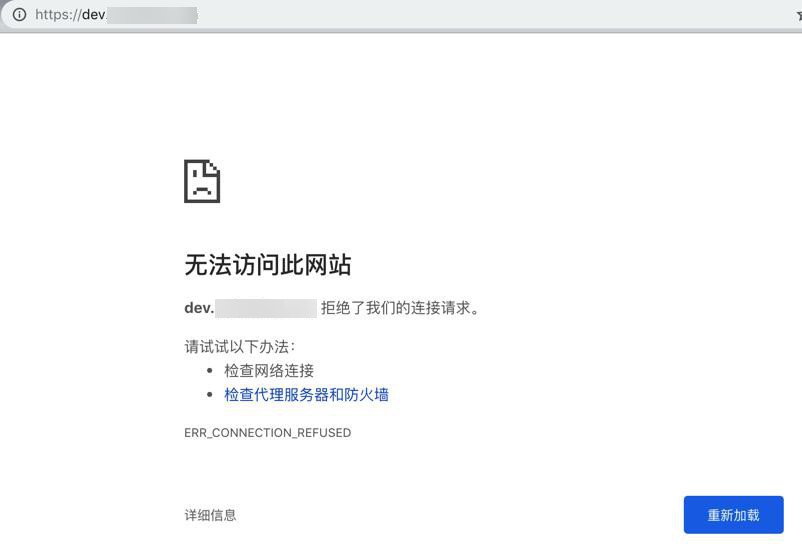

https://dev.xxx/
无法访问此网站
拒绝了我们的连接请求
-》看起来应该也是 端口没有打开?
先不管,先去看看:

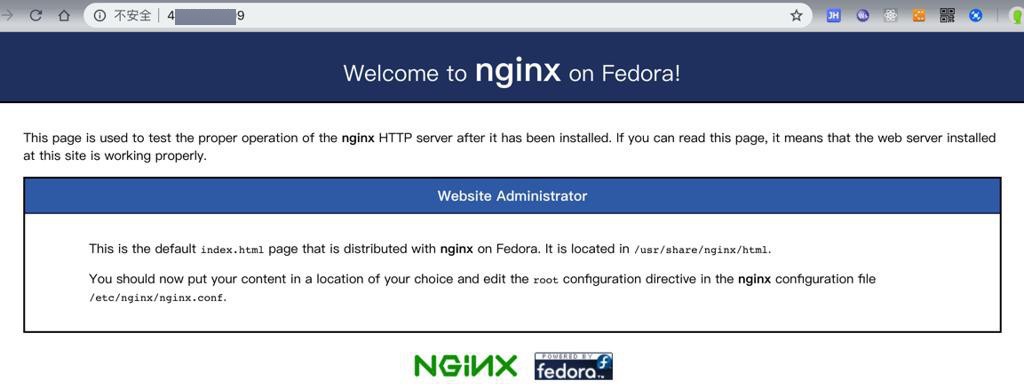

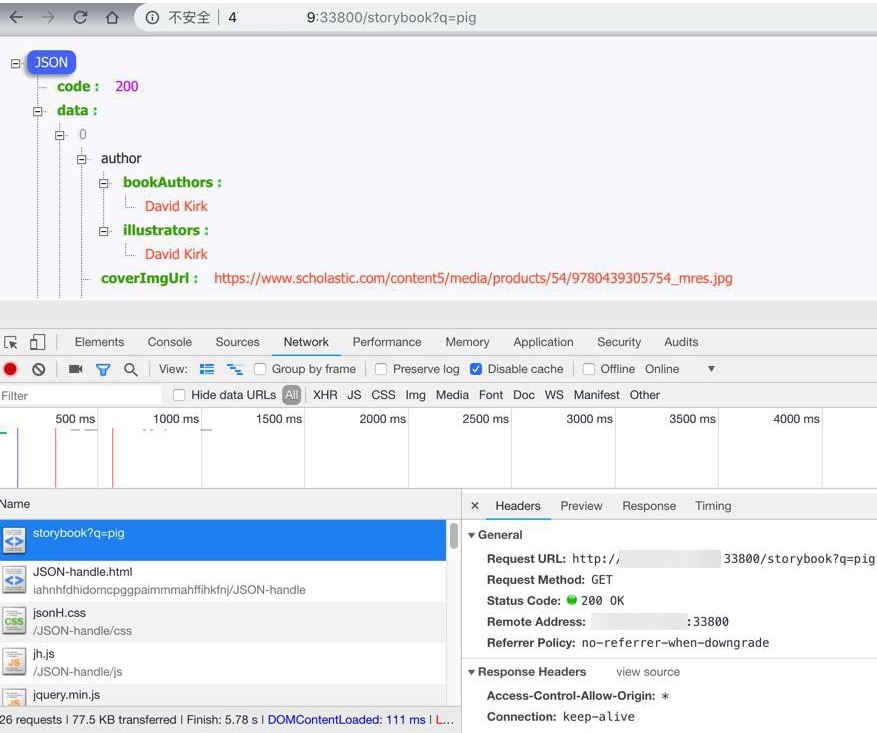

http://xxx
还是可以打开的:
现在感觉还是有点奇怪:
根据之前的别人的解释,觉得也是对的:
访问:
http://dev.xxx
首先应该是DNS去把
dev.xxx
解析到
xxx
才对啊
而不是此处的:
www.xxx的nginx配置的:
http用301跳转到https,变成了:
https://dev.xxx

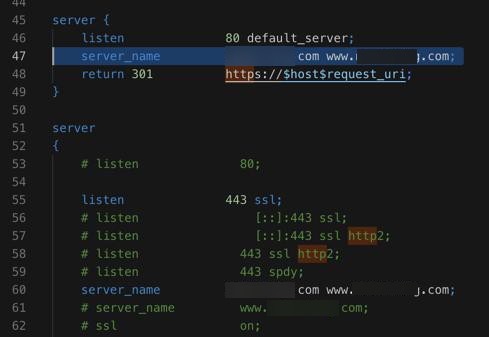

那先去把www.xxx的转发规则,改为只转发:
www.xxx
server {
    listen              80 default_server;
    server_name         xxx www.xxx;
    return 301          https://$host$request_uri;
}

server
{
    # listen              80;
    listen              443 ssl;
    server_name         xxx www.xxx;
    # server_name         www.xxx;
结果问题依旧。
先去想办法找找:
此处的
http://dev.xxx
跳转到
https://dev.xxx
到底是哪个服务器收到了log了。
通过:
tail /www/wwwlogs/www.xxx_https.log
tail /www/wwwlogs/www.xxx_https_error.log
tail /www/wwwlogs/access.log
tail /www/wwwlogs/nginx_error.log
确定了:
不是www.xxx的服务器中的log
突然想到:
难道是:
在购买免费的ssl证书的时候:
【已解决】购买阿里云首年免费的https证书:Symantec免费型DV SSL证书
对于dev.xxx,也是采用了,阿里云的万网,然后此处的二级域名解析期间,即:
dev.xxx,解析到xxx,同时发现已经购买了免费的ssl证书,所以自动跳转到
https://dev.xxx了?
总之很奇怪。
反正确定了是dev服务器的事情,所以去看dev服务器中的nginx的配置和log
结果dev中也没有对应log:
tail /var/log/nginx/dev.xxx/access.log
tail /var/log/nginx/dev.xxx/error.log
才想起来:
应该还是443端口被禁止访问的结果:

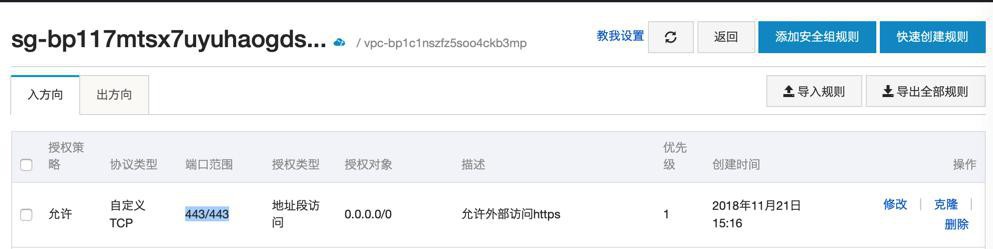

(虽然之前已经用阿里云的安全组加了443端口了:
但是没用)
还是去参考之前的:
【已解决】CentOS 7中如何通过firewalld去添加https的443端口
去添加支持https的443端口:
结果是没有运行:
[root@xxx-general-01 ~]# firewall-cmd --zone=public --list-all
FirewallD is not running
[root@xxx-general-01 ~]# firewall-cmd --state
not running
[root@xxx-general-01 ~]# service firewalld status
Redirecting to /bin/systemctl status firewalld.service
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)
那去看看iptables:
[root@xxx-general-01 ~]# iptables -L --line-number
Chain INPUT (policy ACCEPT)
num  target     prot opt source               destination

Chain FORWARD (policy ACCEPT)
num  target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)
num  target     prot opt source               destination
好像也没有开启?
那暂时先不去开启防火墙,先去给dev的nginx加上443的https端口监听,看看能否收到log。
不过此处虽然已经知道了:

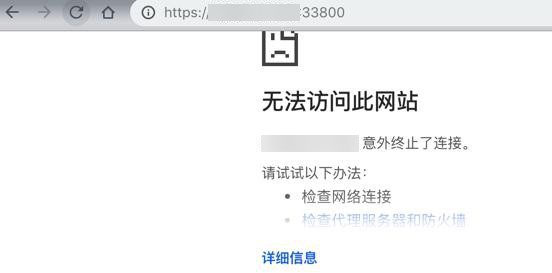

https://xxx:33800/
无法访问:
但也还是继续去试试:
server {
    listen              80 default_server;
    server_name         dev.xxx;
    return 301          https://$host$request_uri;
}


server {
    listen              443 ssl;
    server_name         dev.xxx;

    access_log          /var/log/nginx/dev.xxx/access_https.log;
    error_log           /var/log/nginx/dev.xxx/error_https.log;

    ### Https Related Config
    keepalive_timeout   70; # 设置长连接

    ssl_certificate     /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.crt; # 证书文件
    ssl_certificate_key /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.key; # 私钥文件

    ssl_protocols       TLSv1 TLSv1.1 TLSv1.2;
    ssl_ciphers         HIGH:!aNULL:!MD5;

    # ssl_session_timeout 10m; # 配置会话超时时间
    # ssl_session_cache   shared:SSL:10m; # 配置共享会话缓存大小,视站点访问情况设定

    # ssl_prefer_server_ciphers   on; #优先采取服务器算法

    # # 如果是全站 HTTPS 并且不考虑 HTTP 的话,可以加入 HSTS(HTTP Strict Transport Security) ,使用 HSTS 策略强制浏览器使用 HTTPS 连接
    # add_header Strict-Transport-Security "max-age=31536000; includeSubDomains;preload" always;
    # add_header X-Frame-Options DENY; #减少点击劫持
    # add_header X-Content-Type-Options nosniff; #禁止服务器自动解析资源类型
    # add_header X-Xss-Protection 1; #防XSS攻击


    proxy_set_header HOST $host;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;

    location /storybook/
    {
        proxy_pass https://xxx:33800/;
    }
}
至少看看能否收到log
结果测试出错:
}[root@xxx-general-01 conf.d]# service nginx reload
Redirecting to /bin/systemctl reload nginx.service
[root@xxx-general-01 conf.d]# nginx -t
nginx: [emerg] a duplicate default server for 0.0.0.0:80 in /etc/nginx/nginx.conf:39
nginx: configuration file /etc/nginx/nginx.conf test failed

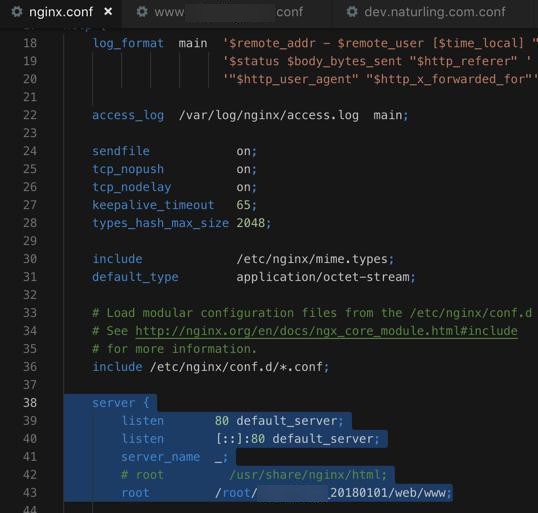

才注意到之前的:
/nginx.conf
中有:

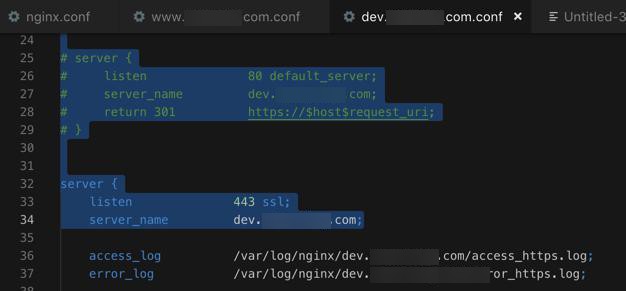

所以暂时去掉自己的80的监听:
结果:
[root@xxx-general-01 conf.d]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@xxx-general-01 conf.d]# service nginx reload
Redirecting to /bin/systemctl reload nginx.service
[root@xxx-general-01 conf.d]# service nginx status
Redirecting to /bin/systemctl status nginx.service
● nginx.service - The nginx HTTP and reverse proxy server
   Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2018-11-19 17:10:17 CST; 1 weeks 1 days ago
  Process: 31657 ExecReload=/bin/kill -s HUP $MAINPID (code=exited, status=0/SUCCESS)
  Process: 15738 ExecStart=/usr/sbin/nginx (code=exited, status=0/SUCCESS)
  Process: 15734 ExecStartPre=/usr/sbin/nginx -t (code=exited, status=0/SUCCESS)
  Process: 15732 ExecStartPre=/usr/bin/rm -f /run/nginx.pid (code=exited, status=0/SUCCESS)
Main PID: 15740 (nginx)
   CGroup: /system.slice/nginx.service
           ├─15740 nginx: master process /usr/sbin/nginx
           ├─31659 nginx: worker process
           ├─31660 nginx: worker process
           ├─31661 nginx: worker process
           └─31662 nginx: worker process

Nov 19 17:10:17 xxx-general-01 systemd[1]: Starting The nginx HTTP and reverse proxy server...
Nov 19 17:10:17 xxx-general-01 nginx[15734]: nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
Nov 19 17:10:17 xxx-general-01 nginx[15734]: nginx: configuration file /etc/nginx/nginx.conf test is successful
Nov 19 17:10:17 xxx-general-01 systemd[1]: Started The nginx HTTP and reverse proxy server.
Nov 28 10:54:44 xxx-general-01 systemd[1]: Reloaded The nginx HTTP and reverse proxy server.
Nov 28 11:01:10 xxx-general-01 systemd[1]: Reloaded The nginx HTTP and reverse proxy server.

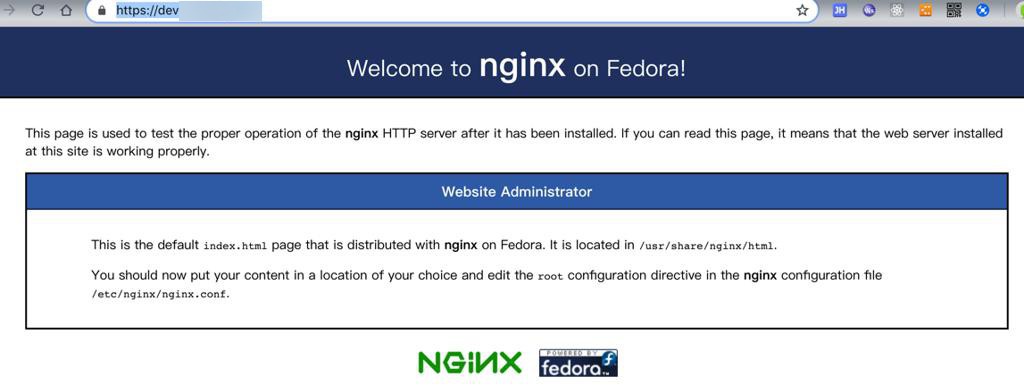

然后去访问:

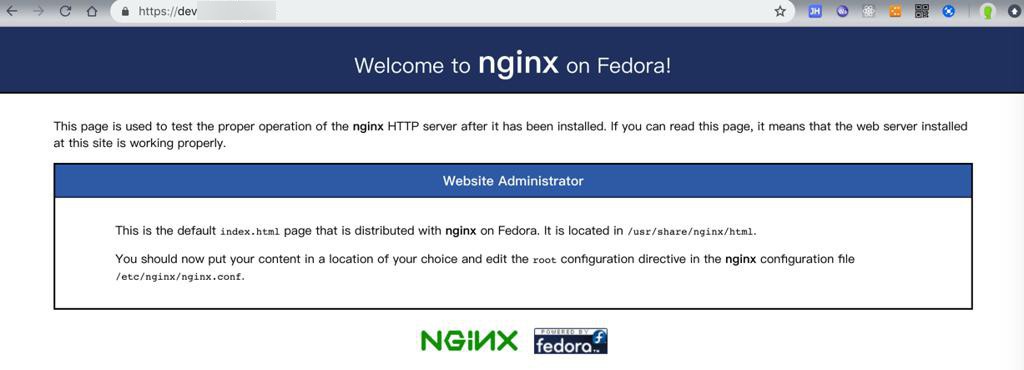

https://dev.xxx/
说明443的https生效了。
那再去看看是否转发到端口了:

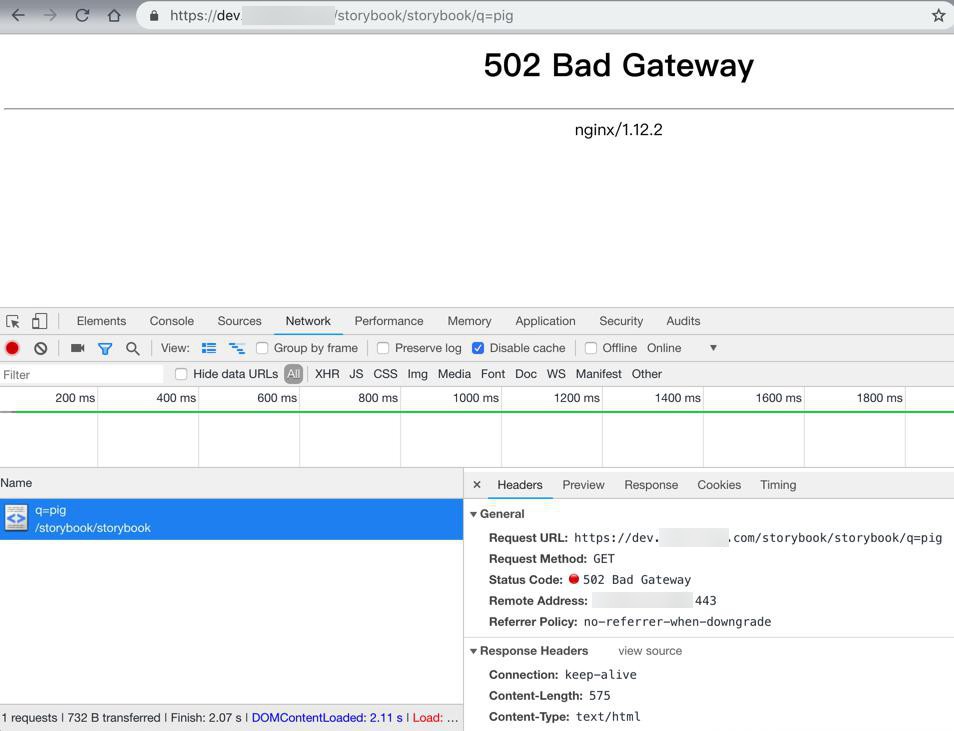

https://dev.xxx/storybook/storybook/q=pig
结果:
502 Bad Gateway

nginx/1.12.2
打算去看看log。
不过先去看看:

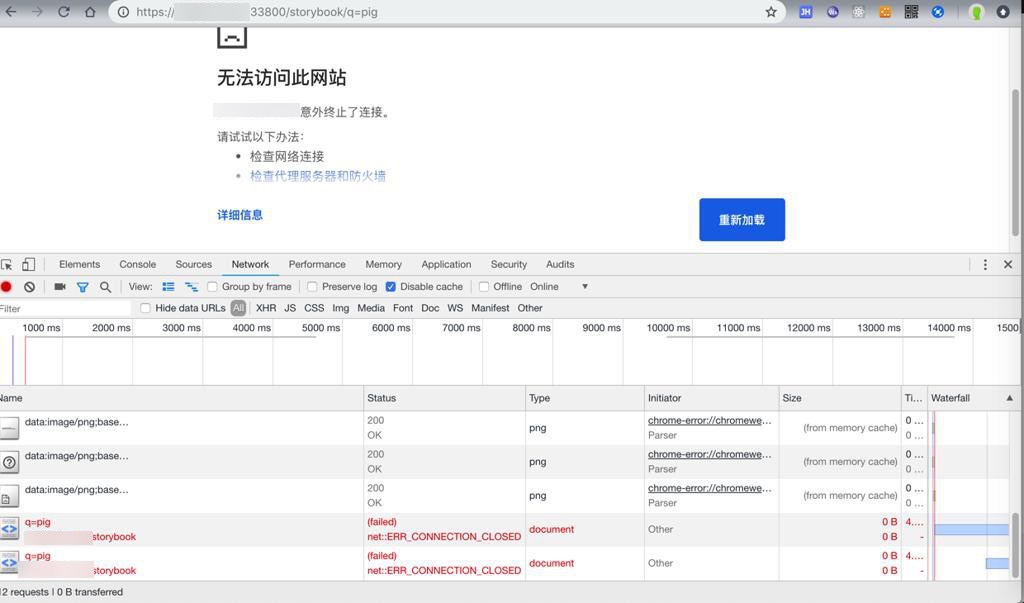

https://xxx:33800/storybook/q=pig
结果:
所以还是要去防火墙方面,设置允许33800端口的入方向的访问
不过之前阿里云安全组中已加过了33800的端口入方向了。
抽空再去看看防火墙中的设置。
此处,先去试试:
    location /storybook/
    {
        # proxy_pass https://xxx:33800/;
        proxy_pass https://127.0.0.1:33800/;
    }
看看效果:问题依旧。
nginx https redirect port
Redirect HTTP to HTTPS in Nginx | Servers for Hackers
How to run nginx SSL on non-standard port – Server Fault
参考这个做法去加上额外的listen 33800:
server {
    listen              443 ssl;
    listen              [::]:443 ssl;

    server_name         dev.xxx;
    ssl_certificate     /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.crt; # 证书文件
    ssl_certificate_key /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.key; # 私钥文件

    # Redirect the browser to our port 9443 config
    return 301 $scheme://dev.xxx:33800$request_uri;
}

server {
    listen              33800 ssl;
    listen              [::]:33800 ssl;
    server_name         dev.xxx;

    access_log          /var/log/nginx/dev.xxx/access_https.log;
    error_log           /var/log/nginx/dev.xxx/error_https.log;

    ### Https Related Config
    ssl_certificate     /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.crt; # 证书文件
    ssl_certificate_key /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.key; # 私钥文件

    ssl_protocols       TLSv1 TLSv1.1 TLSv1.2;
    ssl_ciphers         HIGH:!aNULL:!MD5;

    keepalive_timeout   70; # 设置长连接

    # ssl_session_timeout 10m; # 配置会话超时时间
    # ssl_session_cache   shared:SSL:10m; # 配置共享会话缓存大小,视站点访问情况设定

    # ssl_prefer_server_ciphers   on; #优先采取服务器算法

    # # 如果是全站 HTTPS 并且不考虑 HTTP 的话,可以加入 HSTS(HTTP Strict Transport Security) ,使用 HSTS 策略强制浏览器使用 HTTPS 连接
    # add_header Strict-Transport-Security "max-age=31536000; includeSubDomains;preload" always;
    # add_header X-Frame-Options DENY; #减少点击劫持
    # add_header X-Content-Type-Options nosniff; #禁止服务器自动解析资源类型
    # add_header X-Xss-Protection 1; #防XSS攻击

    proxy_set_header HOST $host;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;

    # location /storybook/
    # {
    #     proxy_pass https://xxx:33800/;
    #     # proxy_pass https://127.0.0.1:33800/;
    # }
}
结果:
问题依旧,还是:
参考:
centos – Nginx https Redirect Loop, Not Using Port 443 – Server Fault
nginx accept HTTP & HTTPS requests on two different ports – Server Fault
感觉还是需要去加上:
proxy_pass http://127.0.0.1:33800;
去试试:
    location /storybook/ {
        # proxy_pass https://xxx:33800/;
        # proxy_pass https://127.0.0.1:33800/;
        proxy_pass http://127.0.0.1:33800/;
    }
结果:问题依旧。
再去试试:
不用443转特殊端口,直接用443本身,然后443中proxy到http的33800端口:
# server {
#     listen              443 ssl;
#     listen              [::]:443 ssl;

#     server_name         dev.xxx;
#     ssl_certificate     /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.crt; # 证书文件
#     ssl_certificate_key /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.key; # 私钥文件

#     # Redirect the browser to our port 9443 config
#     return 301 $scheme://dev.xxx:33800$request_uri;
# }

server {
    # listen              33800 ssl;
    # listen              [::]:33800 ssl;
    listen              443 ssl;
    listen              [::]:443 ssl;
    server_name         dev.xxx;

    access_log          /var/log/nginx/dev.xxx/access_https.log;
    error_log           /var/log/nginx/dev.xxx/error_https.log;

    ### Https Related Config
    ssl_certificate     /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.crt; # 证书文件
    ssl_certificate_key /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.key; # 私钥文件

    ssl_protocols       TLSv1 TLSv1.1 TLSv1.2;
    ssl_ciphers         HIGH:!aNULL:!MD5;

    keepalive_timeout   70; # 设置长连接

    # ssl_session_timeout 10m; # 配置会话超时时间
    # ssl_session_cache   shared:SSL:10m; # 配置共享会话缓存大小,视站点访问情况设定

    # ssl_prefer_server_ciphers   on; #优先采取服务器算法

    # # 如果是全站 HTTPS 并且不考虑 HTTP 的话,可以加入 HSTS(HTTP Strict Transport Security) ,使用 HSTS 策略强制浏览器使用 HTTPS 连接
    # add_header Strict-Transport-Security "max-age=31536000; includeSubDomains;preload" always;
    # add_header X-Frame-Options DENY; #减少点击劫持
    # add_header X-Content-Type-Options nosniff; #禁止服务器自动解析资源类型
    # add_header X-Xss-Protection 1; #防XSS攻击

    proxy_set_header HOST $host;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;

    location /storybook/ {
        # proxy_pass https://xxx:33800/;
        # proxy_pass https://127.0.0.1:33800/;
        proxy_pass http://127.0.0.1:33800/;
    }
}
结果:

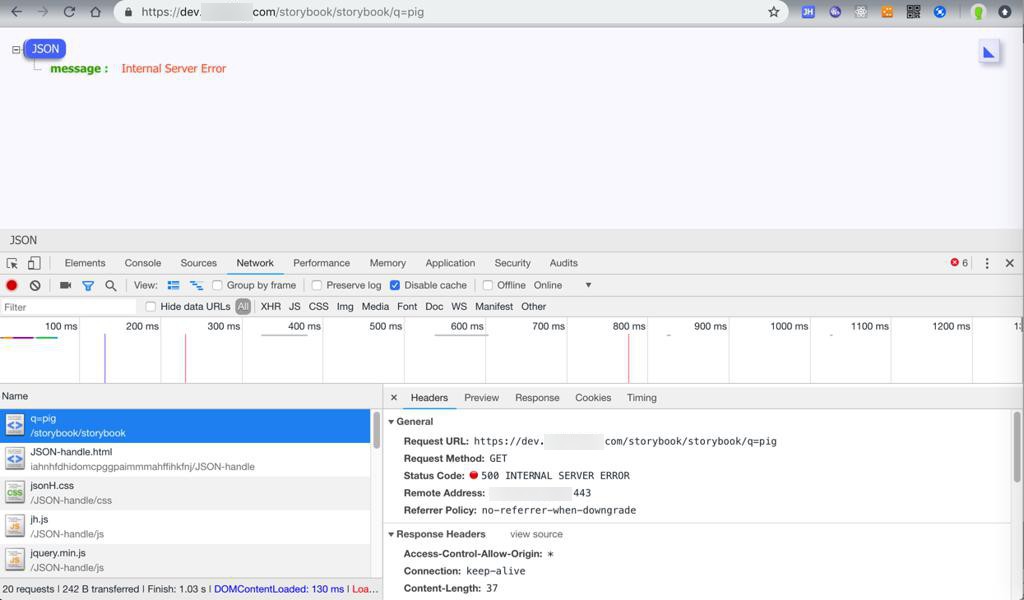

https://dev.xxx/storybook/storybook/q=pig
返回:
{
    "message": "Internal Server Error"
}
IP+端口:
https://xxx:33800/storybook/q=pig

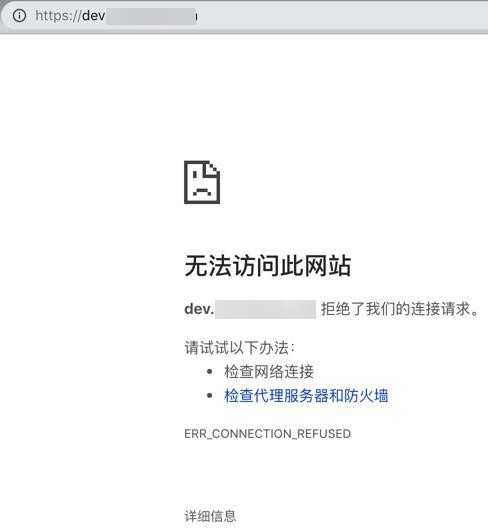

问题依旧,还是:无法访问此网站
换成:

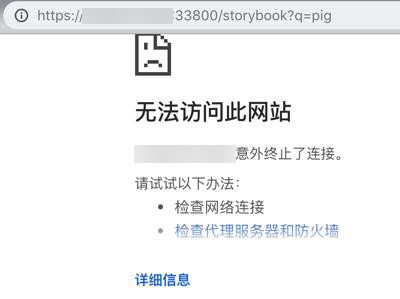

https://xxx:33800/storybook?q=pig
结果:
问题依旧。
【总结】
最终想要实现:
要访问https://dev.xxx,可以实现跳转到dev服务器的指定端口33800的话,需要去:
到dev服务器中,配置nginx:
  • (用ssl证书)支持https
  • 且同时支持端口转发
具体配置如下:
server {
    listen              443 ssl;
    listen              [::]:443 ssl;
    server_name         dev.xxx;

    access_log          /var/log/nginx/dev.xxx/access_https.log;
    error_log           /var/log/nginx/dev.xxx/error_https.log;

    ### Https Related Config
    ssl_certificate     /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.crt; # 证书文件
    ssl_certificate_key /usr/share/nginx/cert/dev.xxx_aliyun_symantec_free_ov_ssl.key; # 私钥文件

    ssl_protocols       TLSv1 TLSv1.1 TLSv1.2;
    ssl_ciphers         HIGH:!aNULL:!MD5;

    ...

    proxy_set_header HOST $host;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;

    location /storybook/ {
        proxy_pass http://127.0.0.1:33800/;
    }
}
(而换成)用二级域名去正常访问,传递正确参数的话:

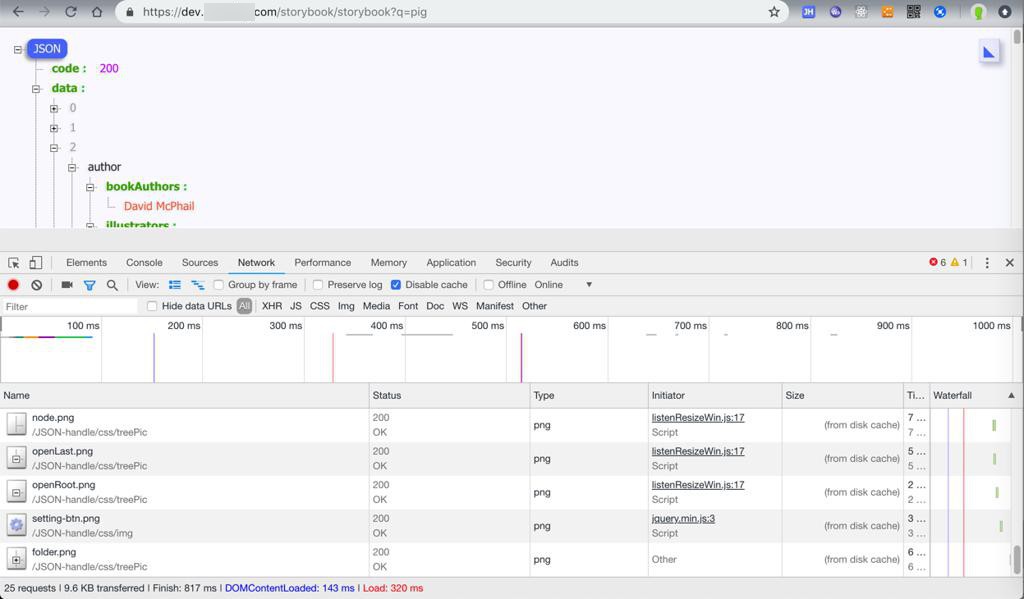

https://dev.xxx/storybook/storybook?q=pig
就可以正常返回数据了:
所以目前现象是:
对于dev的二级域名的话:
而对于dev服务器的IP访问的话:
如此,基本上实现了需要的效果:

转载请注明:在路上 » 【已解决】给二级域名dev.naturling.com的端口转发后添加https支持

发表我的评论
取消评论

表情

Hi,您需要填写昵称和邮箱!

  • 昵称 (必填)
  • 邮箱 (必填)
  • 网址
19 queries in 0.089 seconds, using 9.49MB memory
