【整理】FBK2用到的M16C62P的相关资料

Embedded crifan 956浏览 0评论

softing的fbk2:

Fieldbus Kit FBK-2

用到的cpu是M16C62P,所以去整理一下,关于,嵌入式CPU,M16C62P,相关的资料。


1.手册

M16C/62P, M16C/62PT – Renesas Electronics



2.官网主页:

M16C/62P | Renesas Electronics

基本概述和规格:

Product Overview:

The M16C/62P is based on the M16C/60 CPU Core and has 1MB of address space.Maximum operating frequency is 24MHz when using PLL Synthesizer. Mask ROM,Flash Memory, and ROM-less Versions are available. Internal Flash Memory isprogrammable on a single power source.

Key Features:
  • 16-bit Multifunction Timer (Timer A and B, incl. 3-phase inverter motorcontrol function): 11 channels
  • UART/Clock Synchronous Serial Interface: 3 channels
  • Clock Synchronous Serial Interface: 2 channels
  • 10-bit A/D Converter: 26 channels
  • 8-bit D/A Converter: 2
  • DMAC: 2 channels
  • CRC Calculation Circuit
  • Watchdog Timer
  • Clock Generation Circuits: Main Clock Generation Circuit, Sub ClockGeneration Circuit, On-chip Oscillator, PLL Synthesizer
  • Oscillation Stop Detection Function
  • Voltage Detection Circuit (Option) (Except for T Version and VVersion)
  • I/O Ports: 113*
  • External Interrupt Pins: 11**
  • Data Flash: 4KB (Flash Memory Version only)

*: Spec of 128-pin version.
**: Spec of 128-pin and 100-pin versions.



3.又找到一个datasheet:

M16C/62P Group (M16C/62P, M16C/62PT) Datasheet



4.其他一些参考资料:

共享我做的瑞萨M16C/62P的bootloader



M16C62P概述

实际上叫做:M16C/62P



摘录自datasheet:

http://documentation.renesas.com/doc/products/mpumcu/rej09b0185_16c62pthm.pdf

M16C/62P Group (M16C/62P, M16C/62PT) Hardware Manual
Rev.2.41 2006.01
RENESAS 16-BIT SINGLE-CHIP MICROCOMPUTER M16C FAMILY / M16C/60 SERIES



M16C/62P系列系列概述

M16C/62P系列(M16C/62P, M16C/62PT)芯片:

  • 单芯片,微处理器
  • CMOS工艺
  • 内核是M16C/60
  • 阵脚有三种:80针,100针,128针
  • QFP封装
  • 1M的寻址空间
  • 包含一个复用器(multiplexer)和DMA控制器(DMAC) -> 适用于各种通讯环境,工业设备等需要算数/逻辑操作的场景

适用于:

音频,摄像头,电视,家庭应用,办公/通讯/便携式设备/工业设备,汽车等领域



M16C/62P系列的功能(性能)概览

以128阵脚为例:

Performance Outline of M16C 62P Group 128-pin version

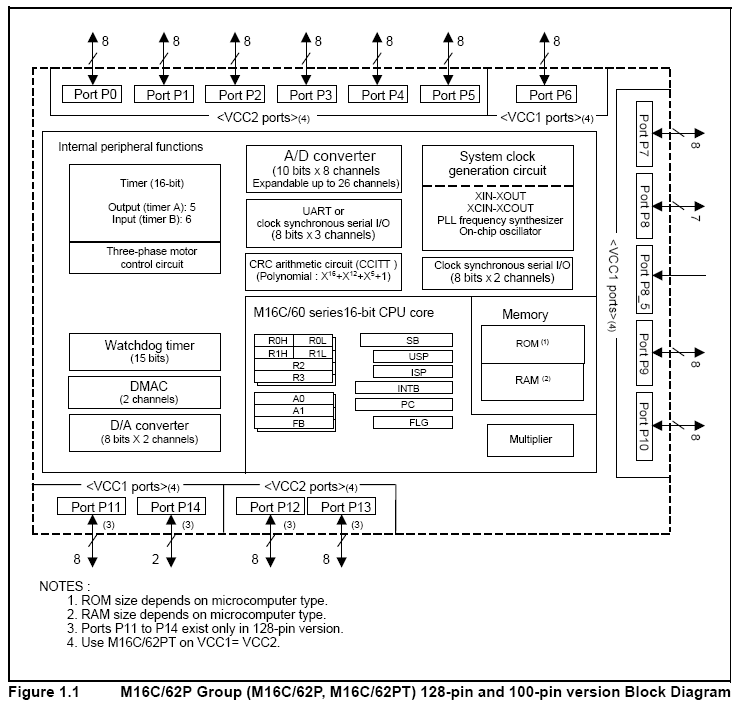

M16C62P框图(Block Diagram)

M16C62P Block Diagram

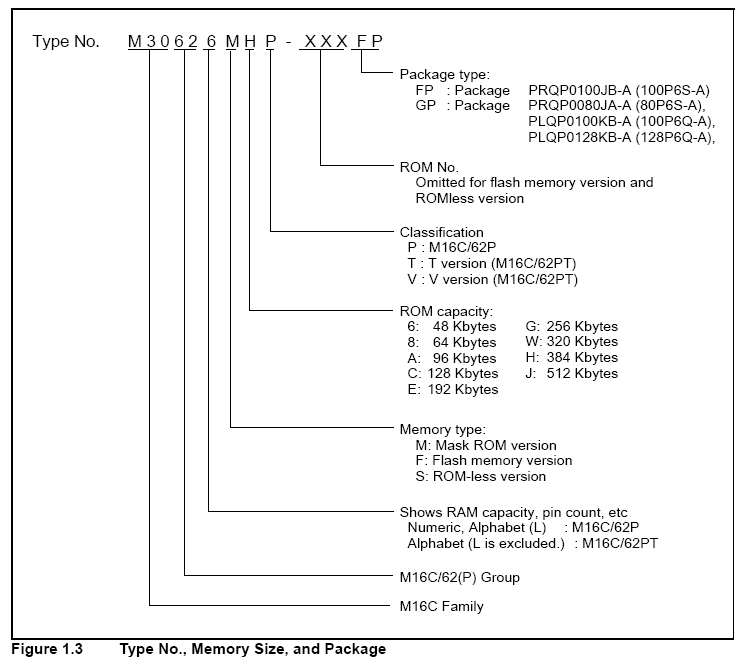

M16C/62P系列命名规范

M16C62P Type No Memory Size and Package



FBK2用到的M16C62P

参考:

Fieldbus Kit FBK-2 Technical Details

可知为:

Hardware


Processor

Renesas M16C

RAM

31KB internal, 440KB external SRAM

Flash

384KB internal

Non-volatile RAM

8KB



暂时就了解到这里,有空再深入研究。
