【已解决】openpyxl中给单元格设置背景色

Python crifan 12381浏览 0评论

折腾:

【已解决】用openpyxl去新建excel文件并保存数据和设置单元格样式

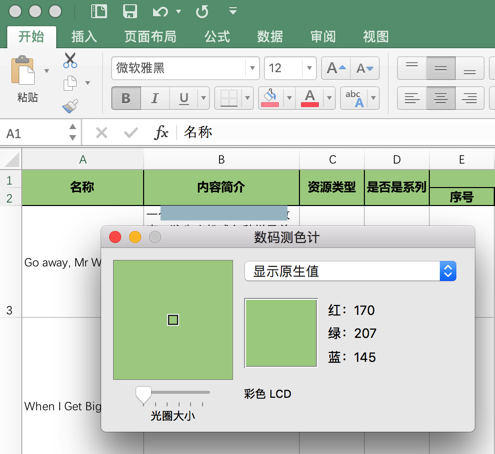

期间,想要给单元格设置类似于:

的背景色。

且去网上找到了

170,207,145

的hex color的值是:

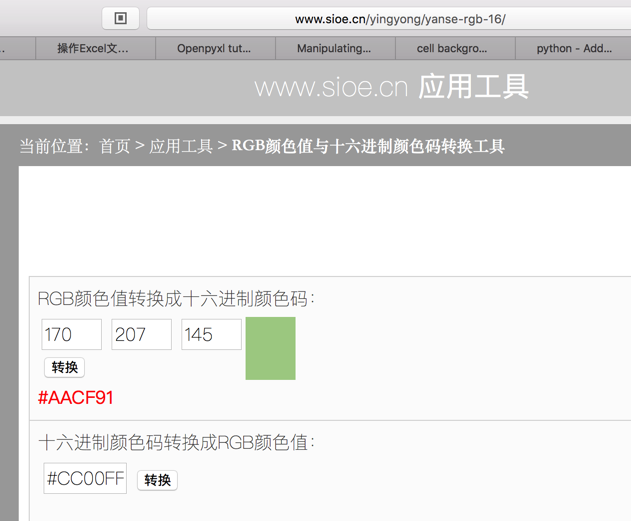

http://www.sioe.cn/yingyong/yanse-rgb-16/

#AACF91

找了下,貌似只有sheet的tab设置背景色?

openpyxl cell background color

python – Adding a background color to Cell OpenPyXL – Stack Overflow

Best way to set cell background colour in openpyxl

OpenPyXL – Fill Cells with Color:learnpython

但是本来要去设置绿色背景,怎么代码:

from openpyxl import Workbook, load_workbook

from openpyxl.styles import Alignment

from openpyxl.styles import PatternFill

# create new output unified format excel file

wbOut = Workbook()

logging.info("wbOut=%s", wbOut)

wsStorybook = wbOut.create_sheet(StorybookSheetTitle)

wsSong = wbOut.create_sheet(SongSheetTitle)

logging.info("wsStorybook=%s, wsSong=%s", wsStorybook, wsSong)

# init headers

def initOutputExcelHeaders(ws):

    commonBackgroundColor = "AACF91"

    logging.info("ws=%s", ws)

    nameCell = ws["A1"]

    nameCell.value = "名称"

    nameCell.alignment = Alignment(horizontal=’center’, vertical=’center’)

    nameCell.fill = PatternFill(bgColor=commonBackgroundColor, fill_type="solid")

    ws.merge_cells(‘A1:A2’)

initOutputExcelHeaders(wsStorybook)

initOutputExcelHeaders(wsSong)

wbOut.save(OutputUnifiedFormatExcelFilename)

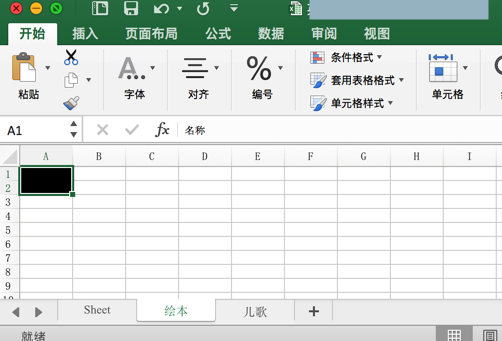

出来的效果却是黑色:

openpyxl PatternFill cell

难道是:

此处的RGB的值不是这么算的?

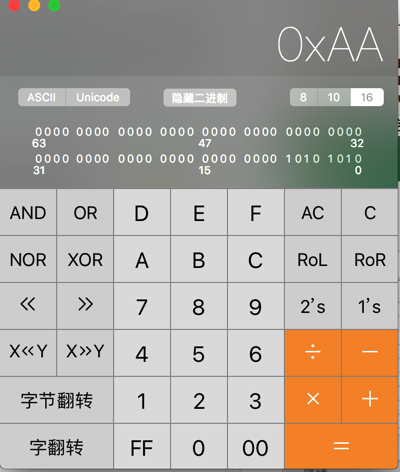

170 -》 hex是:0XAA

207-〉hex:0xCF

145 -》 hex:0x91

没错啊。

找找是不是PatternFill打开方式有误

openpyxl PatternFill cell

openpyxl.styles.fills module — openpyxl 2.5.3 documentation

Working with styles — openpyxl 2.5.0 documentation

openpyxl.styles.PatternFill Python Example

Can’t set cell background colour – Google Groups

python操作xlsx文件的包openpyxl – CSDN博客

“fill1 = PatternFill(start_color = ‘FFFF00’, end_color = ‘FFFF00’, fill_type = ‘solid’) #设置单元格背景色”

去试试

注意到:

http://openpyxl.readthedocs.io/en/stable/api/openpyxl.styles.fills.html

“bgColor

Values must be of type <class ‘openpyxl.styles.colors.Color’>”

看来是:

缺少了Color(xxx)

去试试

commonBackgroundColorHex = "AACF91"

logging.info("ws=%s", ws)

nameCell = ws["A1"]

nameCell.value = "名称"

nameCell.alignment = Alignment(horizontal=’center’, vertical=’center’)

# nameCell.fill = PatternFill(bgColor=commonBackgroundColor, fill_type="solid")

# nameCell.fill = PatternFill(bgColor=Color(commonBackgroundColorHex), fill_type="solid")

nameCell.fill = PatternFill(bgColor=Color(commonBackgroundColorHex), fill_type="solid")

问题依旧。

nameCell.fill = PatternFill(bgColor=colors.GREEN, fill_type="solid")

结果:

问题依旧。

nameCell.fill = PatternFill(start_color=colors.GREEN, end_color=colors.GREEN, fill_type="solid")

结果:

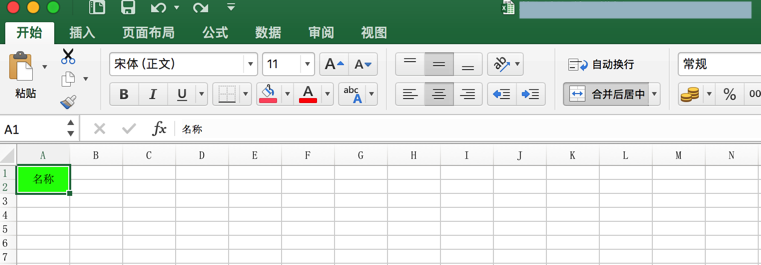

是可以的:

去换成我之前的颜色:

nameCell.fill = PatternFill(start_color=commonBackgroundColorHex, end_color=commonBackgroundColorHex, fill_type="solid")

结果:

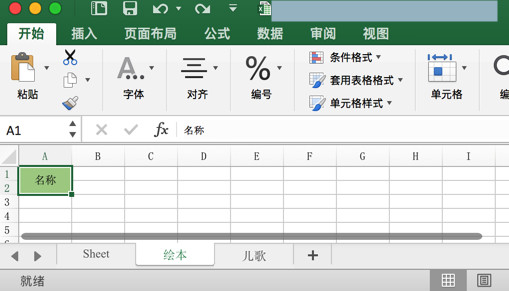

就对了:

【总结】

此处,想要用openpyxl设置背景色,用PatternFill的bgColor:

nameCell.fill = PatternFill(bgColor=Color("AACF91"), fill_type="solid")

结果却导致黑色背景

最后是换成:

nameCell.fill = PatternFill(start_color="AACF91", end_color="AACF91", fill_type="solid")

就可以了。

前面bgClor无法工作的根本的原因,暂时懒得深究了。
