【已解决】react的webpack中拆分js以提高首屏主页加载速度

JS crifan 2414浏览 0评论

之前用preact做了个H5的app。

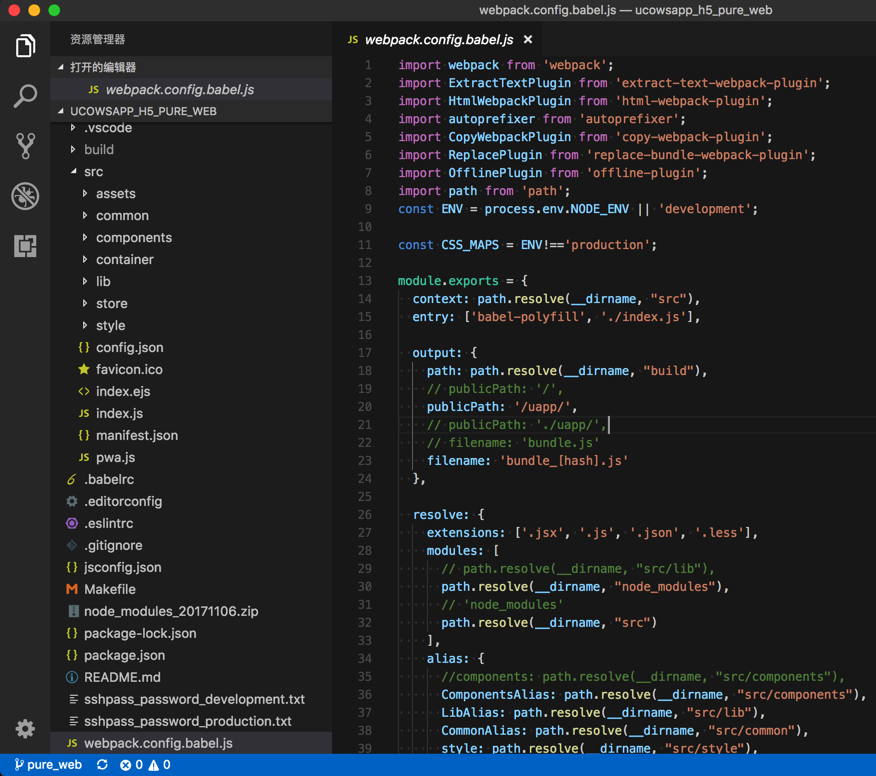

其中是用webpack:

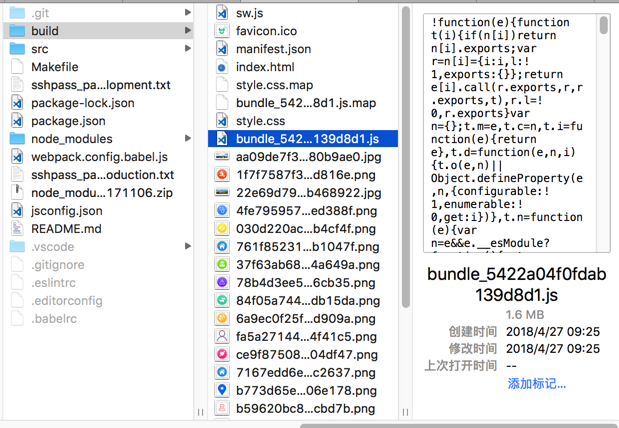

打包生成的bundle的js:

然后放到web服务器上,app端的原生部分用webview去加载。

其中首页就要加载这个:

bundle_5422a04f0fdab139d8d1.js

然后由于所有业务逻辑都在里面,导致有点大,1.5MB

由于服务器网络不是很好,导致app端加载现在比较慢,大概要5秒前后。

现在希望提高首页,首屏,主页的加载速度。

能想到的办法是:

好像听说可以拆分js,这样首页要加载的js的就少了。就会很快。

然后点击不同页面,再加载相应的业务逻辑的js。

现在去尝试搞清楚,能不能实现拆分,如何实现拆分。

react webpack split bundle js

Straightforward code splitting with React and webpack

Code Splitting

“if used correctly, can have a major impact on load time.”

此处大概看了看,感觉是:

好像动态的import()对我此处用处不大

感觉更多的是:

10多个页面中的,各种业务逻辑中的代码

所以,希望最好是把除了主页的其他业务逻辑都放到后续,点击了对应按钮后,再去加载

/webpack.config.babel.js

改为:

<code>module.exports = {
  context: path.resolve(__dirname, "src"),
  entry: [
    'babel-polyfill',
    './index.js'
  ],

  output: {
    path: path.resolve(__dirname, "build"),
    // publicPath: '/',
    publicPath: '/uapp/',
    // publicPath: './uapp/',
    // filename: 'bundle.js'
    // filename: 'bundle_[hash].js'
    filename: '[name].bundle_[hash].js'
  },
</code>

结果

npm run build

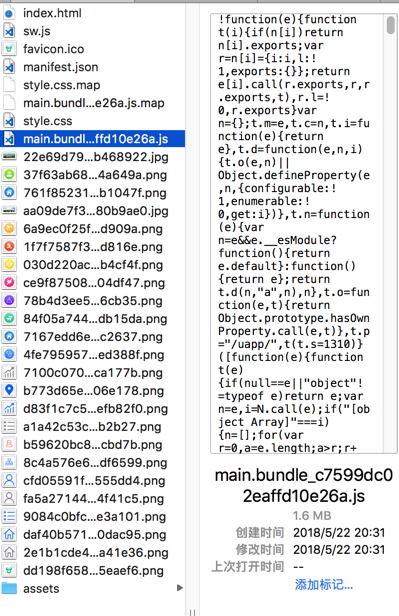

输出了:

1.6M的main.bundle_c7599dc02eaffd10e26a.js

也并没有其他js分出来了

所以去想办法把其他业务逻辑的入口都提取出来试试

webpack/examples at master · webpack/webpack

不过还是先去试试:

<code>    new webpack.optimize.CommonsChunkPlugin({
      name: 'common' // Specify the common bundle's name.
    }),
</code>

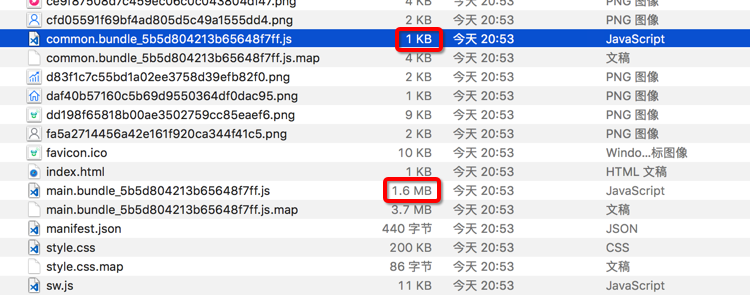

效果:

common的只有1KB

main的js还是1.6MB

还是想办法试试 import()

效果如何

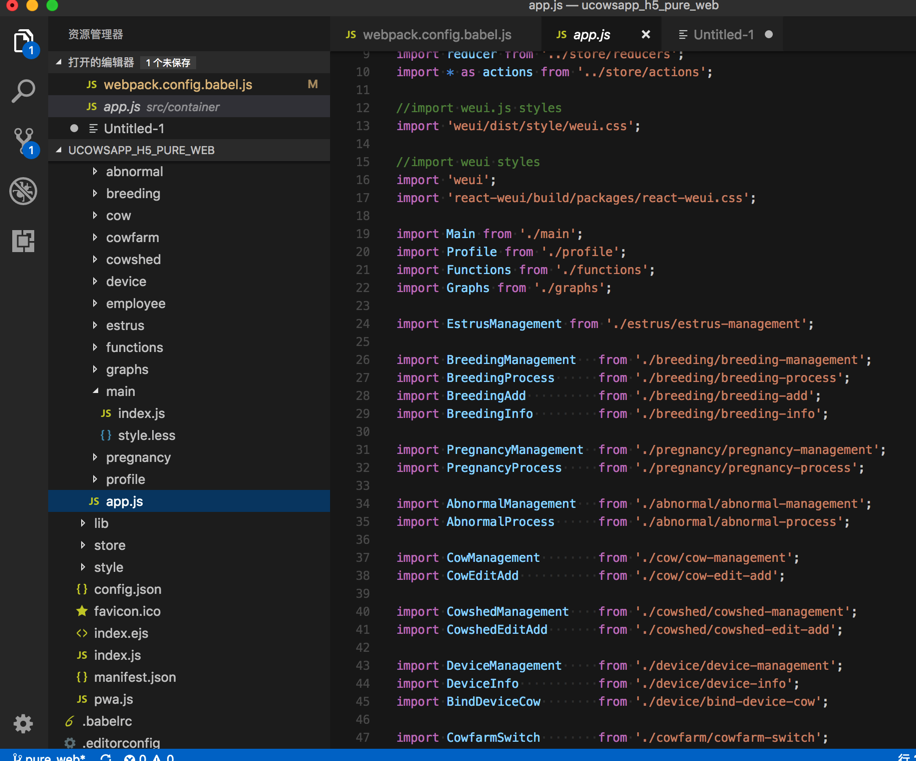

那此处的app.js试试

试试:

didierfranc/react-code-splitting: Code splitting won’t be a nightmare anymore !

结果此处安装还有问题:

<code>➜  ucowsapp_h5_pure_web git:(pure_web) ✗ npm install -S react-code-splitting
npm WARN package.json [email protected] No repository field.
npm WARN package.json [email protected] No license field.
npm WARN unmet dependency /Users/crifan/dev/dev_root/xxx/ucowsapp_h5/ucowsapp_h5_pure_web/node_modules/selector2 requires react@'^0.14.3' but will load
npm WARN unmet dependency /Users/crifan/dev/dev_root/xxx/ucowsapp_h5_pure_web/node_modules/react,
npm WARN unmet dependency which is version 15.6.1
npm ERR! Darwin 17.5.0
npm ERR! argv "/Users/crifan/.nvm/versions/node/v5.4.1/bin/node" "/Users/crifan/.nvm/versions/node/v5.4.1/bin/npm" "install" "-S" "react-code-splitting"
npm ERR! node v5.4.1
npm ERR! npm  v2.14.15
npm ERR! code EPEERINVALID

npm ERR! peerinvalid The package [email protected] does not satisfy its siblings' peerDependencies requirements!
npm ERR! peerinvalid Peer [email protected] wants react@&gt;=0.13.2 || ^0.14 || ^15.0.0 || &gt;=16.0.0-alpha.1 &lt;17.0.0
npm ERR! peerinvalid Peer [email protected] wants react@^15.0.0 || ^16.0.0
npm ERR! peerinvalid Peer [email protected] wants react@&gt;=0.14
npm ERR! peerinvalid Peer [email protected] wants react@&gt;=0.13
npm ERR! peerinvalid Peer [email protected] wants react@^15.5.0
npm ERR! peerinvalid Peer [email protected] wants react@^0.14.9 || ^15.3.0
npm ERR! peerinvalid Peer [email protected] wants react@^15.5.4
npm ERR! peerinvalid Peer [email protected] wants react@^0.14.9 || ^15.3.0 || ^16.0.0-rc || ^16.0
npm ERR! peerinvalid Peer [email protected] wants react@^15.0.0 || ^0.14.0
npm ERR! peerinvalid Peer [email protected] wants [email protected] || ^15.0.0-0 || 15.x
npm ERR! peerinvalid Peer [email protected] wants react@^0.14.0 || ^15.0.0-0 || ^16.0.0-0
npm ERR! peerinvalid Peer [email protected] wants react@^15.4.2
npm ERR! peerinvalid Peer [email protected] wants react@^0.14.9
npm ERR! peerinvalid Peer [email protected] wants react@^0.14.0 || ^15.0.0
npm ERR! peerinvalid Peer [email protected] wants react@^0.14.9 || ^15.3.0 || ^16.0.0-rc || ^16.0
npm ERR! peerinvalid Peer [email protected] wants react@^15.0.0 || ^16.0.0
npm ERR! peerinvalid Peer [email protected] wants react@^15.5.x || ^16.x
npm ERR! peerinvalid Peer [email protected] wants react@^15.0.0

npm ERR! Please include the following file with any support request:
npm ERR!     /Users/crifan/dev/dev_root/xxx/ucowsapp_h5_pure_web/npm-debug.log
</code>

算了,还是不用插件,自己试试

代码:

<code>// import Functions from './functions';

class Functions extends Component {
  componentWillMount = () =&gt; {
    import(/* webpackChunkName: "functions" */ './functions').then(curComponent =&gt; {
      this.curComponent = curComponent;
      this.forceUpdate();
    });
  }
  render = () =&gt; (
    this.curComponent ? &lt;this.curComponent.default /&gt; : null
  )
}
</code>

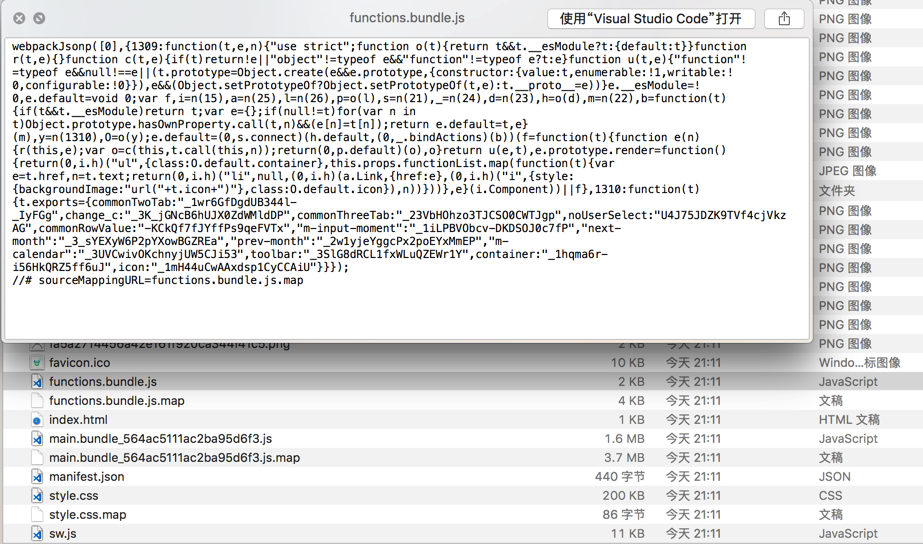

效果:

感觉不太对的样子。

再去试试那个common的vendor

webpack.config.babel.js

<code>module.exports = {
  context: path.resolve(__dirname, "src"),
  // entry: [
  //   'babel-polyfill',
  //   './index.js'
  // ],
  entry: {
    main: [
      'babel-polyfill',
      './index.js'
    ],
    vendor: [
      'preact',
      'preact-router',
      'react-autobind',
      'preact-redux'
    ]
  },

  output: {
    path: path.resolve(__dirname, "build"),
    // publicPath: '/',
    publicPath: '/uapp/',
    // publicPath: './uapp/',
    // filename: 'bundle.js'
    // filename: 'bundle_[hash].js'
    filename: '[name].bundle_[hash].js'
    // chunkFilename: '[name].bundle.js'
  },
</code>

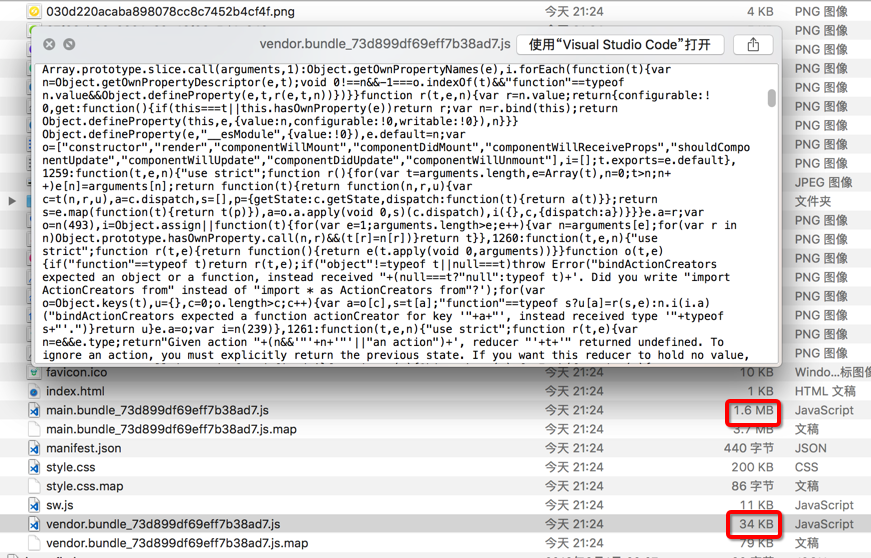

效果:

还是有点点效果的,至少分出来了34KB。

然后再去分出一些库:

<code>  entry: {
    main: [
      'babel-polyfill',
      './index.js'
    ],
    vendor: [
      'preact',
      'preact-router',
      'react-autobind',
      'preact-redux',
      'prop-types',
      'echarts-for-react',
      'react-addons-css-transition-group',
      'react-mobile-datepicker',
      'react-loading-animation',
      "lodash",
      'react-weui',
      'weui.js'
    ]
  },
</code>

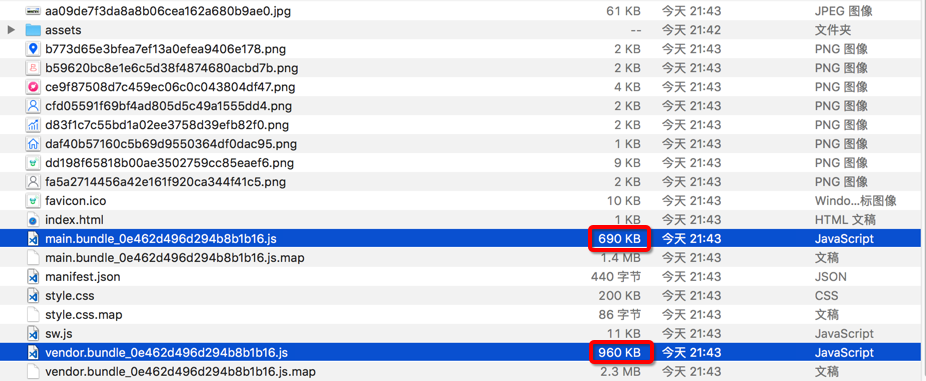

效果很不错:

vendor分出来了960KB

而原先1.6MB的main,变成了690KB,算是少了一半

去看看生成的html,也是分别加载了两个js:

<code>&lt;!DOCTYPE html&gt;
&lt;html&gt;

&lt;head&gt;
  &lt;link rel="preload" href="/uapp/style.css" as="style"&gt;
  &lt;link rel="preload" href="/uapp/vendor.bundle_0e462d496d294b8b1b16.js" as="script"&gt;
  &lt;link rel="preload" href="/uapp/main.bundle_0e462d496d294b8b1b16.js" as="script"&gt;
...
  &lt;link rel="manifest" href="/uapp/manifest.json"&gt;
  &lt;link href="/uapp/style.css" rel="stylesheet"&gt;
&lt;/head&gt;

&lt;body&gt;
  &lt;script type="text/javascript" src="/uapp/vendor.bundle_0e462d496d294b8b1b16.js"&gt;&lt;/script&gt;
  &lt;script type="text/javascript" src="/uapp/main.bundle_0e462d496d294b8b1b16.js"&gt;&lt;/script&gt;
&lt;/body&gt;

&lt;/html&gt;
</code>

但是要去看看能否正常加载才行

先去看看

npm run dev

去本地调试 是否能正常加载

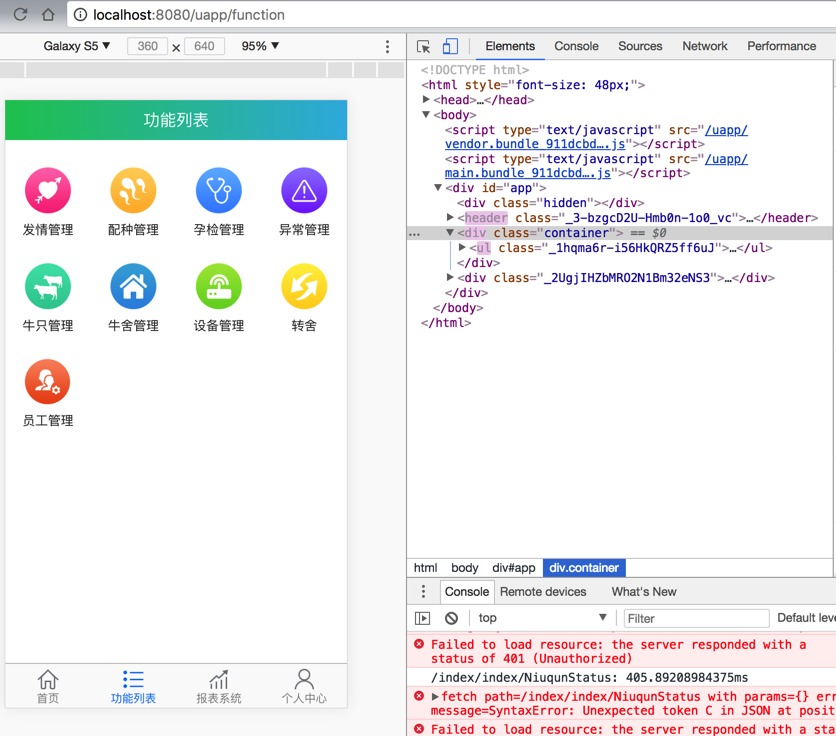

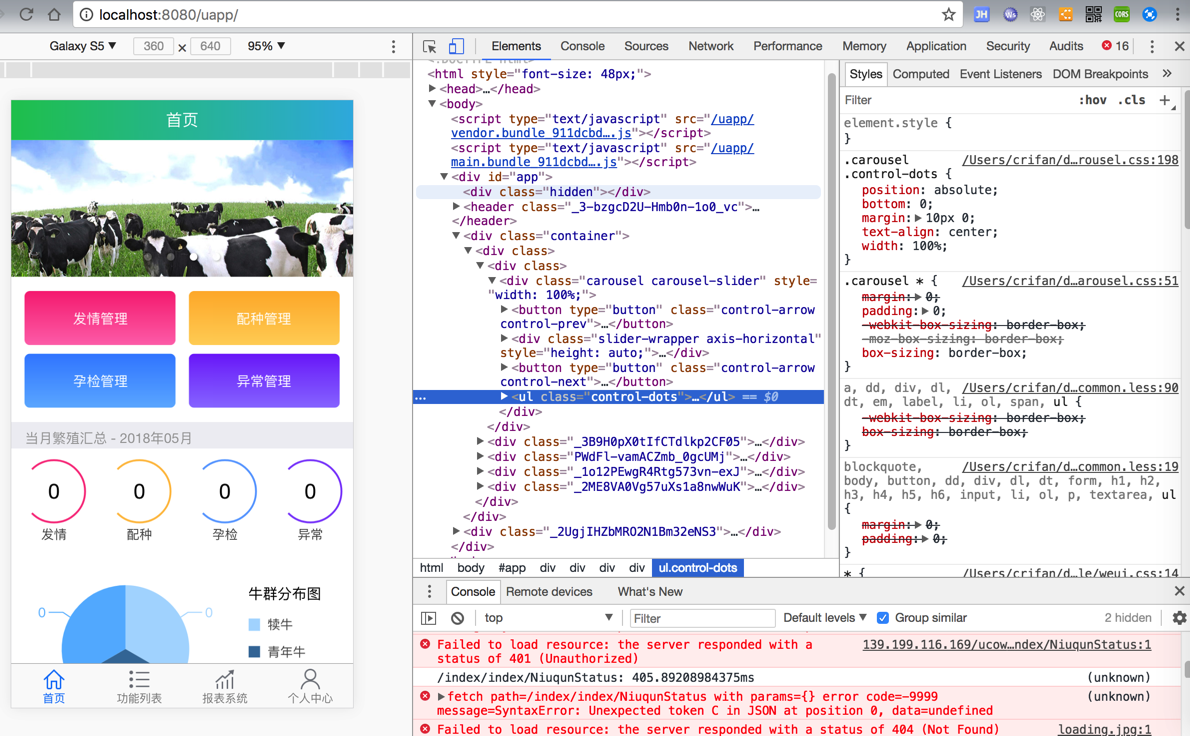

本地(好像)也是可以正常调试的:

那剩下的就是:

抽空上传build下面生成的所有html和css、js,然后看看实际加载的速度是否有所改善

但是感觉也不一定能加速加载

因为感觉只是把:

之前是1.6MB的bundle.js

拆成了2个js而已

要加载的js的大小,还是没有变的

按照道理,加载速度还是一样的慢才对。

不管如何,抽空上传到服务器上,看看app端加载是否有提高。

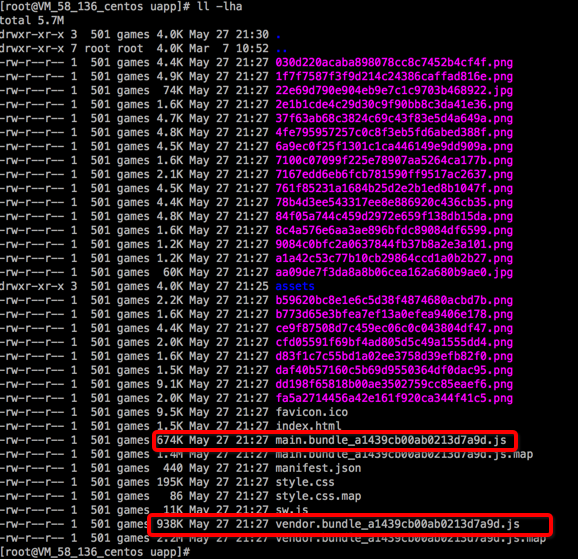

上传到服务器上了:

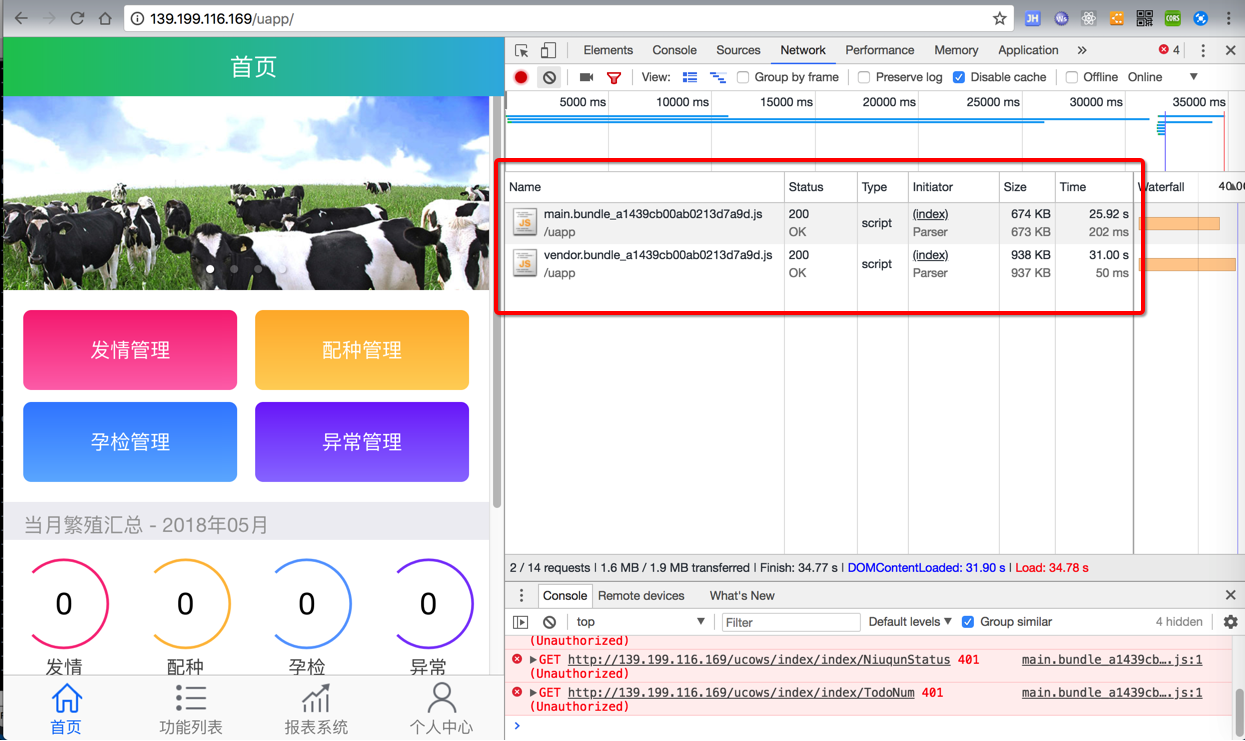

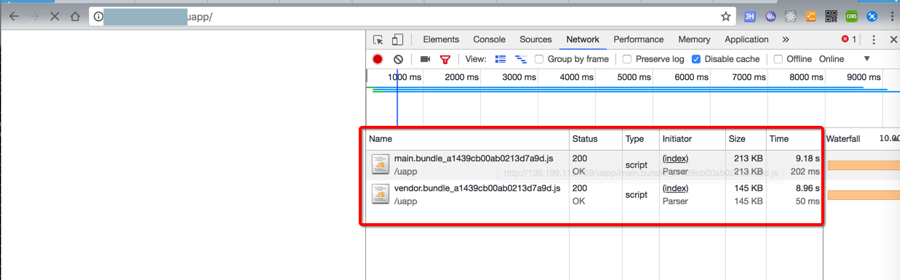

去Chrome测试加载,发现的确是希望的:

两个js同时加载:

最终加载完毕:

(注:只不过此处服务器本身网络速度比较慢而已,所以加载时间较长)

但是结果此处有个问题:

虽然js是拆分了,但是内部页面跳转逻辑好像有问题了?

页面内部数据传递不进来了?

待确定,好像不一定对,好像是其他问题导致的。

总之此处,js拆分是看起来OK了。

【总结】

此处通过把:

webpack.config.babel.js

<code>entry: [
  'babel-polyfill',
  './index.js'
],
</code>

改为:

<code>  entry: {
    main: [
      'babel-polyfill',
      './index.js'
    ],
    vendor: [
      'preact',
      'preact-router',
      'react-autobind',
      'preact-redux',
      'prop-types',
      'echarts-for-react',
      'react-addons-css-transition-group',
      'react-mobile-datepicker',
      'react-loading-animation',
      "lodash",
      'react-weui',
      'weui.js'
    ]
  },
</code>

从而使得之前在preact中多个js文件中调用的preact相关的:

  • preact

  • preact-router

  • react-autobind

  • preact-redux

  • prop-types

都放到了vendor中了,从而把之前单个的1.5M的js,拆分成两个大概700多KB的js,

而浏览器(或者app中webview)去加载js时,可以并列同时加载,所以可以提高加载速度。
