【已解决】web端html+js中如何调用麦克风获取用户语音输入说话

JS crifan 1482浏览 0评论

折腾:

【未解决】把语音识别集成到产品demo中

期间,即使要去调研,那家ASR好,也需要先去弄个录音文件才行。

所以还是先去搞清楚web端,html+js中,如何调用麦克风,获取用户说话的语音输入

然后保存起来存成一个文件,也许是临时文件,用于后续测试。

考虑到:

https://ai.baidu.com/docs#/ASR-API/top

支持pcm,wav,amr格式,所以此处保存尽量考虑保存为pcm格式(是不是更加通用,文件大小也比wav小多了?)

【未解决】Chrome中尝试使用input audio file方式去实现获取麦克风录音

再去试试:navigator.getUserMedia()

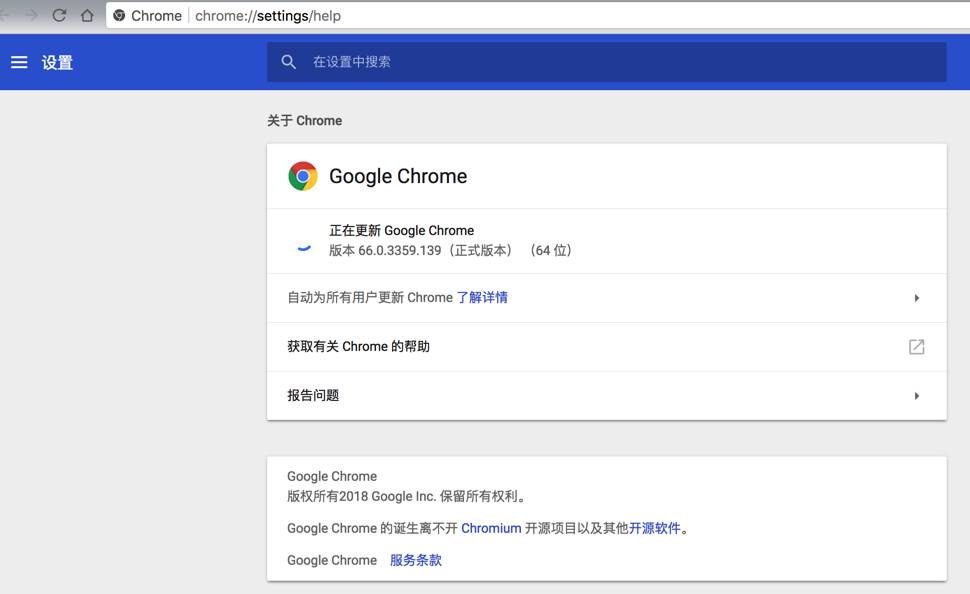

此处Chrome版本是:版本 66.0.3359.139(正式版本) (64 位)

然后:

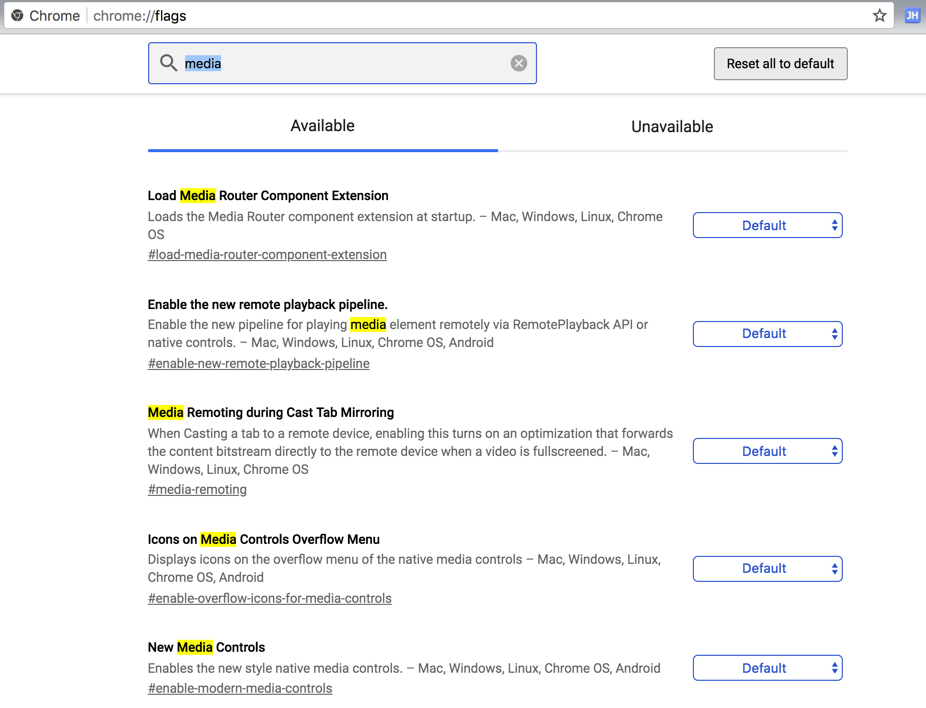

chrome://flags/

中,没有找到:

Enable Media Stream

只有:

media

估计是已经默认支持了?

代码:

$(document).ready(function(){

    function hasGetUserMedia() {

        // Note: Opera builds are unprefixed.

        return !!(navigator.getUserMedia || navigator.webkitGetUserMedia ||

            navigator.mozGetUserMedia || navigator.msGetUserMedia);

    }



    function detectGetUserMedia(){

        console.log(navigator);

        console.log("Current browser: vendor=%s, platform=%s, userAgent=%s",

            navigator.vendor, navigator.platform, navigator.userAgent);

        if (hasGetUserMedia()) {

            // Good to go!

            console.log("current browser support getUserMedia -> allow user speak use microspeaker");

        } else {

            console.error(‘getUserMedia() is not supported in current browser’);

        }

    }

    detectGetUserMedia();

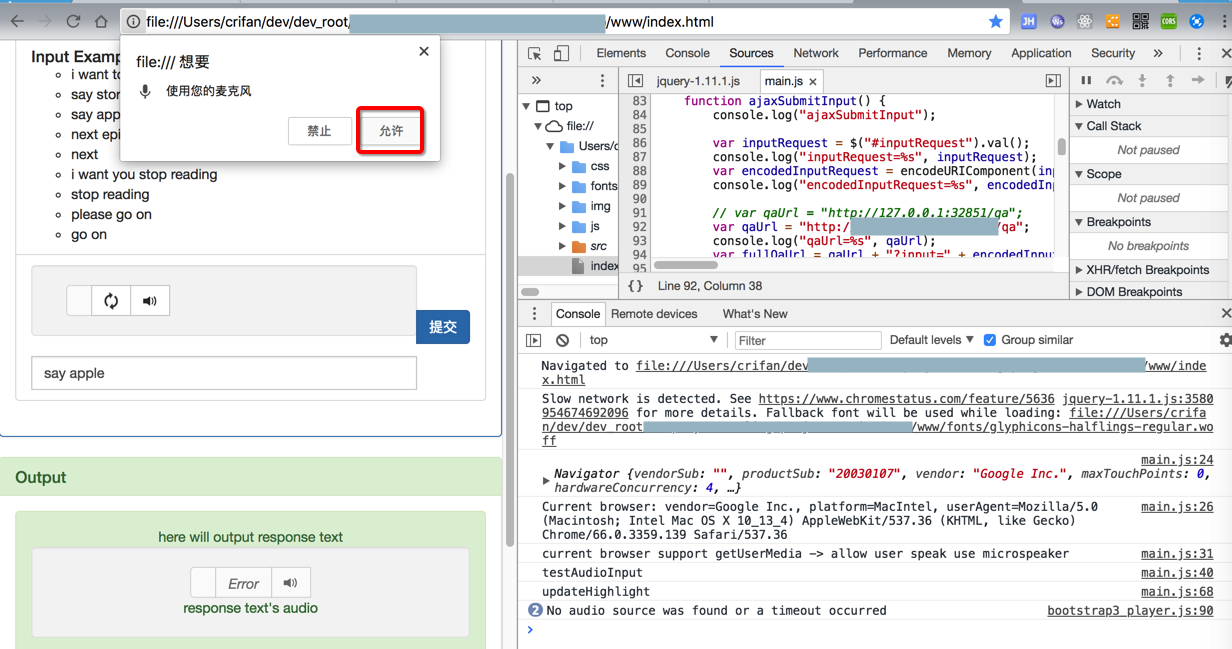

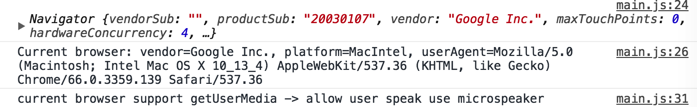

效果:

Navigator {vendorSub: "", productSub: "20030107", vendor: "Google Inc.", maxTouchPoints: 0, hardwareConcurrency: 4, …}appCodeName: "Mozilla"appName: "Netscape"appVersion: "5.0 (Macintosh; Intel Mac OS X 10_13_4) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/66.0.3359.139 Safari/537.36"bluetooth: Bluetooth {}budget: BudgetService {}clipboard: Clipboard {}connection: NetworkInformation {downlink: 6.1, effectiveType: "3g", onchange: null, rtt: 650, saveData: false}cookieEnabled: truecredentials: CredentialsContainer {}deviceMemory: 8doNotTrack: nullgeolocation: Geolocation {}hardwareConcurrency: 4language: "zh-CN"languages: (3) ["zh-CN", "zh", "en"]maxTouchPoints: 0mediaCapabilities: MediaCapabilities {}__proto__: MediaCapabilitiesmediaDevices: MediaDevices {ondevicechange: null}ondevicechange: null__proto__: MediaDevicesmimeTypes: MimeTypeArray {0: MimeType, 1: MimeType, 2: MimeType, 3: MimeType, 4: MimeType, 5: MimeType, application/pdf: MimeType, application/x-google-chrome-pdf: MimeType, application/x-nacl: MimeType, application/x-pnacl: MimeType, application/x-ppapi-vysor: MimeType, …}onLine: truepermissions: Permissions {}platform: "MacIntel"plugins: PluginArray {0: Plugin, 1: Plugin, 2: Plugin, 3: Plugin, Chrome PDF Plugin: Plugin, Chrome PDF Viewer: Plugin, Native Client: Plugin, Widevine Content Decryption Module: Plugin, length: 4}presentation: Presentation {defaultRequest: null, receiver: null}product: "Gecko"productSub: "20030107"serviceWorker: ServiceWorkerContainer {controller: null, ready: Promise, oncontrollerchange: null, onmessage: null}controller: nulloncontrollerchange: nullonmessage: nullready: Promise {<pending>}__proto__: ServiceWorkerContainerstorage: StorageManager {}__proto__: StorageManagerusb: USB {onconnect: null, ondisconnect: null}onconnect: nullondisconnect: null__proto__: USBuserAgent: "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_13_4) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/66.0.3359.139 Safari/537.36"vendor: "Google Inc."vendorSub: ""webkitPersistentStorage: DeprecatedStorageQuota {}webkitTemporaryStorage: DeprecatedStorageQuota {}__proto__: Navigator

main.js:26 Current browser: vendor=Google Inc., platform=MacIntel, userAgent=Mozilla/5.0 (Macintosh; Intel Mac OS X 10_13_4) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/66.0.3359.139 Safari/537.36

main.js:31 current browser support getUserMedia -> allow user speak use microspeaker

是支持的,那就继续试试

Google Chrome Browser

https://www.w3schools.com/browsers/browsers_chrome.asp

“Google Chrome 21

Chrome 21 was released on August 1, 2012.

Chrome 21 is available for Windows, Mac, and Linux.

New features:

* Support for Apple’s Retina display

* Support for the getUserMedia JavaScript API (allows Web applications to access the user’s webcam and microphone)”

Chrome 21就支持getUserMedia了。

再去试试代码:

    function testAudioInput(){

        console.log("testAudioInput");

        var inputAudio = $("#inputAudio");

        var handleSuccess = function(stream) {

            console.log("handleSuccess: stream=%o", stream);

        if (window.URL) {

            inputAudio.src = window.URL.createObjectURL(stream);

        } else {

            inputAudio.src = stream;

        }

        console.log("inputAudio.src=%s", inputAudio.src);

        };



        navigator.mediaDevices

            .getUserMedia({ audio: true, video: false })

            .then(handleSuccess);

    }

    testAudioInput();

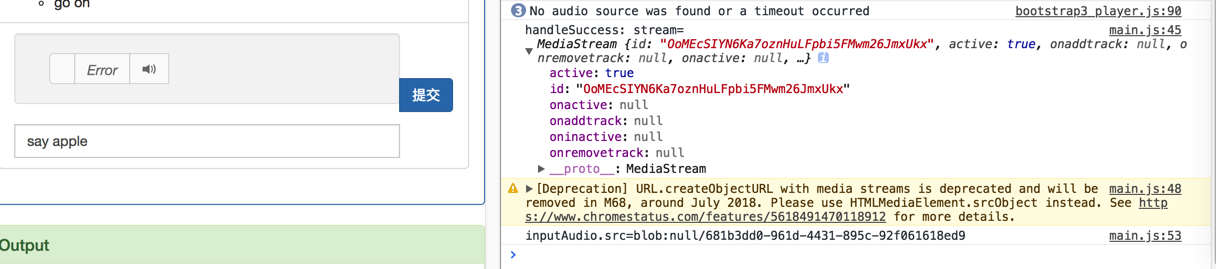

效果

handleSuccess: stream=MediaStream {id: "OoMEcSIYN6Ka7oznHuLFpbi5FMwm26JmxUkx", active: true, onaddtrack: null, onremovetrack: null, onactive: null, …}active: trueid: "OoMEcSIYN6Ka7oznHuLFpbi5FMwm26JmxUkx"onactive: nullonaddtrack: nulloninactive: nullonremovetrack: null__proto__: MediaStream

main.js:48 [Deprecation] URL.createObjectURL with media streams is deprecated and will be removed in M68, around July 2018. Please use HTMLMediaElement.srcObject instead. See https://www.chromestatus.com/features/5618491470118912 for more details.

handleSuccess @ main.js:48

Promise.then (async)

testAudioInput @ main.js:58

(anonymous) @ main.js:61

fire @ jquery-1.11.1.js:3119

fireWith @ jquery-1.11.1.js:3231

ready @ jquery-1.11.1.js:3443

completed @ jquery-1.11.1.js:3474

main.js:53 inputAudio.src=blob:null/681b3dd0-961d-4431-895c-92f061618ed9

所以先去解决:

【已解决】js警告:URL.createObjectURL with media streams is deprecated use HTMLMediaElement.srcObject instead

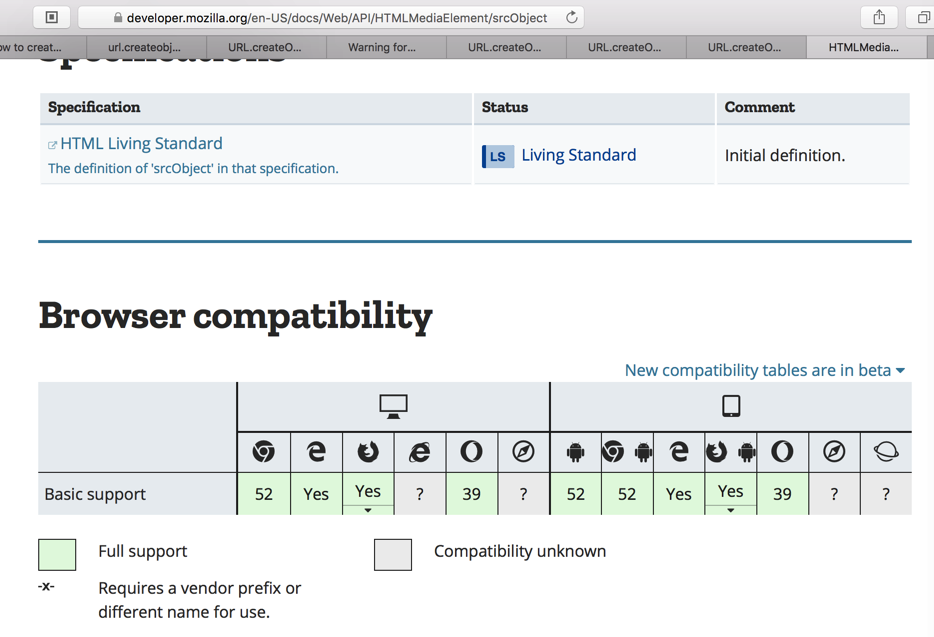

且对于HTMLMediaElement.srcObject来说,浏览器支持度还是不错的:

https://developer.mozilla.org/en-US/docs/Web/API/HTMLMediaElement/srcObject

继续参考:

https://developers.google.com/web/fundamentals/media/recording-audio/

去试试getUserMedia的AudioContext:

【未解决】getUserMedia后用AudioContext去实现获取麦克风录音数据

暂时没搞定如何通过AudioContext去录音,看到别人提到了MediaRecorder,感觉更像是我们要的,所以去试试:

【已解决】getUserMedia后用MediaRecorder去获取麦克风录音数据

然后接着去优化一下:

如何保存数据供本地下载

如何把blob编码为pcm,wav,amr,mp3等其他格式

试试其他audio的参数

MediaRecorder() – Web APIs | MDN

试试

audioBitsPerSecond : 128000,

继续参考demo

https://github.com/mozdevs/MediaRecorder-examples

看看是否有其他好用的东西借鉴过来

streamproc/MediaStreamRecorder: Cross browser audio/video/screen recording. It supports Chrome, Firefox, Opera and Microsoft Edge. It even works on Android browsers. It follows latest MediaRecorder API standards and provides similar APIs.

看起来很不错啊,至少封住接口,且更好用了。

不过参考:

https://medium.com/@bryanjenningz/how-to-record-and-play-audio-in-javascript-faa1b2b3e49b

还是应该

在dataavailable只是保存数据

而在stop时才去后续处理,比如保存数据到audio或文件

所以去优化为:

    function testMediaRecorder(mediaStream){

        console.log("testMediaRecorder: mediaStream=%o", mediaStream);

        const options = {

            mimeType: ‘audio/webm’,

            audioBitsPerSecond : 128000, //128Kbit/s

        };

        if (MediaRecorder.isTypeSupported(options.mimeType)) {

            console.log("support options=%o", options);

        } else {

            console.log(options.mimeType + ‘ is not Supported’);

        }

        const recordedBlobChunks = [];

        const mediaRecorder = new MediaRecorder(mediaStream, options);

        console.log("mediaRecorder=%o", mediaRecorder);

        mediaRecorder.addEventListener(‘dataavailable’, function(e) {

            console.log("dataavailable: e.data.size=%d, e.data=%o", e.data.size, e.data);

            if (e.data.size > 0) {

                recordedBlobChunks.push(e.data);

                console.log("recordedBlobChunks=%o", recordedBlobChunks);

            }

        });

        $( "#stopSpeak" ).on( "click", function() {

            console.log("#stopSpeak clicked");

            mediaRecorder.stop();

        });

        mediaRecorder.addEventListener(‘stop’, function() {

            console.log("mediaRecorder stoped");

            playRecordedAudio(recordedBlobChunks);

        });

        console.log("before start: mediaRecorder.state=%s", mediaRecorder.state);

        mediaRecorder.start();

        // mediaRecorder.start(100);

        console.log("after  start: mediaRecorder.state=%s", mediaRecorder.state);

    }

    function playRecordedAudio(recordedBlobChunks){

        console.log("playRecordedAudio: recordedBlobChunks=%o", recordedBlobChunks);

        var inputAudio = document.getElementById(‘inputAudio’);

        // var inputAudio = $("#inputAudio");

        console.log("inputAudio=o", inputAudio);

        var allBlob = new Blob(recordedBlobChunks);

        console.log("allBlob=o", allBlob);

        inputAudio.src = URL.createObjectURL(allBlob);

        console.log("inputAudio.src=%o", inputAudio.src);

        inputAudio.play();

    }

这个是demo:

WebRTC Audio Recording using MediaStreamRecorder

MediaStreamRecorder/audio-recorder.html at master · streamproc/MediaStreamRecorder

暂时想要去自己用上面代码自己处理保存算了

去弄:

【已解决】js中保存MediaRecorder录音的blob数据到文件中并下载

再去搞清楚:

【已解决】js中MediaRecorder录音支持哪些音频格式

而如果想要支持其他格式,则可以去用MediaStreamRecorder

【已解决】js的MediaRecorder的浏览器支持情况和相关polyfill

结论是:

最好还是用MediaStreamRecorder,以便于此处基于MediaRecorder的代码可以在Chrome,Safari等浏览器运行。

【未解决】换用MediaStreamRecorder实现麦克风录音且支持多个浏览器和wav格式

不过看:

https://github.com/streamproc/MediaStreamRecorder

提示说还有另外一个类似的项目:

muaz-khan/RecordRTC: WebRTC JavaScript library for audio/video as well as screen activity recording. It supports Chrome, Firefox, Opera, Android, and Microsoft Edge. Platforms: Linux, Mac and Windows.

支持浏览器也很多

demo:

RecordRTC | WebRTC Audio+Video+Screen Recording

有机会再去试试

如果实在不行,可以考虑试试格式抓换:

而具体要转换为别的什么格式,则需要去参考:

【已解决】用和适在线的语言合成接口把文字转语音

【已解决】把产品demo中语音合成接口换成微软必应语音

找到:

百度

http://ai.baidu.com/docs#/ASR-API/top

  • pcm(不压缩)

  • wav(不压缩,pcm编码)

  • amr(压缩格式)

微软:

https://azure.microsoft.com/zh-cn/services/cognitive-services/speech-to-text/

-》

Get started with the Microsoft Speech Recognition API by using REST | Microsoft Docs

“* Content-type: The Content-type field describes the format and codec of the audio stream. Currently, only WAV file and PCM Mono 16000 encoding is supported. The Content-type value for this format is audio/wav; codec=audio/pcm; samplerate=16000.”

->

  • wav

  • pcm

【已解决】js中实现音频从webm转换为其他比如wav格式
