【整理】芯片:7WA97 JY973 Micron的MT29P

Embedded crifan 138浏览 0评论

【整理】常见智能音箱类产品的主控芯片CPU SoC

中看到的:

小问智能音箱仅重280克,同时不需要线缆,可以跟随你去任何地方,还可以控制多种家电,方便生活。

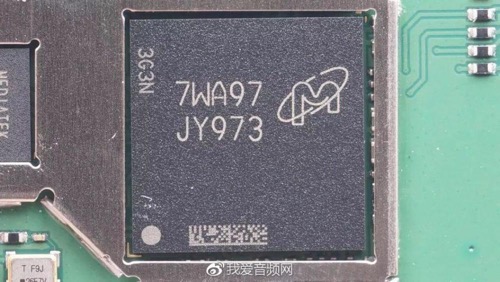

7WA97 JY973

根据资料:

年度盘点:12款内置MTK联发科方案智能音箱拆解汇总 – 简书

解释是:

来自镁光PoP封装芯片,这是一颗多合一的芯片,包含了4GB eMMC 、512MB LPDDR,以及MTK MT2601  1.2G双核处理器。

联发科MT2601专为穿戴式设备设计,配合自家配套解决方案,成为智能设备中的一匹黑马。

-》

但是也是想知道:

怎么从:

7WA97 JY973

找到:具体是哪款芯片,“来自镁光PoP封装芯片”的

7WA97 micron

没怎么搜到。

不过另外搜:

JY973 micron

找到了:

Micron 型号速查 (美光常用型号) « 普瑞斯科技有限公司

JY973 MT29PZZZ4D4BKEPK-18 W.94.H

JY973 micron – Google 搜索

-》

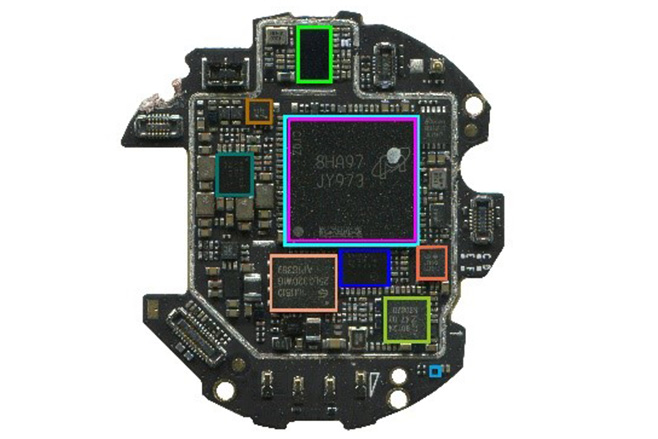

eWiseTech | 手机拆解 | 智能设备 | 工艺分析 | 拆解报告 | IC | 芯片分析 | Teardown Report | E拆解:买华米智能手表的快来看看你买的满意吗?

  • 8HA97

  • JY 973

去搜:

MT29PZZZ4D4BKEPK

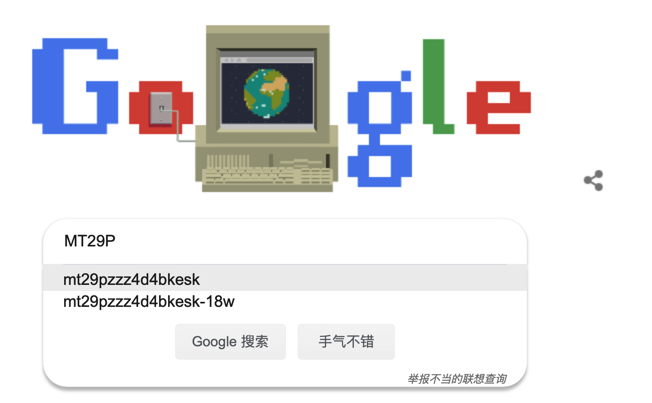

-》根据之前经验,只需要搜前面一部分字母即可:

MT29

MT29P

MT29PZ

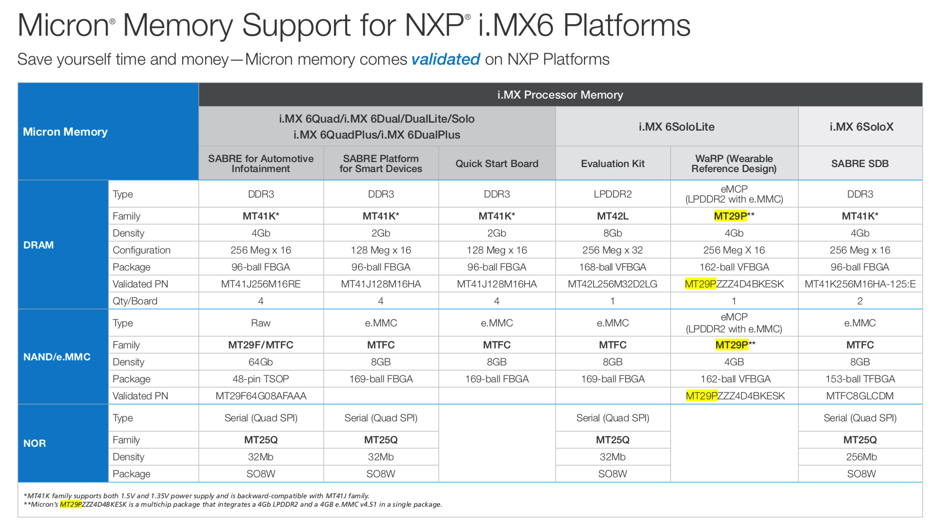

Micron® Memory Support for NXP Platforms

  • MT29PZZZ4D4BKESK

  • MT29P family

  • 说明:

    • Micron’s MT29PZZZ4D4BKESK is a multichip package that integrates a 4Gb LPDDR2 and a 4GB e.MMC v4.51 in a single package

    • 镁光的MT29PZZZ4D4BKESK是一颗多芯片封装

      • 单颗芯片包含了:

        • 4Gb=512MB LPDDR2

        • 4GB e.MMC

Micron MT29P Components / Parts brokers, Distributors and Dealers

Micron MT29P

-》

MT29P Brokers, Distributors & Dealers

可以找到很多相关芯片:

  • MT29PZZ4D4WKETF-18W

  • MT29PZZZ4C4WKETF-18W6E4

  • MT29PZZZ4C4WKETF-18W.6E4

  • MT29PZZZ4D4BKEPK-18W.94H

  • MT29PZZZ4D4BKEPK-18W.94HTR

  • 等等等等

直接搜MT29PZZZ4D4BKEPK:

MT29PZZZ4D4BKEPK Brokers, Distributors & Dealers

-》

  • MT29PZZZ4D4BKEPK-18W.94H

  • MT29PZZZ4D4BKEPK-18W.94HTR

Get a Broker Forum free trial – the electronic components industry’s #1 network for brokers & distributors

要注册和登录才能看

MT29PZZZ4D4BKEPK

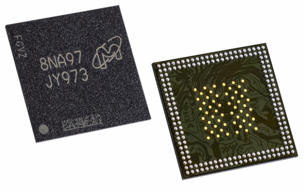

MT29PZZZ4D4BKEPK-18 W.94H TR Micron | Mouser

多芯片封装 SLC EMMC/LPDDR2 36G

MT29PZZZ4D4BKEPK-18 W.94H TR Micron Technology Inc. | Integrated Circuits (ICs) | DigiKey

https://www.verical.com/datasheet/micron-technology-combo-memory-mt29pzzz4d4bkepk-18-w-94h-1941100.pdf

MT29PZZZ4D4BKEPK-18 W.94H TR – Micron – Datasheet, Prices & Inventory | ECIA

Product Category:Multichip Packages

Maximum Clock Frequency:533 MHz

Maximum Operating Temperature:+ 85 C

Minimum Operating Temperature:- 30 C

Memory Size:4 GB, 4 Gbit

Mounting Style:SMD/SMT

Package / Case:VFBGA-168

Type:eMMC, Mobile LPDDR

MT29P micron

MT29P micron cpu

MT29P micron soc

MT29P 集成

https://www.micron.com/-/media/client/global/documents/products/other-documents/nxp_compatibility_chart.pdf?la=en

->

i.MX 6SoloLite

i.MX Processor Memory

google搜:i.MX 6SoloLite

i.MX 6SoloLite Applications Processor | Single Arm® Cortex®-A9 @1 GHz | NXP

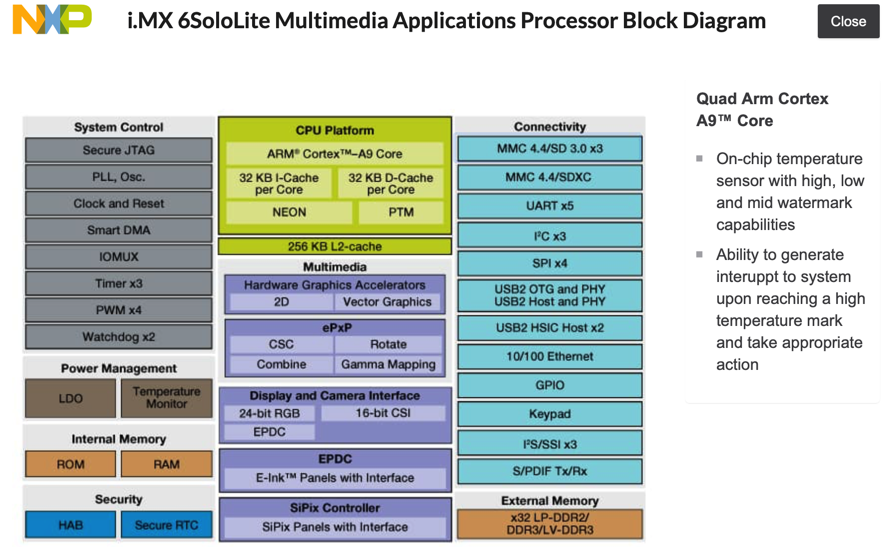

i.MX 6SoloLite Multimedia Applications Processor Block Diagram

https://www.nxp.com/docs/en/data-sheet/IMX6SLCEC.pdf

The i.MX 6SoloLite processor represents the latest achievement in integrated multimedia applications processors, which are part of a growing family of multimedia-focused products that offer high performance processing and are optimized for lowest power consumption.

The processor features NXP’s advanced implementation of the a single ARM® Cortex®-A9 MPCoreTM multicore processor, which operates at speeds up to 1 GHz. It includes 2D graphics processor and integrated power management. The processor provides a 32-bit DDR3-800 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, BluetoothTM, GPS, hard drive, displays, and camera sensors.

The i.MX 6SoloLite processor is specifically useful for applications, such as:

* Color and monochrome eReaders

* Entry level tablets

* Barcode scanners

i.MX 6SoloLite Evaluation Kit | NXP

The i.MX 6SoloLite is the first system-on-a-chip (SoC) with a high-performance 1 GHz Arm® Cortex®-A9 CPU and integrated E Ink® and Sipix® display controllers to drive current and next-generation electronic paper display (EPD) panels.

截至目前:

只从:

7WA97 JY973

中的:

JY973 micron

找到:

JY973 MT29PZZZ4D4BKEPK-18 W.94.H

然后找:

MT29PZZZ4D4BKEPK

MT29P

最后也只找到了:

此芯片是:

多芯片封装 SLC EMMC/LPDDR2 36G

根据:

https://www.micron.com/-/media/client/global/documents/products/other-documents/nxp_compatibility_chart.pdf?la=en

介绍,属于一个系列:

i.MX 6SoloLite

其本身是一个:SoC

基本参数是:

  • 1 GHz Arm® Cortex®-A9 CPU

  • E Ink® display controllers

  • Sipix® display controllers

主要用于:

  • electronic paper display (EPD) panels领域的:Color and monochrome eReaders

  • Entry level tablets

  • Barcode scanners

但是没有找到说是:

Micron MT29P内部集成了MTK MT2601

micron MT29P mtk MT2601

micron MT29P   MT2601

MT29P   MT2601

-》

不知道:

年度盘点:12款内置MTK联发科方案智能音箱拆解汇总 – 简书

是怎么找到这个信息的:

Micron MT29P内部集成了MTK MT2601

暂时未知。
