[记录]折腾iOS中分段显示的控件库

iOS crifan 377浏览 0评论

iOS 顺序 分段 显示 控件 的库

分段选择(Segment) – iOS代码库 – 开源中国社区

AksSegmentedSliderControl首页、文档和下载 – 分段选择(Segment) – 开源中国社区

ios UISegmentedControl directional

ios Segmented slider

ShadyElyaski/ios-filter-control: An iOS Filter UIControl Subclass. Zero Graphics. Highly Customizable.

rangeslider – How to Create Range Slider Programatically in iOS? – Stack Overflow

mikeplatt/MJPSlider: iOS Slider with segments, flag and label

[总结]

BASequenceControl首页、文档和下载 – 分段选择(Segment) – 开源中国社区

或:

ShadyElyaski/ios-filter-control: An iOS Filter UIControl Subclass. Zero Graphics. Highly Customizable.

或:

AksSegmentedSliderControl首页、文档和下载 – 分段选择(Segment) – 开源中国社区

或:

用官方的:

UIKit User Interface Catalog: Segmented Controls

然后想办法,不让往回拖动。

这个也可以看看:

iOS Stepper UI首页、文档和下载 – 高级UI组件(Advanced) – 开源中国社区

然后去折腾:

AksSegmentedSliderControl首页、文档和下载 – 分段选择(Segment) – 开源中国社区

想要画出来类似于这种的效果:

然后最好画出来成带分支的:

这个好像也不错:

ShadyElyaski/ios-filter-control: An iOS Filter UIControl Subclass. Zero Graphics. Highly Customizable.

swift horizontal picker

swift horizontal filter

swift horizontal selector

swift segment slider

UISlider Tutorial in iOS8 with Swift – iOScreator

UISlider example (iOS Slider) using swift

滑杆(Slider) – iOS代码库 – 开源中国社区

滑杆(Slider) – 代码库 – CocoaChina_让移动开发更简单

MCSelectSlider – 代码库 – CocoaChina_让移动开发更简单

make color sliders in swift | Making App Pie

swift section slider

swift section slide

ios segment slide with branch

结论:

尽量用:

ShadyElyaski/ios-filter-control: An iOS Filter UIControl Subclass. Zero Graphics. Highly Customizable.

或:

AksSegmentedSliderControl首页、文档和下载 – 分段选择(Segment) – 开源中国社区

然后参考代码:

mafangchao/MCSelectSlider

仿优步下边滑动菜单视图 – 代码库 – CocoaChina_让移动开发更简单

去安装:

https://github.com/ShadyElyaski/ios-filter-control

github "ShadyElyaski/ios-filter-control"

carthage update ios-filter-control

licrifandeMacBook-Pro:QorosSales crifan$ carthage update ios-filter-control

*** Cloning ios-filter-control

*** Fetching Charts

*** Fetching Cartography

*** Checking out ios-filter-control at "2.0.0"

*** xcodebuild output can be found in /var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/carthage-xcodebuild.eOM867.log

*** Skipped building ios-filter-control due to the error:

Dependency "ios-filter-control" has no shared framework schemes

If you believe this to be an error, please file an issue with the maintainers at https://github.com/ShadyElyaski/ios-filter-control/issues/new

只能去cocoapods去安装了:

target ‘QorosSales’ do

    pod "KKGestureLockView"

    pod ‘DBGuestureLock’, ‘~> 0.0.2’

    pod ‘SEFilterControl’

end

然后去:

licrifandeMacBook-Pro:QorosSales crifan$ pod install

Analyzing dependencies

Downloading dependencies

Using DBGuestureLock (0.0.2)

Using KKGestureLockView (1.0.0)

Installing SEFilterControl (2.0.0)

Generating Pods project

Integrating client project

Sending stats

Pod installation complete! There are 3 dependencies from the Podfile and 3 total pods installed.

licrifandeMacBook-Pro:QorosSales crifan$

然后可以说是基本上是可以用的:

//

//  SegmentSlideViewController.swift

//  QorosSales

//

//  Created by licrifan on 16/5/17.

//  Copyright © 2016年 licrifan. All rights reserved.

//

import UIKit

import SEFilterControl

import Cartography

class SegmentSlideViewController: UIViewController {

    let slideTitleList:[String] = ["首次联系", "邀约到店", "试驾", "报价", "下单", "交车", "战败"]

    let slideLabelList:[String] = ["1", "2", "3", "4", "5", "6", "7"]

    let segmentSliderView:SEFilterControl



    init() {

        let slideFrame = CGRectMake(

            0,

            UIApplication.sharedApplication().statusBarFrame.height + 10,

            UIScreen.mainScreen().bounds.width,

            100)

        //self.segmentSliderView = SEFilterControl(frame: CGRectZero, titles: slideTitleList)

        self.segmentSliderView = SEFilterControl(frame: slideFrame, titles: slideTitleList)

        //self.segmentSliderView = SEFilterControl(frame: slideFrame)

//        self.segmentSliderView = SEFilterControl(frame: slideFrame, titles: slideTitleList, labels: slideLabelList)

        super.init(nibName: nil, bundle: nil)

    }



    required init?(coder aDecoder: NSCoder) {

        fatalError("init(coder:) has not been implemented")

    }



    override func viewDidLoad() {

        super.viewDidLoad()

        if let tabBarController = self.tabBarController {

            TabBarHeight = tabBarController.tabBar.frame.height //49

        }



        self.segmentSliderView.backgroundColor = UIColor.lightGrayColor()



        //self.segmentSliderView.setTitles(slideTitleList, labels: slideLabelList)



        self.view.addSubview(self.segmentSliderView)

//        constrain(segmentSliderView) {segmentSliderView in

//            segmentSliderView.top == segmentSliderView.superview!.top + UIApplication.sharedApplication().statusBarFrame.height

//            segmentSliderView.bottom == segmentSliderView.superview!.bottom – TabBarHeight

//            segmentSliderView.left == segmentSliderView.left

//            segmentSliderView.right == segmentSliderView.right

//        }



//        self.segmentSliderView.frame = CGRectMake(0, UIApplication.sharedApplication().statusBarFrame.height, UIScreen.mainScreen().bounds.width, UIScreen.mainScreen().bounds.height – TabBarHeight)

    }

}

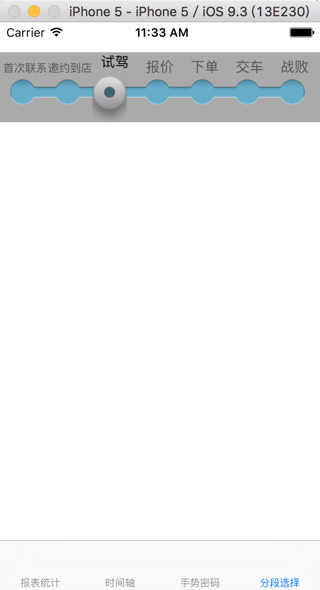

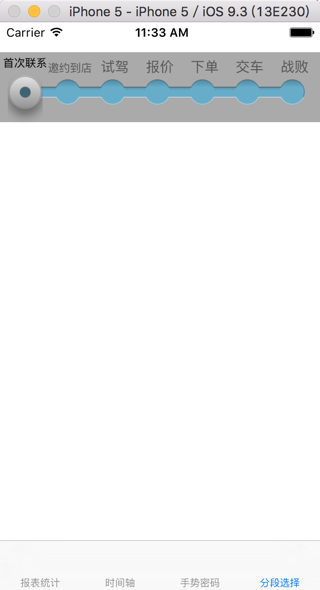

效果:

但是很多问题和限制:

高度无法改变,只能是默认的其自己定义的

#define SEFilterControl_HEIGHT                              70

然后:

如果换成一起初始化title和label的话:

class SegmentSlideViewController: UIViewController {

    let slideTitleList:[String] = ["首次联系", "邀约到店", "试驾", "报价", "下单", "交车", "战败"]

    let slideLabelList:[String] = ["1", "2", "3", "4", "5", "6", "7"]

    let segmentSliderView:SEFilterControl



    init() {

        let slideFrame = CGRectMake(

            0,

            UIApplication.sharedApplication().statusBarFrame.height + 10,

            UIScreen.mainScreen().bounds.width,

            100)

        //self.segmentSliderView = SEFilterControl(frame: CGRectZero, titles: slideTitleList)

//        self.segmentSliderView = SEFilterControl(frame: slideFrame, titles: slideTitleList)

        //self.segmentSliderView = SEFilterControl(frame: slideFrame)

        self.segmentSliderView = SEFilterControl(frame: slideFrame, titles: slideTitleList, labels: slideLabelList)

        super.init(nibName: nil, bundle: nil)

    }

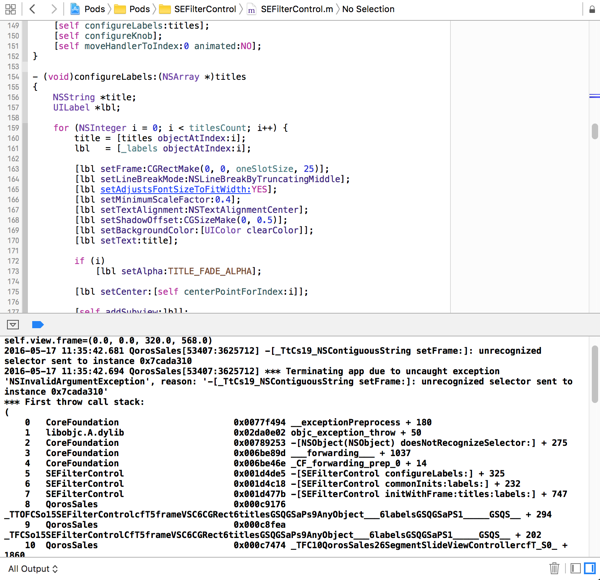

则会挂掉:

我也懒得去再去深究其代码了。。。

先去试试,再去定制颜色方面,看看能否达到基本的效果

用代码:

//

//  SegmentSlideViewController.swift

//  QorosSales

//

//  Created by licrifan on 16/5/17.

//  Copyright © 2016年 licrifan. All rights reserved.

//

import UIKit

import SEFilterControl

import Cartography

class SegmentSlideViewController: UIViewController {

    let slideTitleList:[String] = ["首次联系", "邀约到店", "试驾", "报价", "下单", "交车", "战败"]

    //let slideLabelList:[String] = ["1", "2", "3", "4", "5", "6", "7"]

    let segmentSliderView:SEFilterControl



    init() {

        let slideFrame = CGRectMake(

            0,

            UIApplication.sharedApplication().statusBarFrame.height + 10,

            UIScreen.mainScreen().bounds.width,

            100)

        //self.segmentSliderView = SEFilterControl(frame: CGRectZero, titles: slideTitleList)

        self.segmentSliderView = SEFilterControl(frame: slideFrame, titles: slideTitleList)

        //self.segmentSliderView = SEFilterControl(frame: slideFrame)

        //self.segmentSliderView = SEFilterControl(frame: slideFrame, titles: slideTitleList, labels: slideLabelList)

        super.init(nibName: nil, bundle: nil)

    }



    required init?(coder aDecoder: NSCoder) {

        fatalError("init(coder:) has not been implemented")

    }



    override func viewDidLoad() {

        super.viewDidLoad()

        if let tabBarController = self.tabBarController {

            TabBarHeight = tabBarController.tabBar.frame.height //49

        }

        //self.segmentSliderView.setTitles(slideTitleList, labels: slideLabelList)

        //self.segmentSliderView.backgroundColor = UIColor.lightGrayColor()

        self.segmentSliderView.backgroundColor = UIColor.whiteColor()

        let titleNodeColor:UIColor = UIColor.purpleColor()

        self.segmentSliderView.titlesColor = titleNodeColor

        self.segmentSliderView.titlesShadowColor = UIColor.redColor()

        self.segmentSliderView.progressColor = titleNodeColor

        self.segmentSliderView.titlesFont = UIFont.systemFontOfSize(9)

        self.segmentSliderView.handler.shadow = false



        self.view.addSubview(self.segmentSliderView)

//        constrain(segmentSliderView) {segmentSliderView in

//            segmentSliderView.top == segmentSliderView.superview!.top + UIApplication.sharedApplication().statusBarFrame.height

//            segmentSliderView.bottom == segmentSliderView.superview!.bottom – TabBarHeight

//            segmentSliderView.left == segmentSliderView.left

//            segmentSliderView.right == segmentSliderView.right

//        }



//        self.segmentSliderView.frame = CGRectMake(0, UIApplication.sharedApplication().statusBarFrame.height, UIScreen.mainScreen().bounds.width, UIScreen.mainScreen().bounds.height – TabBarHeight)

    }

}

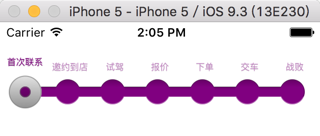

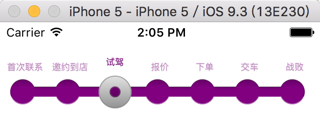

效果:

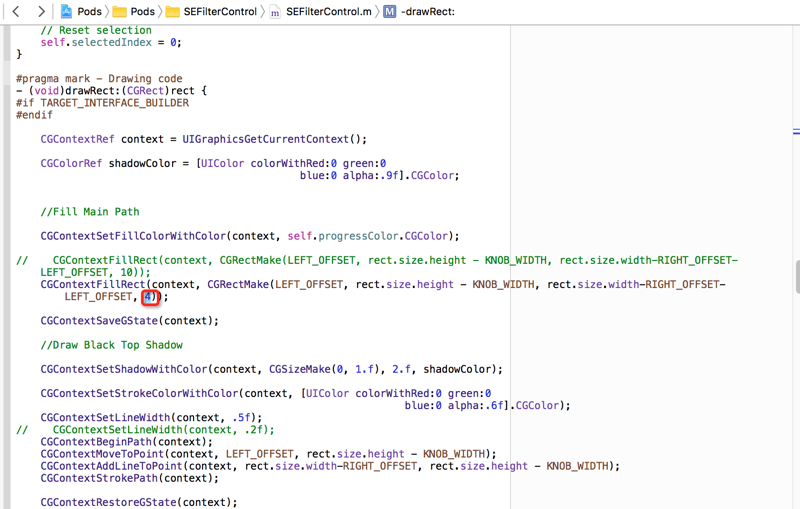

然后再去想办法,降低线的宽度,试了半天,终于找到设置的地方了:

直接去改源码:

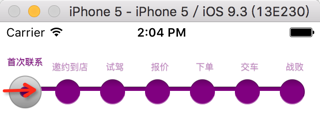

但是出来的效果,却是不对齐了:

总的来说,还是不够好用啊。

再去试试:

https://github.com/aryansbtloe/AksSegmentedSliderControl

用代码:

//

//  SegmentSlideViewController.swift

//  QorosSales

//

//  Created by licrifan on 16/5/17.

//  Copyright © 2016年 licrifan. All rights reserved.

//

import UIKit

import SEFilterControl

import Cartography

class SegmentSlideViewController: UIViewController, AKSSegmentedSliderControlDelegate {

    //let slideTitleList:[String] = ["首次联系", "邀约到店", "试驾", "报价", "下单", "交车", "战败"]

    //let slideLabelList:[String] = ["1", "2", "3", "4", "5", "6", "7"]

    let segmentSliderView:AKSSegmentedSliderControl



    init() {

        self.segmentSliderView = AKSSegmentedSliderControl()

        super.init(nibName: nil, bundle: nil)

    }

    required init?(coder aDecoder: NSCoder) {

        fatalError("init(coder:) has not been implemented")

    }



    override func viewDidLoad() {

        super.viewDidLoad()

        if let tabBarController = self.tabBarController {

            TabBarHeight = tabBarController.tabBar.frame.height //49

        }



        self.segmentSliderView.backgroundColor = UIColor.whiteColor()



        self.segmentSliderView.delegate = self

        self.segmentSliderView.moveToIndex(2)

        //self.segmentSliderView.spaceBetweenPoints = 44.75

        self.segmentSliderView.spaceBetweenPoints = 29.5

        self.segmentSliderView.radiusPoint = 10

        //self.segmentSliderView.heightLine = 9

        self.segmentSliderView.heightLine = 3

        self.segmentSliderView.numberOfPoints = 7

        self.segmentSliderView.shadowColor = UIColor.purpleColor()

//        self.segmentSliderView.strokeColor = UIColor.purpleColor()

//        self.segmentSliderView.strokeColorForeground = UIColor.purpleColor()

//        self.segmentSliderView.strokeColorForeground = UIColor.purpleColor()



        self.view.addSubview(self.segmentSliderView)



//        constrain(segmentSliderView) {segmentSliderView in

//            segmentSliderView.top == segmentSliderView.superview!.top + UIApplication.sharedApplication().statusBarFrame.height

//            segmentSliderView.bottom == segmentSliderView.superview!.bottom – TabBarHeight

//            segmentSliderView.left == segmentSliderView.left

//            segmentSliderView.right == segmentSliderView.right

//        }



        self.segmentSliderView.frame = CGRectMake(0, UIApplication.sharedApplication().statusBarFrame.height, UIScreen.mainScreen().bounds.width, UIScreen.mainScreen().bounds.height – TabBarHeight)

    }

}

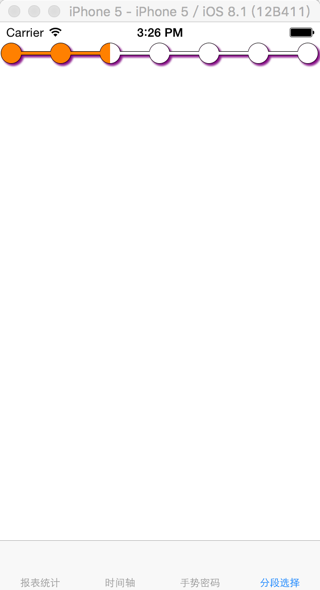

效果是:

也只算凑合用。很多内容,包括填充色,都无法设置。
