【整理】音频功放芯片:NXP TFA9895

Embedded crifan 617浏览 0评论

折腾了:

【整理】音频功放芯片:三星 T9895 音频功放芯片

后来参考:

两款爆品迷你智能音箱拆解对比:天猫精灵方糖、小爱mini-天猫精灵,方糖,小爱,小爱mini,迷你,智能音箱,拆解 ——快科技(原驱动之家)–全球最新科技资讯专业发布平台

的解释:

NXP TFA9895 D类音频放大器。右侧为升压电感,在低压供电时提供足够的输出功率。

-》看来是我搞错了。

再去找找:

T9895

HNU459

5D7021

T9895 nxp

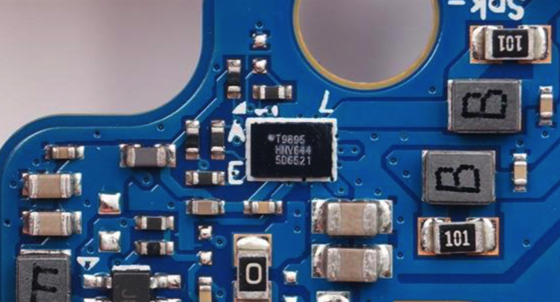

天猫精灵方糖 AI智能音箱(拆解+还原+简评)|拆机乐园 – 数码之家 – 第12页

“T9895, 就是NXP 的TFA9895, 在3.6V的时候4Ohm负载输出功率有2.56W, 本身就是带DAC的数字Class-D功放. 输入信号为I2S.”

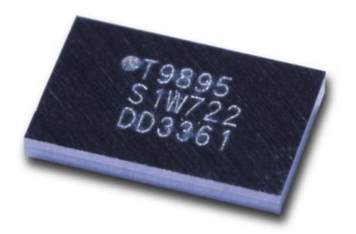

T9895 NXP Semiconductors, T9895 In-Stock, T9895 Specifications – Worldway Electronics

  • Part Number: T9895

  • Manufacturer: NXP Semiconductors

http://www.alldatasheet.net/view.jsp?Searchword=T9895

TFA9895 Stock and Price by Distributor

TFA9895BUK/N1Z NXP USA Inc. | 集成电路(IC) | DigiKey

NXP TFA9895

【总结】

  • 芯片:NXP TFA9895

  • 类型:Audio Amplifier IC 音频功放芯片

  • 作用:增强音频功率

  • 综述:

    • 增强型D类音频放大器,且具备扬声器升压保护和多频段动态范围压缩器

    • TFA9895是一款高效D类音频放大器,具有先进的扬声器升压保护算法,具有多频段压缩功能。它可以在电池电压为3.6 V下,为扬声器提供2.65 W(RMS; THD = 1%)输出功率。内部升压转换器将电源电压提升至5.3 V,为音质的重大改进提供充足的空间。

更详细的技术细节:

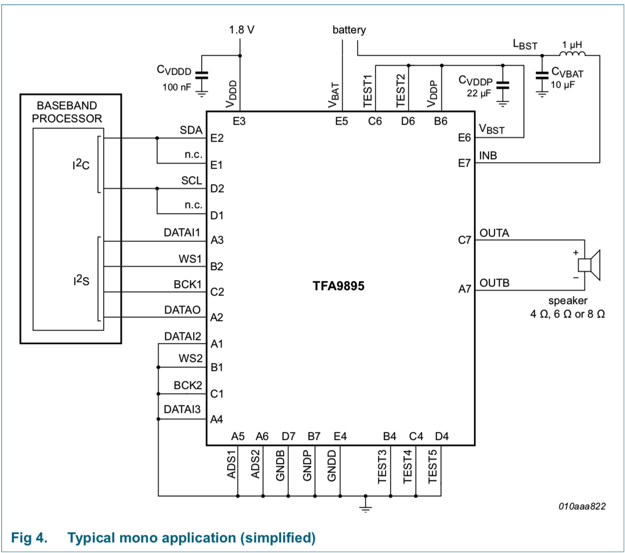

(1)Typical mono application (simplified)

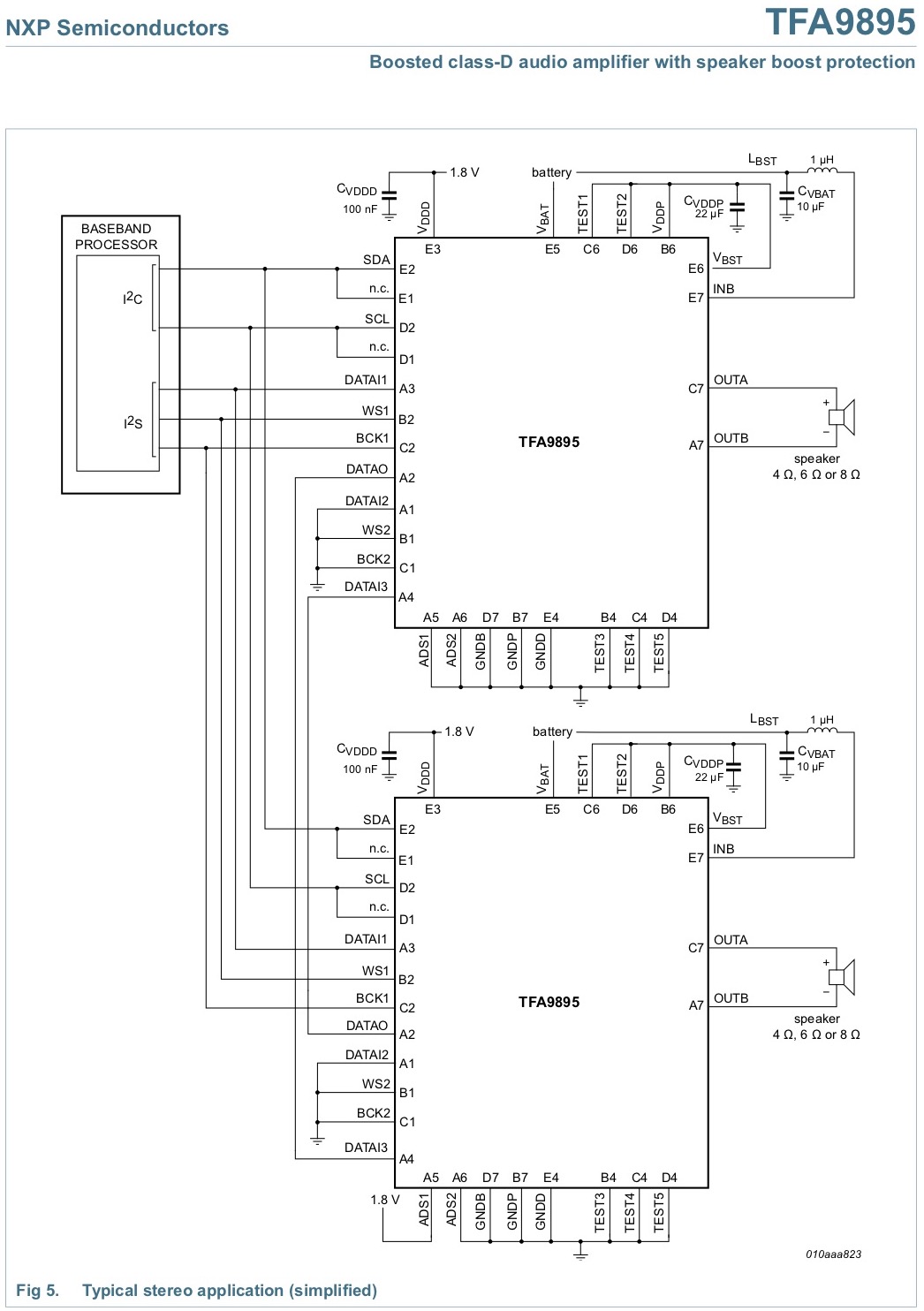

(2)Typical stereo application (simplified)

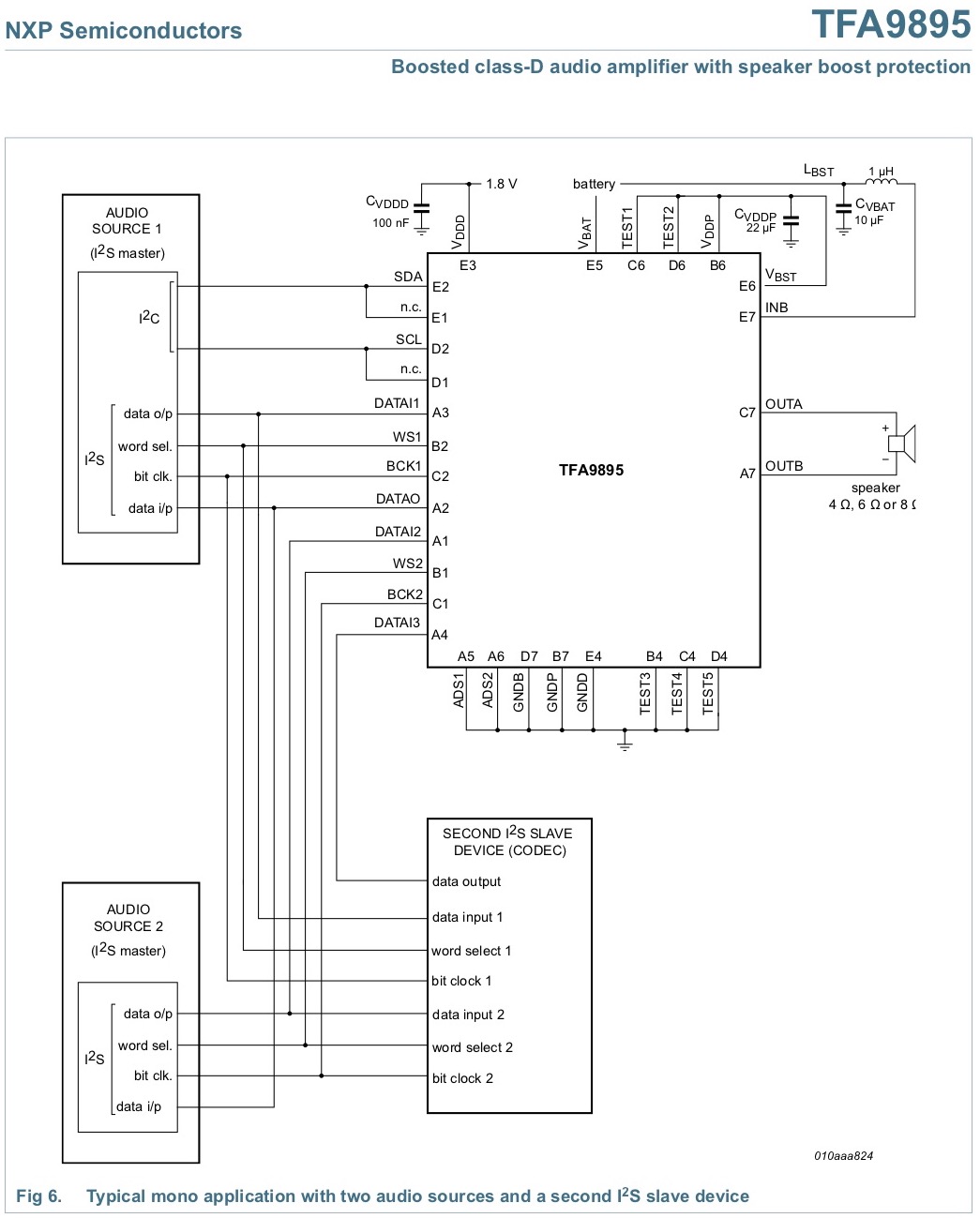

(3)Typical mono application with two audio sources and a second I2S slave device

还是去:

【整理】什么是Audio Amplifier IC音频功放芯片和Audio Pre-Amplified IC

【后记】

在:

【整理】拆解产品研究硬件资料BOM信息的心得

后,再去找找看

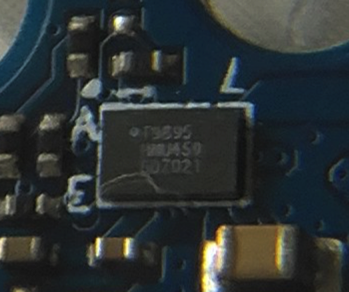

但是有点看不清

T9895

HNU459

5D7021

借助于google图片搜索,再去搜索:

T9895

搜到一些:

TFA9895

HUAWEI P8 ( T9895 )

NXP_mobile audio chip _introduce at seoul(7) | IT Eco Map & News Navigator

-》NXP mobile audio chip

Buy T9895 Audio Amplifier IC BGA Chip online | eBay

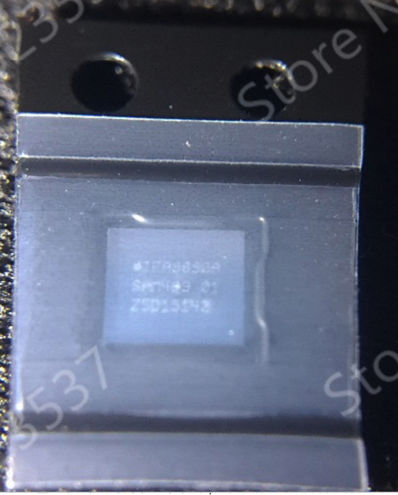

1PCS/LOT TFA9890A TFA9890 4375A T9895 T9897B T9897 T9887-in Replacement Parts & Accessories from Consumer Electronics on Aliexpress.com | Alibaba Group

Speaker boost IC aims to improve sound quality in smartphones | Smart2.0

NXP has extended its range of speaker driver ICs with the TFA9895 – its second-generation speaker boost solution – which improves the sound quality of handsets and tablets via a new multi-band compression feature which enhances the way music and voice sound, even at louder speaker volumes.

The multi-band processing feature in the TFA9895 improves audio quality at louder speaker volumes via more stable high-gain audio imaging. The TFA9895 also adds a high-frequency noise gate that improves the sound of poor-quality audio signals. Like its predecessor, the TFA9887, the TFA9895 offers a completely integrated small speaker driver, including integrated processing and an on-board 5-V DC/DC converter, as well as complete protection against speaker failure. Both ICs can deliver 4W of peak power into a 4-Ohm speaker that is conventionally limited to 0.5W.

HNU459

HMU459

HMU459 audio

HMU459 nxp

5D7021

5D7021 audio

507021 audio

5D7021 nxp

都搜不到

-》看来此处从marking的:

HNU459

5D7021

还是搜不到原始芯片的part number的

(也可能是由于文字看不清导致的)

不过倒是从:

T9895

可以搜到:部分文章是能说明是:

NXP TFA9895

的。
