【已解决】ECharts中柱状堆叠图去掉垂直的竖线

工作和技术 crifan 1448浏览 0评论

折腾:

【已解决】ReactJS中如何画左右叠加图的ECharts图表

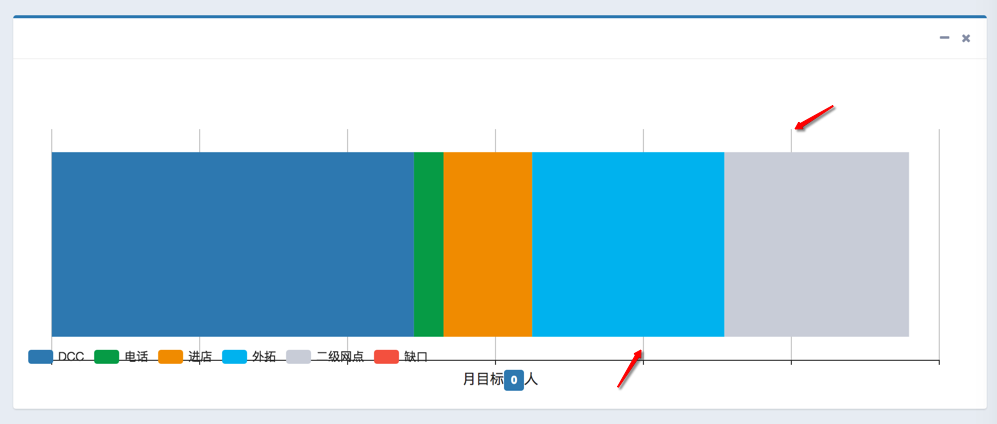

期间,希望把柱状堆叠图中的竖线去掉:

感觉和:

    let curEchartsOption = {
      tooltip : {
        trigger: ‘axis’,
        axisPointer : {            // 坐标轴指示器,坐标轴触发有效
          type : ‘shadow’        // 默认为直线,可选为:’line’ | ‘shadow’
        }
      },

或:

      grid: {
        left: ‘3%’,
        right: ‘4%’,
        bottom: ‘3%’,
        containLabel: false
      },

有关系?

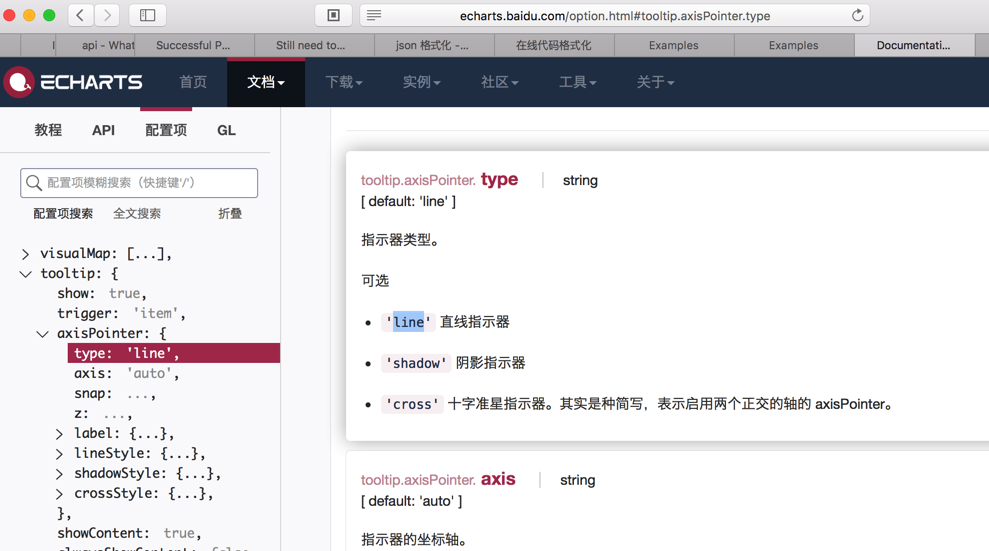

type从shadow改为line看看效果:

没变化。

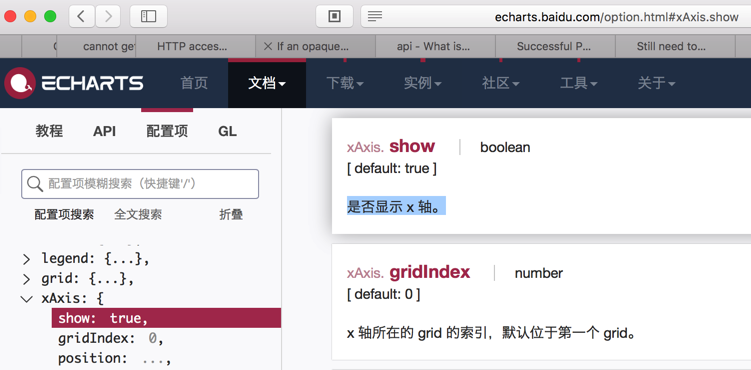

最后是看到:

去试了试:

      xAxis:  {
        show: false,
        type: ‘value’,
        // data: [49, 4, 12, 26, 25, 0]
        // splitArea: {
        //   show: true
        // }
      },

结果:

x轴就不显示了,也没了竖线了。

-》所以,此处的是否有竖线,不是grid配置的,而是xAxis决定的。

【总结】

最后通过把xAxis的show设为false,不显示x轴,而取消掉了竖线

代码:

    let curEchartsOption = {
      tooltip : {
        // trigger: ‘axis’,
        trigger: ‘item’,
        // axisPointer : {            // 坐标轴指示器,坐标轴触发有效
        //   // 默认为直线,可选为:’line’ | ‘shadow’
        //   // type : ‘shadow’
        //   type : ‘line’
        // }
      },
      legend: {
        show: true,
        // x: ‘left’,
        x: ‘center’,
        y: ‘bottom’,
        data: [
          ‘DCC’,
          // {
          //   name: ‘DCC’,
          //   textStyle: {
          //     color: ValueColor.DARK_BLUE
          //   }
          // },
          ‘电话’,
          ‘进店’,
          ‘外拓’,
          ‘二级网点’,
          ‘缺口’
        ]
      },
      // grid: {
      //   show: false,
      //   left: ‘3%’,
      //   right: ‘4%’,
      //   bottom: ‘3%’,
      //   containLabel: false
      // },
      xAxis:  {
        show: false,
        type: ‘value’,
        // data: [49, 4, 12, 26, 25, 0]
        // splitArea: {
        //   show: true
        // }
      },
      yAxis: {
        show: false,
        type: ‘category’,
        //data: [‘周一’,’周二’,’周三’,’周四’,’周五’,’周六’,’周日’]
        // data: [‘周一’]
        data: []
      },
      series:
      [
        {
          name: ‘DCC’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          itemStyle: {
            normal: {
              color: ValueColor.DARK_BLUE
            }
          },
          data: [
            49
            // {
            //   value: 49,
            //   label: {},
            //   itemStyle: {
            //     normal: {
            //       color: ValueColor.DARK_BLUE
            //     }
            //   }
            // }
          ]
        },
        {
          name: ‘电话’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          itemStyle: {
            normal: {
              color: ValueColor.GREEN
            }
          },
          data: [4]
        },
        {
          name: ‘进店’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          itemStyle: {
            normal: {
              color: ValueColor.YELLOW
            }
          },
          data: [12]
        },
        {
          name: ‘外拓’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          itemStyle: {
            normal: {
              color: ValueColor.LIGHT_BLUE
            }
          },
          data: [26]
        },
        {
          name: ‘二级网点’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          itemStyle: {
            normal: {
              color: ValueColor.GRAY
            }
          },
          data: [25]
        },
        {
          name: ‘缺口’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          itemStyle: {
            normal: {
              color: ValueColor.RED
            }
          },
          data: [0]
        }
      ]
    };

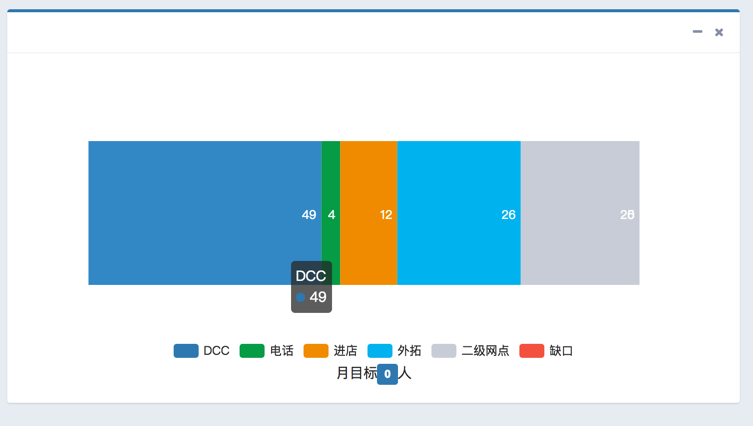

效果:
