【已解决】ReactJS中如何画左右叠加图的ECharts图表

ReactJS crifan 537浏览 0评论

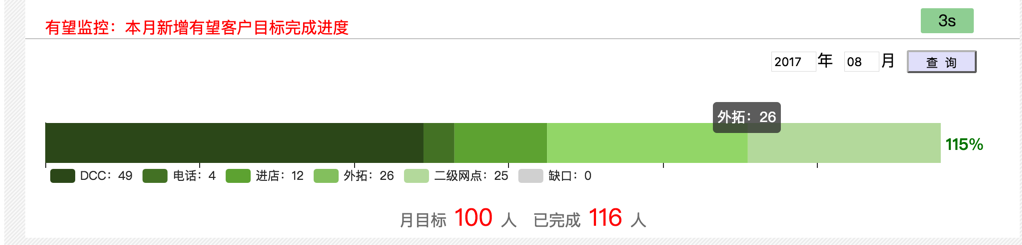

需要在ReactJS中画这种图表:

之前已经折腾过ReactJS中使用ECharts了:

【已解决】ReactJS的ReactJS-AdminLTE中添加ECharts

现在去官网:

ECharts Examples

找找是否有这样的例子。

看到这个

ECharts Examples 堆叠条形图

貌似最接近我们要的。

用官网示例代码:

   let curEchartsOption = {
      tooltip : {
        trigger: ‘axis’,
        axisPointer : {            // 坐标轴指示器,坐标轴触发有效
          type : ‘shadow’        // 默认为直线,可选为:’line’ | ‘shadow’
        }
      },
      legend: {
        data: [‘直接访问’, ‘邮件营销’,’联盟广告’,’视频广告’,’搜索引擎’]
      },
      grid: {
        left: ‘3%’,
        right: ‘4%’,
        bottom: ‘3%’,
        containLabel: true
      },
      xAxis:  {
        type: ‘value’
      },
      yAxis: {
        type: ‘category’,
        data: [‘周一’,’周二’,’周三’,’周四’,’周五’,’周六’,’周日’]
      },
      series: [
        {
          name: ‘直接访问’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [320, 302, 301, 334, 390, 330, 320]
        },
        {
          name: ‘邮件营销’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [120, 132, 101, 134, 90, 230, 210]
        },
        {
          name: ‘联盟广告’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [220, 182, 191, 234, 290, 330, 310]
        },
        {
          name: ‘视频广告’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [150, 212, 201, 154, 190, 330, 410]
        },
        {
          name: ‘搜索引擎’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [820, 832, 901, 934, 1290, 1330, 1320]
        }
      ]
    };

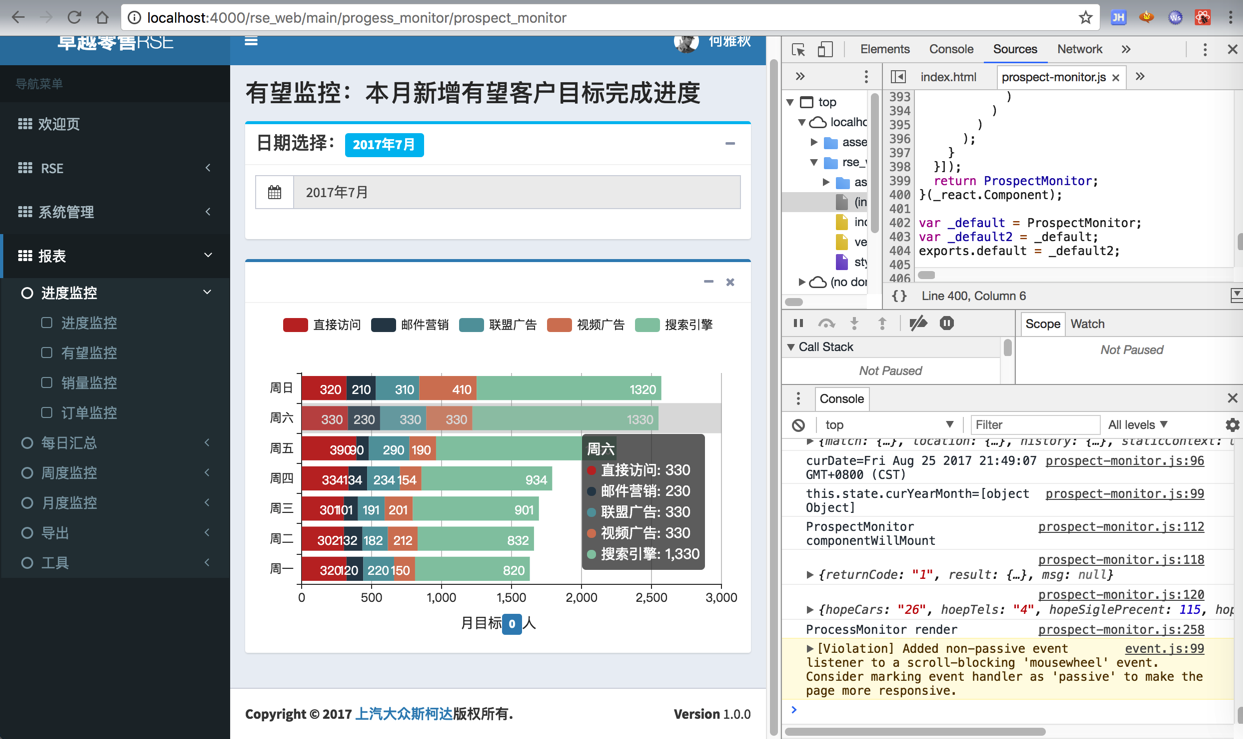

效果是:

echarts 柱状堆叠图

Echarts 柱状图 – Pagurian

ECharts系列 – 柱状图(条形图)实例 – 每天问问自己,你今天努力了吗? – CSDN博客

好像是去设置:xAxis或yAxis的show为false

暂时用代码:

let curEchartsOption = {
      tooltip : {
        trigger: ‘axis’,
        axisPointer : {            // 坐标轴指示器,坐标轴触发有效
          type : ‘shadow’        // 默认为直线,可选为:’line’ | ‘shadow’
        }
      },
      legend: {
        data: [‘直接访问’, ‘邮件营销’,’联盟广告’,’视频广告’,’搜索引擎’]
      },
      grid: {
        left: ‘3%’,
        right: ‘4%’,
        bottom: ‘3%’,
        containLabel: false
      },
      xAxis:  {
        type: ‘value’,
        data: [49, 4, 12, 26, 25, 0]
      },
      yAxis: {
        show: false,
        type: ‘category’,
        //data: [‘周一’,’周二’,’周三’,’周四’,’周五’,’周六’,’周日’]
        // data: [‘周一’]
        data: [‘周一’]
      },
      series:
      [
        {
          name: ‘直接访问’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [320, 302, 301, 334, 390, 330, 320]
        },
        {
          name: ‘邮件营销’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [120, 132, 101, 134, 90, 230, 210]
        },
        {
          name: ‘联盟广告’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [220, 182, 191, 234, 290, 330, 310]
        },
        {
          name: ‘视频广告’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [150, 212, 201, 154, 190, 330, 410]
        },
        {
          name: ‘搜索引擎’,
          type: ‘bar’,
          stack: ‘总量’,
          label: {
            normal: {
              show: true,
              position: ‘insideRight’
            }
          },
          data: [820, 832, 901, 934, 1290, 1330, 1320]
        }
      ]
    };

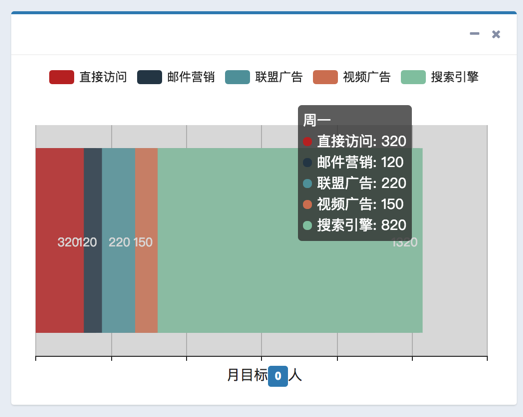

效果:

echarts 堆叠柱状图 单个

先去解决图例和数据颜色一致性的问题:

【已解决】ECharts中当是二维数组的堆积图中的图例颜色和x轴中数据颜色保持一致

再去想办法去掉竖直方向上的网格:

【已解决】ECharts中柱状堆叠图去掉垂直的竖线

然后再去优化一下配置。

然后又需要去:

【已解决】ECharts中水平的叠加柱状图的最右边显示值

就基本上解决了此处想要显示的效果了。
